40 Kg Mast / Tower Set

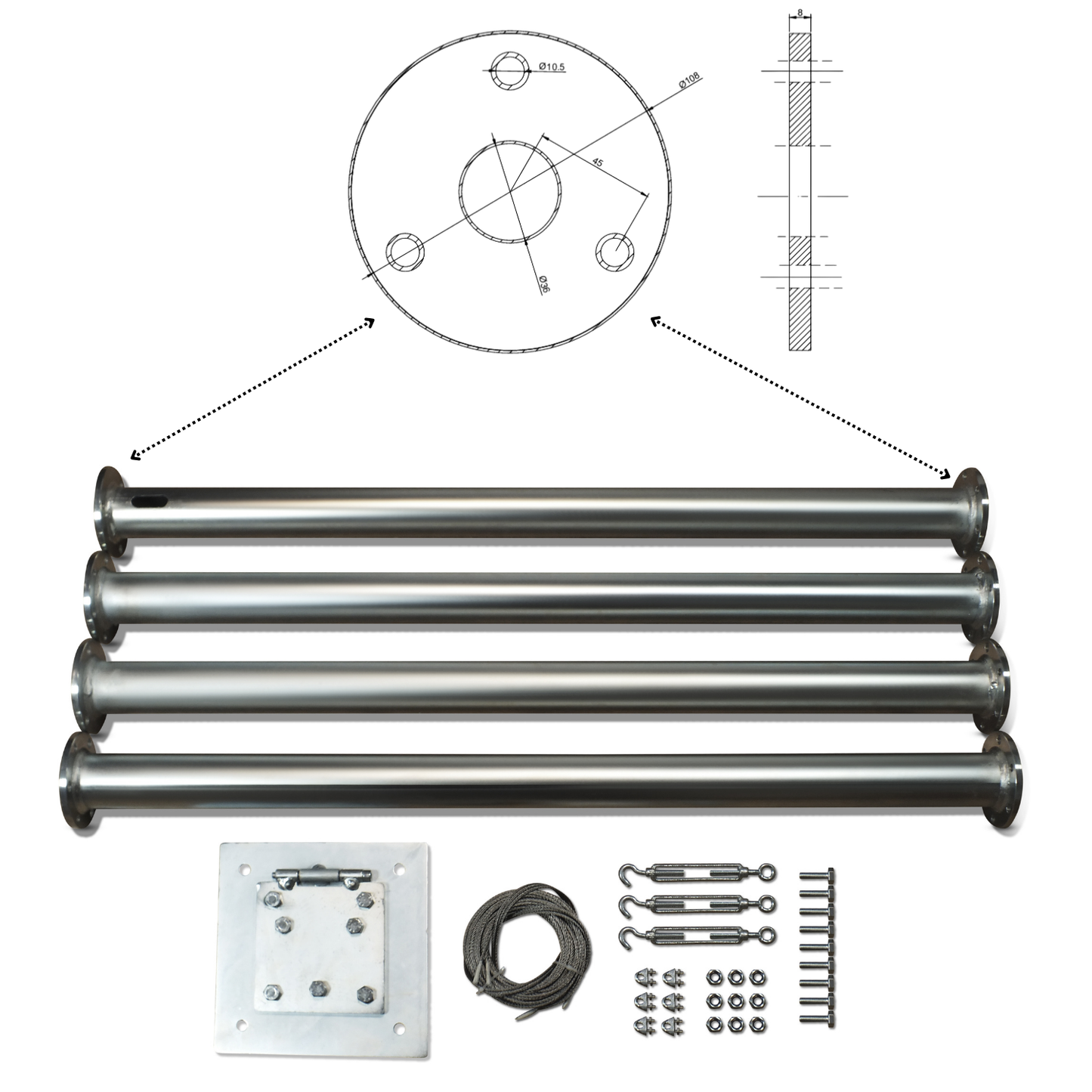

You can see technical drawing of Mast Set here -->

4 meters IstaBreeze TOWER for wind generator i700 - i2000 (Windsafe Models need adapter for it), IstaBreeze or wind generators up to 40 KG It has never been so easy to install a wind generator.



With the IstaBreeze Tower it is possible to build a wind generator in a few minutes.



The folding system simplifies the whole process. During maintenance, only a few screws are released and the tower can be folded for maintenance. Dowels and screws for the floor (concrete floor) is still needed !!



Thanks to the specially designed galvanized stainless steel tensioned pole, the installation of wind turbines is now very easy. Thanks to its hinged system, one person can easily install it and easily remove the turbine whenever they want.

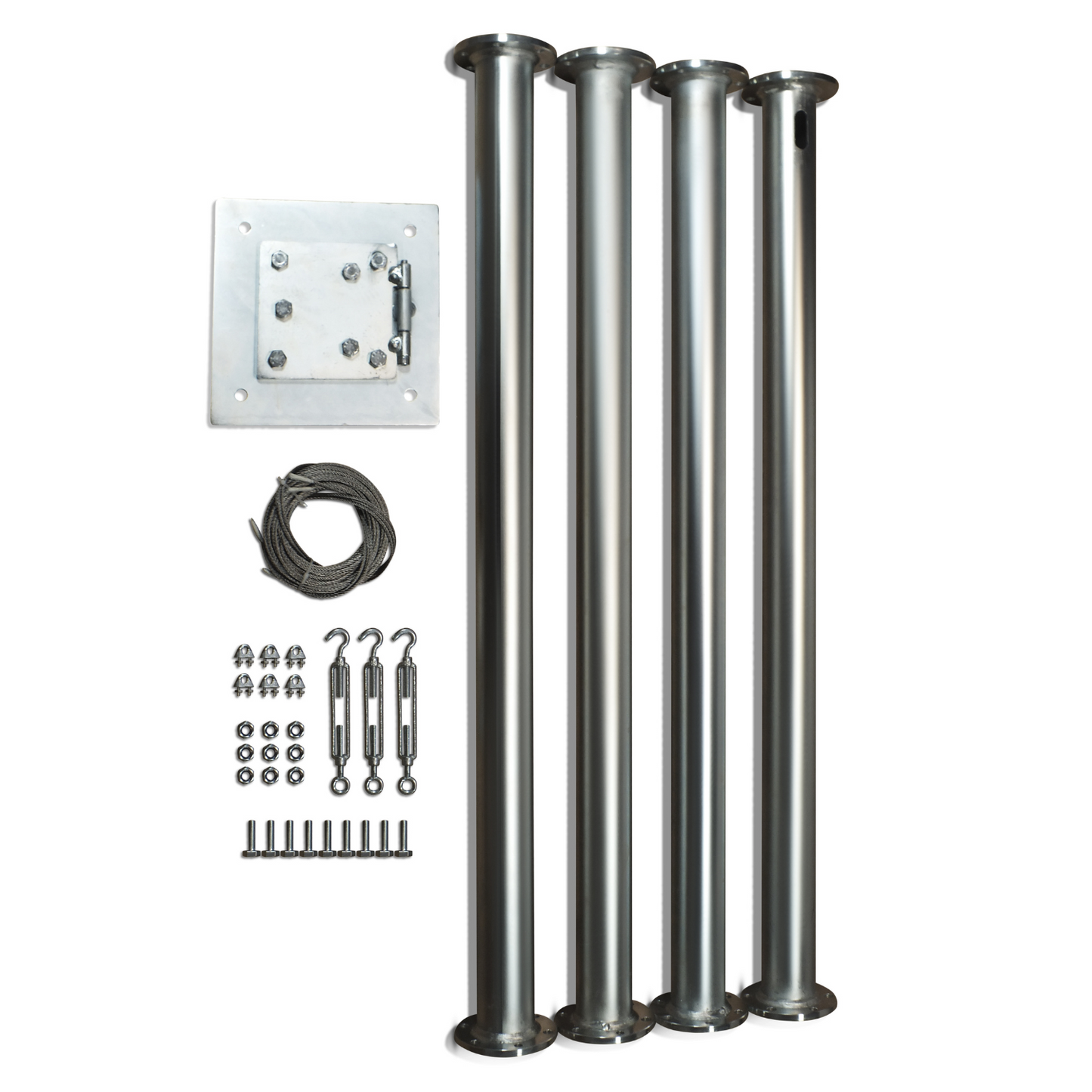

The pole set consists of four one-meter pipes, a hinged lower phalanx, three steel ropes and nine tensioning devices.

It can also be extended up to a maximum of 10 meters by adding one-meter additional pipes upon request.



• Fasteners : 3 Rope Tensioner and Bolt Set

• Steel Rope: 3 X 5m

• Mast: 4 Galvanized Poles

• Outer Diameter: 60 mm

• Inner Diameter: 37 mm

• Plate: 1 piece Galvanized hinged plate

• Length: 4 m

• Mast Wall Thickness: 3 mm
