ISTABREEZE® WIND TURBINE

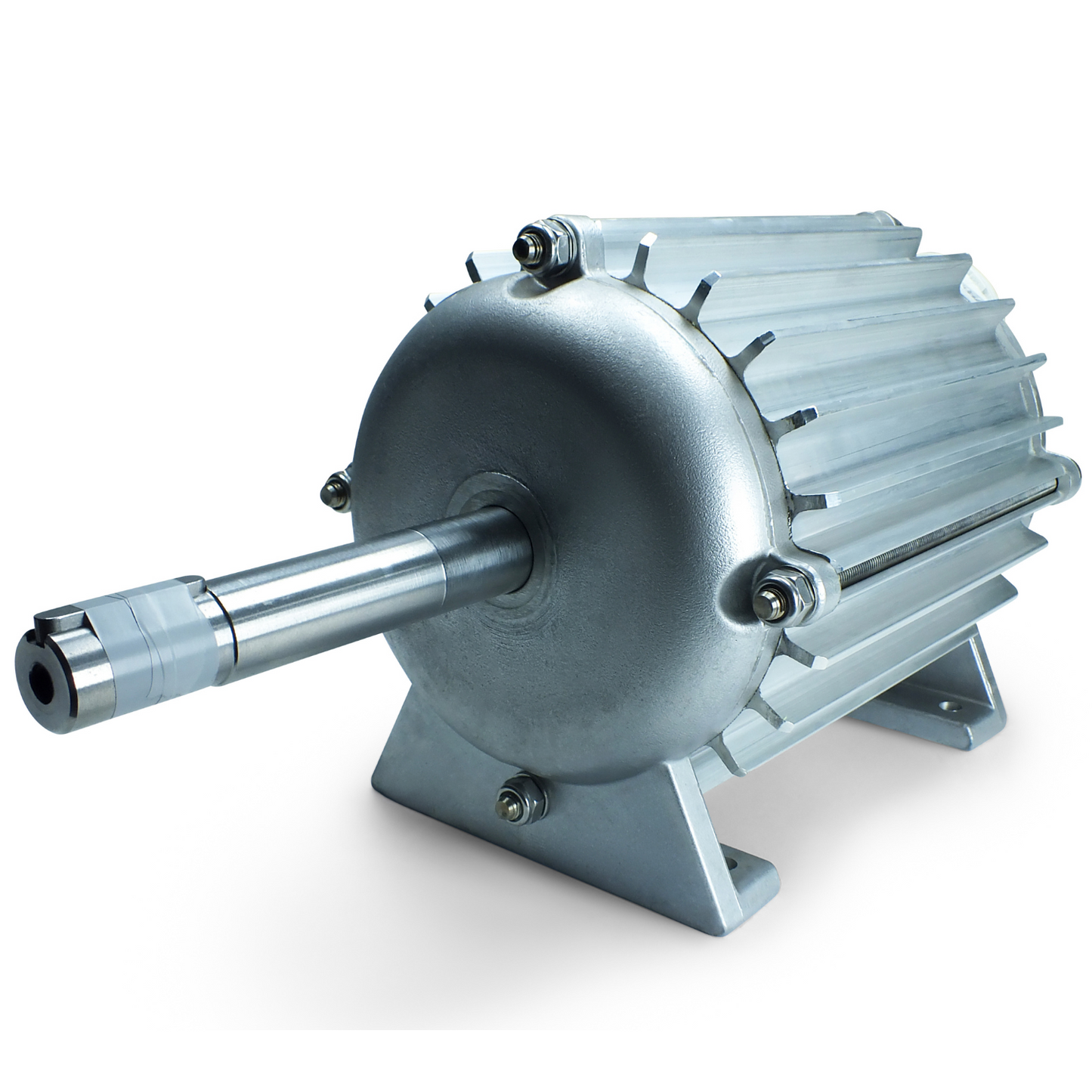

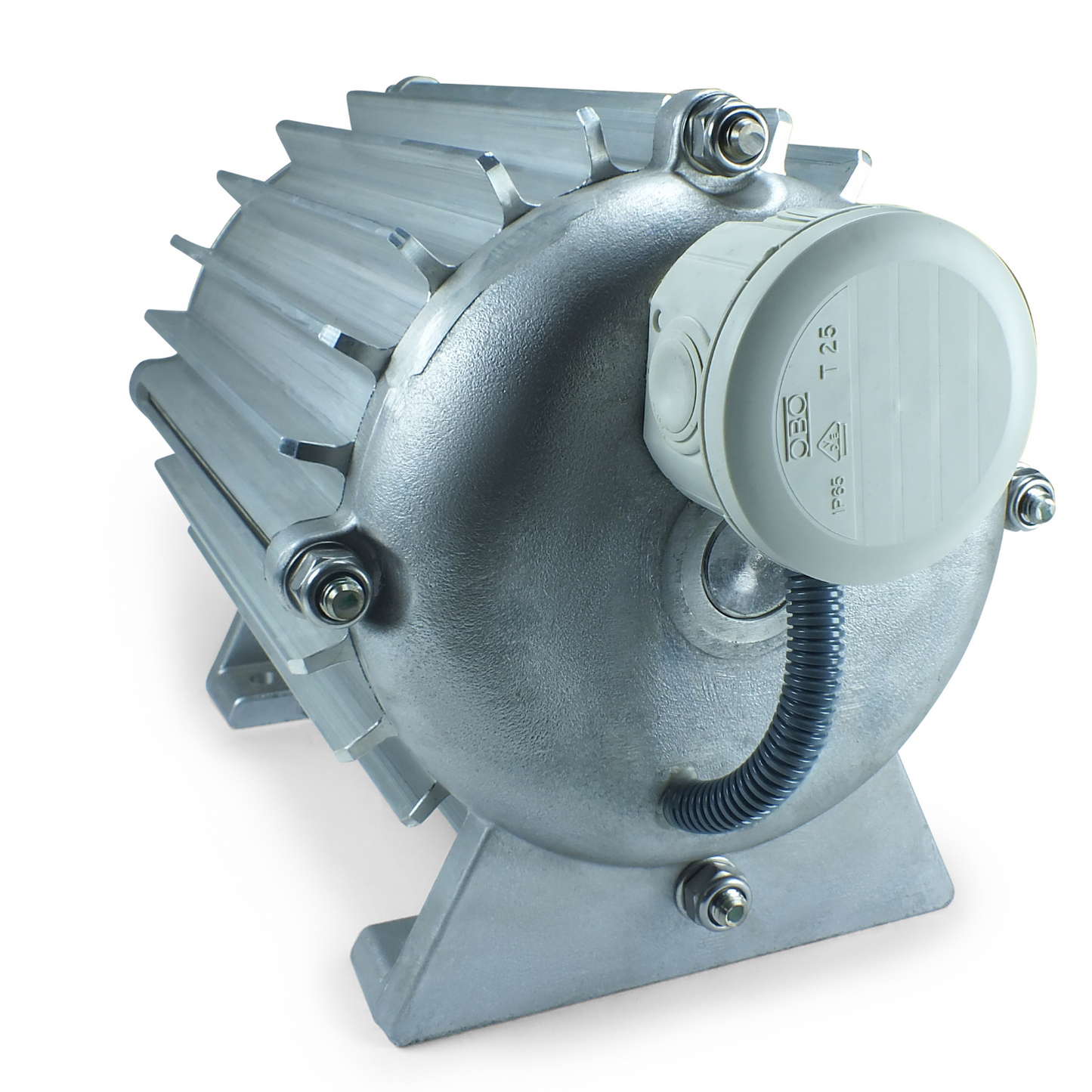

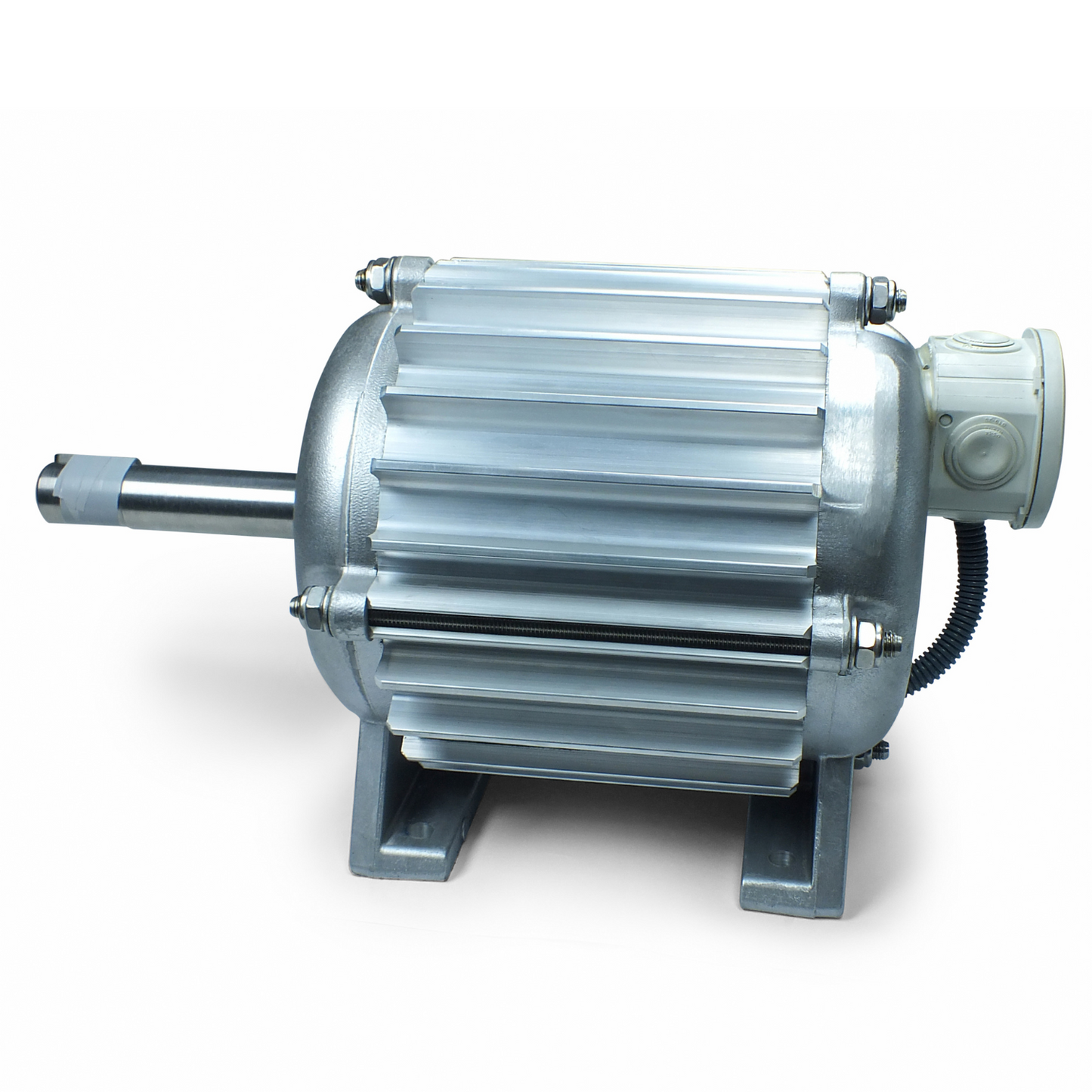

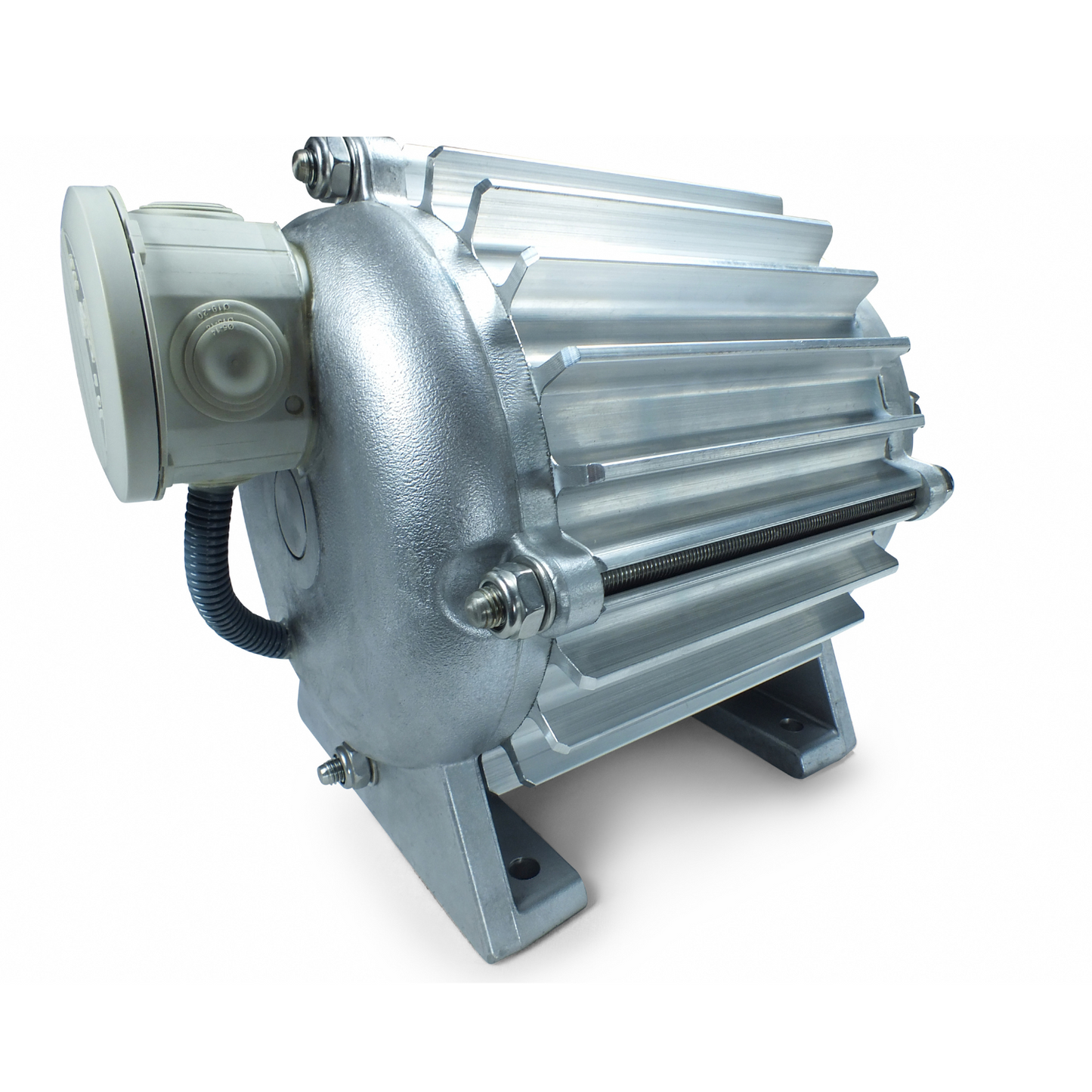

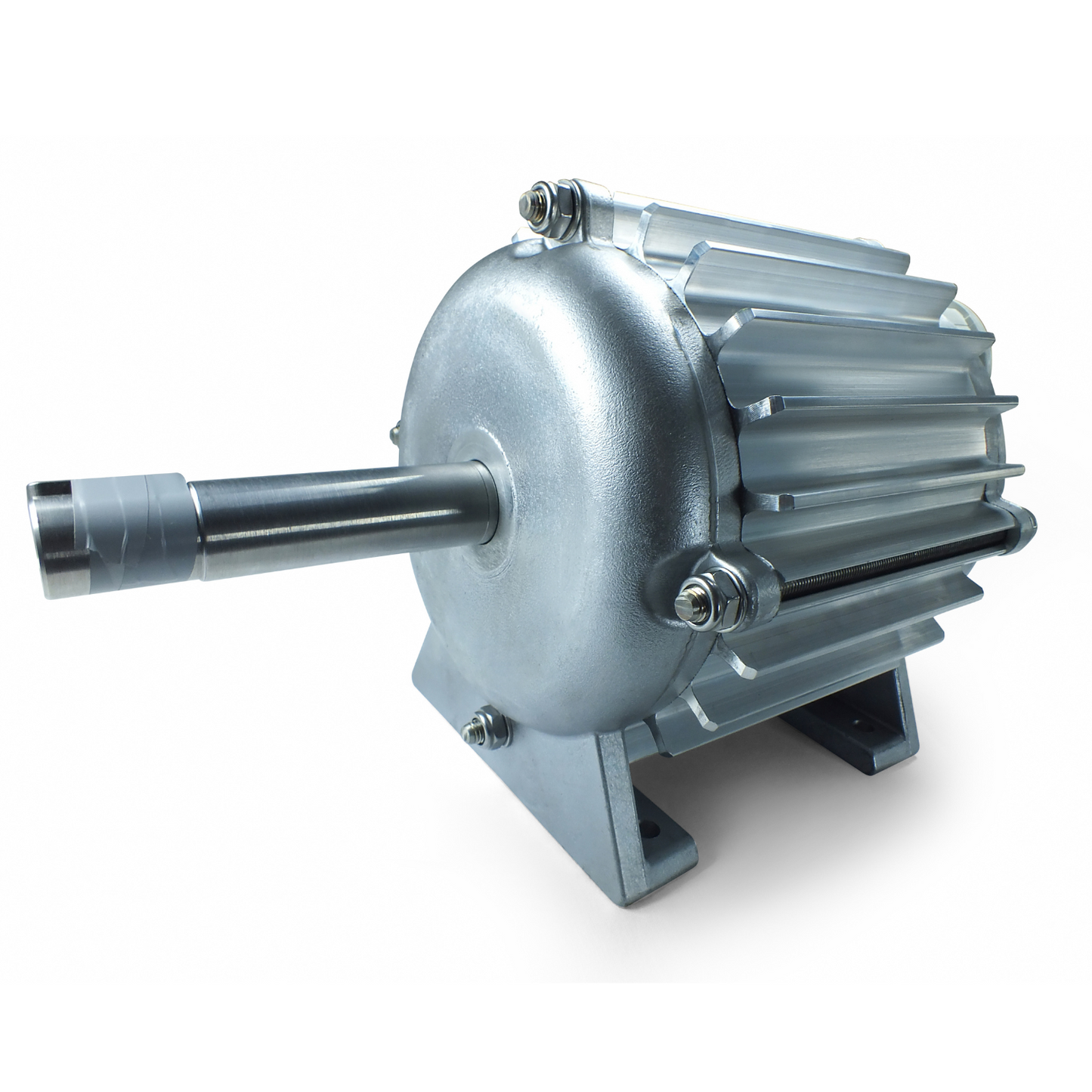

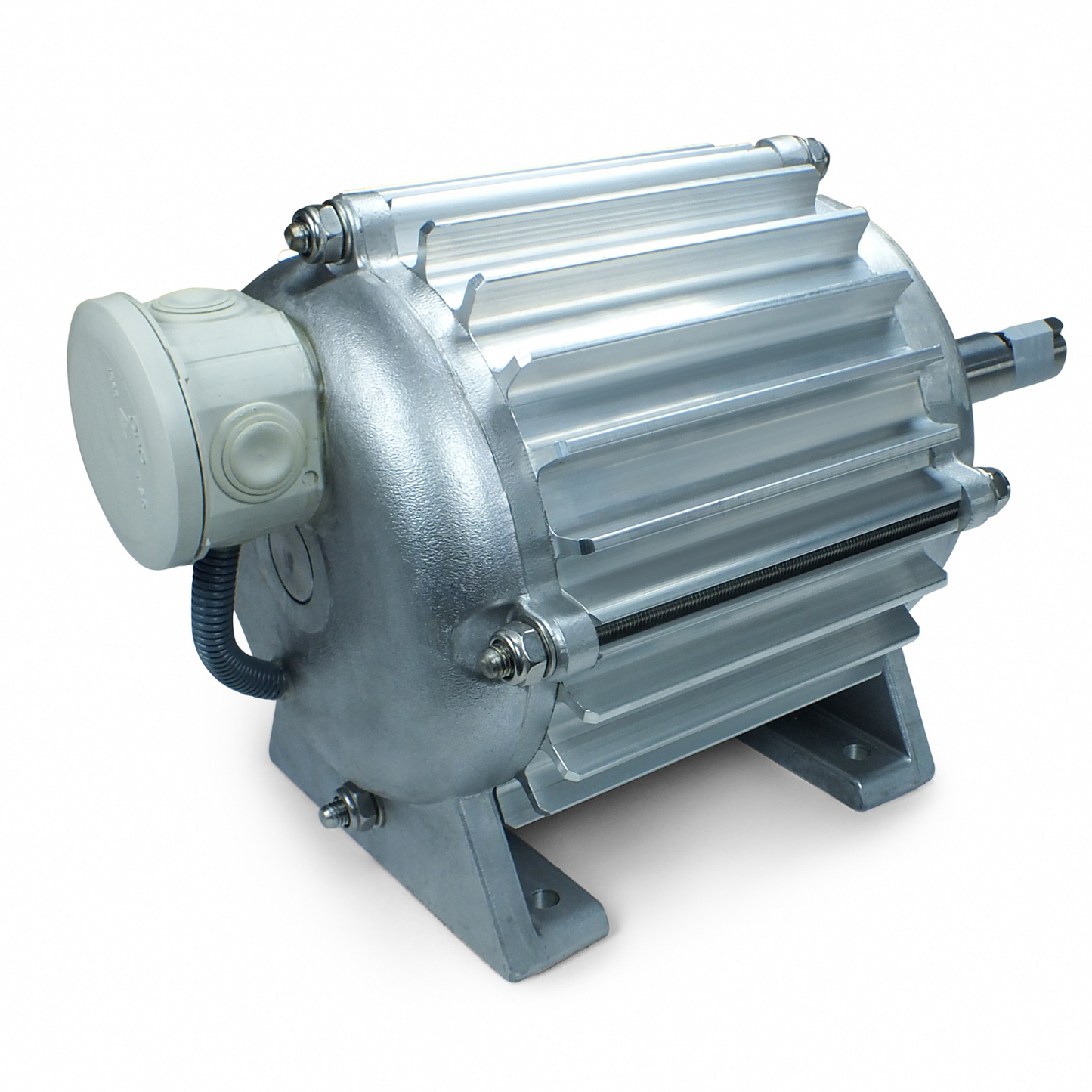

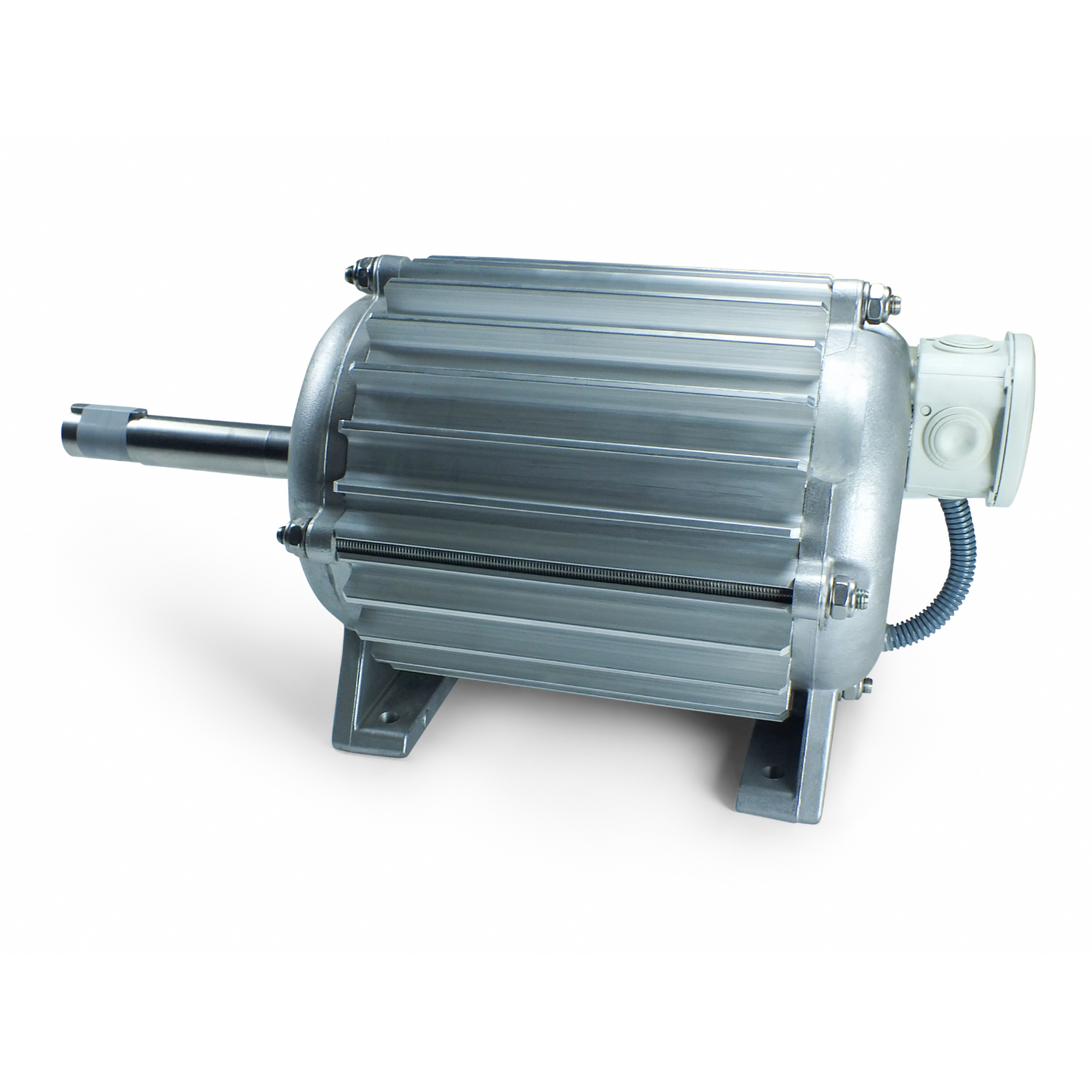

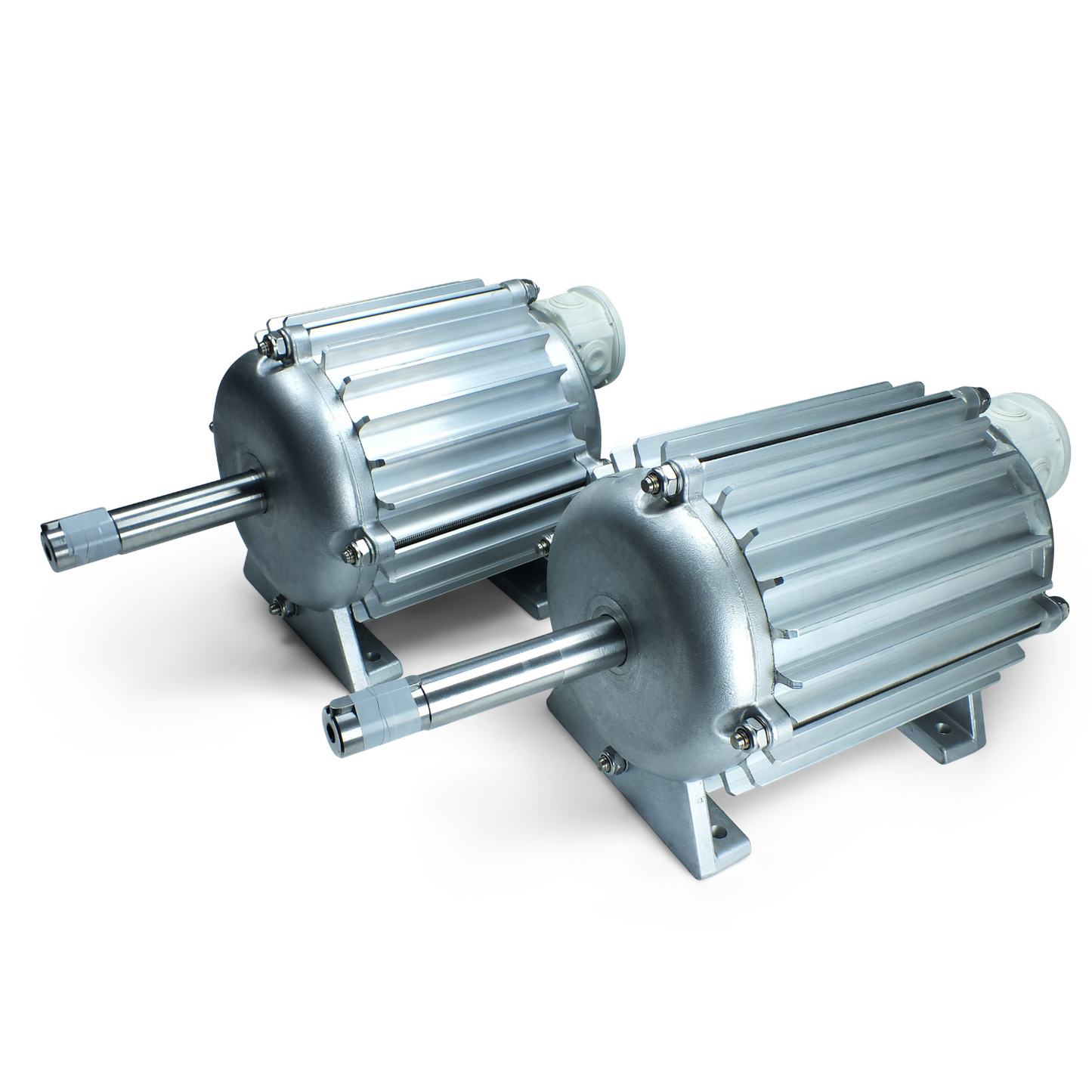

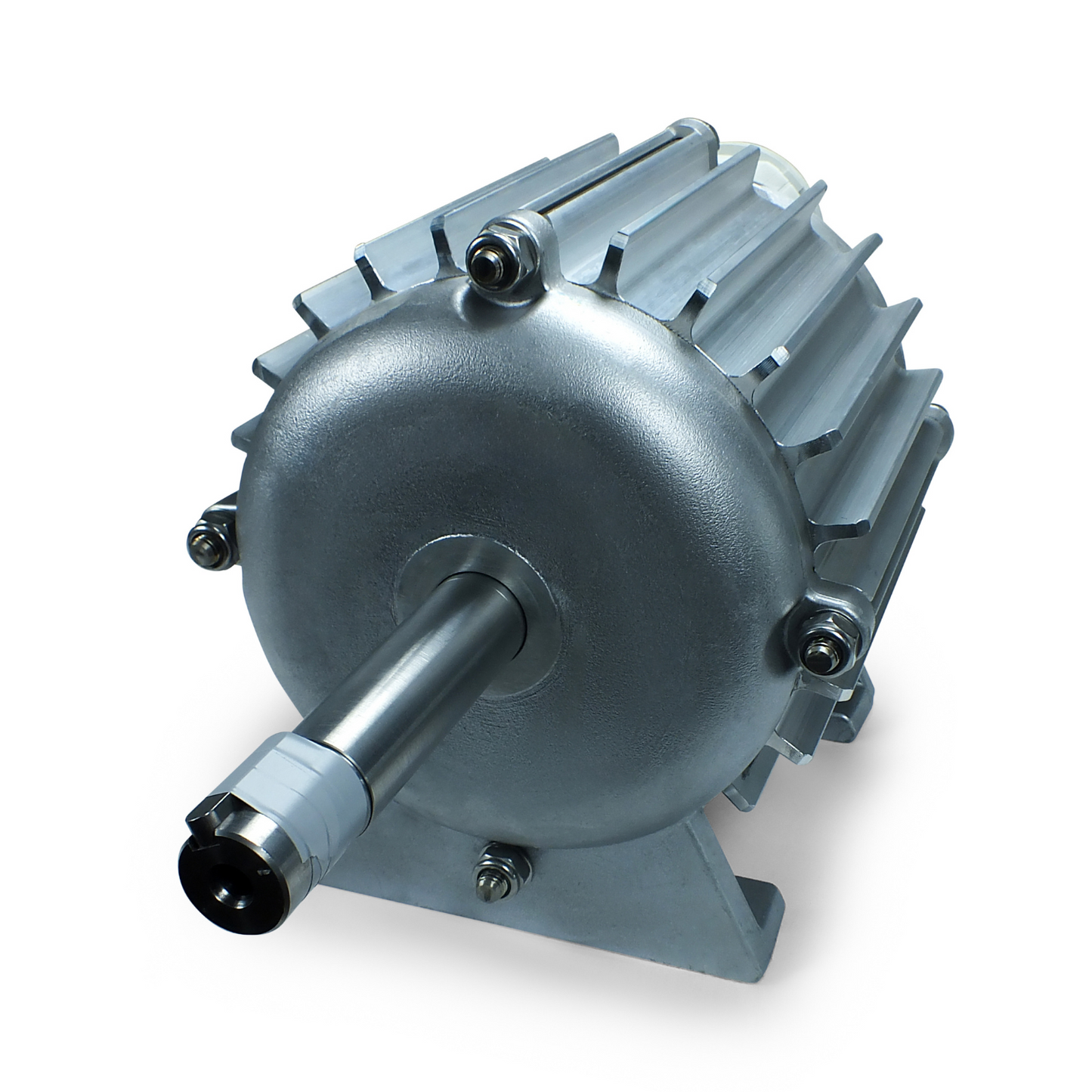

G-2000 / G-4000 48V / 350V(Ongrid) Low Rpm Permanent Magnet Generator

G-2000 / G-4000 48V / 350V(Ongrid) Low Rpm Permanent Magnet Generator

$990.00
$990.00
Sale Sold out
Shipping calculated at checkout.
Power
Voltage

GENERATOR SPECIFICATION G-2000 48V Low Rpm



  • RATED CAPACITY: 2000W
  • ALTERNATOR HOUSING: Aluminium
  • Work Space: 150 - 600 Rpm
  • Max Rpm :800 Rpm
  • SYSTEM VOLTAGE: 48V
  • Max Output Voltage: 200 VAC



You can see technical drawing of generator here -->


You can see data of generator here -->



GENERATOR SPECIFICATION G-2000 Ongrid Low Rpm



  • RATED CAPACITY: 2000W
  • ALTERNATOR HOUSING: Aluminium
  • Work Space: 150 - 600 Rpm
  • Max Rpm :800 Rpm
  • SYSTEM VOLTAGE: 350V



You can see technical drawing of generator here -->


You can see data of generator here -->




GENERATOR SPECIFICATION G-4000 Ongrid Low Rpm



  • RATED CAPACITY: 3800W Max: 7400W
  • ALTERNATOR HOUSING: Aluminium
  • Work Space: 120 - 450 Rpm
  • Max Rpm :600 Rpm
  • MAX OUTPUT VOLTAGE: 350V
  • SYSTEM VOLTAGE: ONGRID
  • CHARGE INFORMATION: 100 Rpm: Start Charge , 420 Rpm: 3700W Power, 450 Rpm: 4kw Power



You can see technical drawing of generator here -->


You can see data of generator here -->



GENERATOR SPECIFICATION G-4000 48V Low Rpm



  • RATED CAPACITY: 3800W Max: 7400W
  • ALTERNATOR HOUSING: Aluminium
  • Work Space: 120 - 450 Rpm
  • Max Rpm :600 Rpm
  • SYSTEM VOLTAGE: 48V
  • MAX OUTPUT VOLTAGE:
  • CHARGE INFORMATION: 100 Rpm: Start Charge , 420 Rpm: 3700W Power, 450 Rpm: 4kw Power
You can see technical drawing of generator here -->


You can see data of generator here -->
