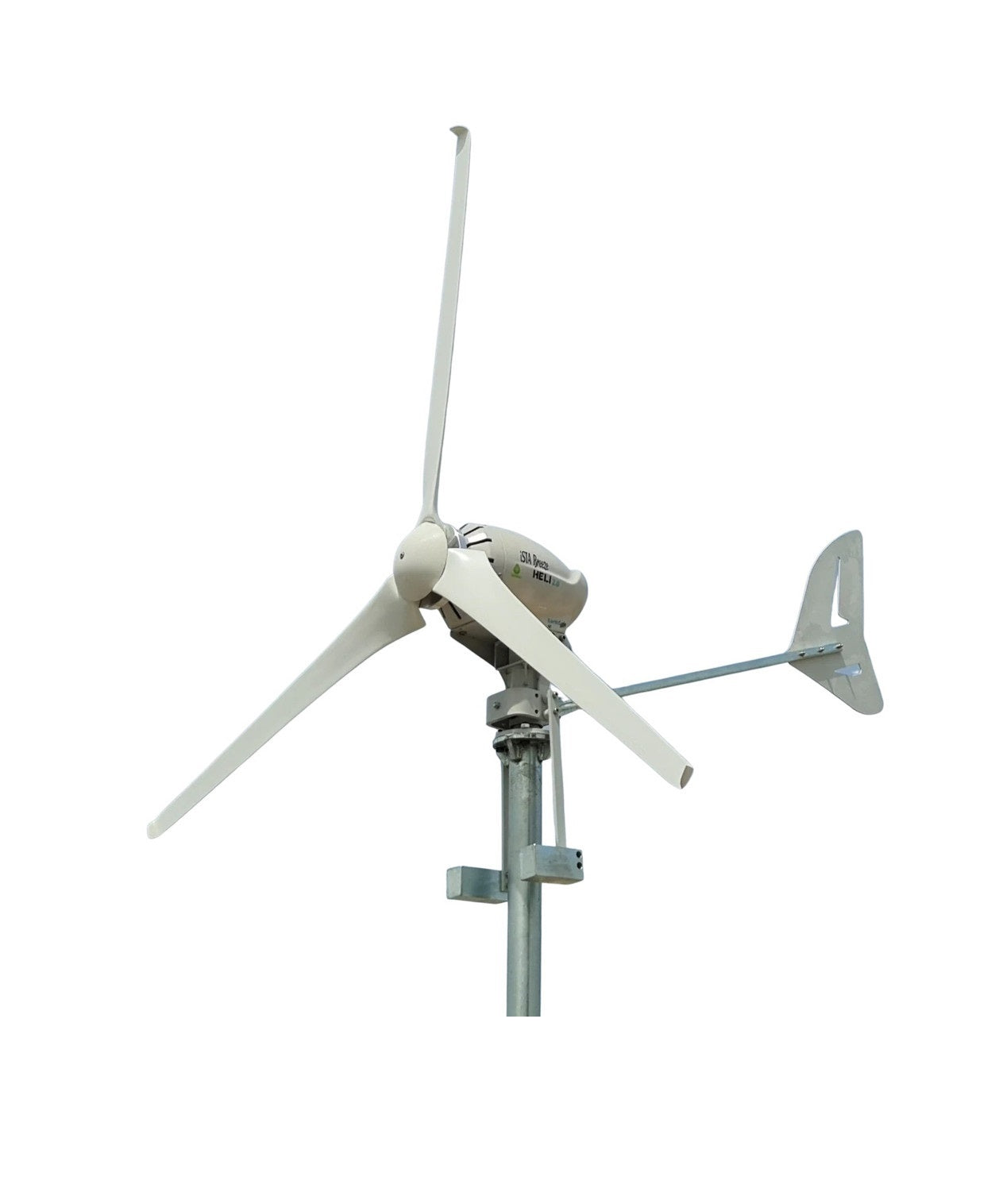

Heli 2KW 48V Off-Grid Wind Turbine Wind Generator with New Blade

• Universal application for low, middle and high wind

• 3-phase permanent magnets (High efficiency due to strong permanent magnets (NdFeB magnets, 150 ° temperature resistant)

• Aerodynamic design

• Powder coated aluminum housing

• Low noise

• Power transmission through slip ring, thereby no twisting of the cable possible

• Durable and low maintenance

• New blades are more performances and hand made.

3 wing version hand laminated

The newly developed IstaBreeze® Heli 2.0 is a wind turbine for long-term professional use that automatically delivers reliable energy even under extreme conditions.

The generous dimensions of the generator components and the heat dissipation through the grooves in the nacelle housing ensure a low heat load, which ensures a long service life even at high ambient temperatures.

The generator shaft runs in permanently lubricated, robust deep groove ball bearings made of stainless steel. The support element of the Heli series is equipped with azimuth pivot bearings.

PRODUCT FEATURES - WIND TURBINE

Automatic Storm Security: 13 m/s (by tilting the rotor)

Housing: hand laminated and painted.

Cutting in: 2.9 m/s

Direction: Any

Efficiency: 92%

Generator: 3-phase permanent magnet (high efficiency thanks to strong permanent magnets (NdFeBo magnets, 150 ° temperature resistant)

(The copper winding is threaded exclusively by hand.)

Manual Storm Safety Switch: (Short Brake)

Power Transmission: Slip ring, so no twisting of the cable is possible. (pre-assembled in the support element).

Speed Range: 0 Rpm - 800 Rpm

Type: Battery chargers

Voltage: 48 VAC

Support Element: Powder-coated steel

Working Place: 150 - 600 Rpm (Low Rpm Wind Turbine)

Rated power: 2.0 KW

BLADE SPECIFICATION

Material: Carbon fiber (extremely stiff and quiet) Made in Germany!

Noise: 40 db

Weight: 1600 g (per blade)

Rotor Diameter: 250 cm

Color: White Hand laminated

Blade Length: 125 cm
