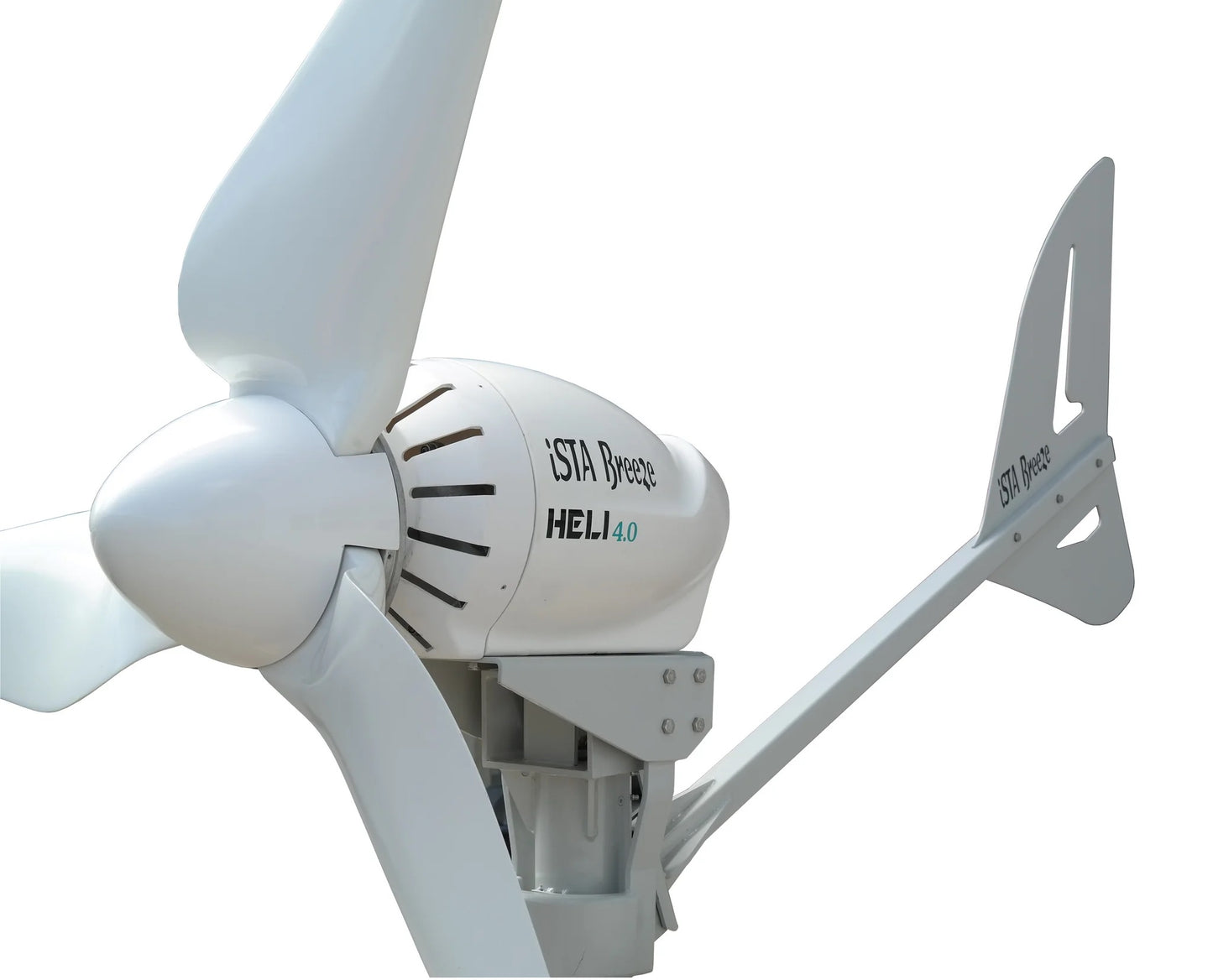

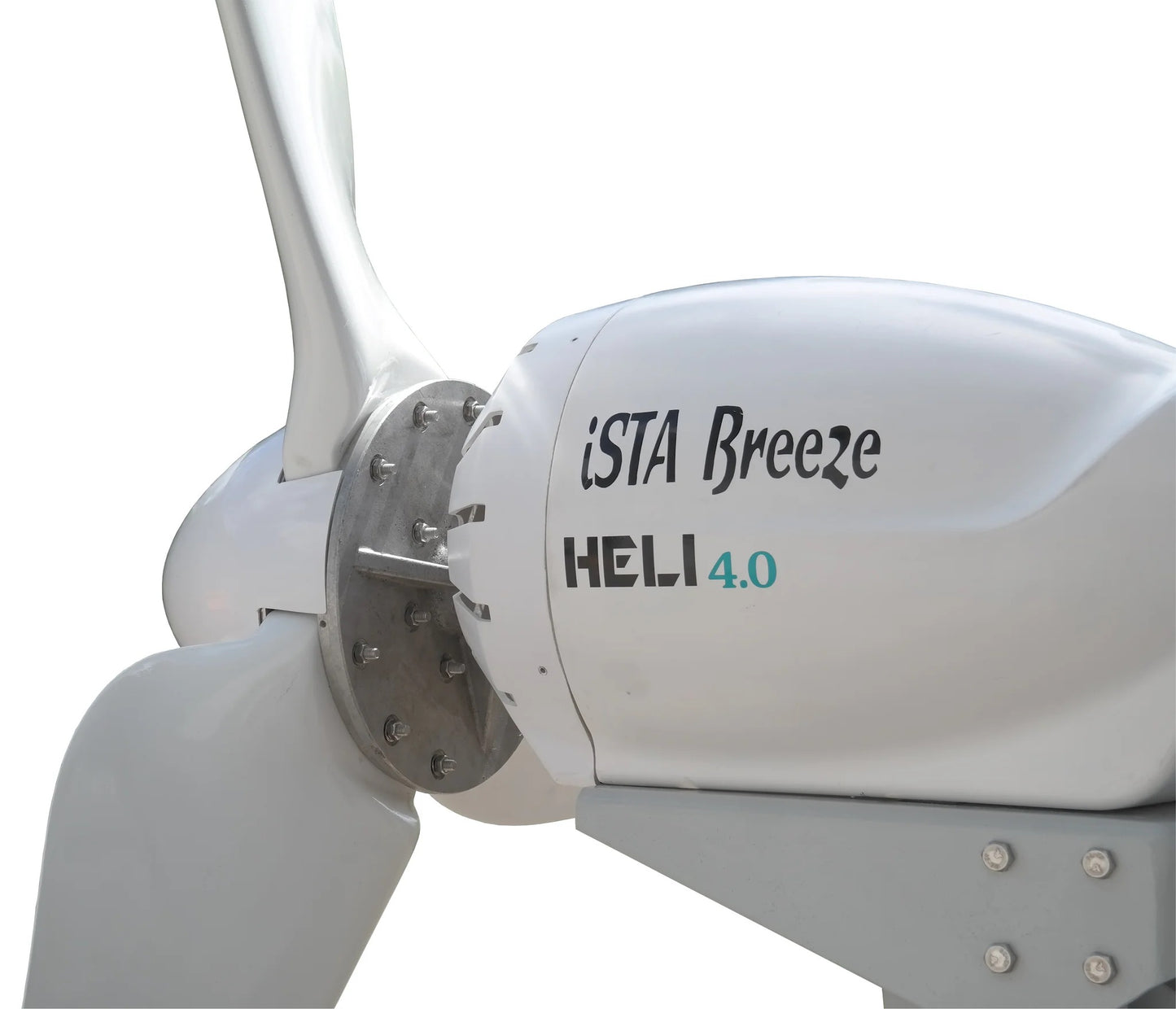

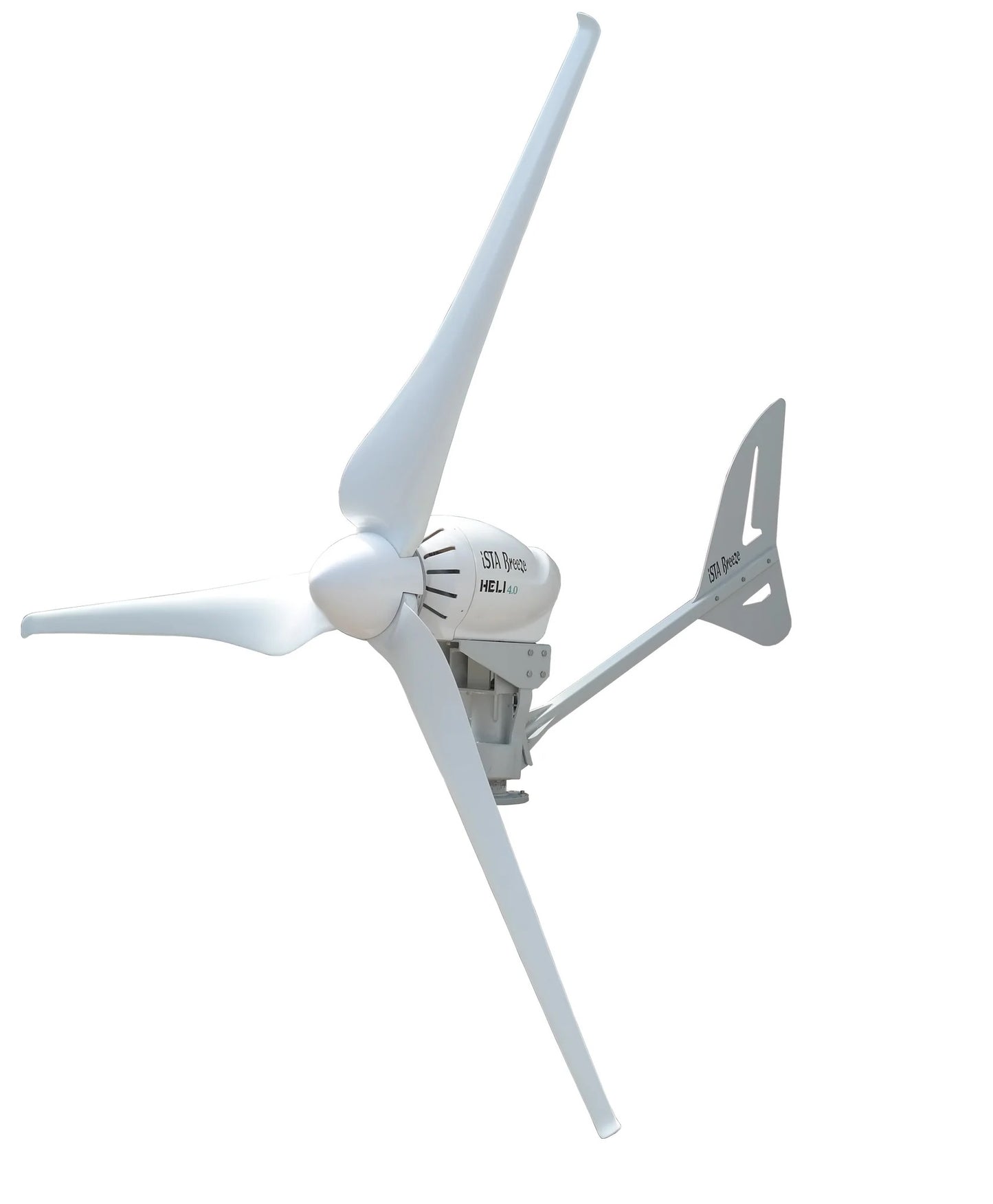

Heli 4KW On-Grid Wind Turbine Wind Generator

• Universal application for low, middle and high wind
• 3-phase permanent magnets (High efficiency due to strong permanent magnets (NdFeB magnets, 150 ° temperature resistant)
• Aerodynamic design
• Powder coated aluminum housing
• Low noise
• UV-resistant Plastic + 30% glass fibers blades, successfully tested
• Power transmission through slip ring, thereby no twisting of the cable possible
• Durable and low maintenance

Important Notice for Our Valued Customers

While many small wind turbines are widely offered on the market, some are advertised with unrealistic power ratings of 3000–4000 Watts—often at extremely low prices. Please be aware that such claims do not reflect actual performance under real-world wind conditions.

To avoid disappointment, we strongly advise you to carefully review the product specifications and ensure that the system you are considering truly meets your energy needs. Making an informed and responsible choice is essential for investing in a reliable, efficient, and long-lasting wind power solution.

The Heli wind turbine is a wind generator that is ideal for inland locations. Depending on the selection, it is specifically designed for battery charging of 48 volts or on-grid power supply.

The azimuth mount is installed only on our helicopter model; The bearing is designed as a double-race plain bearing and is equipped with grease fittings for re-oil.

The repeller blades and nacelle cover are hand-laminated and painted.

Technical data for On-Grid:

• Permanent magnet rotor, brushless, gearless, maintenance-free

• Extremely strong permanent magnets for high efficiency

• (NdFeBo permanent magnets, temperature resistant up to 150° C)

• Special ball bearings for reliably absorbing radial and axial forces

• Three-phase current

• Separate rectifier

• Both directions of rotation

• Voltage 0-1000VDC

• Start of feed at approx. 100 rpm

• Power: 3700 watts at 420 rpm and 400 VDC

• Evenly increasing performance curve

• Aluminum housing, surface cooling

• Nacelle housing made of GRP

• Protection class IP56

• Ampere: Max 20a

YOU CAN SEE PERFORMANCE CHART -->

YOU CAN SEE FLANGE DETAIL -->
