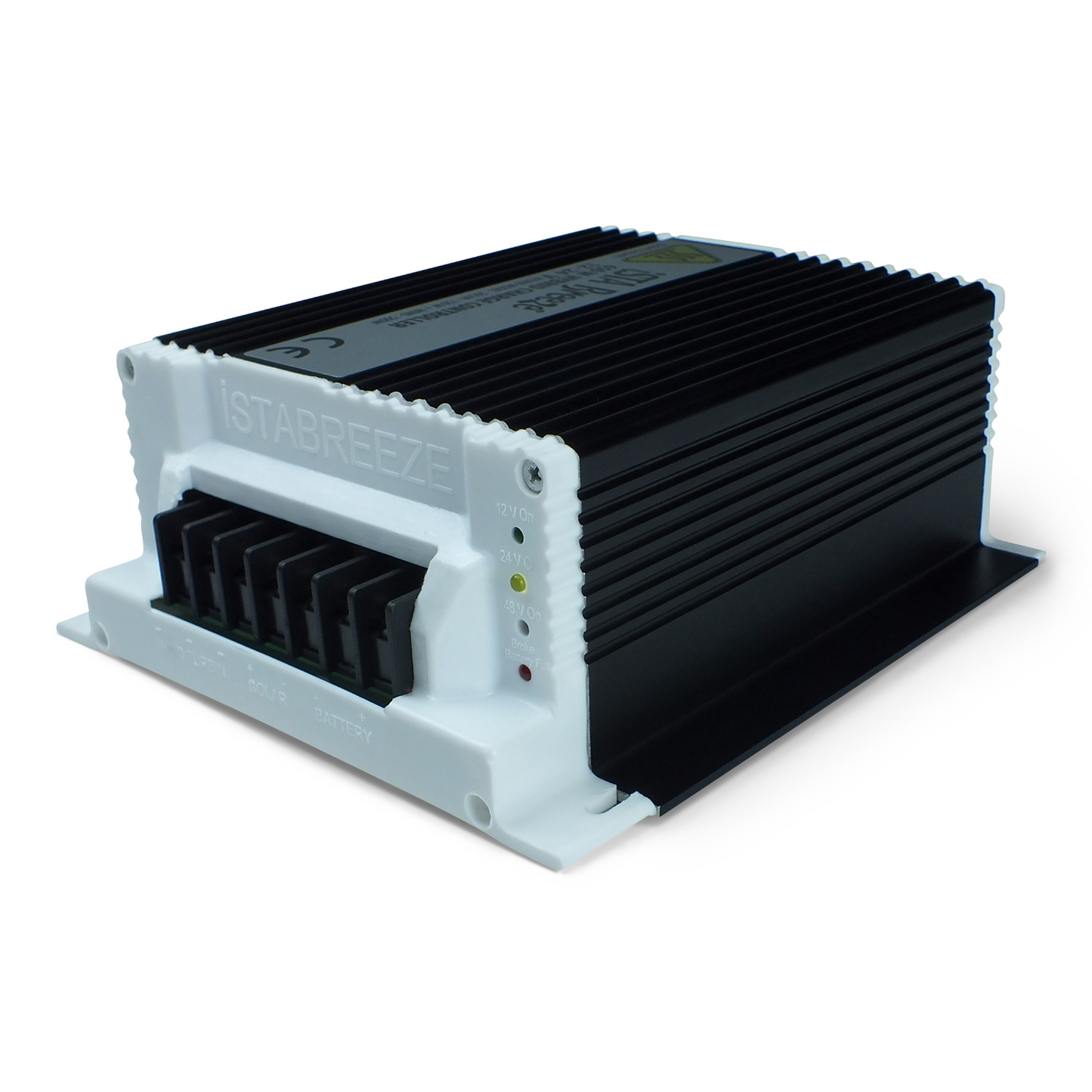

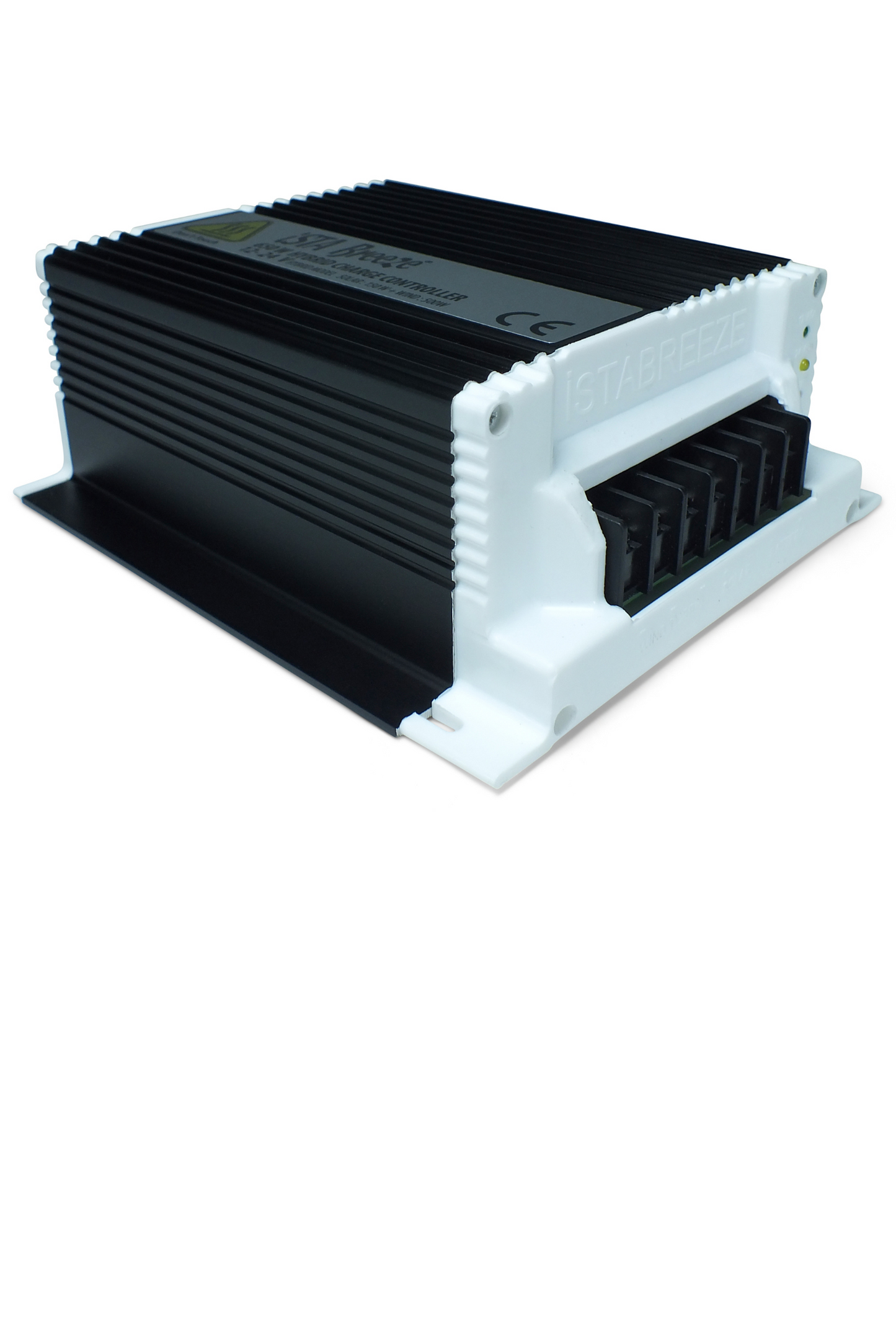

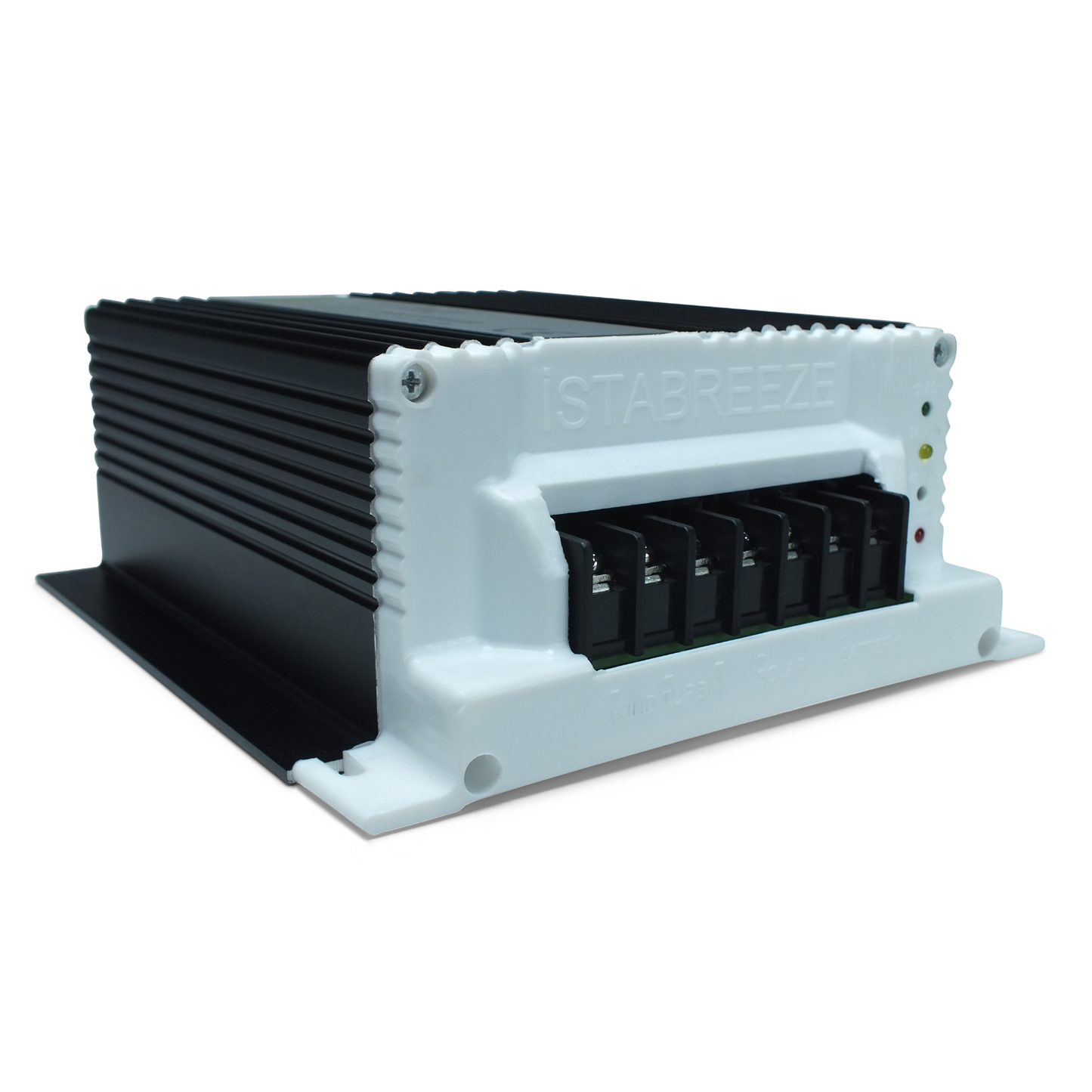

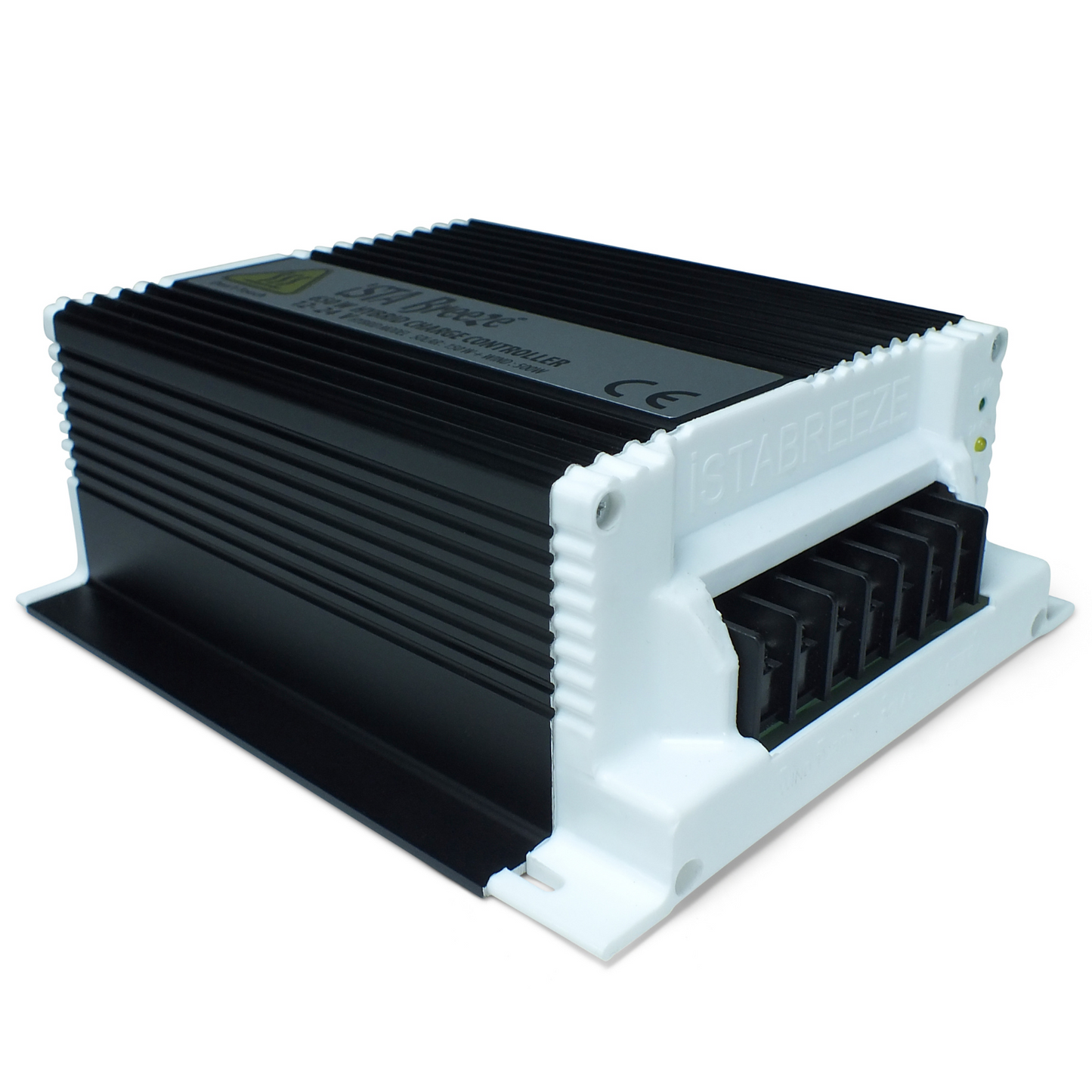

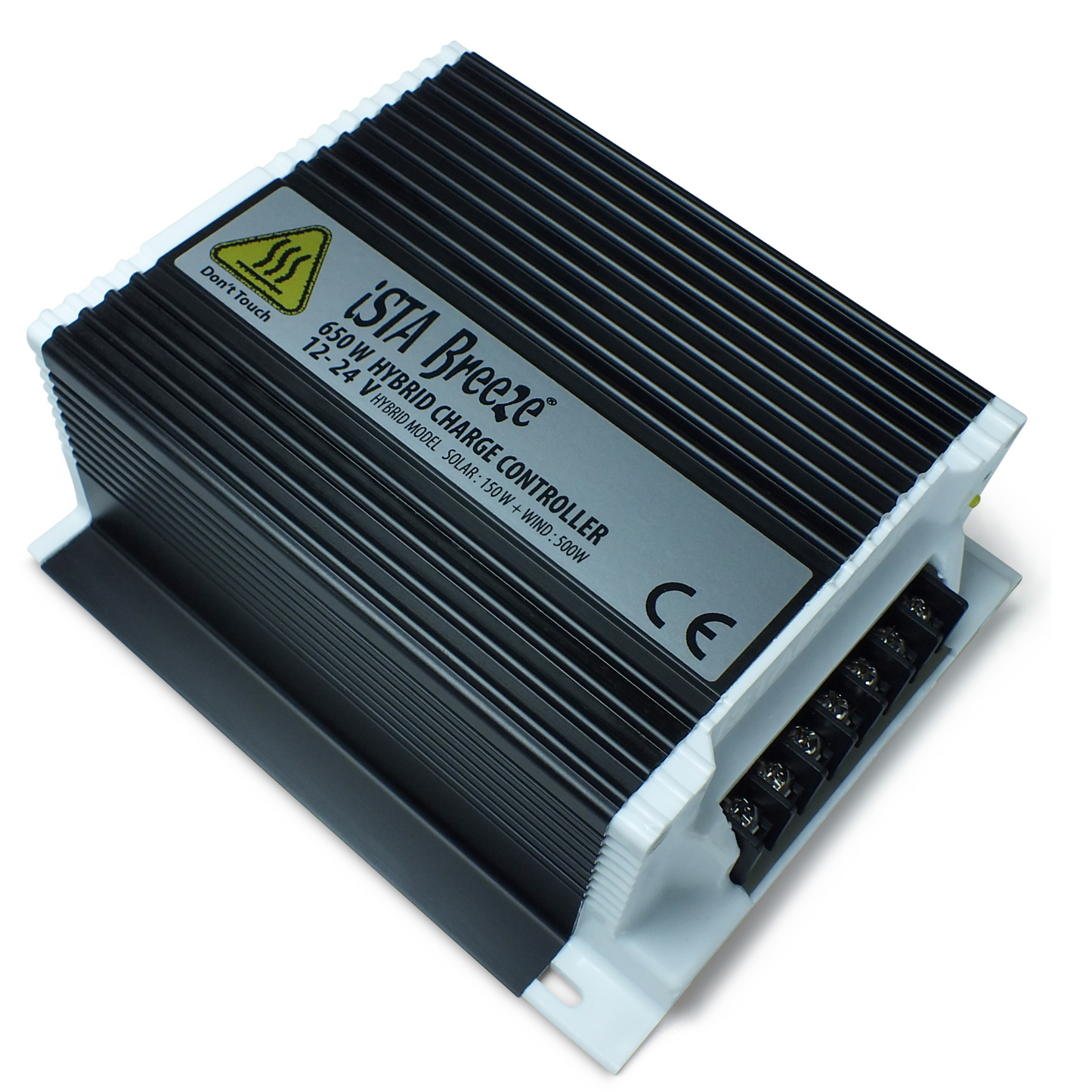

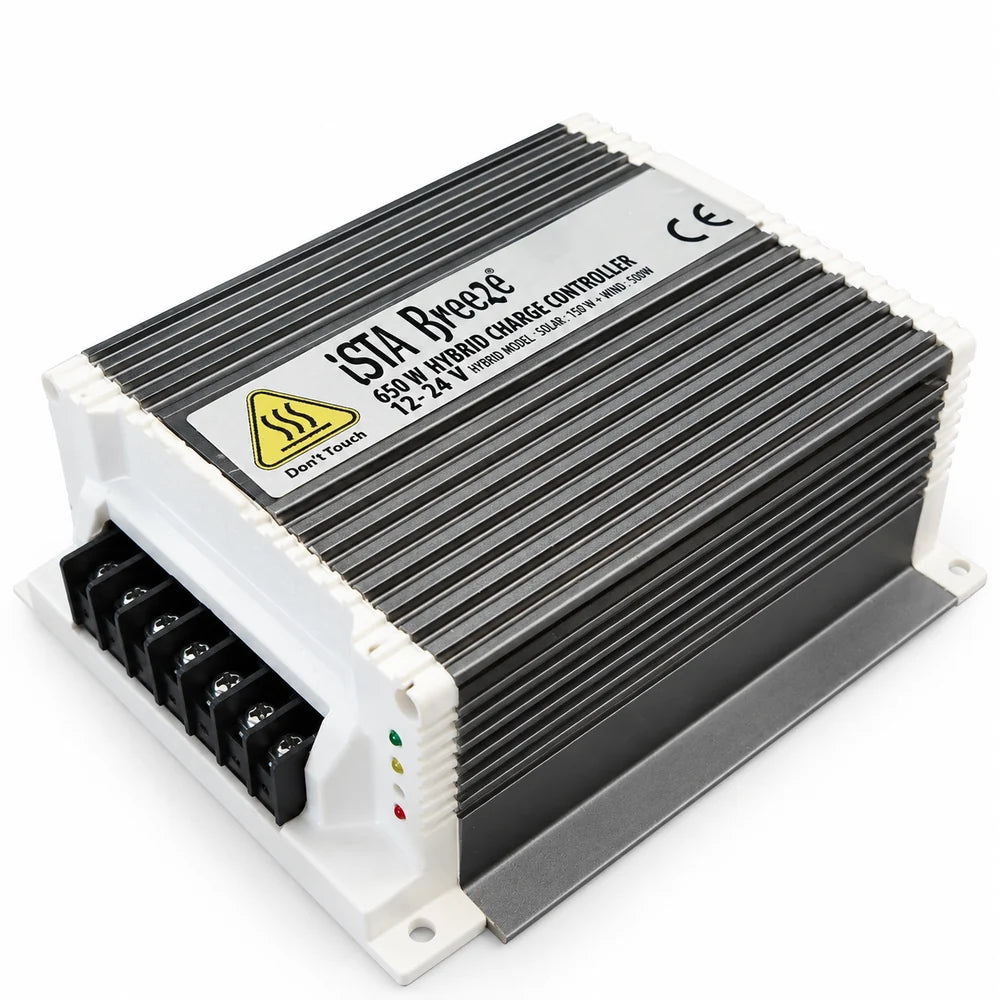

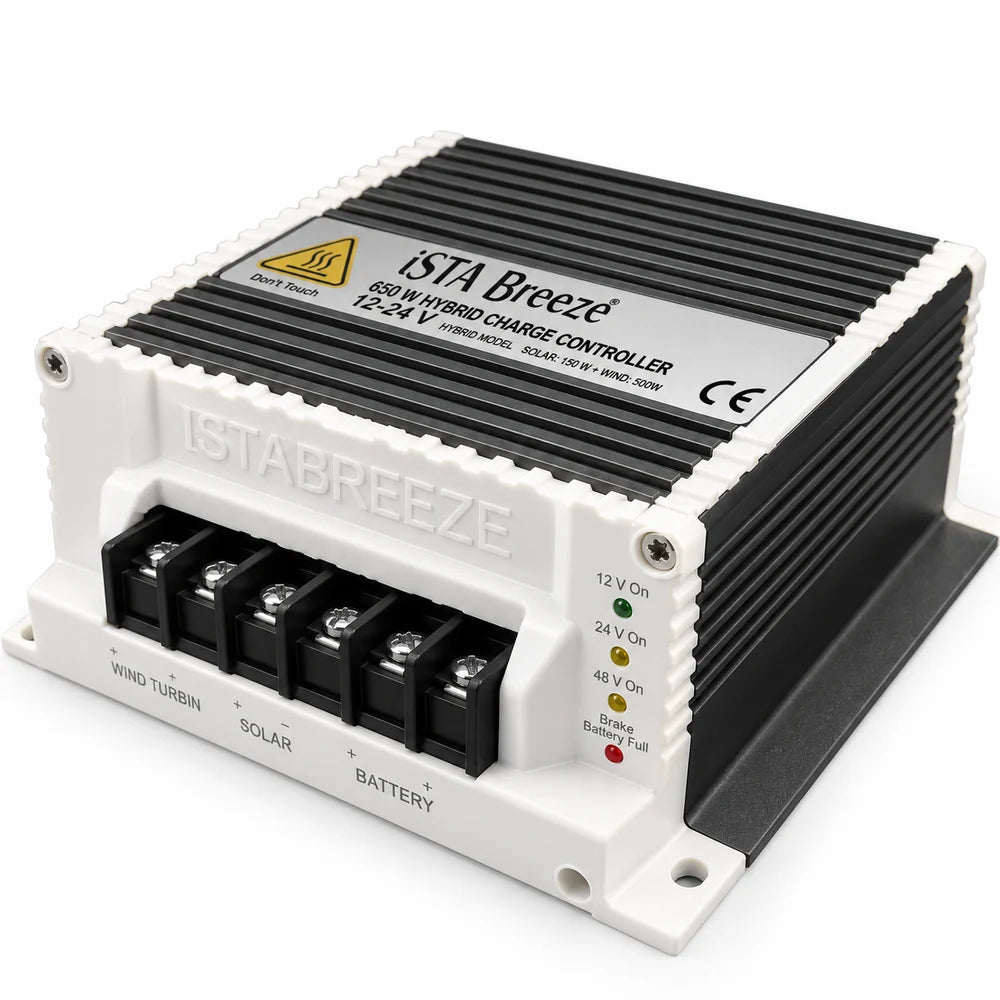

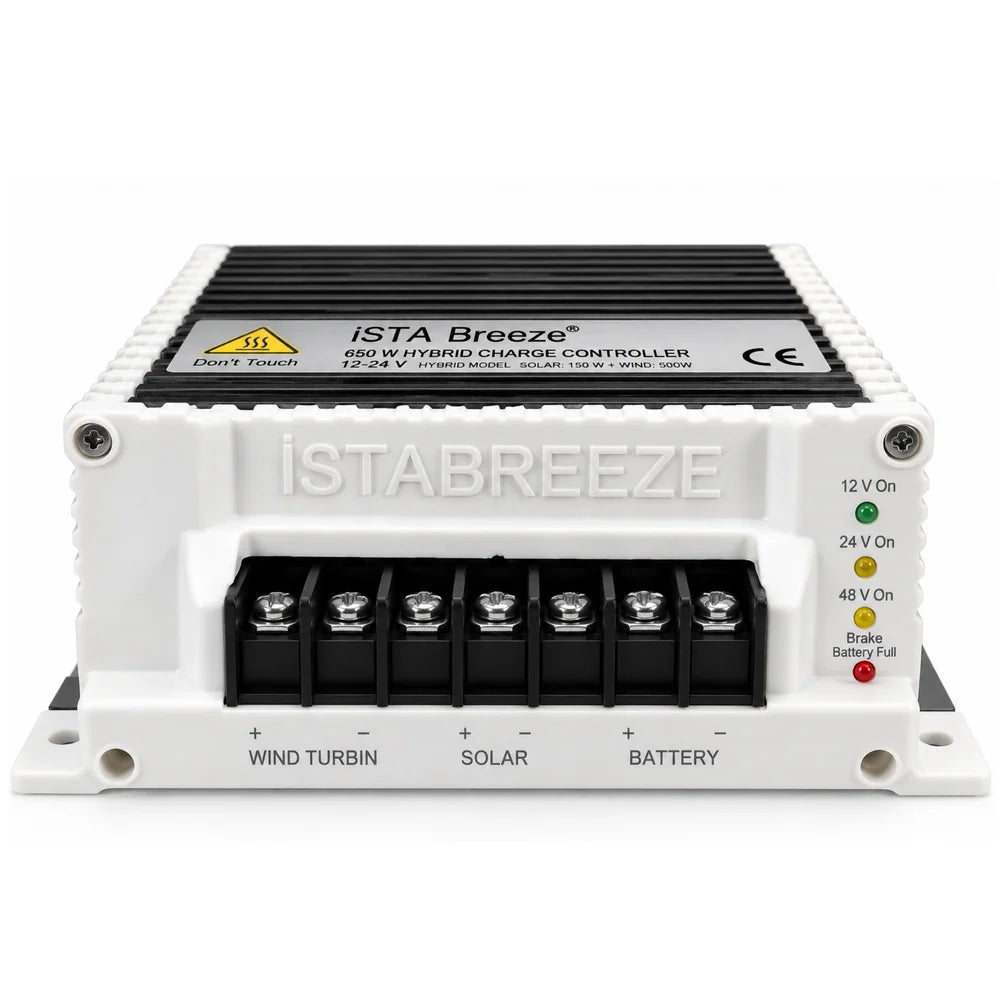

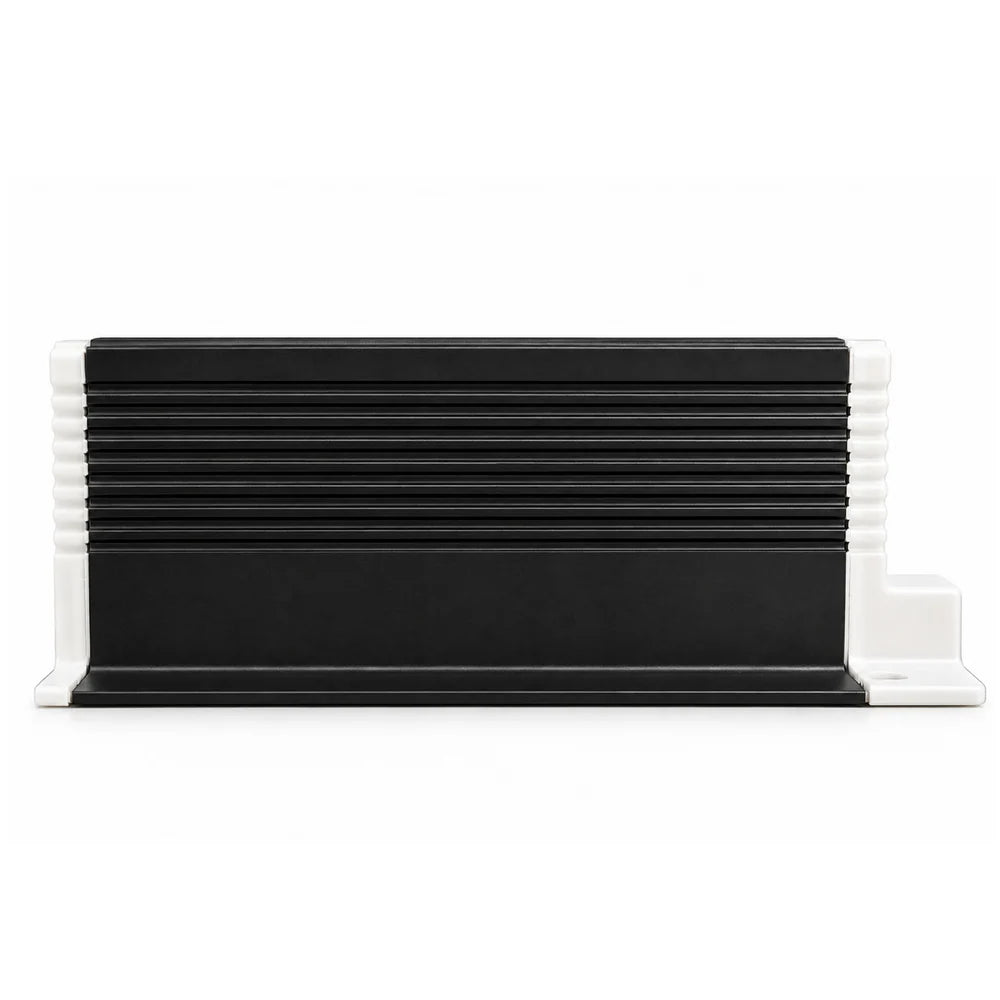

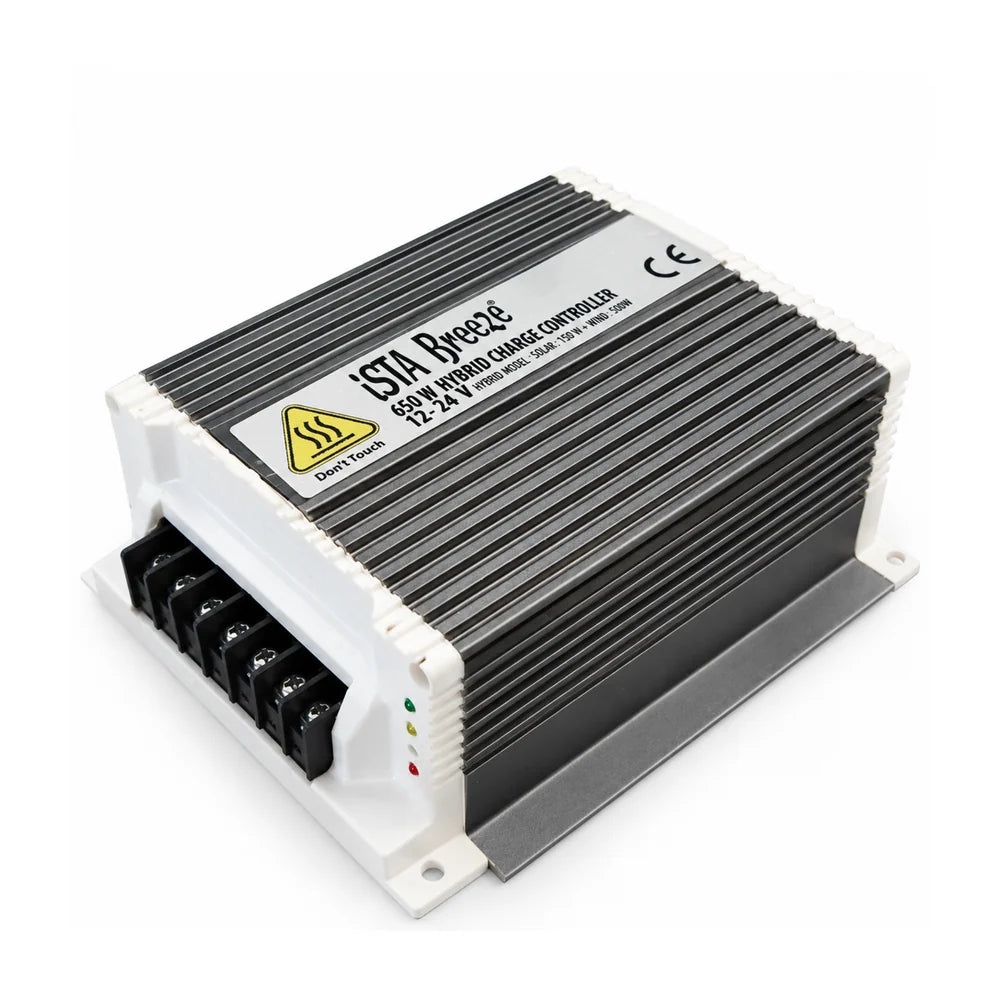

Hybrid Charge Controller 12V-24V-48V 650W - 850W for Wind Turbine Generator

• Nominal output power: 650W

• Input voltage range: 16 ~ 12V

• Battery: 12V

• Max. Input wind power: 500W

• Max. Input solar PV: 150W

• Overcharge protection: 15V ± 0.5V AH

• Recommended battery: 1 pc of 12V / 150 AH

• Wind turbine Max. Input current: 40 A

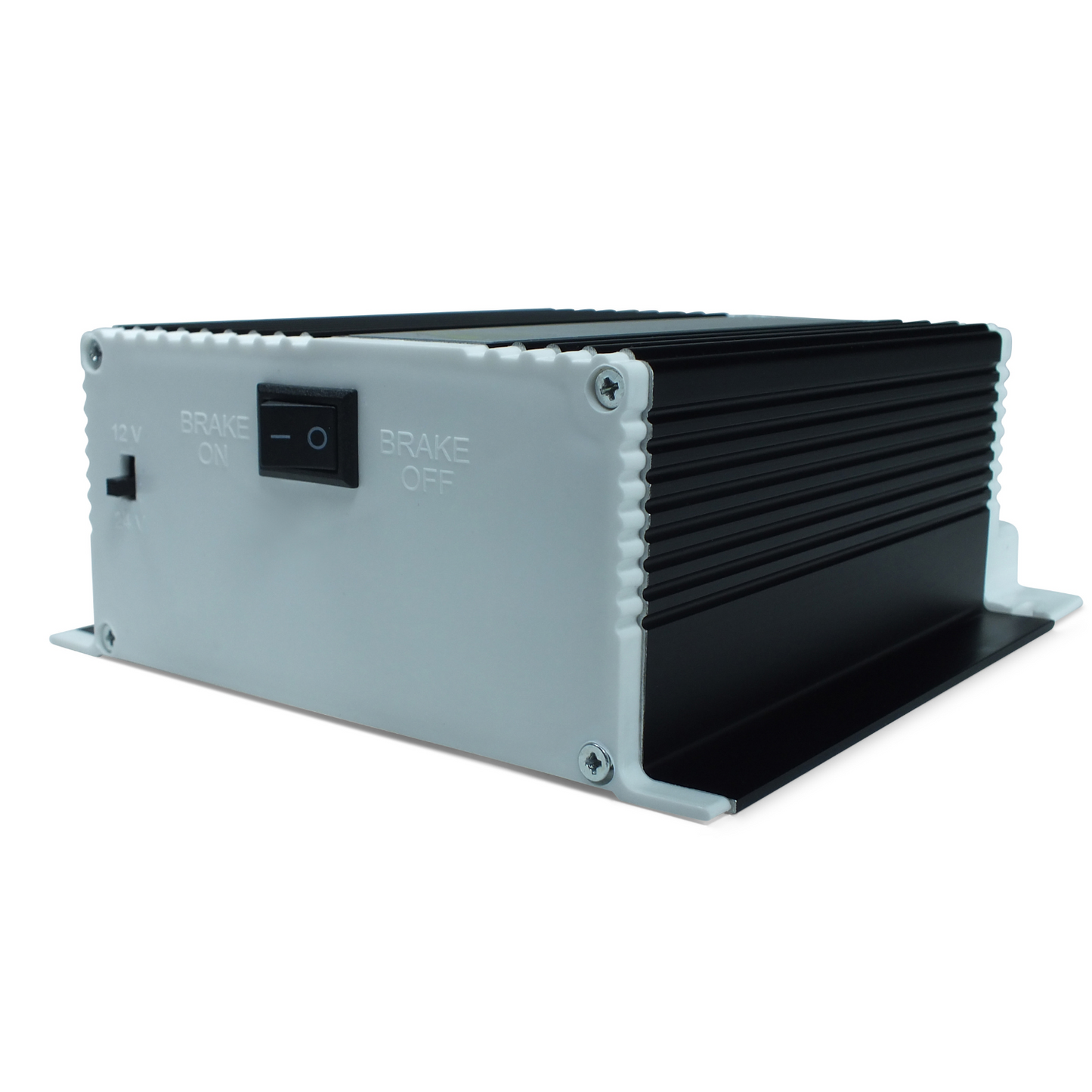

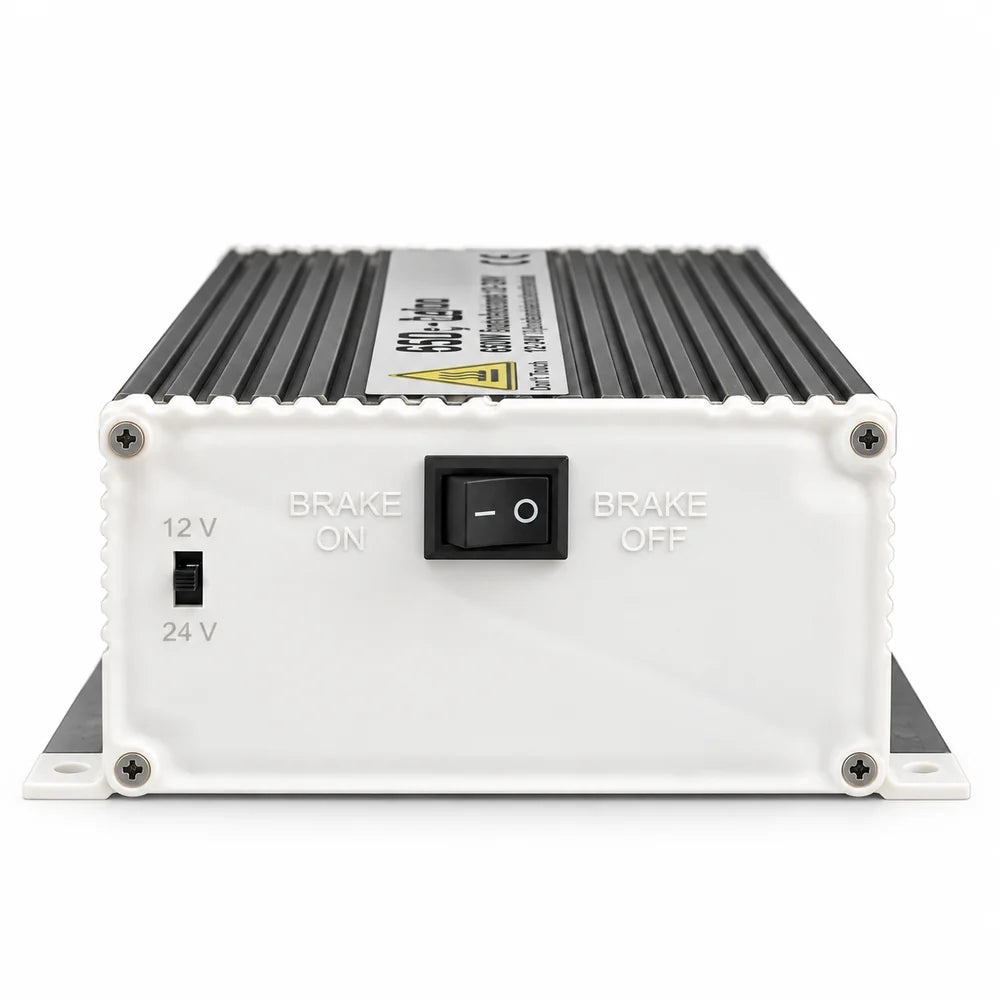

• Protection function: Overcharging the battery automatic brake during storm

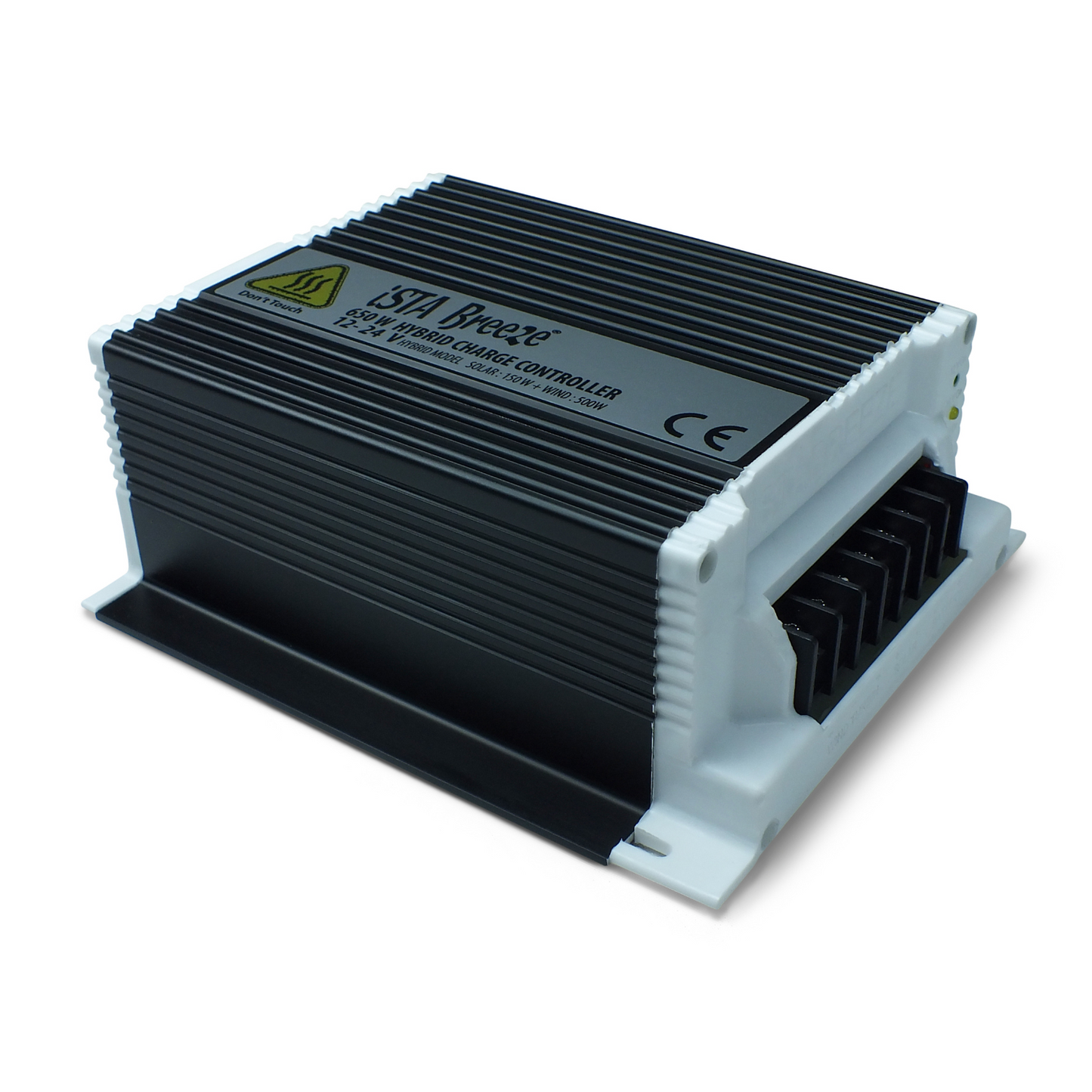

          650W 24V CHARGE CONTROLER

• Nominal output power: 650W

• Input voltage range: 24 ~ 26V

• Battery: 24v

• Max. Input wind power: 500W

• Max. Input solar PV: 150W

• Overcharge protection: 25V ± 0.5V AH

• Recommended battery: 2 pc of 12V / 75 AH

• Wind turbine Max. Input current: 20 A

• Protection function: Overcharging the battery automatic brake during storm

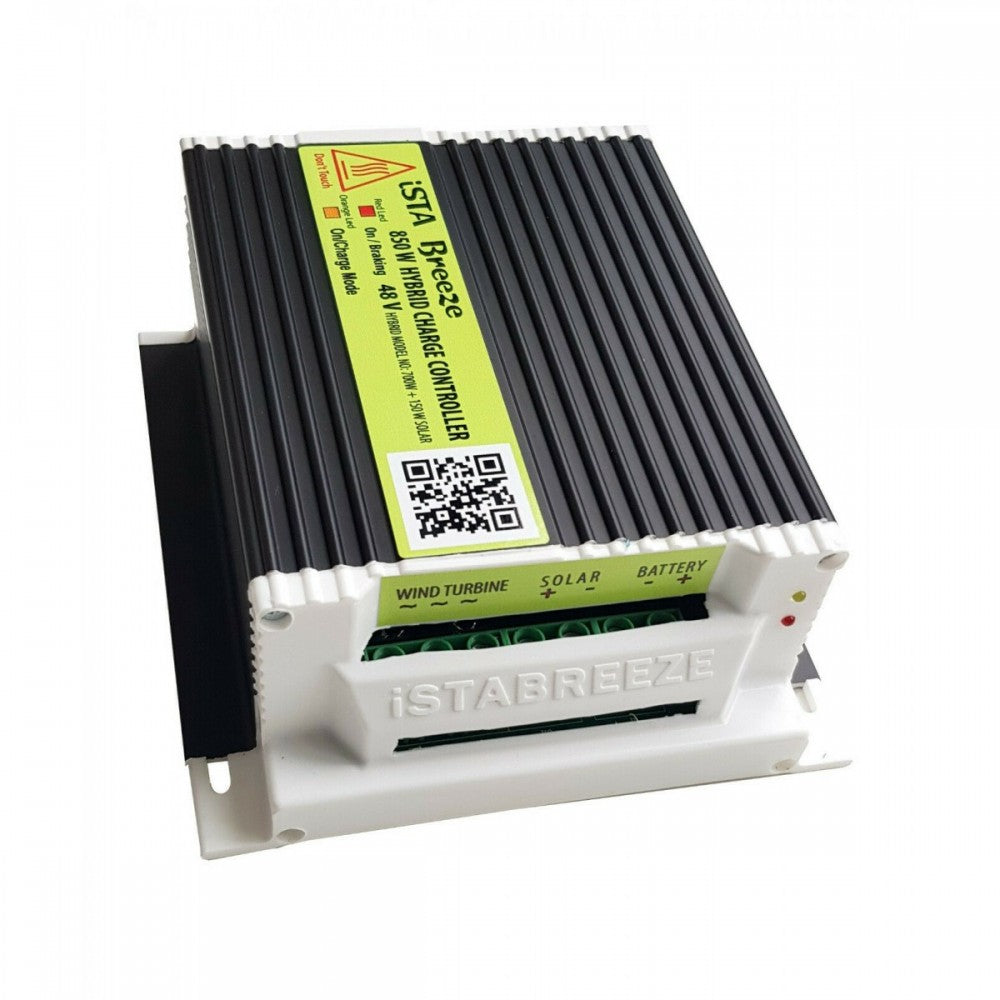

         650W 48V CHARGE CONTROLER

• Nominal output power: 850W

• Input voltage range: 48 ~ 57.9V

• Battery: 48v

• Max. Input wind power: 500W

• Max. Input solar PV: 150W

• Overcharge protection: 25V ± 0.5V AH

• Recommended battery: 2 pc of 12V / 75 AH

• Wind turbine Max. Input current: 17 A

• Protection function: Overcharging the battery automatic brake during storm
