ISTABREEZE® WIND TURBINE

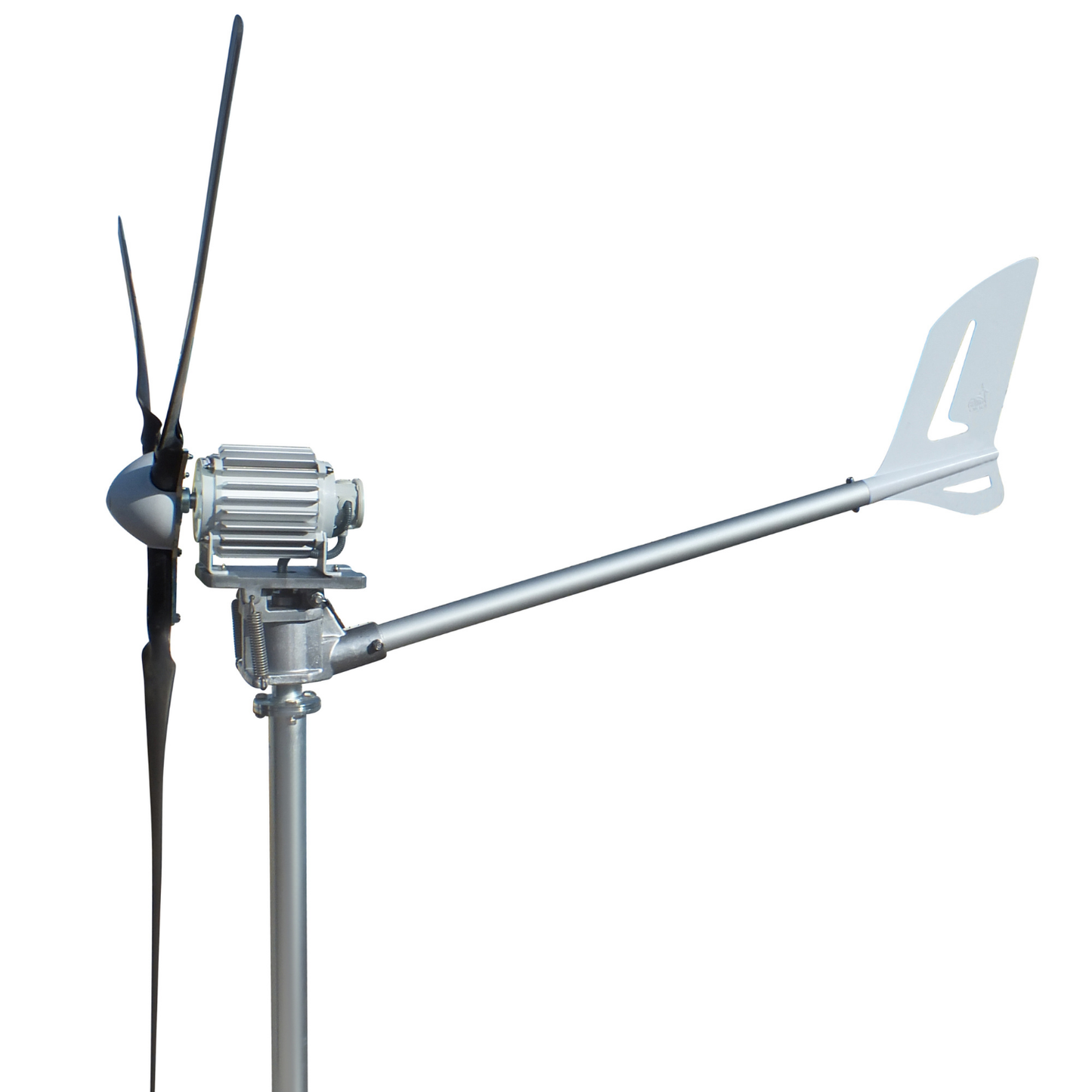

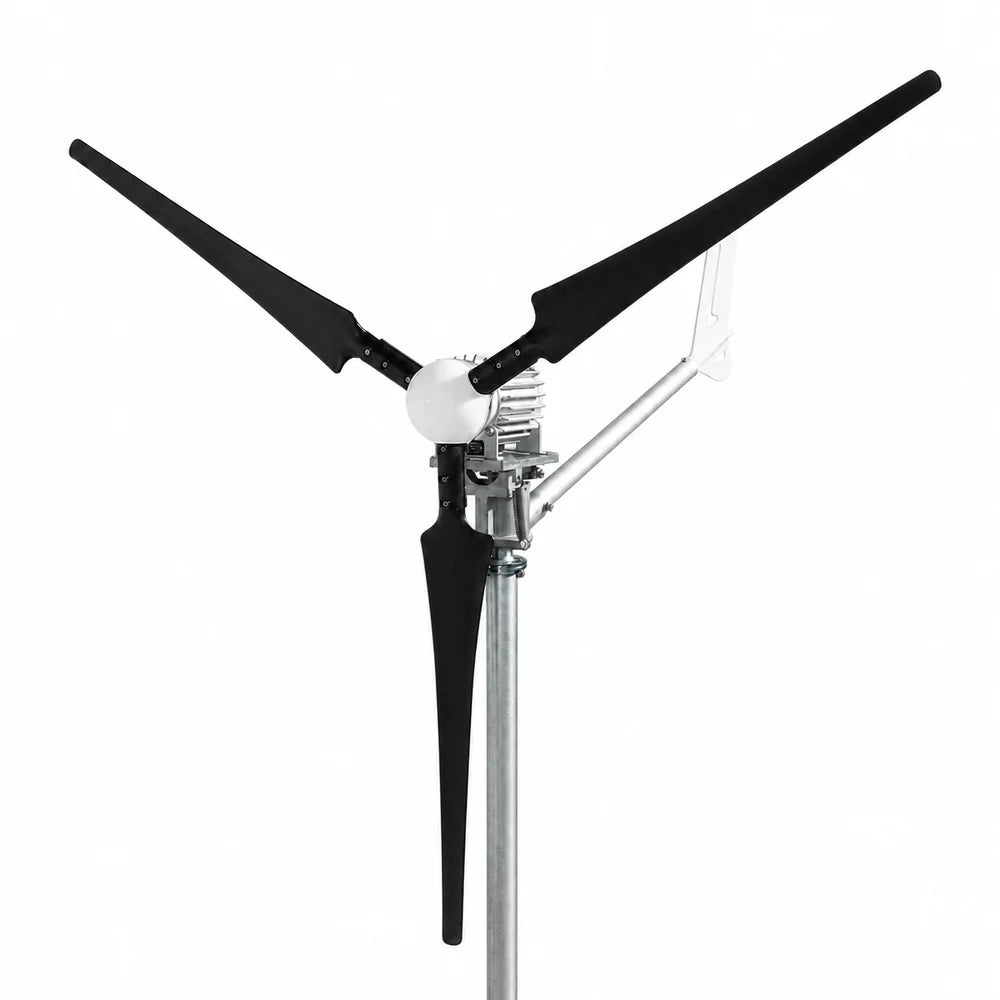

2000W 48V Windsafe Wind Turbine Wind Generator

2000W 48V Windsafe Wind Turbine Wind Generator

$940.00
$940.00
Sale Sold out
Shipping calculated at checkout.
You can see performance chart of wind turbine here -->

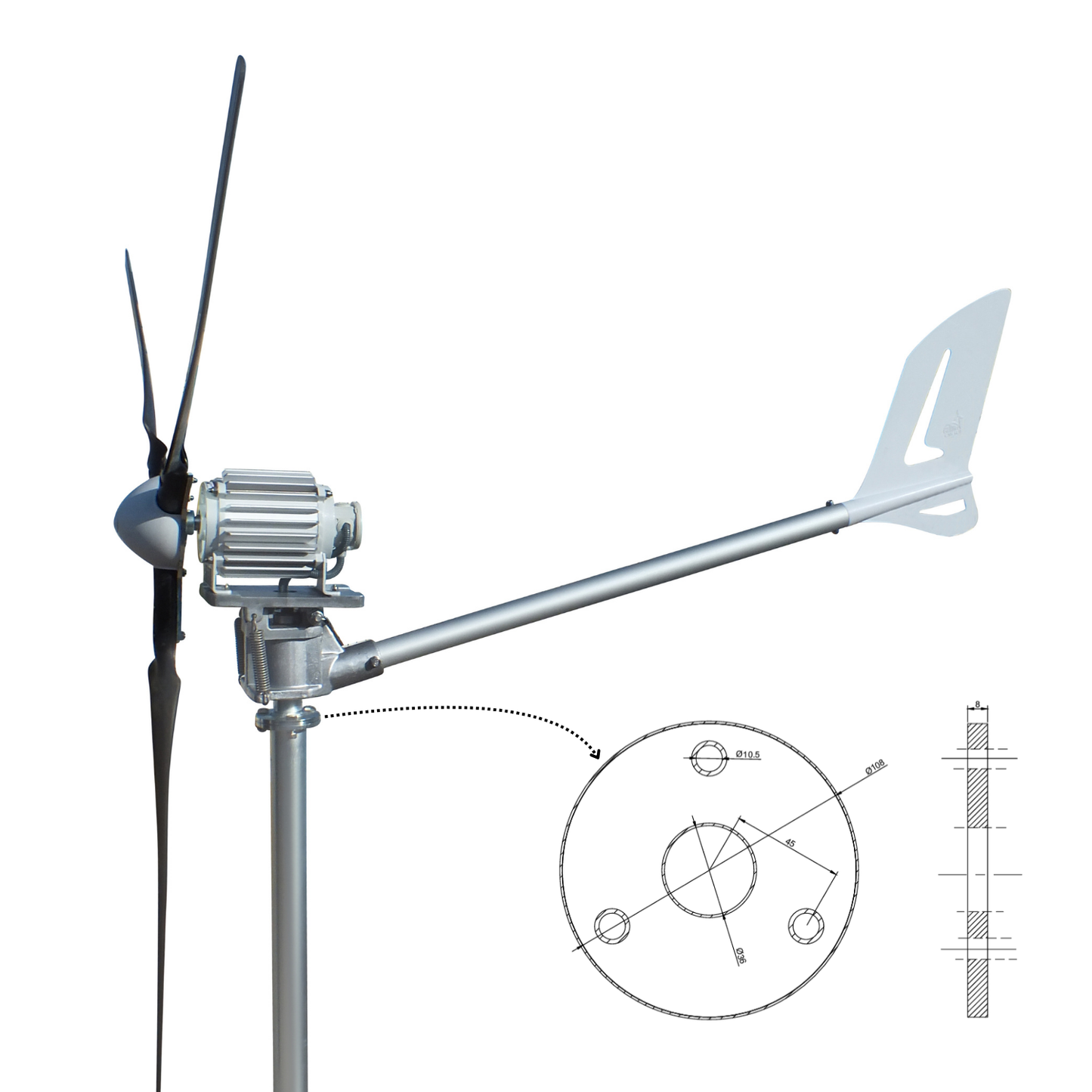

You can see mast connecting flange technical drawing here -->

You can see manual book of wind turbine here -->

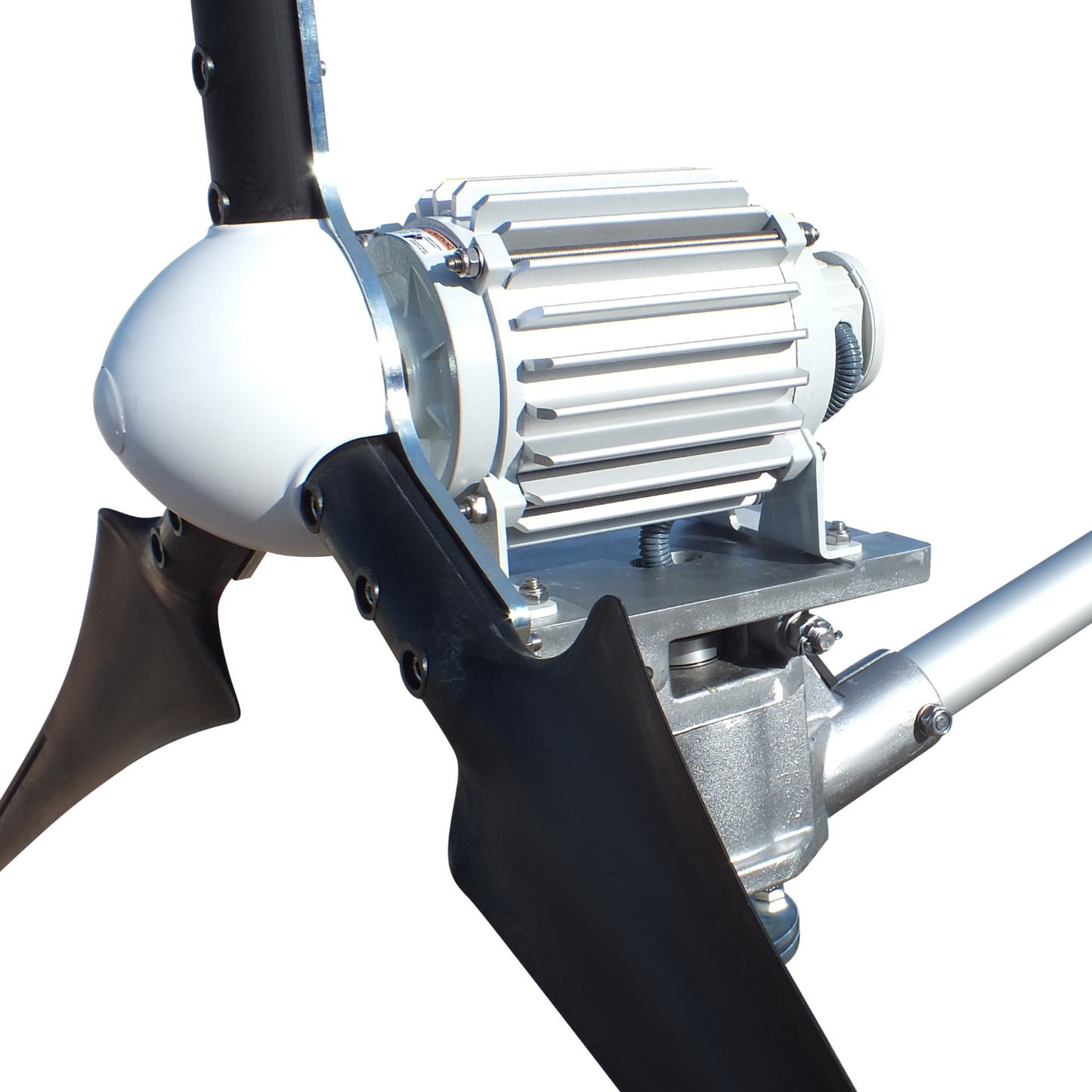

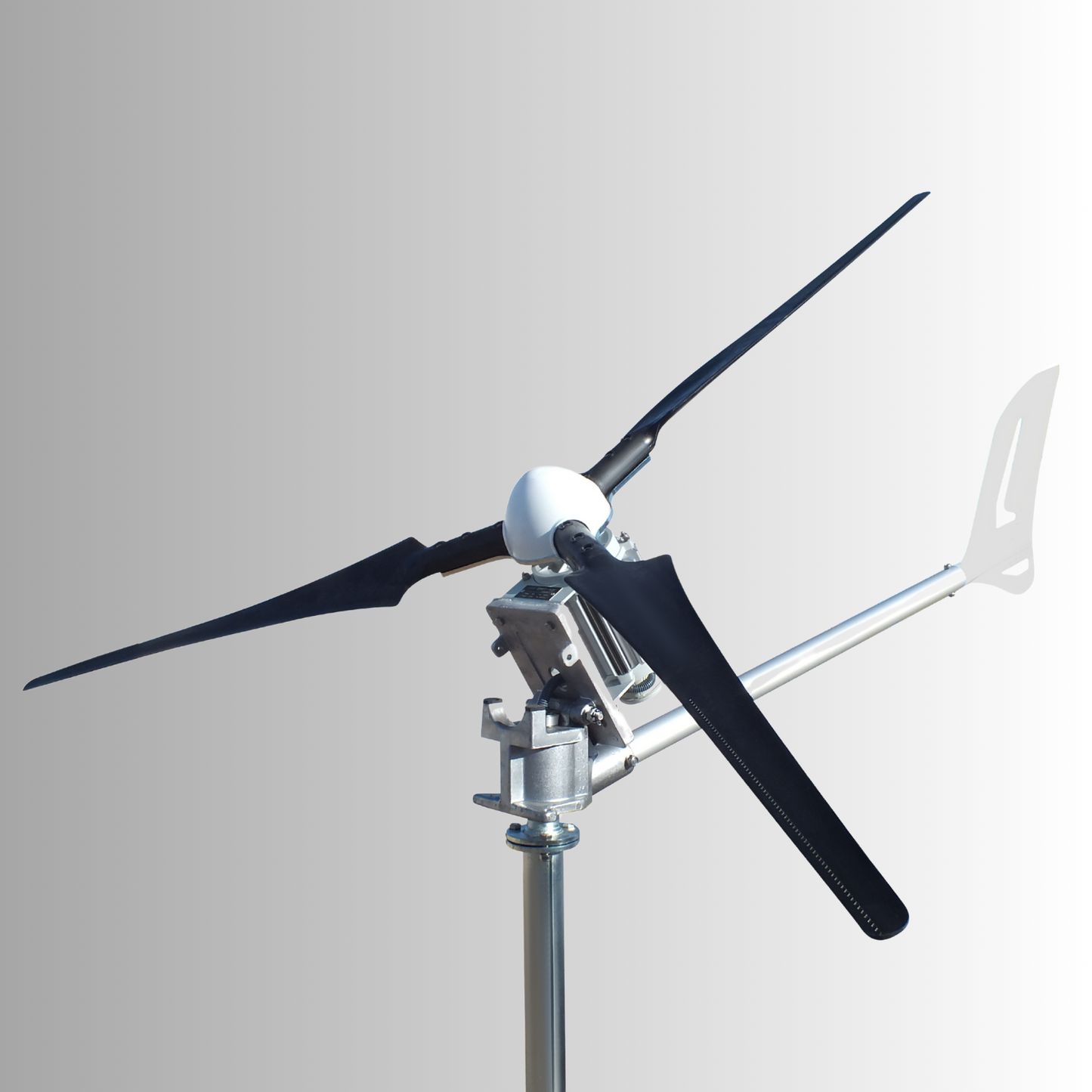

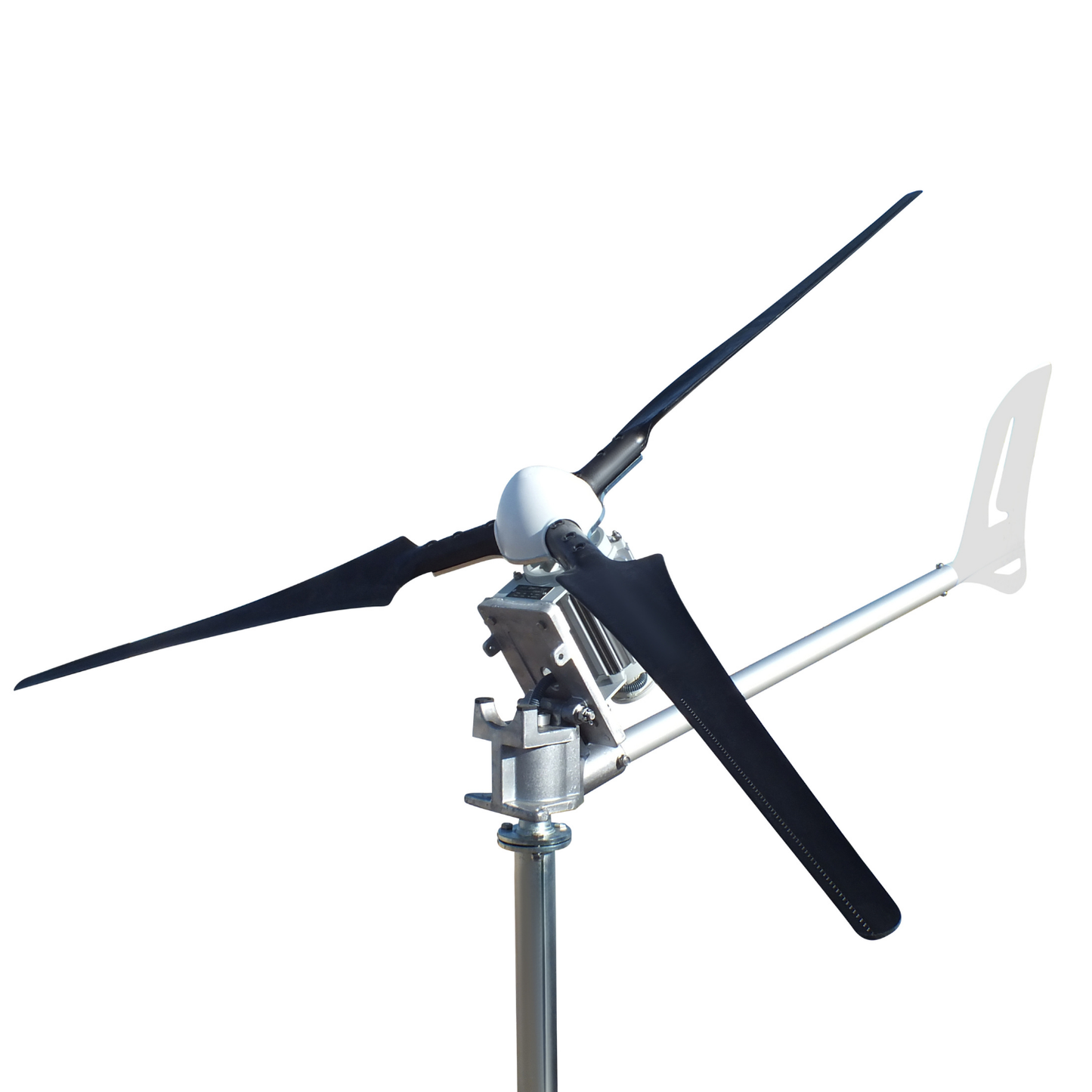

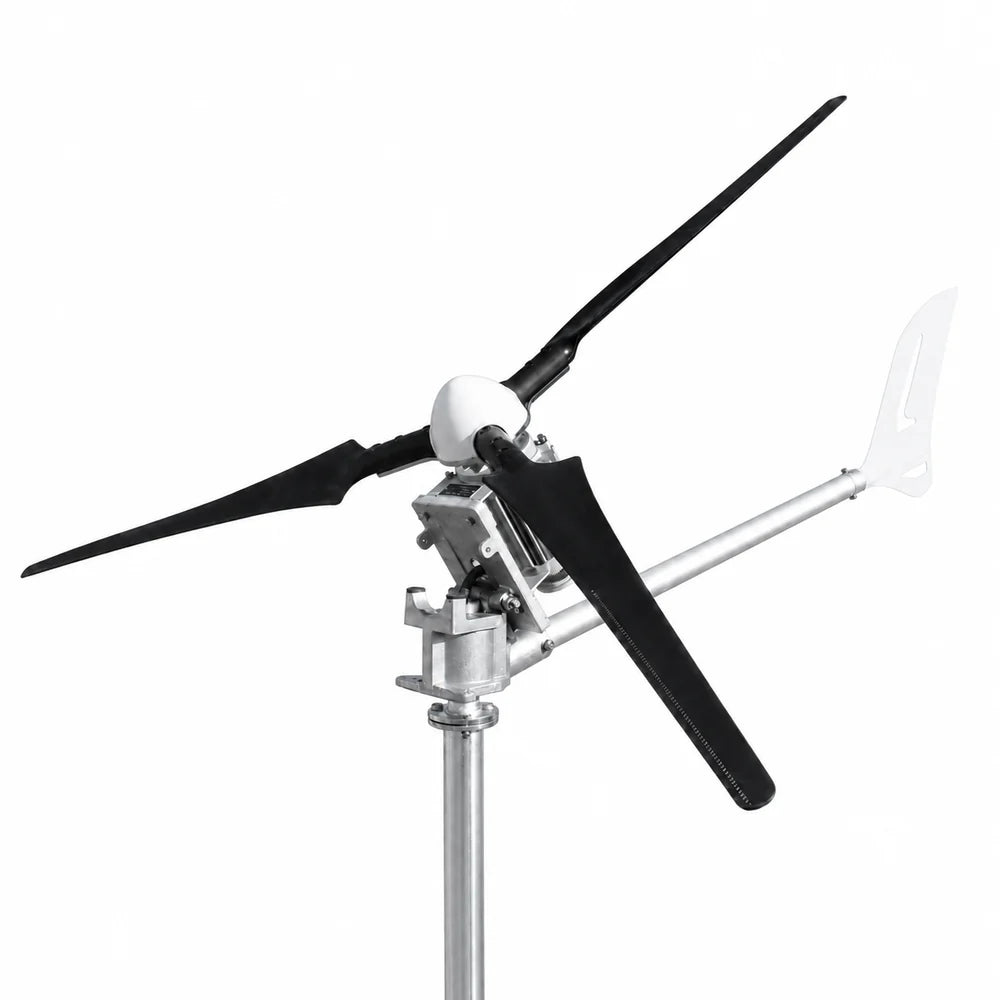

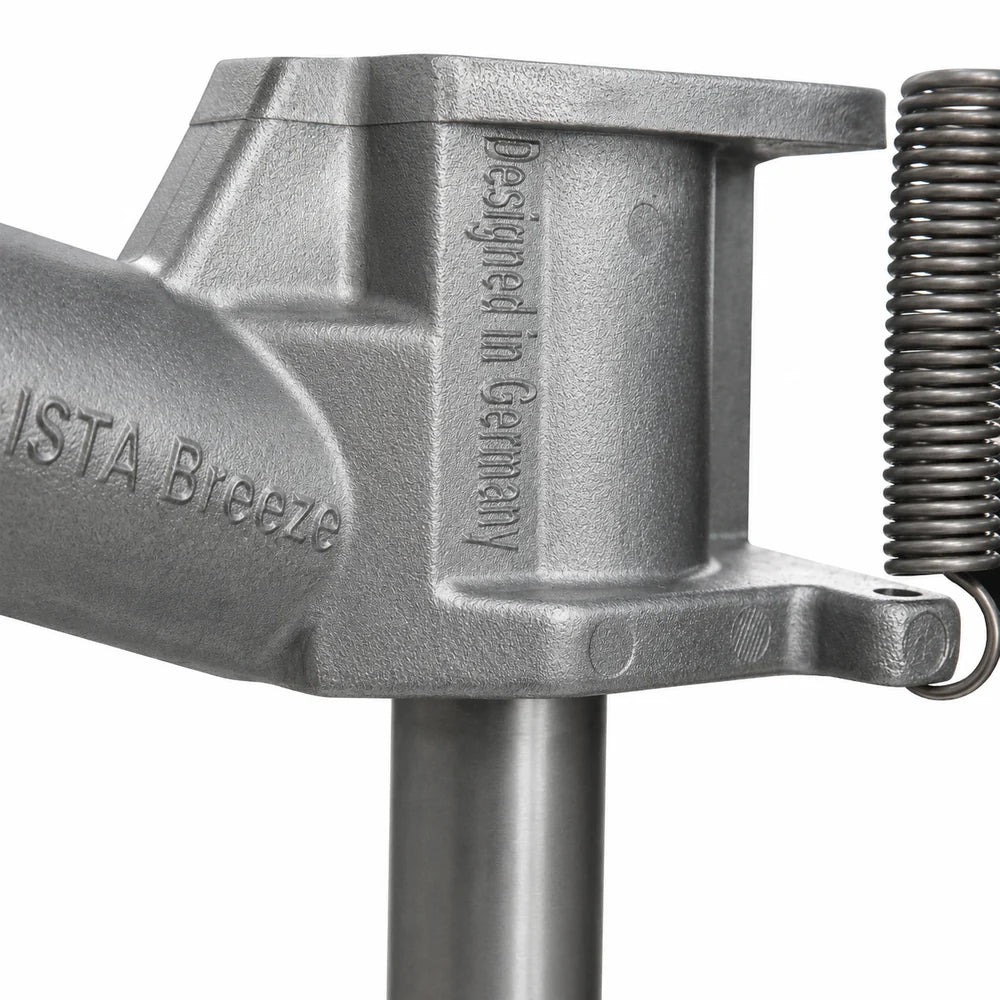

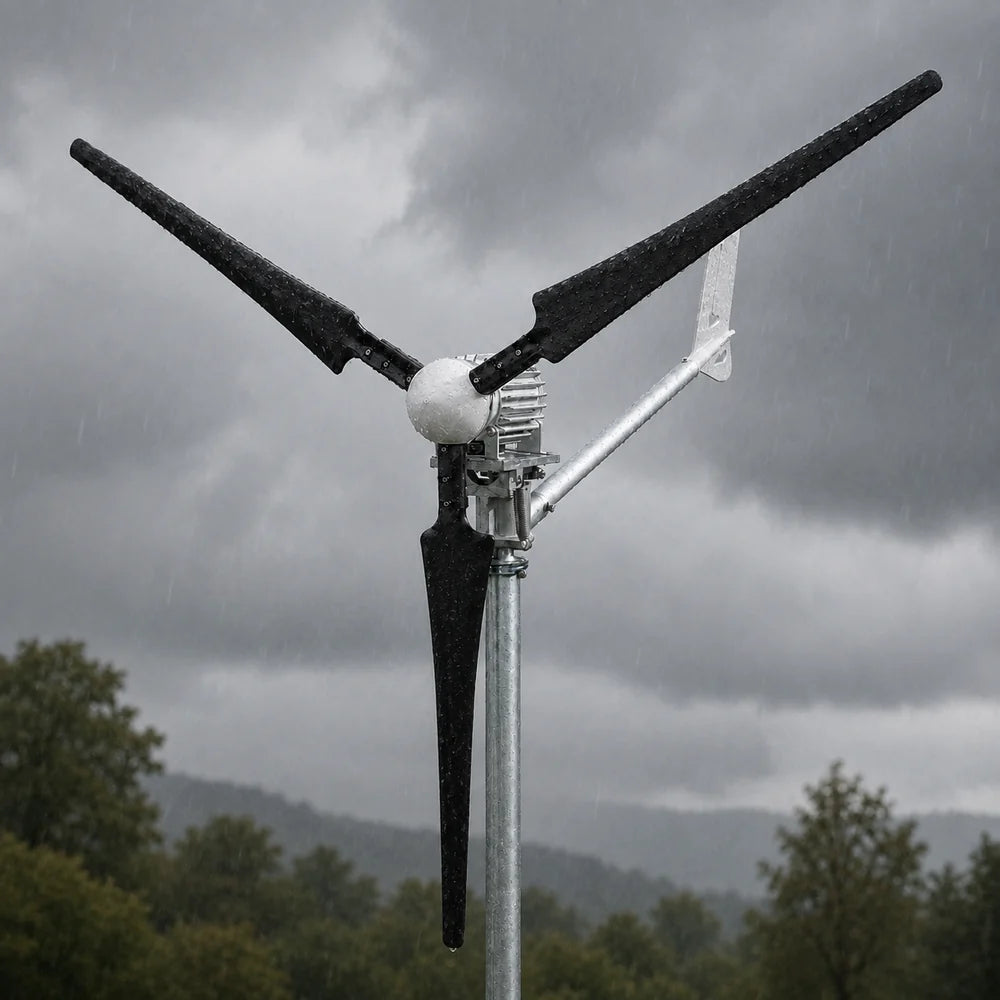

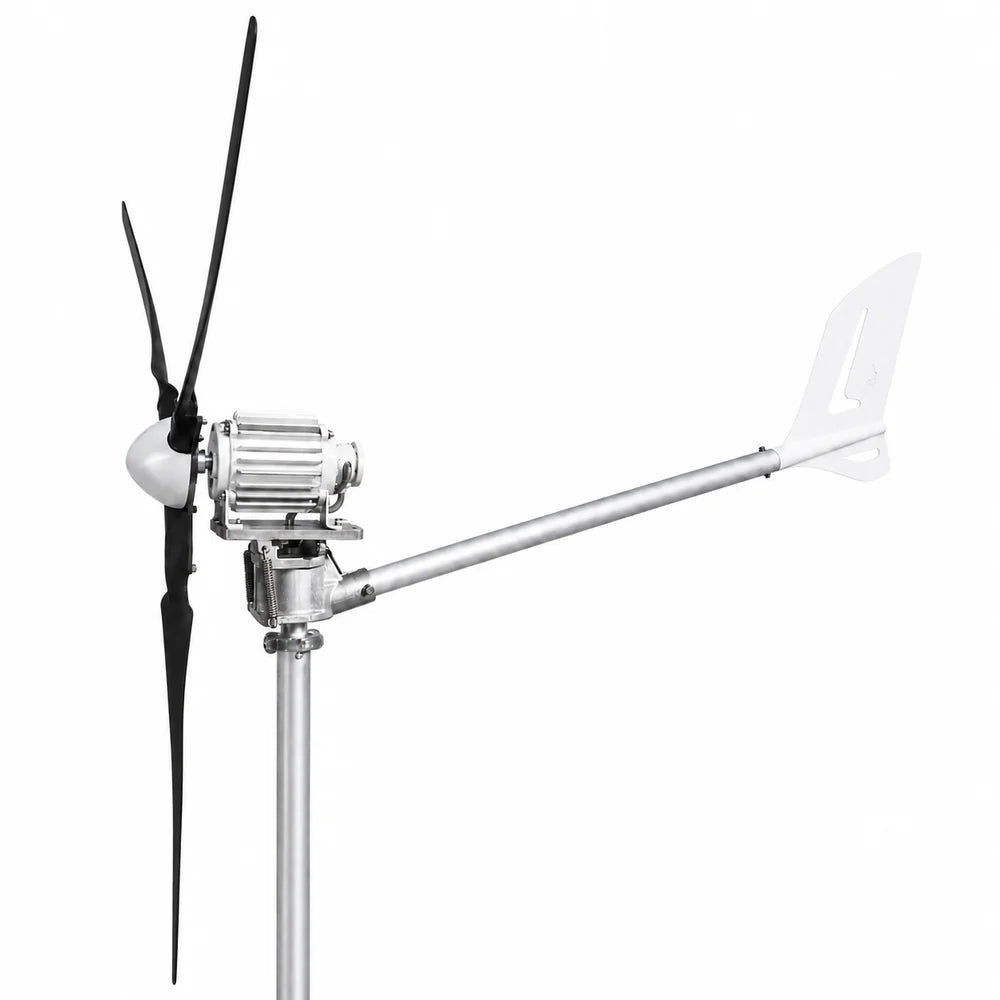

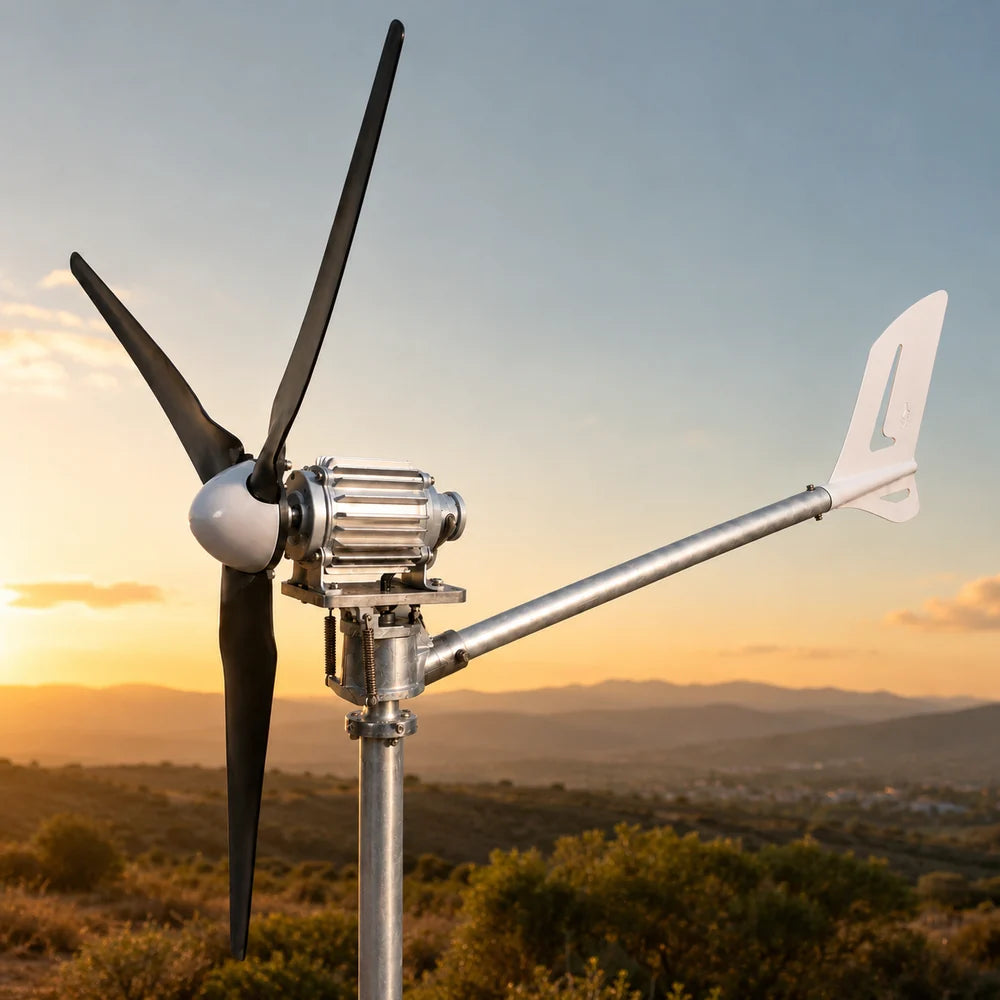

Original wind generator iSTA Breeze Wind Protection We are pleased to introduce our new wind generator IstaBreeze® WindSafe 2000. The newly developed IstaBreeze® WindSafe is a wind generator for long-term professional use, providing reliable automatic and unattended energy even in difficult conditions. WindSafe Our IstaBreeze® wind turbine model features a revolutionary turbine protection system, the rotor is supported on a movable platform that raises the entire structure by 90 degrees in wind gusts or strong winds, changes the blades to the wind, reducing frontal oscillations and rotation. This protects the turbine from strong winds. This robust construction ensures the long service life of our turbines, making it a unique system in the wind generator category. The generous dimensioning of the generator components and the heat dissipation through the grooves in the aluminum housing of the generator ensure long service life even at high ambient temperatures.



  • Universal application for low, middle and high wind
  • Automatic storm protection 14 m / s (by tilting the generator)
  • 3-phase permanent magnets (High efficiency due to strong permanent magnets (NdFeB magnets, 150 ° temperature resistant)
  • Aerodynamic design
  • Powder coated aluminum housing
  • Low noise
  • UV-resistant Plastic + 30% glass fibers blades, successfully tested
  • Power transmission through slip ring, thereby no twisting of the cable possible
  • Durable and low maintenance



PRODUCT FEATURES - WIND TURBINE:



  • Current : 40A
  • Rated Power: 2000W
  • Maximum Power: 2200W
  • Generator Matarial: Aluminium
  • Voltage: 48V-AC
  • Package Dimensions: 1.Package: 60 x 40 x 30 cm (28,5 kg) 2.Package: 110 x 19 x 12 cm (3,5 kg) Totaly: 32 kg
  • Power Transmission: Slip ring, so that the cable cannot be bent (pre-mounted on the support element)
  • Body Material: Aluminum casting
  • Auto Track Circuit: 14 m/s (rotor tilted)



 WIND SPEED:

  • Initial Wind Speed: 3 m/s
  • Maximum Wind Speed: 14-15 m/s

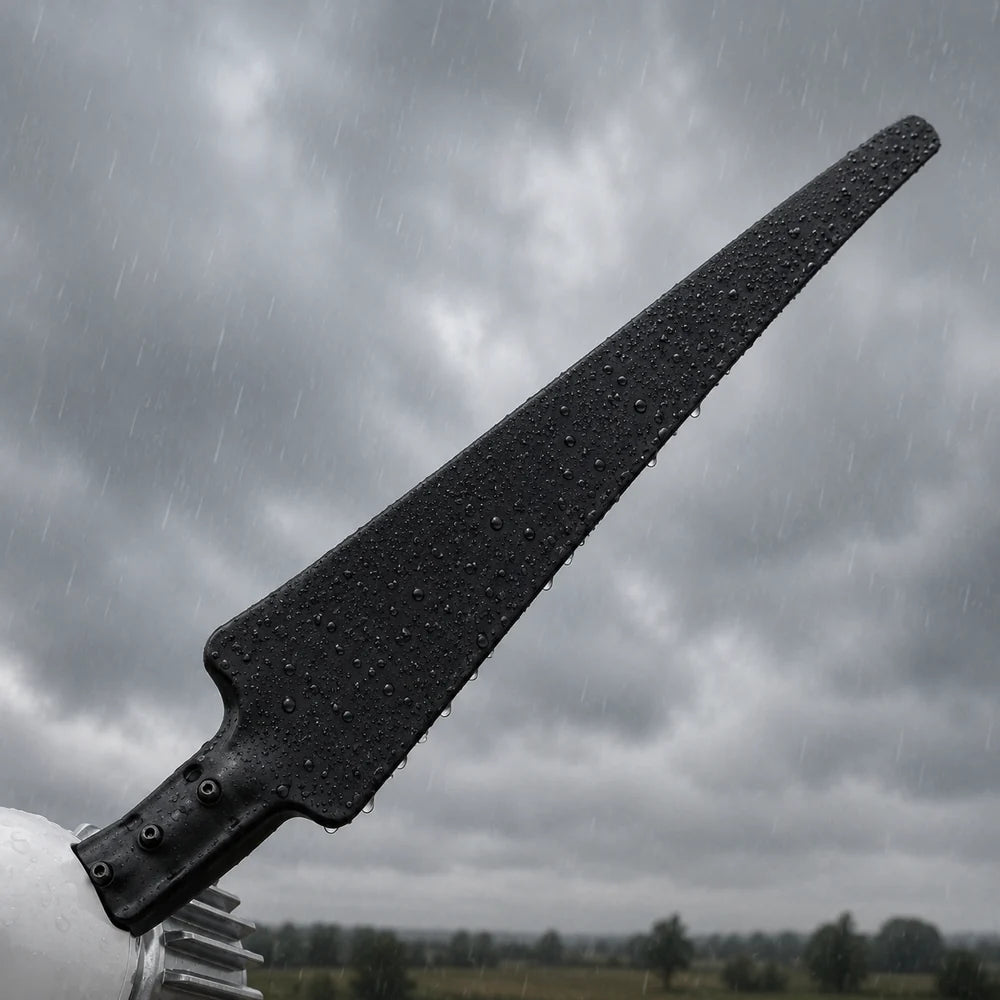

BLADE SPECIFICATIONS:

  • Weight: 770 Gr
  • Width: 14.3 cm
  • Noise : 40 dB
  • Blade Material: Carbon
  • Blade Length:103 cm
  • Rotor Diameter:220 cm



NECESSARY EQUIPMENTS:



  • Battery: Suitable battery group: Min7200W - Max 14400W



PACKAGE CONTENT:



  • Connection Screws: 1 Set
  • Nose: 1 Pcs
  • Flange: 1 Pcs
  • Generator: 1 Pcs
  • Blades: 3 Pcs
  • Manual Book: 1 Pcs
  • Tail - Tail Pipe: 1 Pcs
