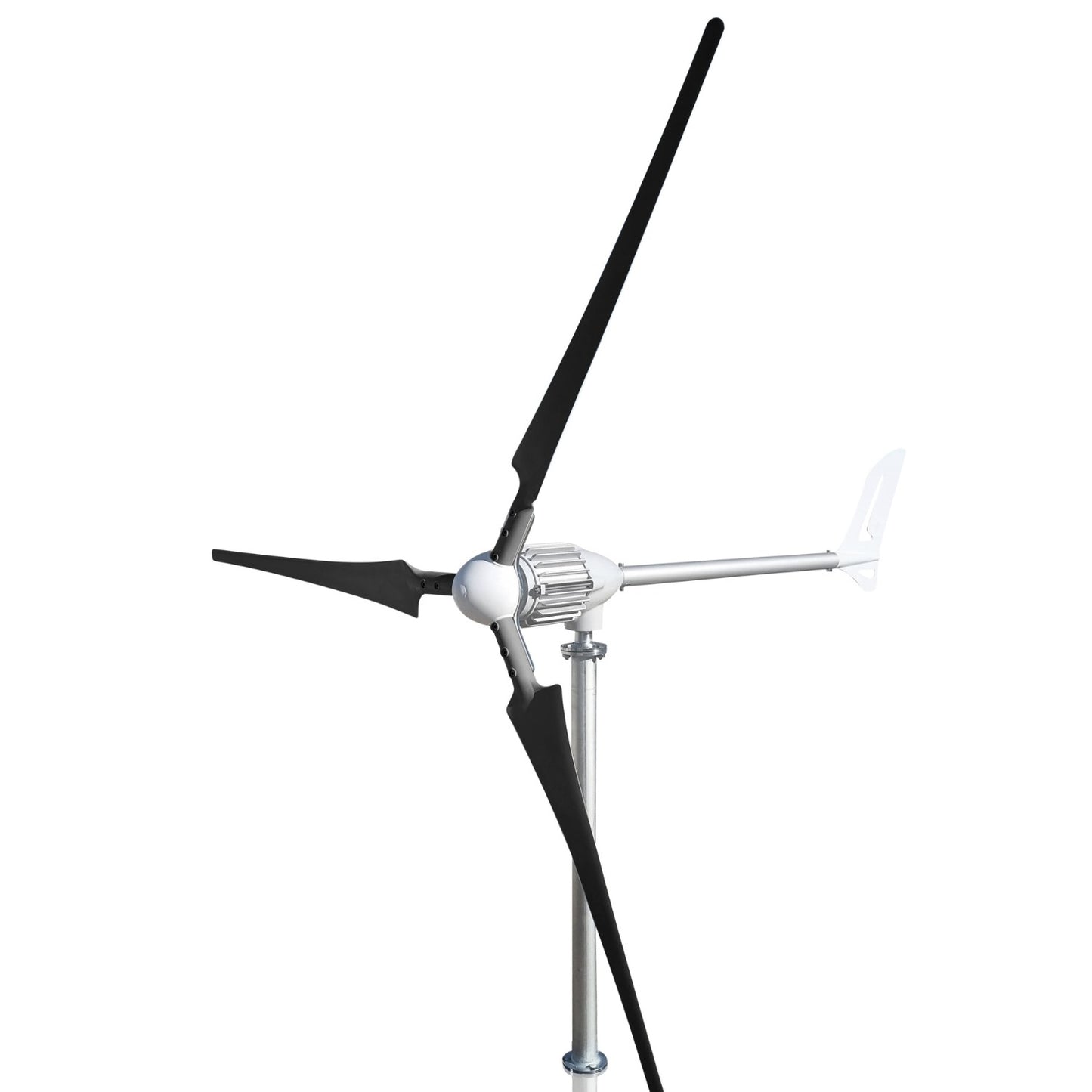

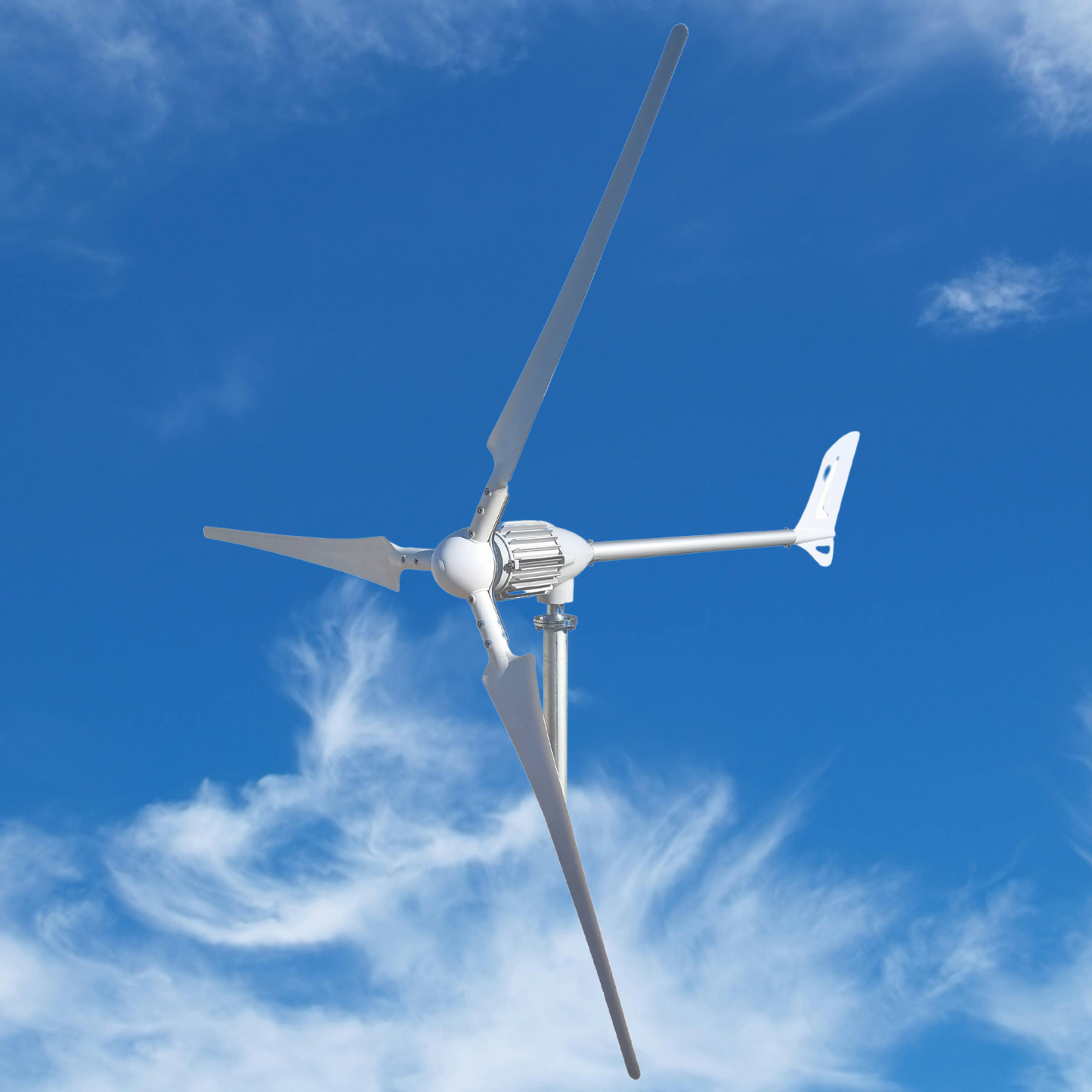

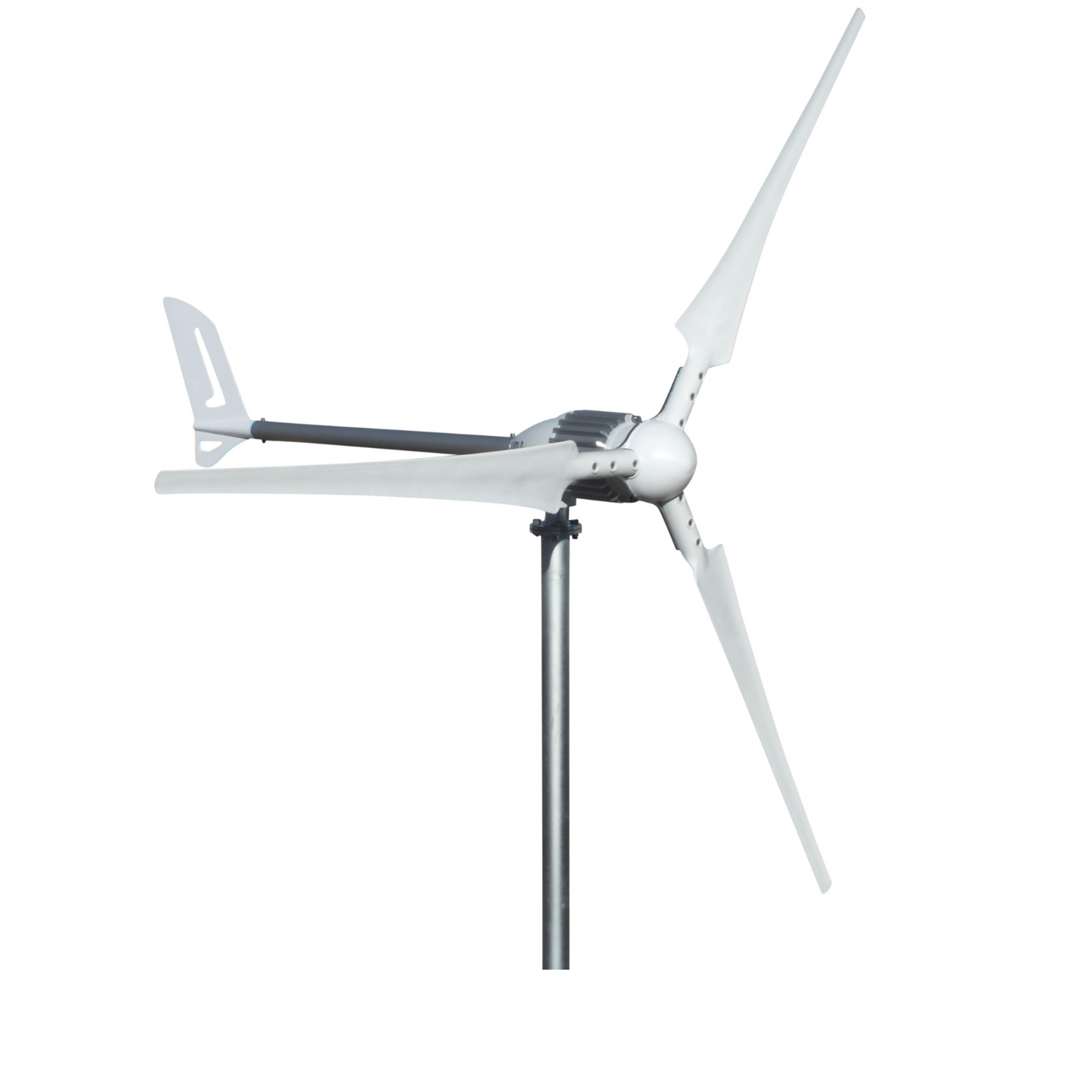

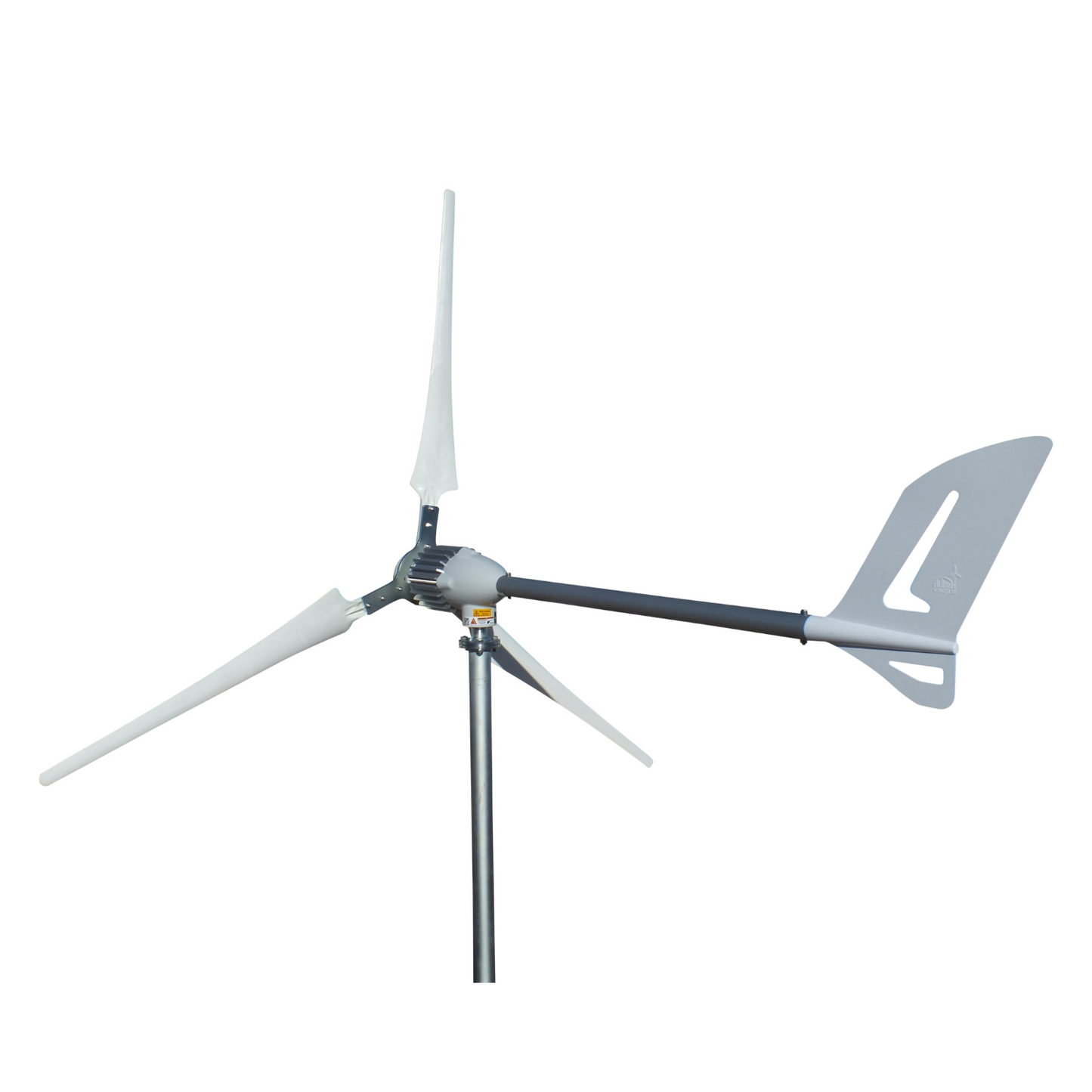

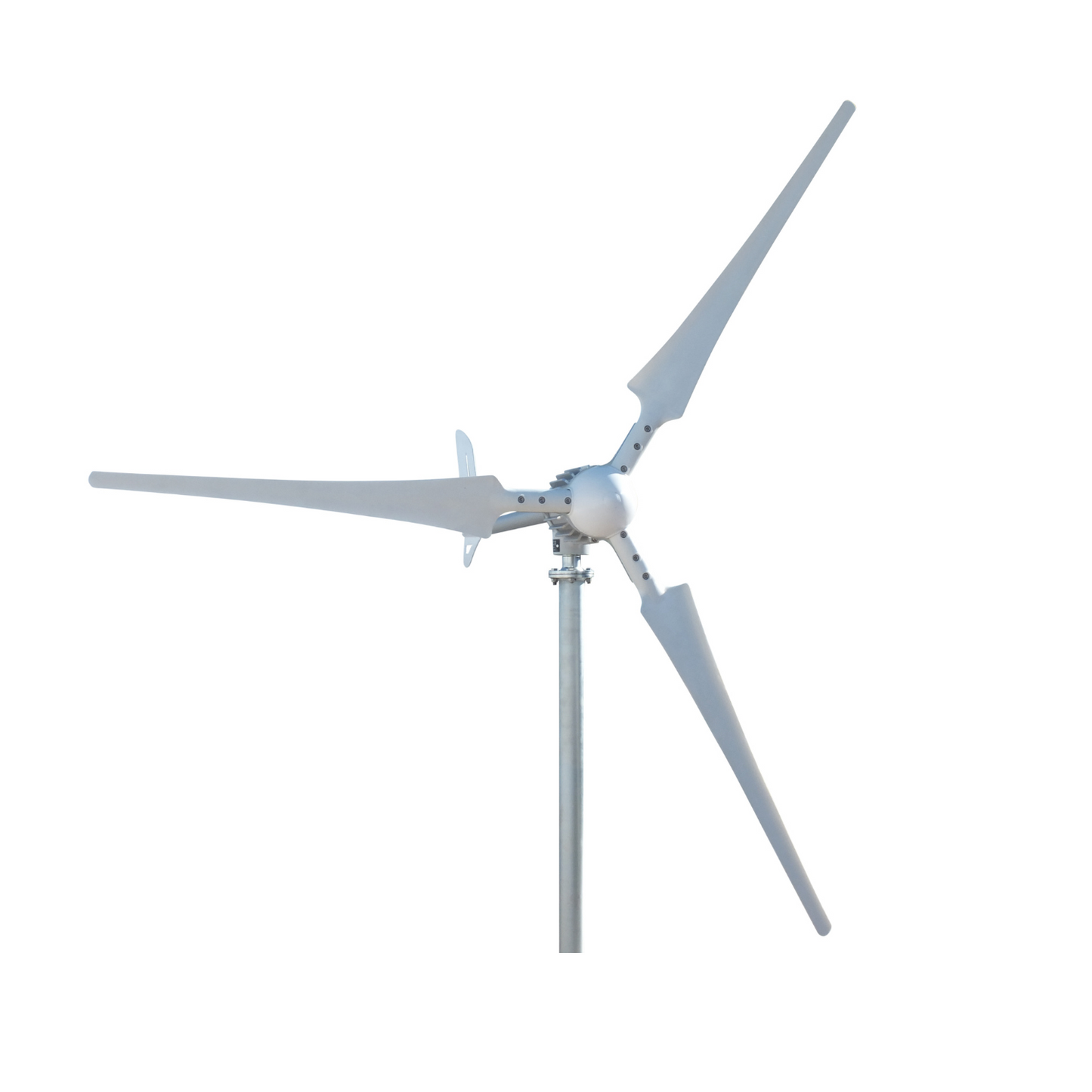

i-1000W Ongrid Wind Turbine Wind Generator

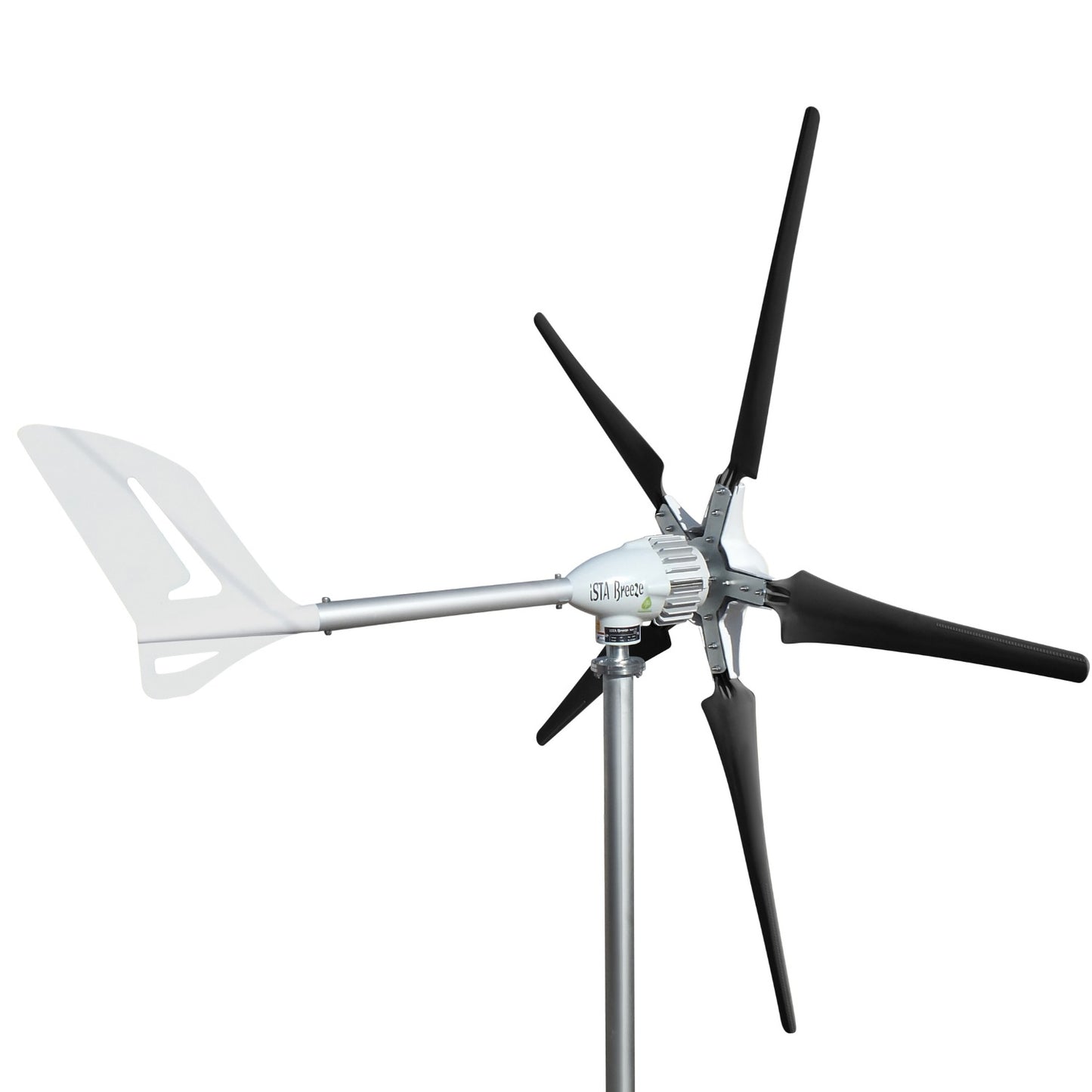

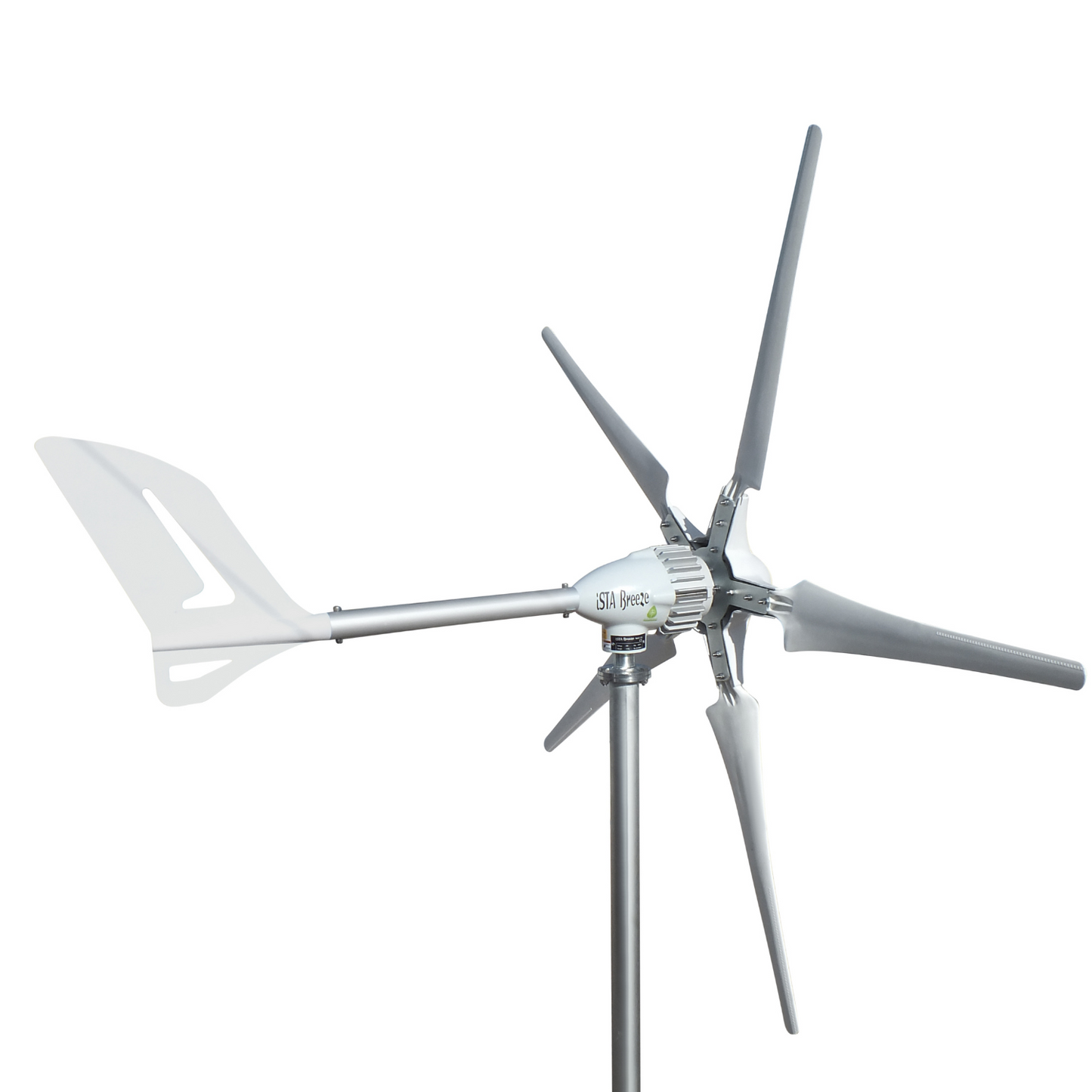

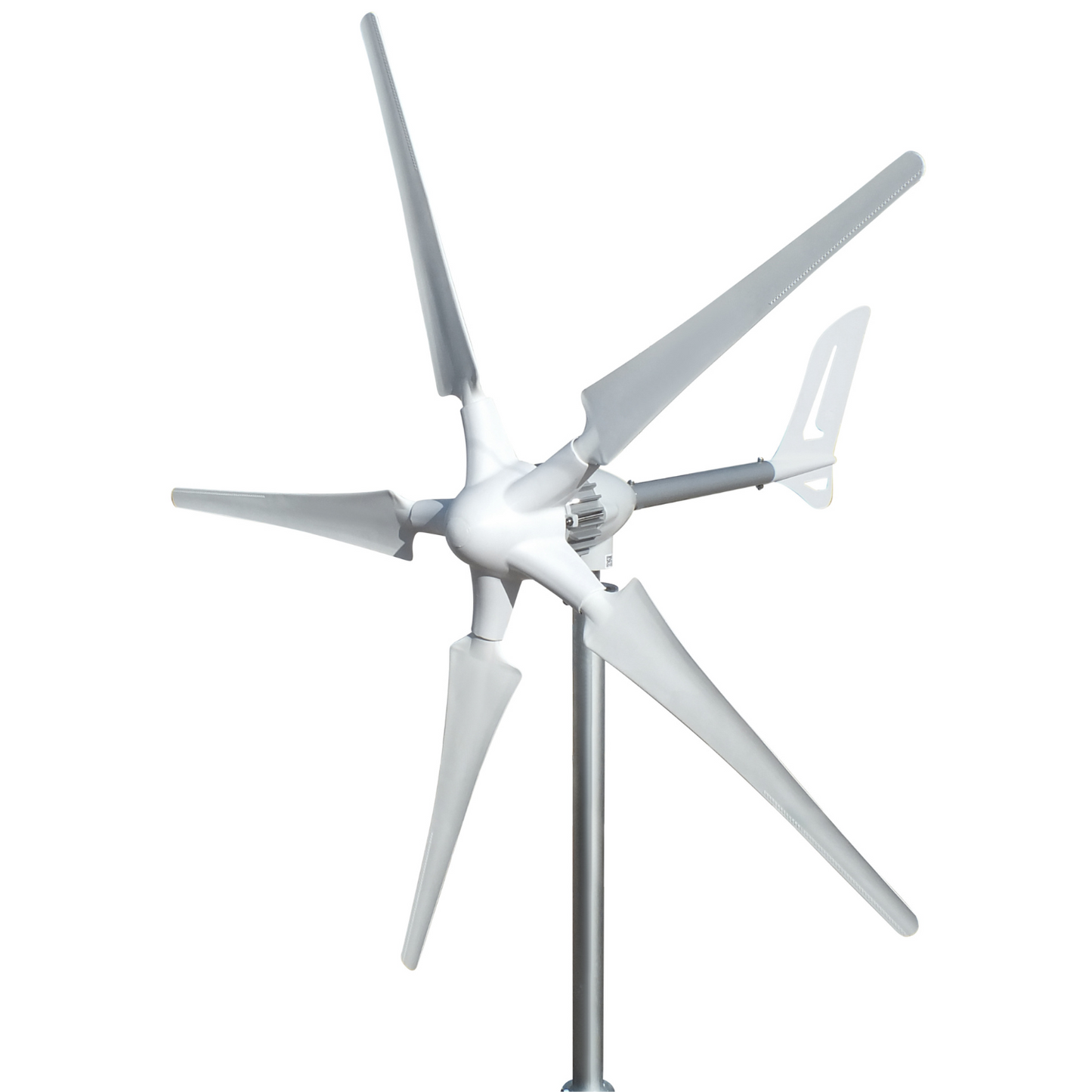

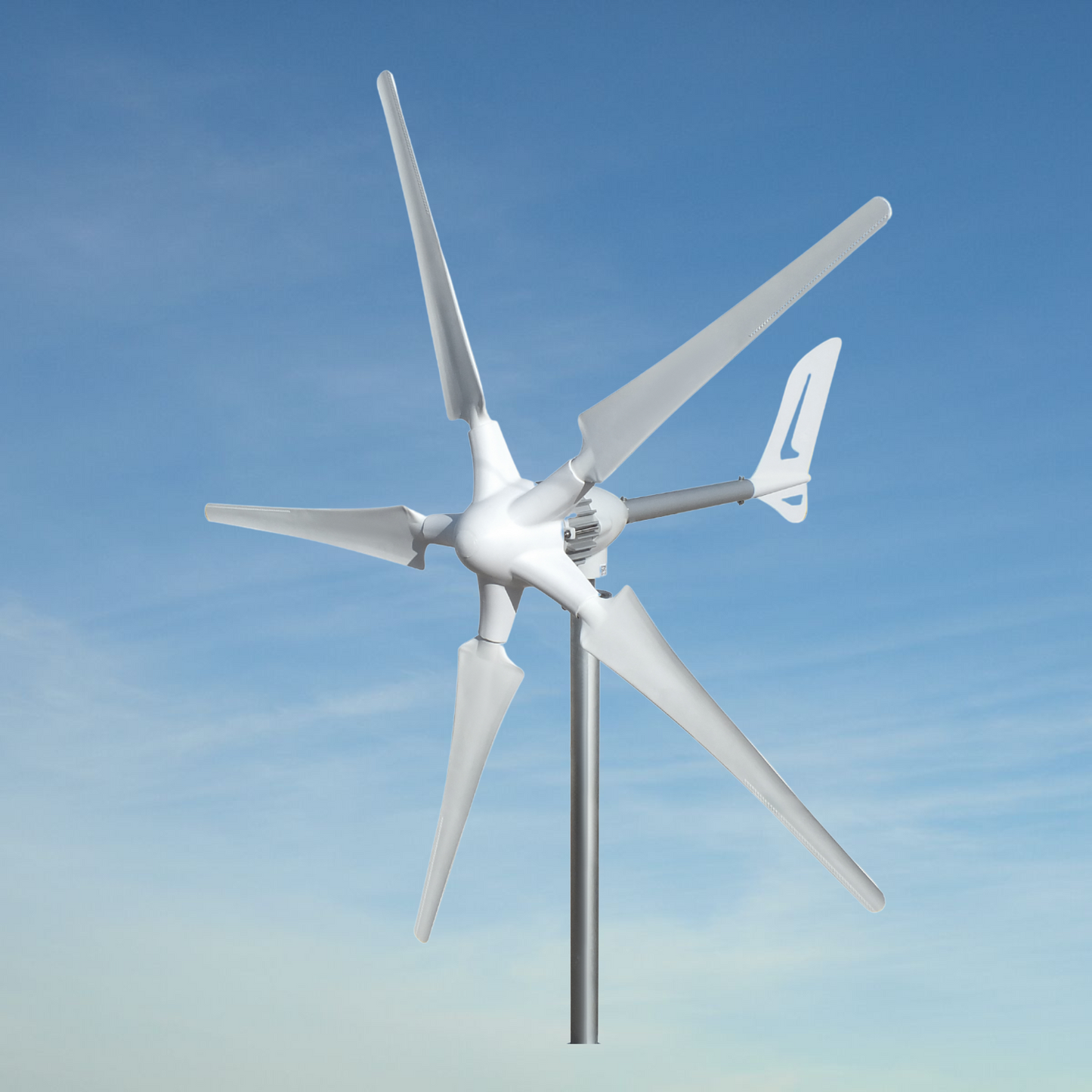

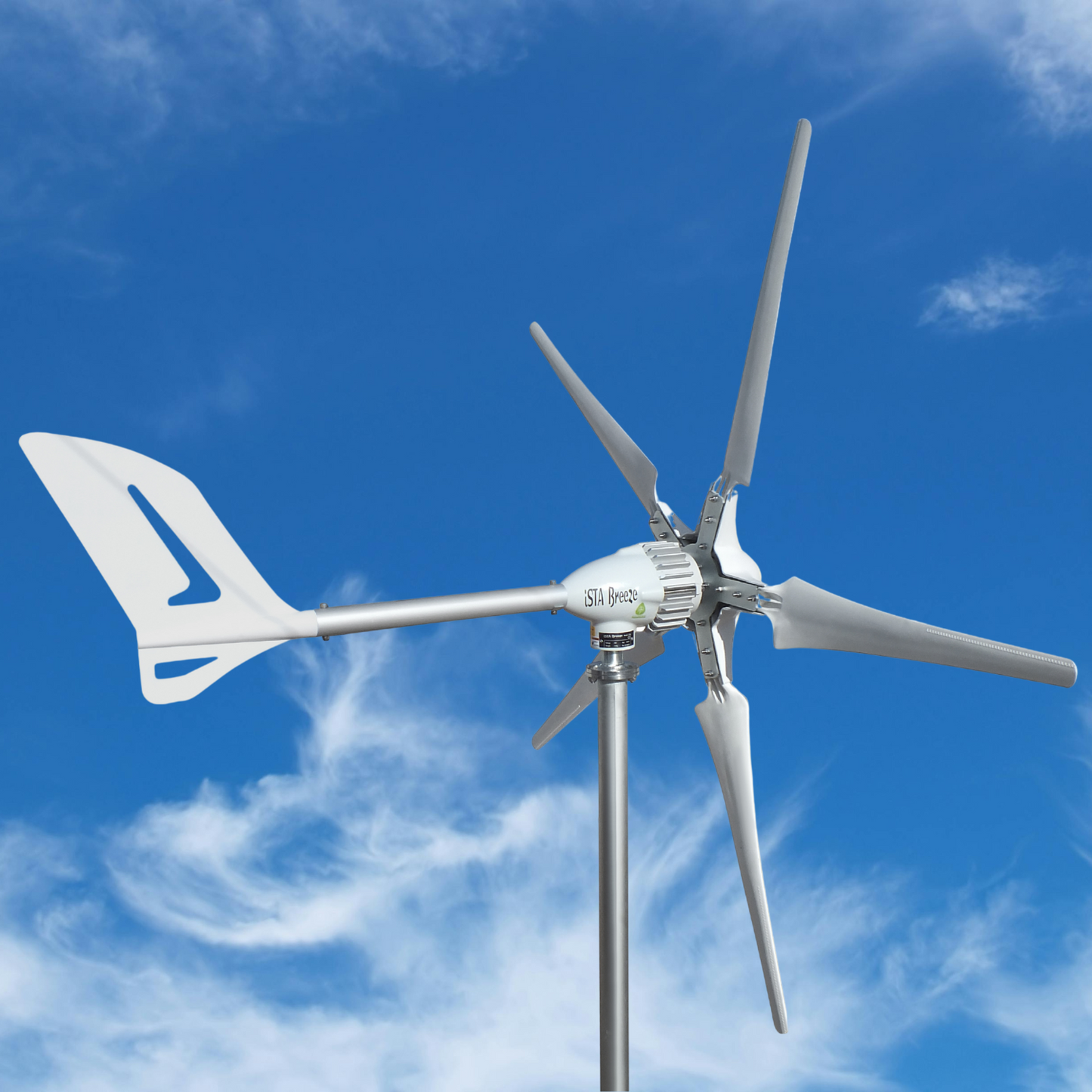

5 BLADE VERSION IS RECOMMEND ONLY FOR LOW WIND AREAS

• Universal application for low, middle and high wind

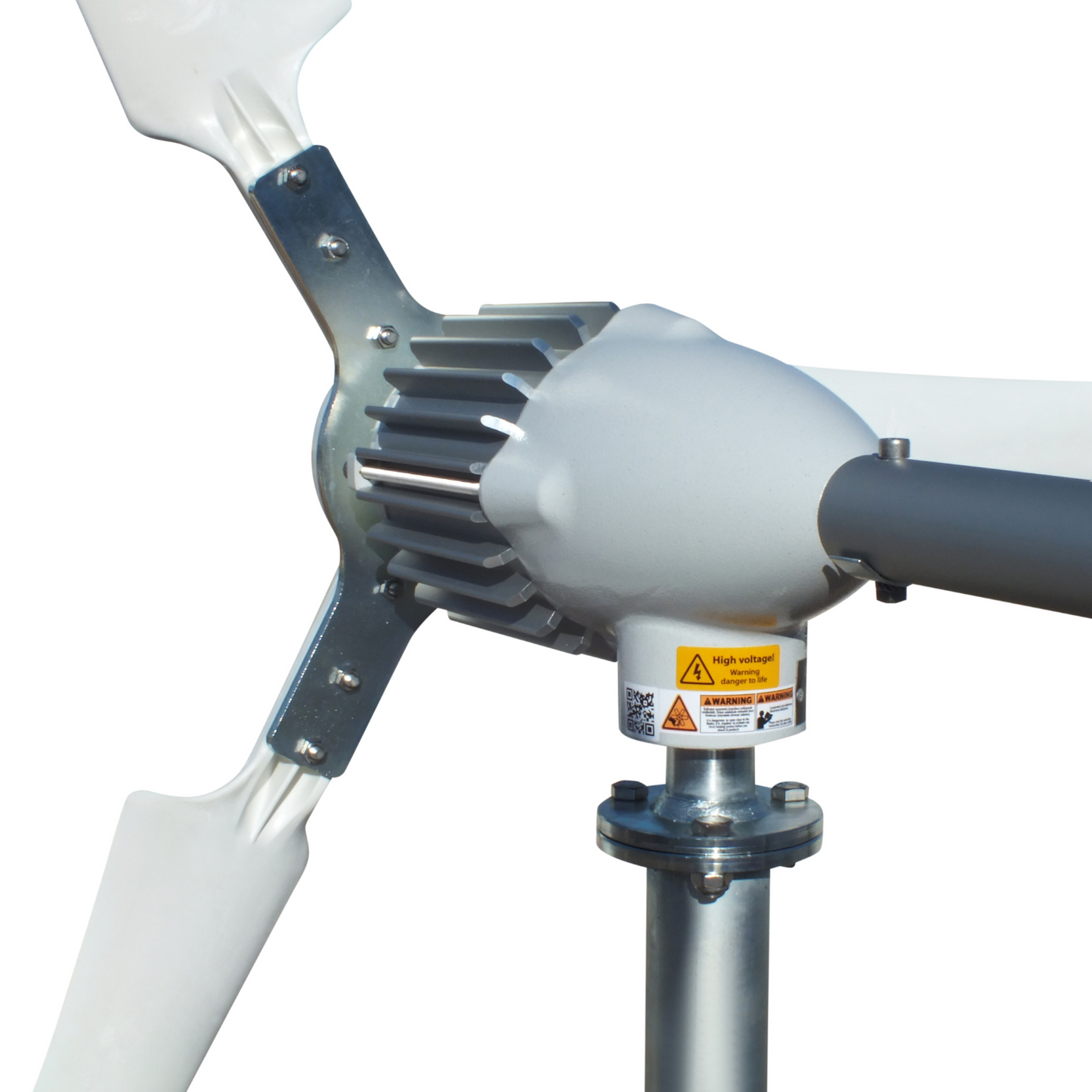

• 3-phase permanent magnets (High efficiency due to strong permanent magnets (NdFeB magnets, 150 ° temperature resistant)

• Aerodynamic design

• Powder coated aluminum housing

• Low noise

• UV-resistant Plastic + 30% glass fibers blades, successfully tested

• Power transmission through slip ring, thereby no twisting of the cable possible

• Durable and low maintenance

PRODUCT FEATURES - WIND TURBINE:

• Body Matarial: Aluminium- Casting

• Alternator Body: Aluminium

• Package Dimensions: 1.Package: 60 x 40 x 30 cm (17,5 kg) 2.Package: 110 x 19 x 12 cm (3,5 kg) Totaly: 21 kg

• Max Power : 220VAC- 5.5A=1200W

• Open Circuit Voltage [VAC] Max: 350 VAC

WIND SPEED:

• Initial Wind Speed: 3 m/s

• Maximum Wind Speed: 14-15 m/s

BLADE SPECIFICATIONS:

• Weight: 650 Gr (Composite) 770 Gr (Carbon)

• Width: 14.3 cm

• Noise : 40 dB (Carbon), 50dB (Composite)

• Blade Material: Composite or Carbon

• Blade Length:107 cm

• Rotor Diameter:220 cm

PACKAGE CONTENT:

• Connection Screws: 1 Set

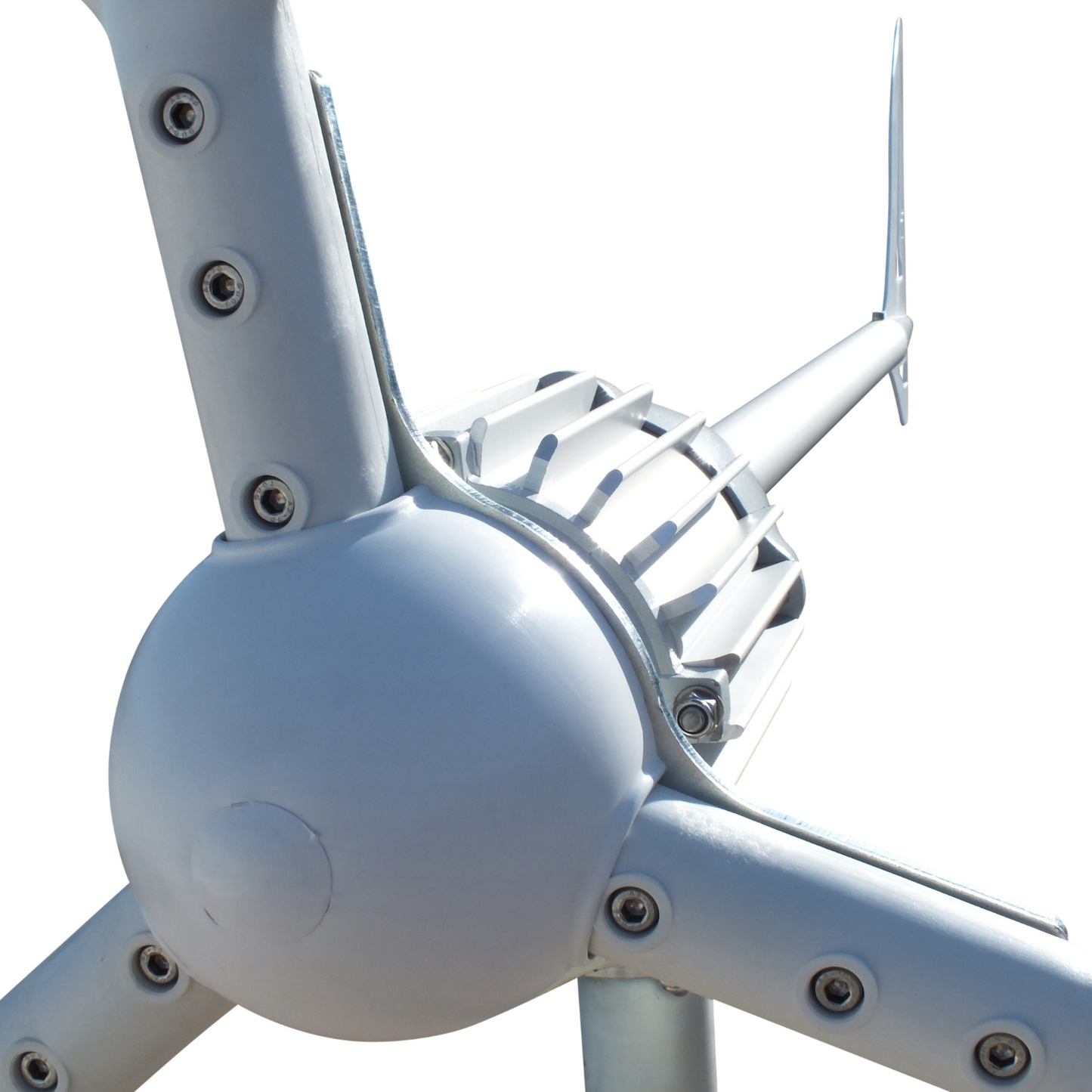

• Nose: 1 Pcs

• Flange: 1 Pcs

• Generator: 1 Pcs

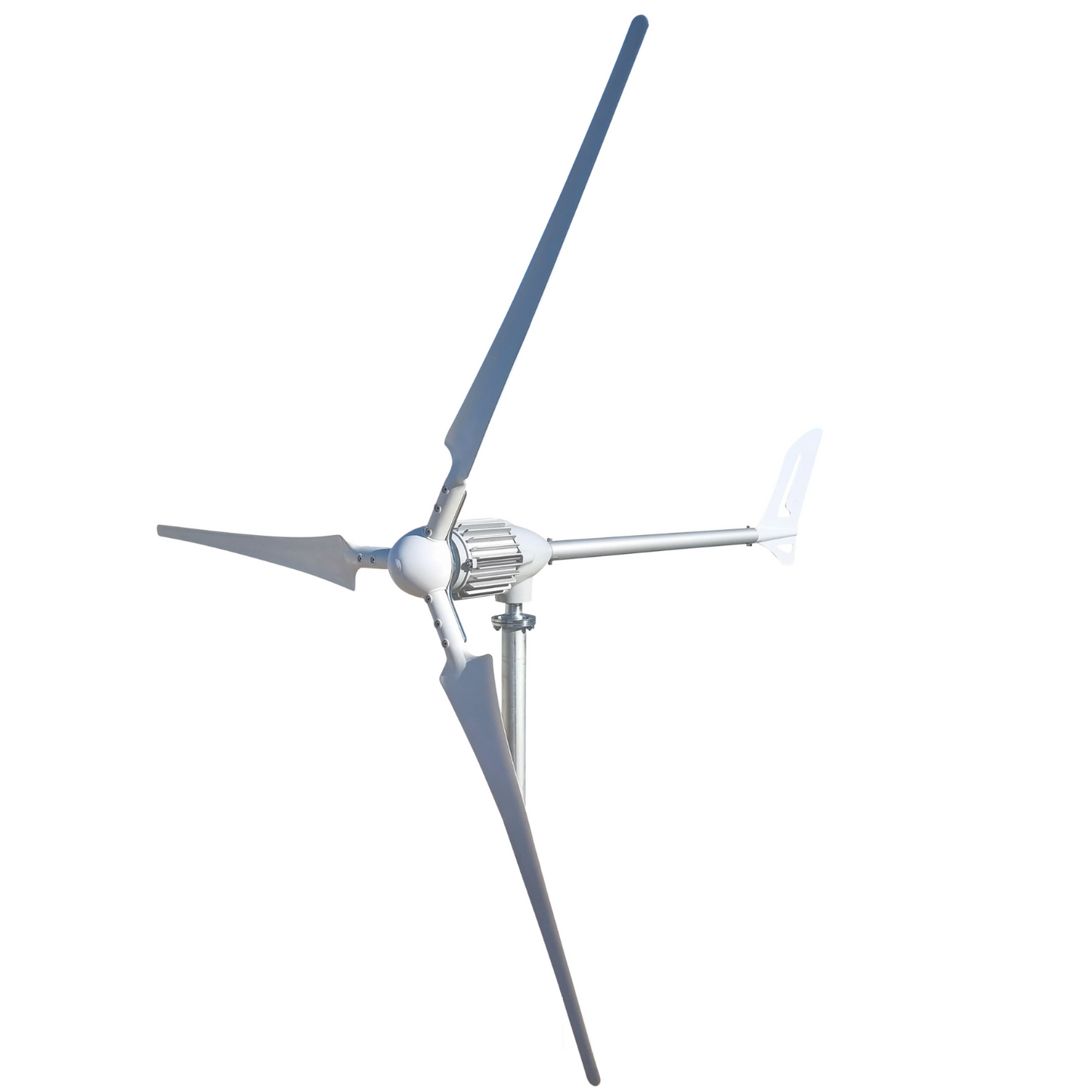

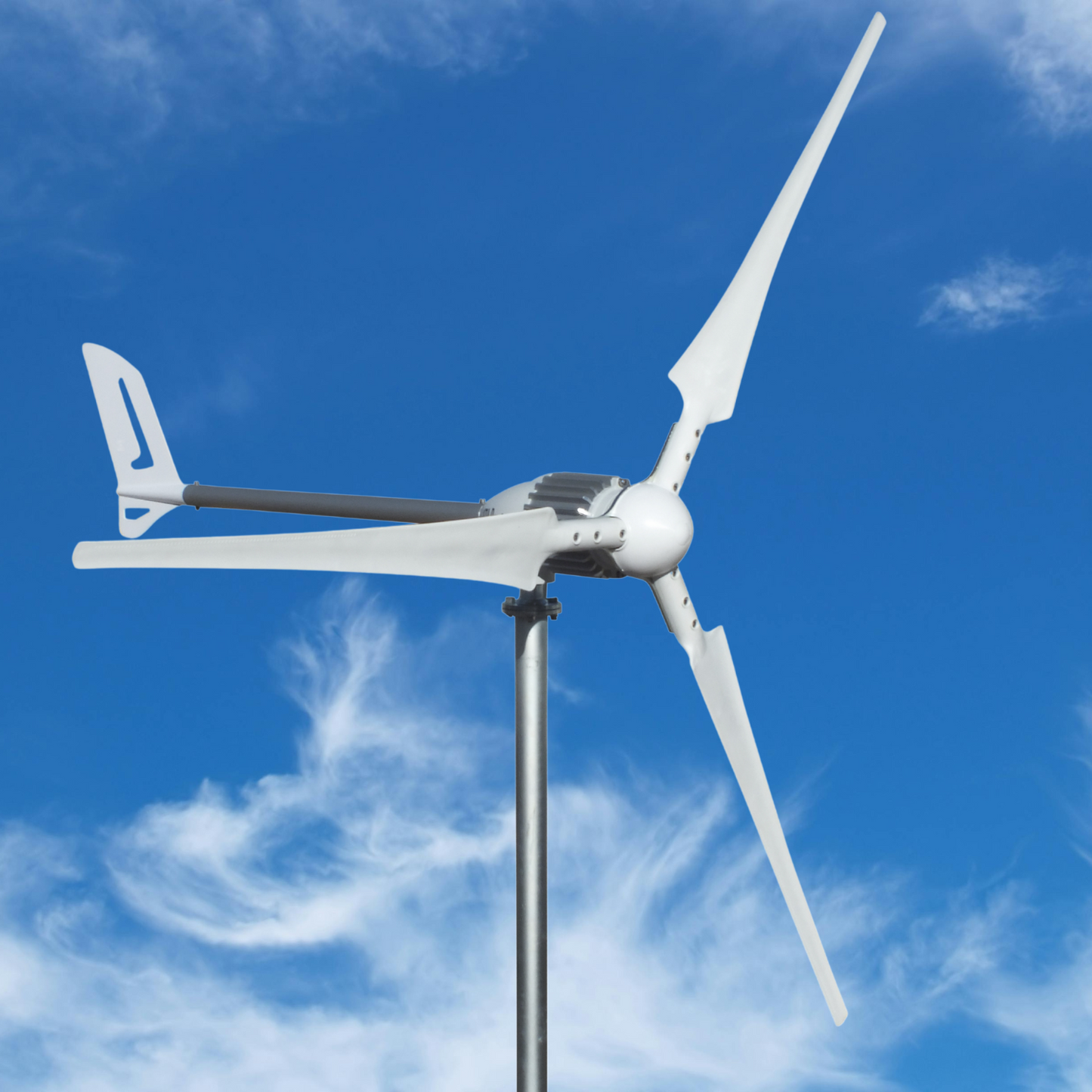

• Blades: 3 Pcs or 5 Pcs

• Manual Book: 1 Pcs

• Tail - Tail Pipe: 1 Pcs
