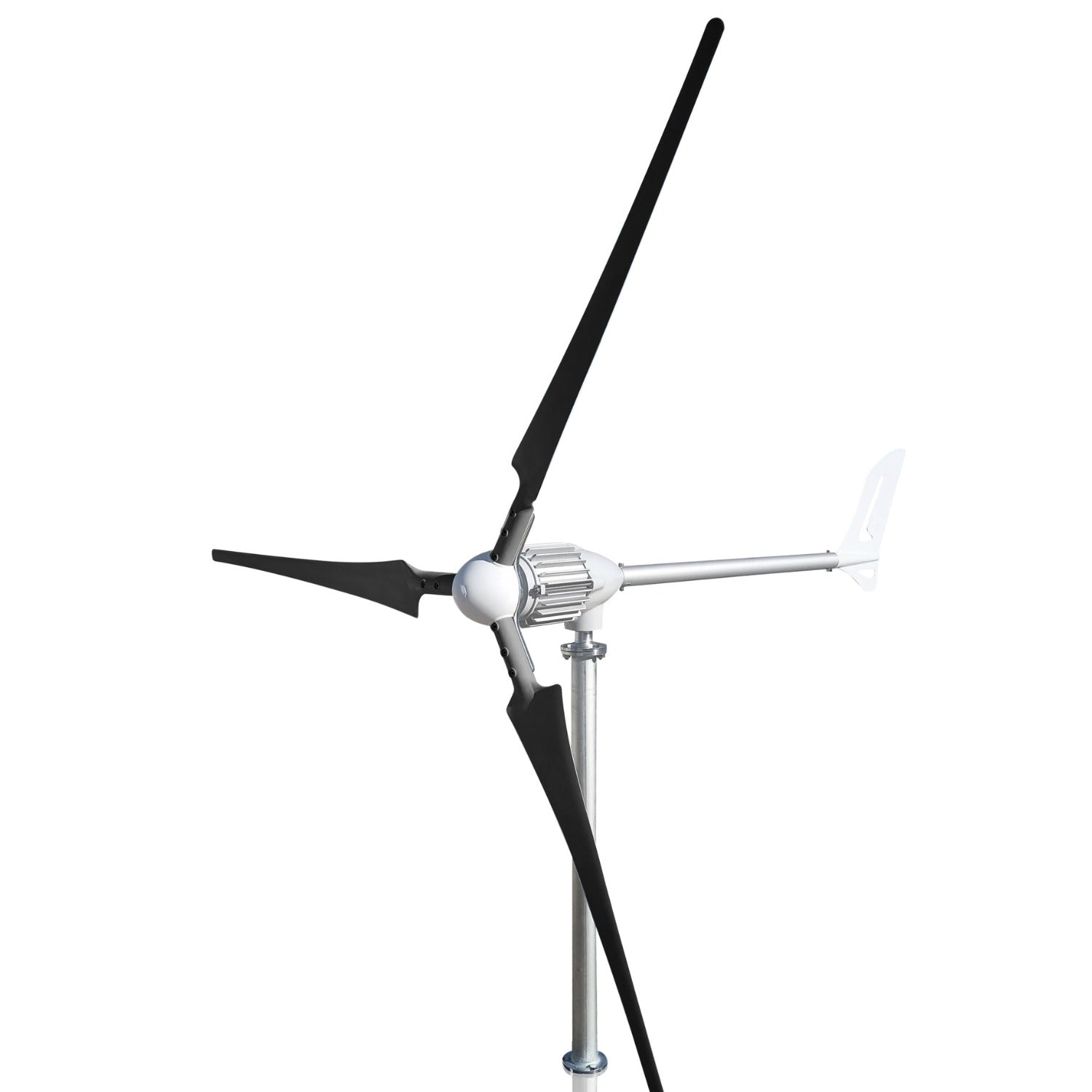

i-1500W 24V/48V Wind Turbine Wind Generator

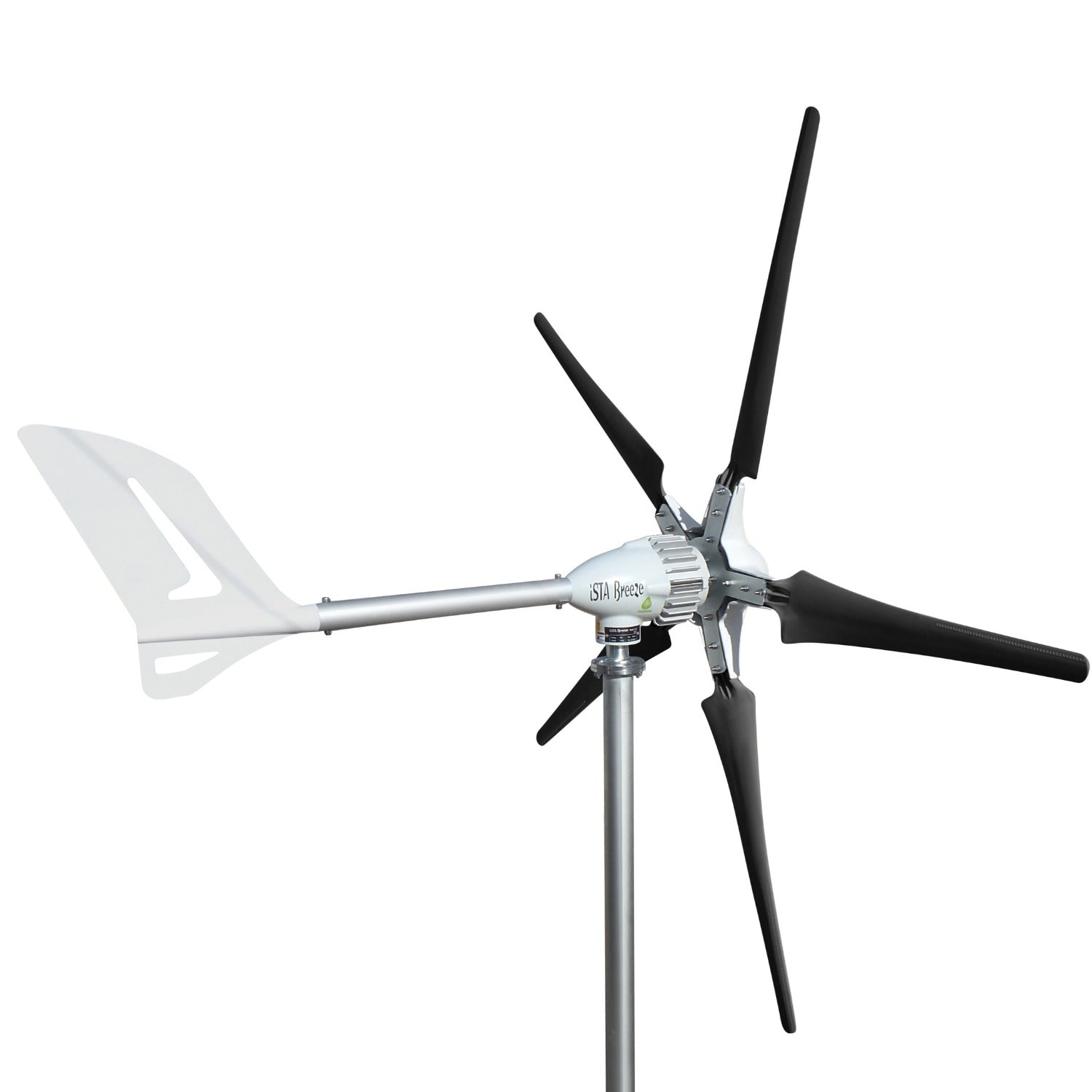

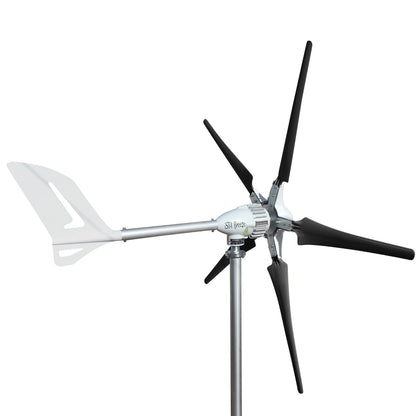

5 BLADE VERSION IS RECOMMEND ONLY FOR LOW WIND AREAS



• Universal application for low, middle and high wind

• 3-phase permanent magnets (High efficiency due to strong permanent magnets (NdFeB magnets, 150 ° temperature resistant)

• Aerodynamic design

• Powder coated aluminum housing

• Low noise

• UV-resistant Plastic + 30% glass fibers blades, successfully tested

• Power transmission through slip ring, thereby no twisting of the cable possible

• Durable and low maintenance



BLADE SPECIFICATIONS:



• Weight: 650 Gr (Composite) 770 Gr (Carbon)

• Width: 14.3 cm

• Noise : 40 dB (Carbon), 50dB (Composite)

• Blade Material: Composite or Carbon

• Blade Length:107 cm

• Rotor Diameter:220 cm



PRODUCT FEATURES - WIND TURBINE:



• Current : 60A (24V) - 30A (48V)

• Rated Power: 1500W

• Body Matarial: Aluminium- Casting

• Alternator Body: Aluminium

• Maximum Power: 1600 W

• Voltage: 24V-AC / 48V-AC

• Package Dimensions: 1.Package: 60 x 40 x 30 cm (19,5 kg) 2.Package: 110 x 19 x 12 cm (3,5 kg) Totaly: 23 kg



 WIND SPEED:

• Initial Wind Speed: 3 m/s

• Maximum Wind Speed: 13-14 m/s



PACKAGE CONTENT:



• Connection Screws: 1 Set

• Nose: 1 Pcs

• Flange: 1 Pcs

• Generator: 1 Pcs

• Blades: 3 Pcs or 5 Pcs

• Manual Book: 1 Pcs

• Tail - Tail Pipe: 1 Pcs



NECESSARY EQUIPMENTS:



• Battery: Suitable battery group: Min 4800W - Max 9600W
