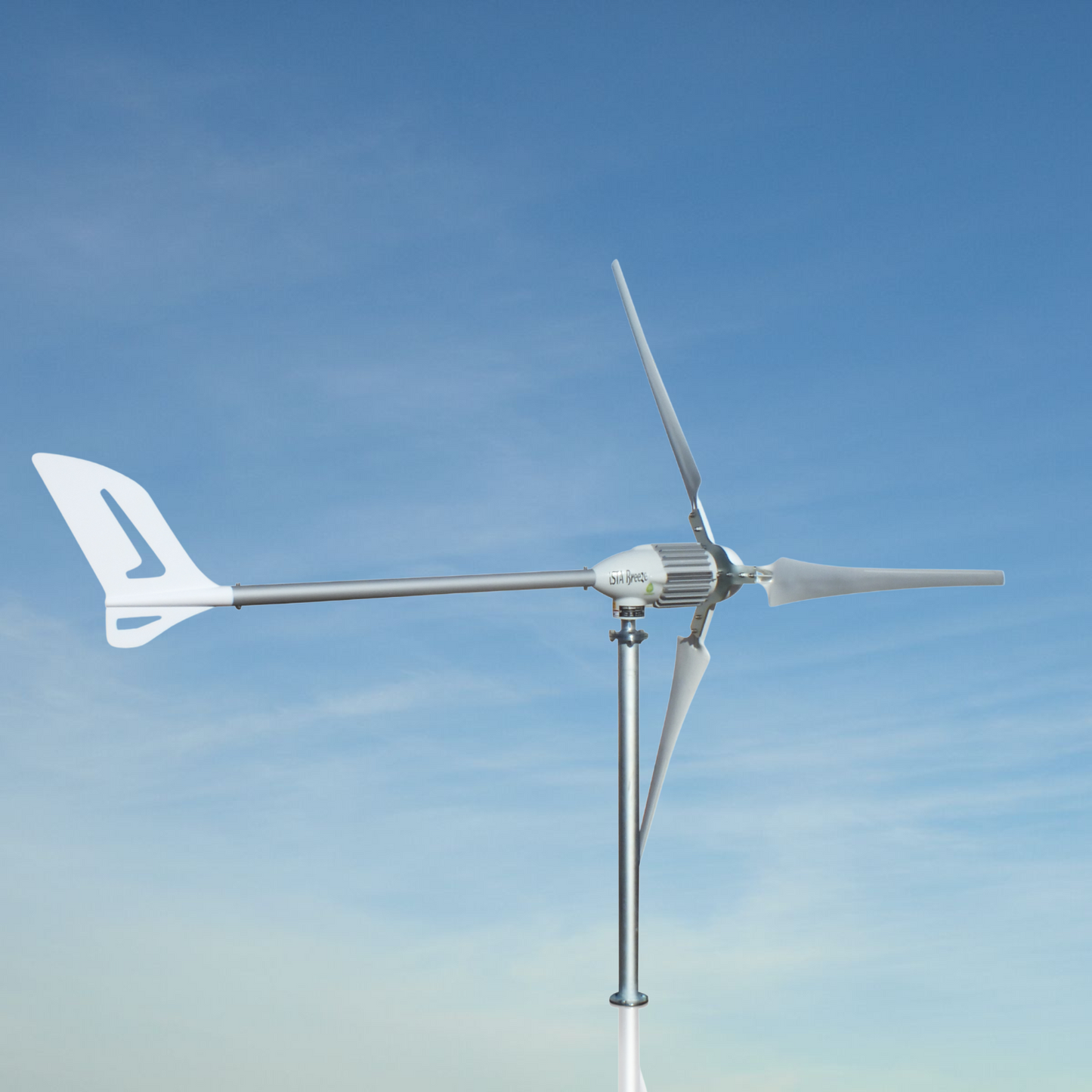

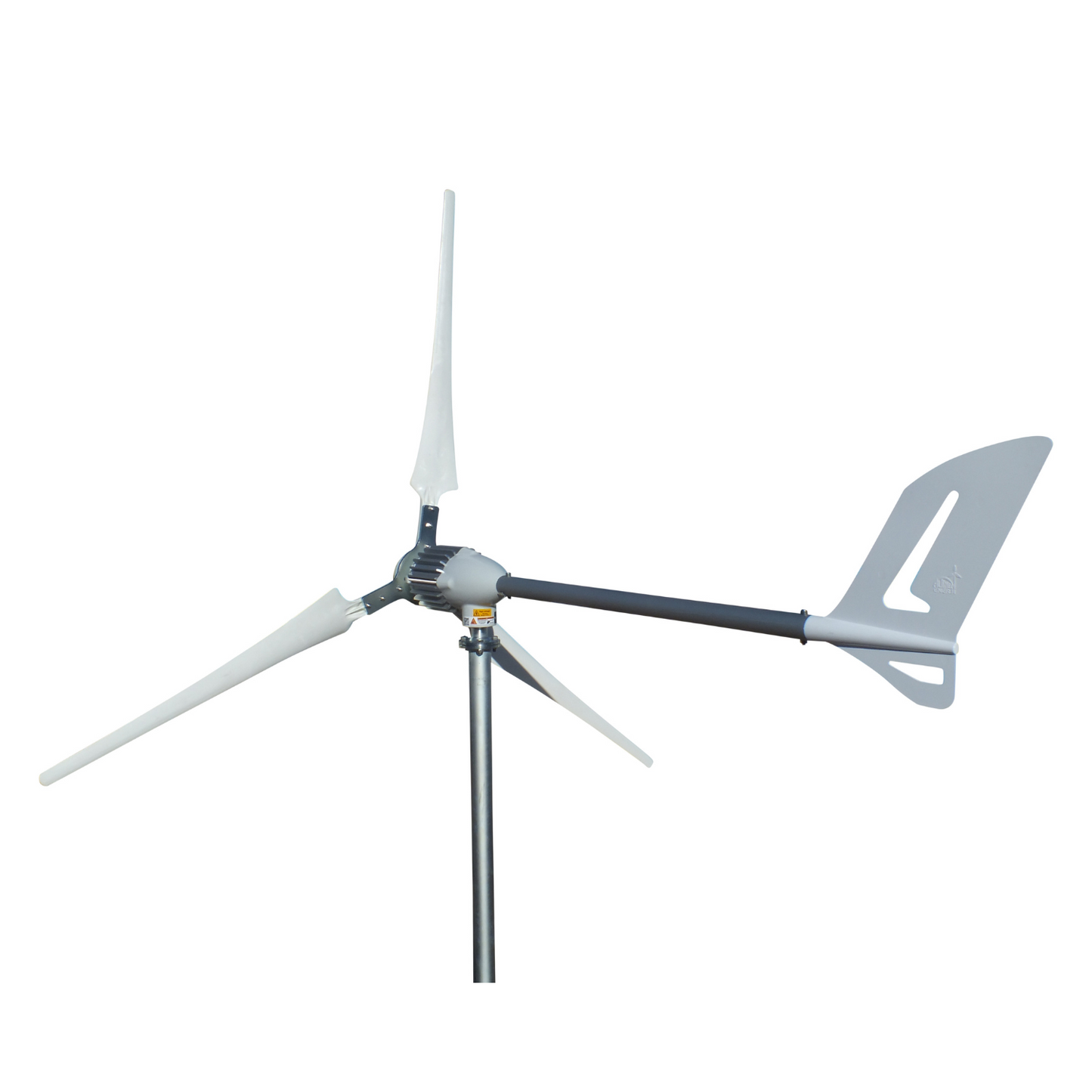

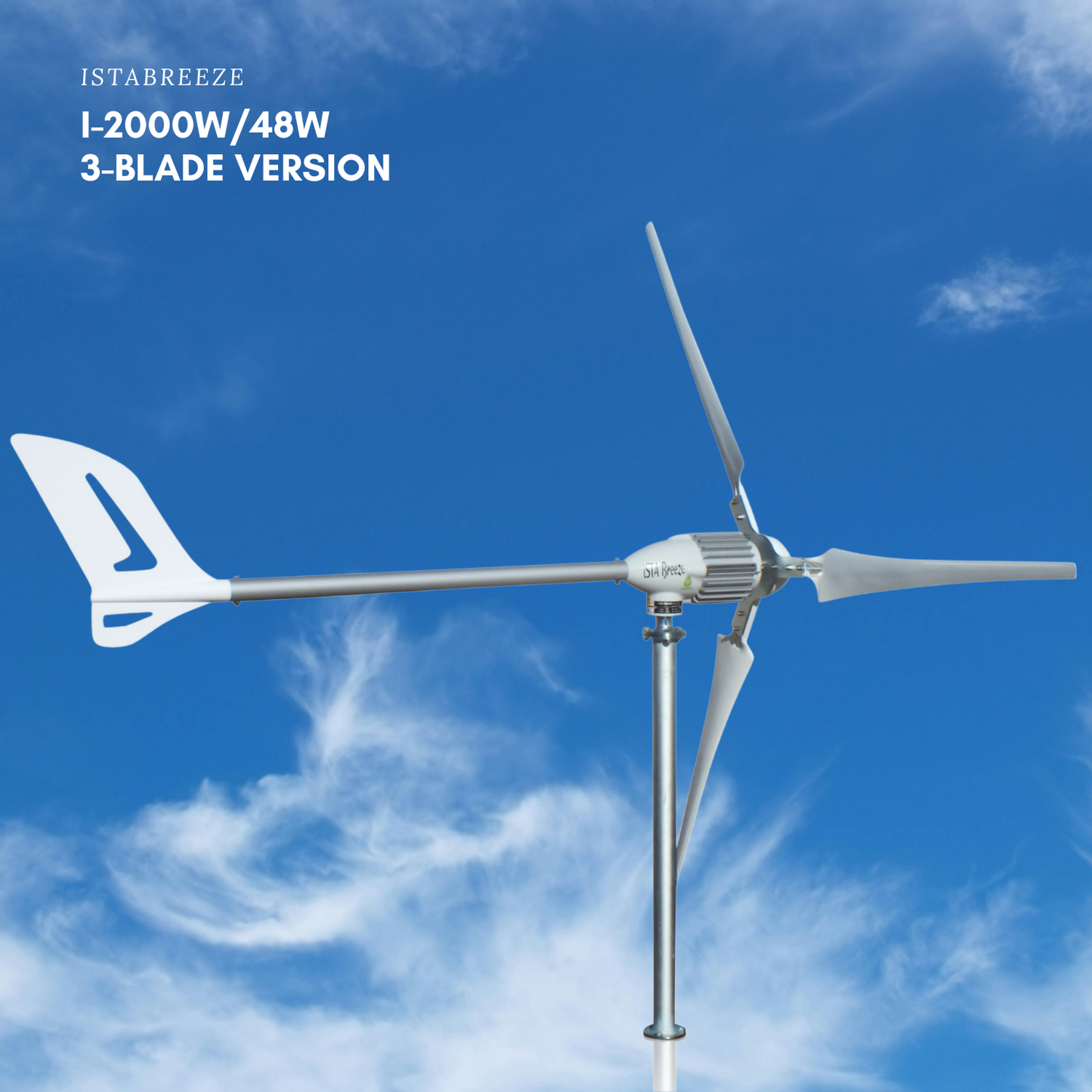

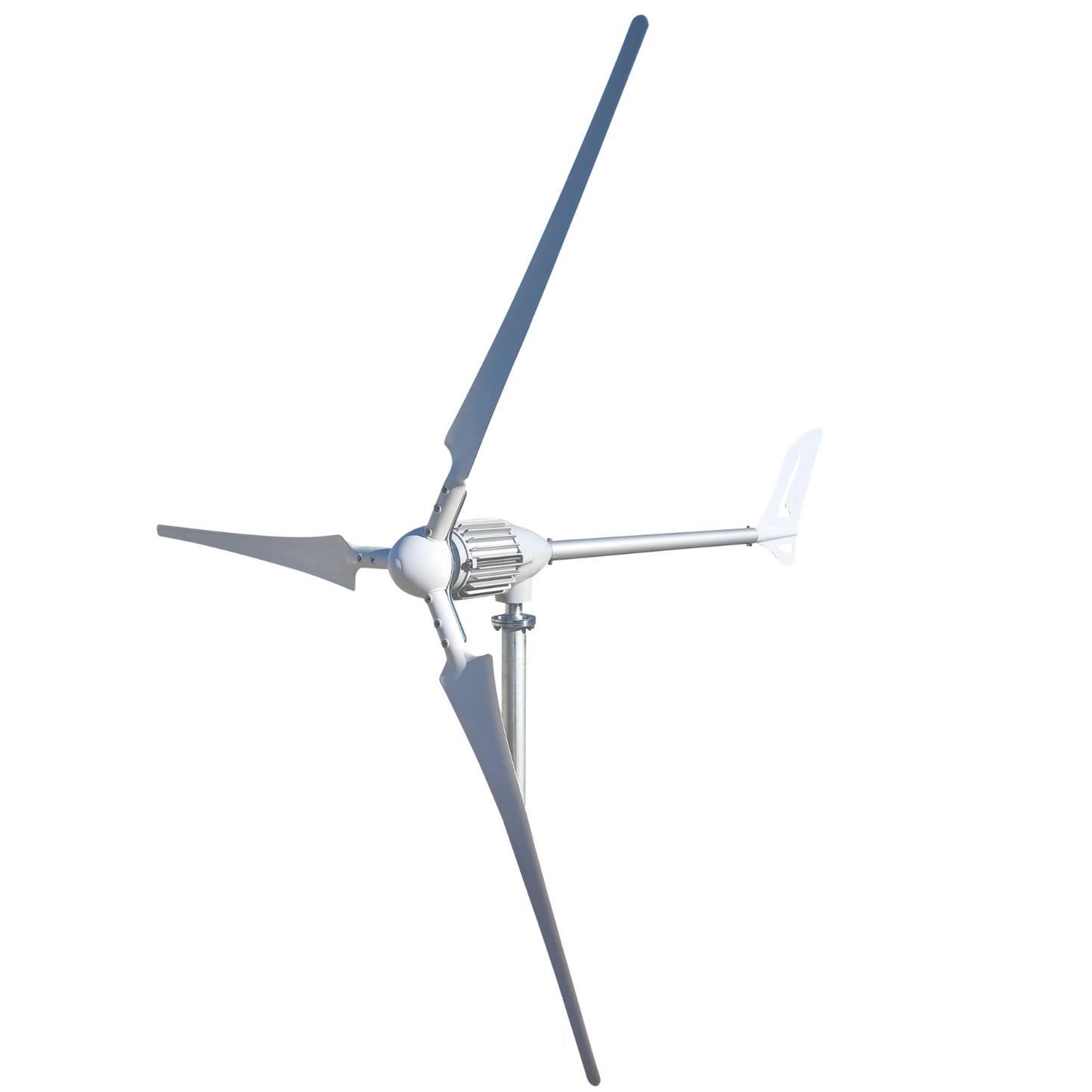

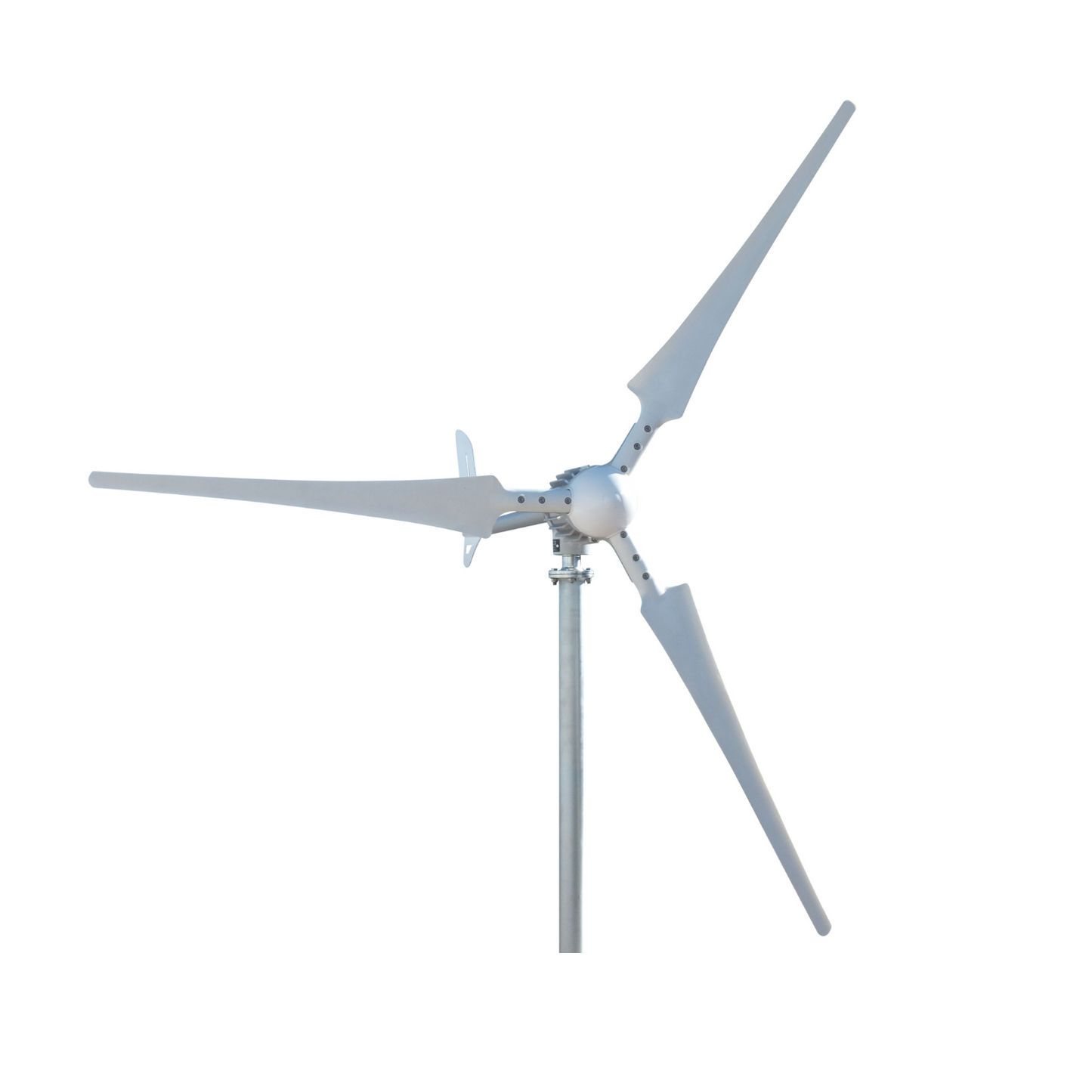

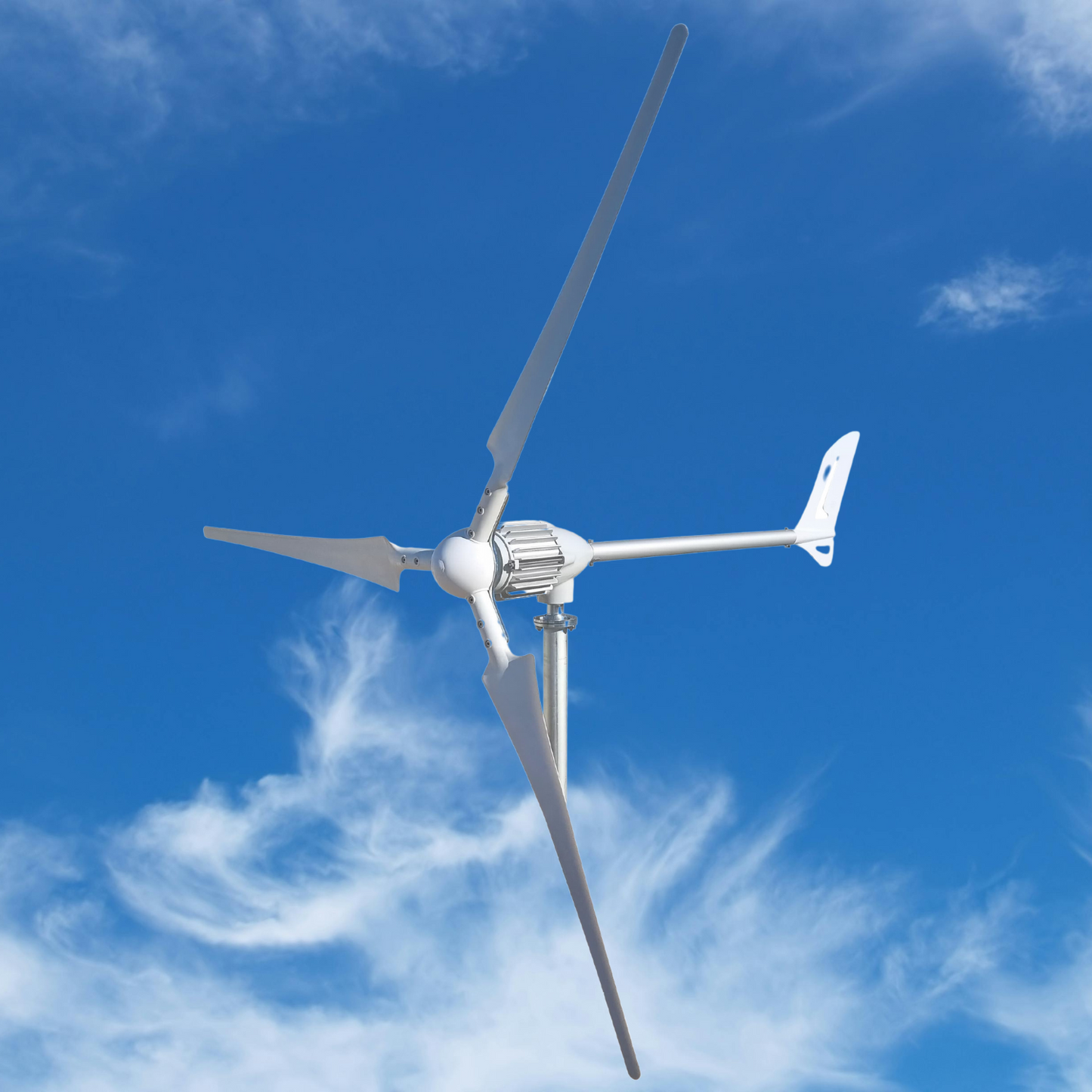

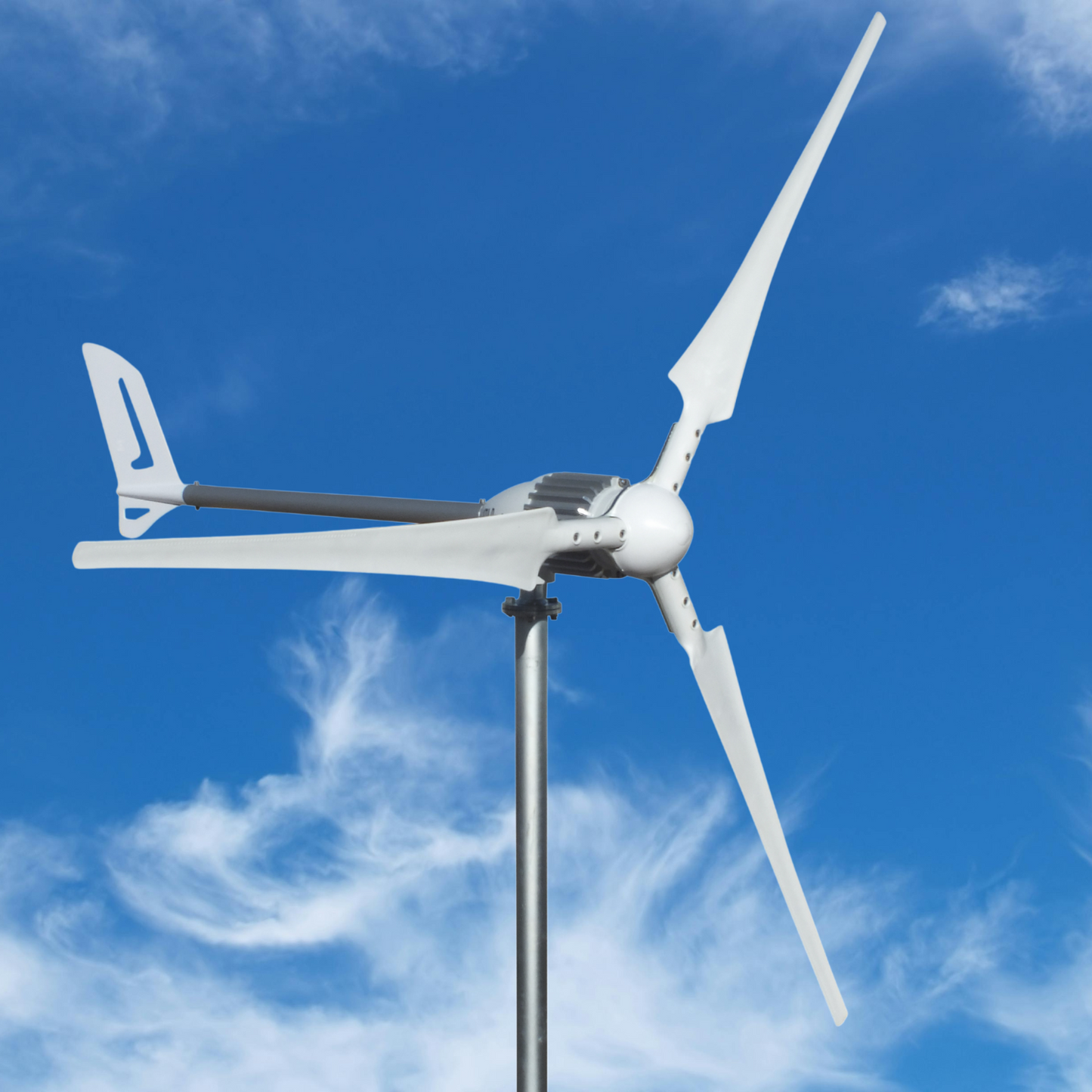

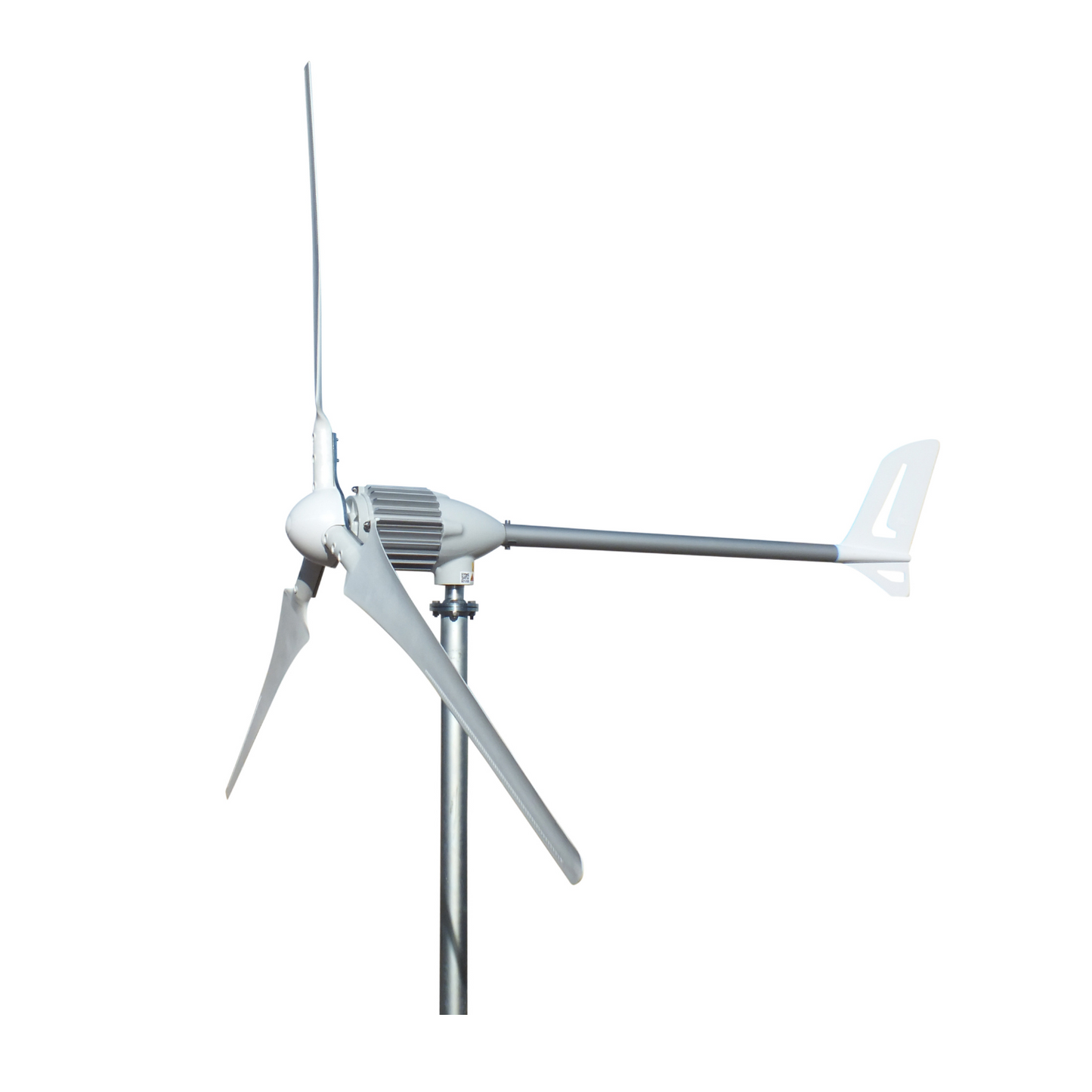

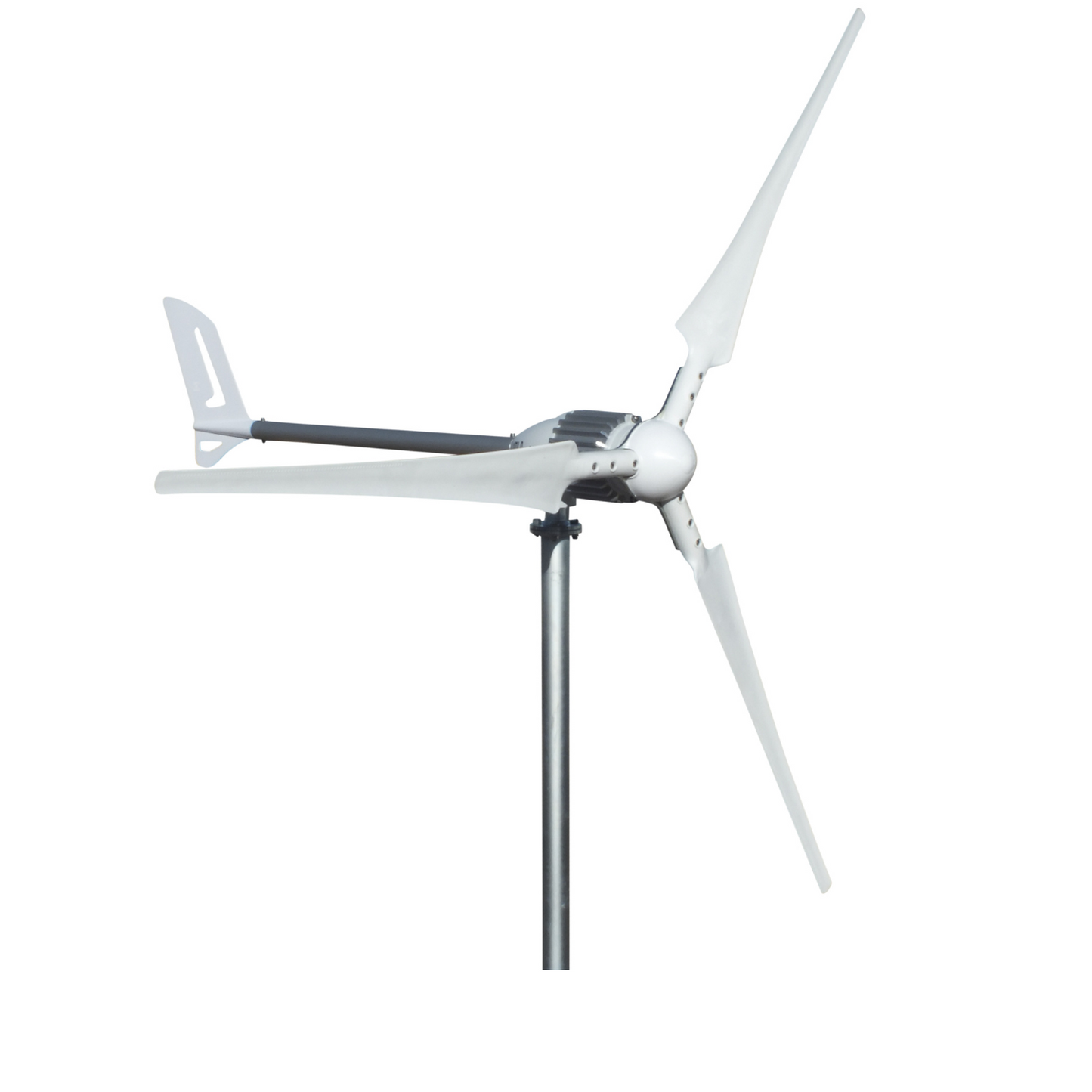

i-2000W 48V Wind Turbine Wind Generator

You can see performance chart of wind turbine here -->

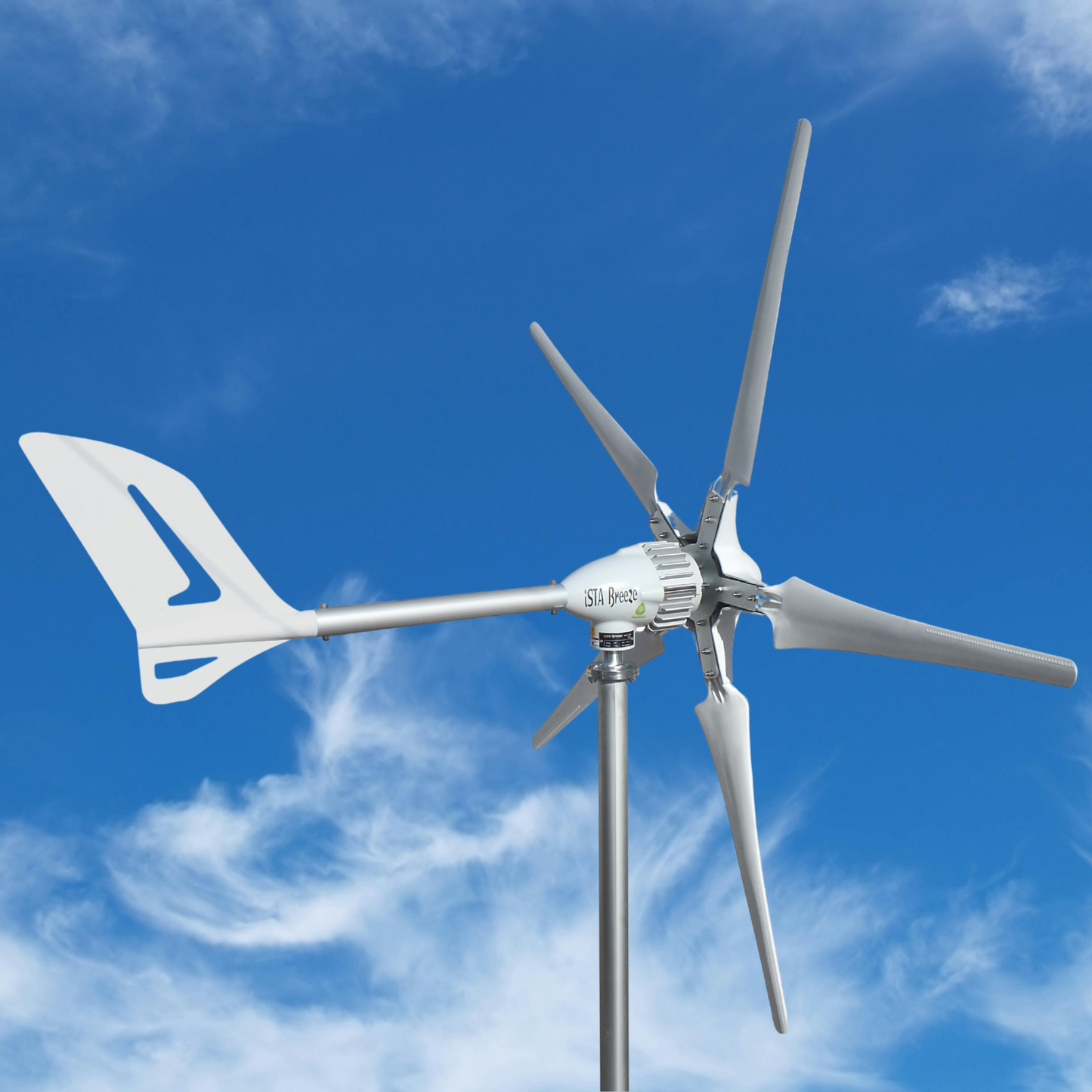

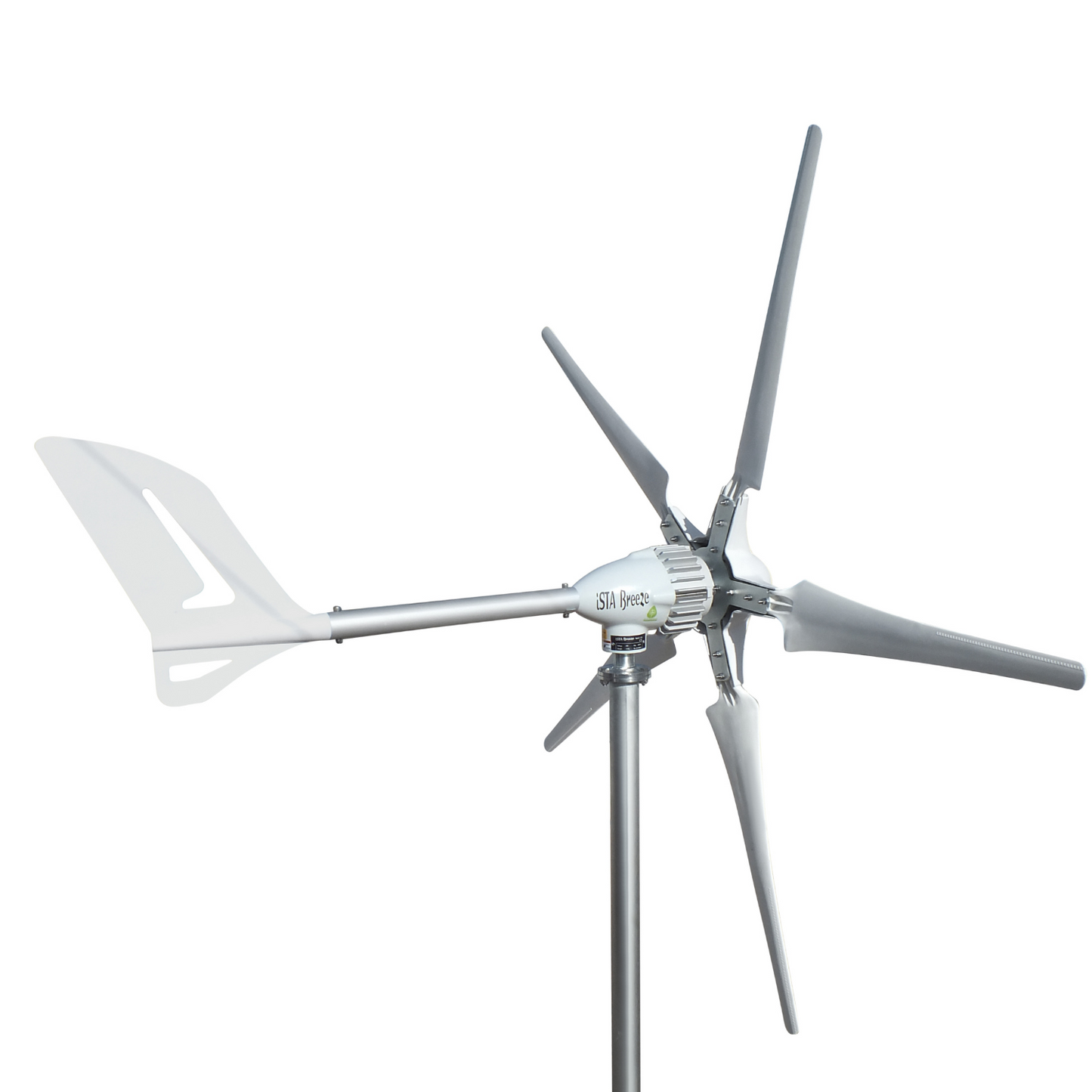

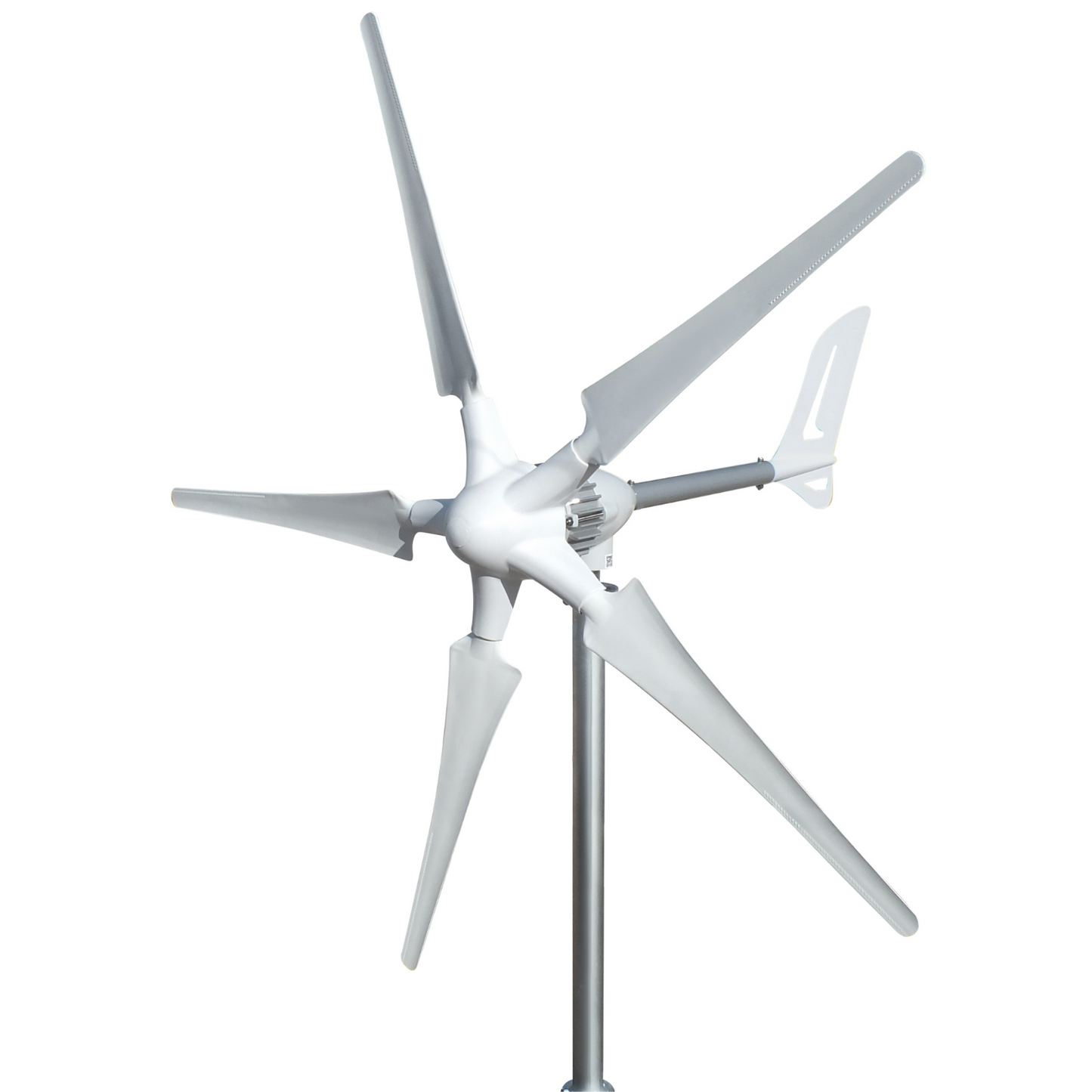

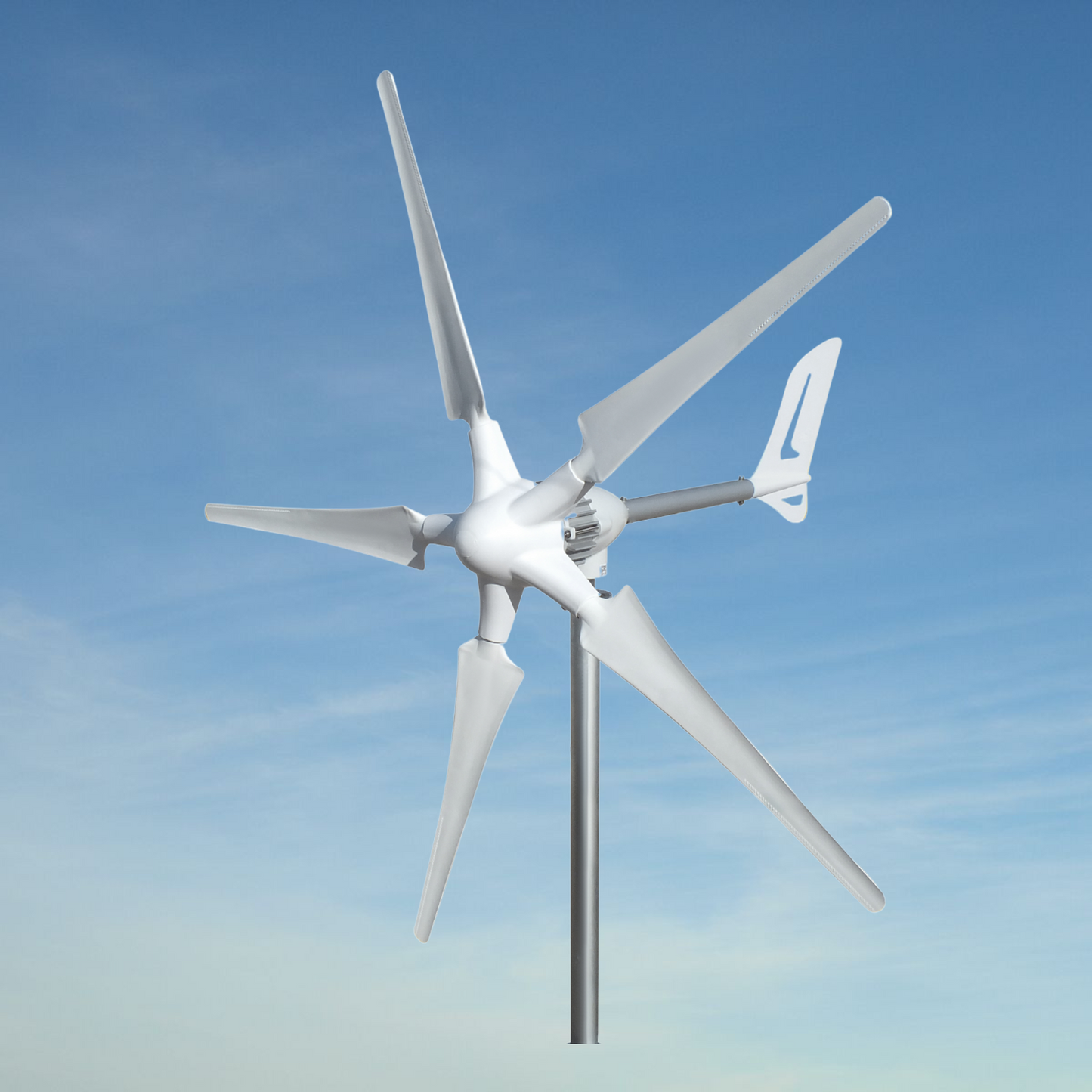

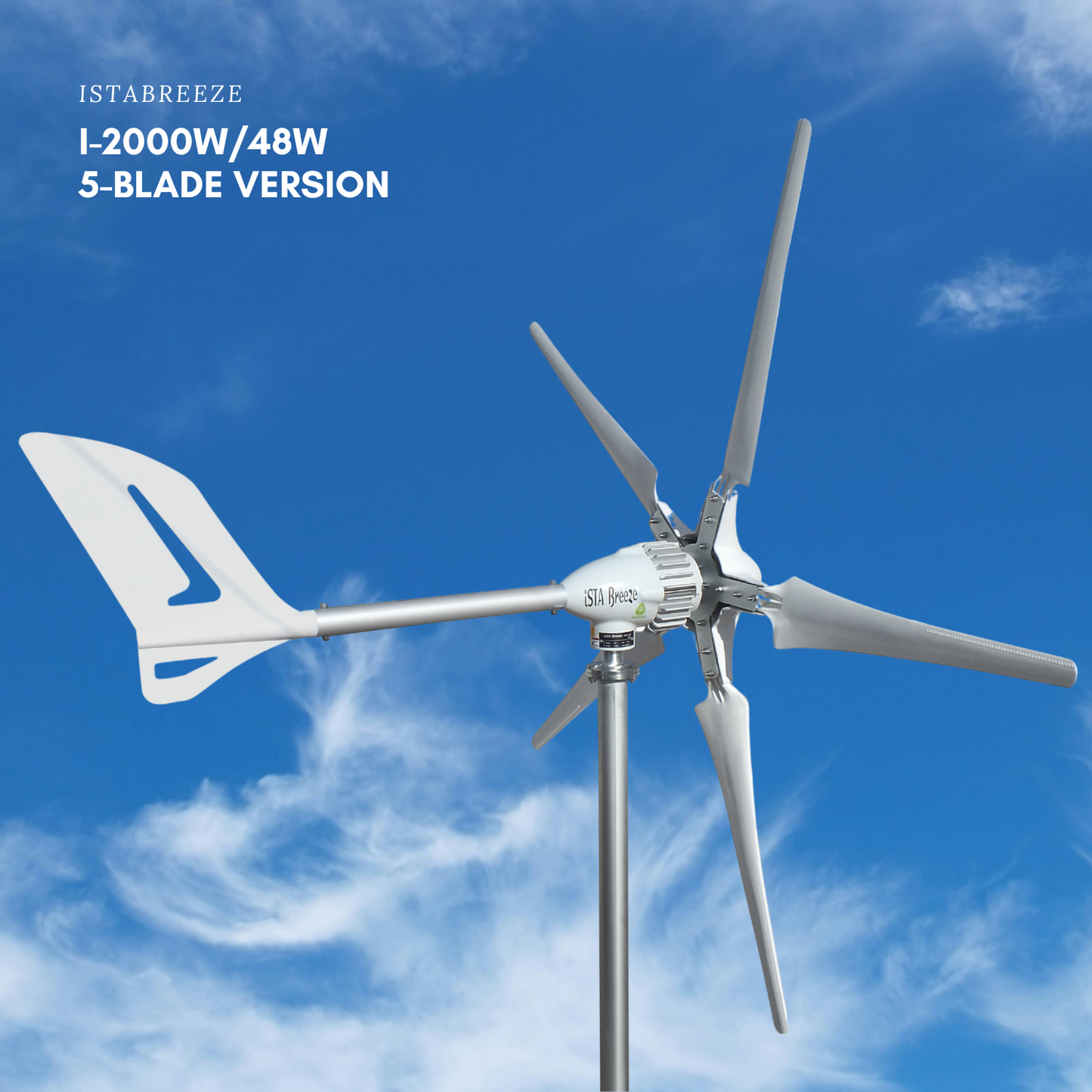

5 BLADE VERSION IS RECOMMEND ONLY FOR LOW WIND AREAS



• Universal application for low, middle and high wind

• 3-phase permanent magnets (High efficiency due to strong permanent magnets (NdFeB magnets, 150 ° temperature resistant)

• Aerodynamic design

• Powder coated aluminum housing

• Low noise

• UV-resistant Plastic + 30% glass fibers blades, successfully tested

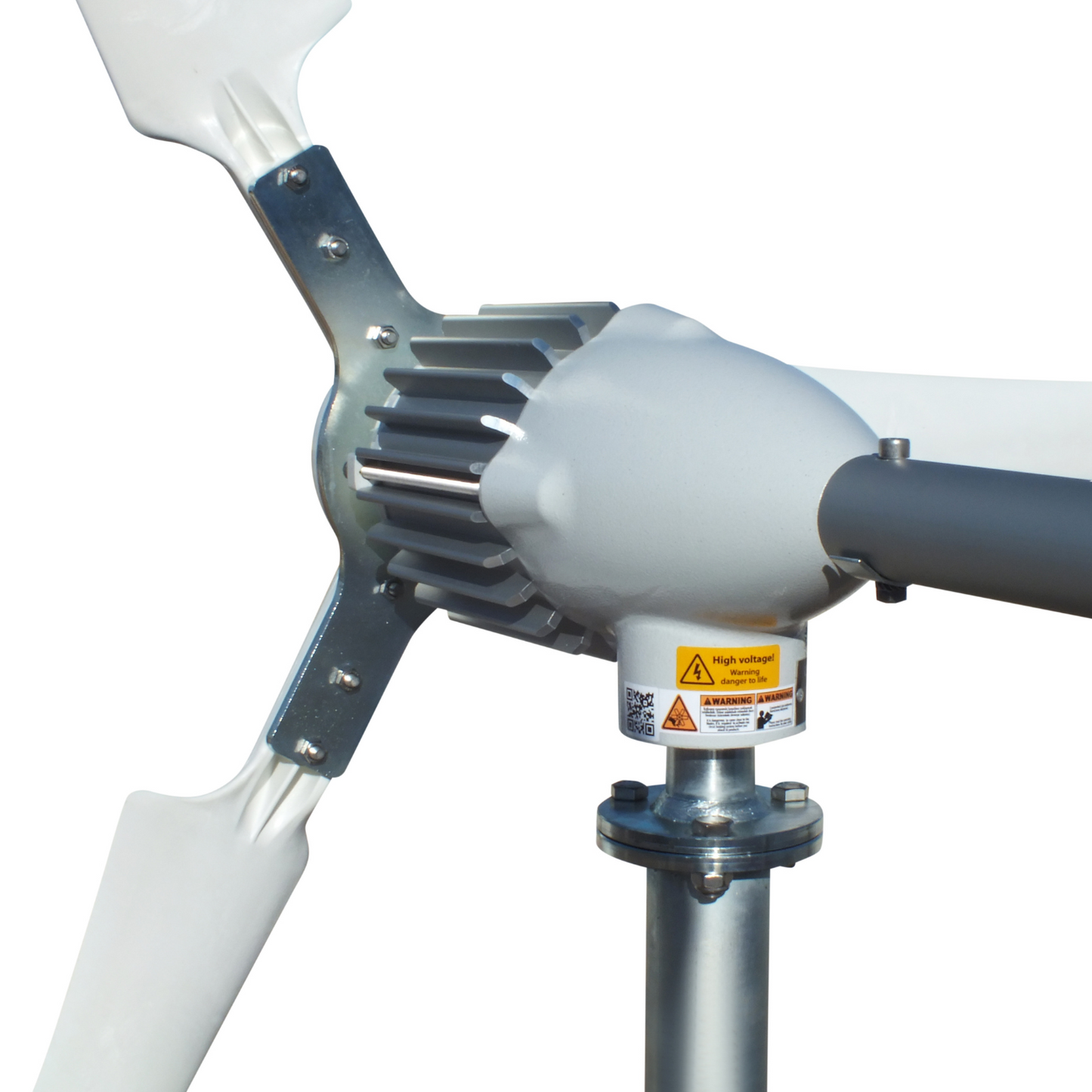

• Power transmission through slip ring, thereby no twisting of the cable possible

• Durable and low maintenance



PRODUCT FEATURES - WIND TURBINE:



• Current : 40A

• Rated Power: 2000W

• Body Matarial: Aluminium- Casting

• Alternator Body: Aluminium

• Maximum Power: 2200 W

• Voltage: 48V-AC

• Package Dimensions: 1.Package: 60 x 40 x 30 cm (20,5 kg) 2.Package: 110 x 19 x 12 cm (3,5 kg) Totaly: 24 kg



 WIND SPEED:

• Initial Wind Speed: 3 m/s

• Maximum Wind Speed: 14-15 m/s



BLADE SPECIFICATIONS:



• Weight: 650 Gr (Composite) 770 Gr (Carbon)

• Width: 14.3 cm

• Noise : 40 dB (Carbon), 50dB (Composite)

• Blade Material: Composite or Carbon

• Blade Length:107 cm

• Rotor Diameter:220 cm



NECESSARY EQUIPMENTS:



• Battery: Suitable battery group: Min 7200W - Max 14400W



PACKAGE CONTENT:



• Connection Screws: 1 Set

• Nose: 1 Pcs

• Flange: 1 Pcs

• Generator: 1 Pcs

• Blades: 3 Pcs or 5 Pcs

• Manual Book: 1 Pcs

• Tail - Tail Pipe: 1 Pcs
