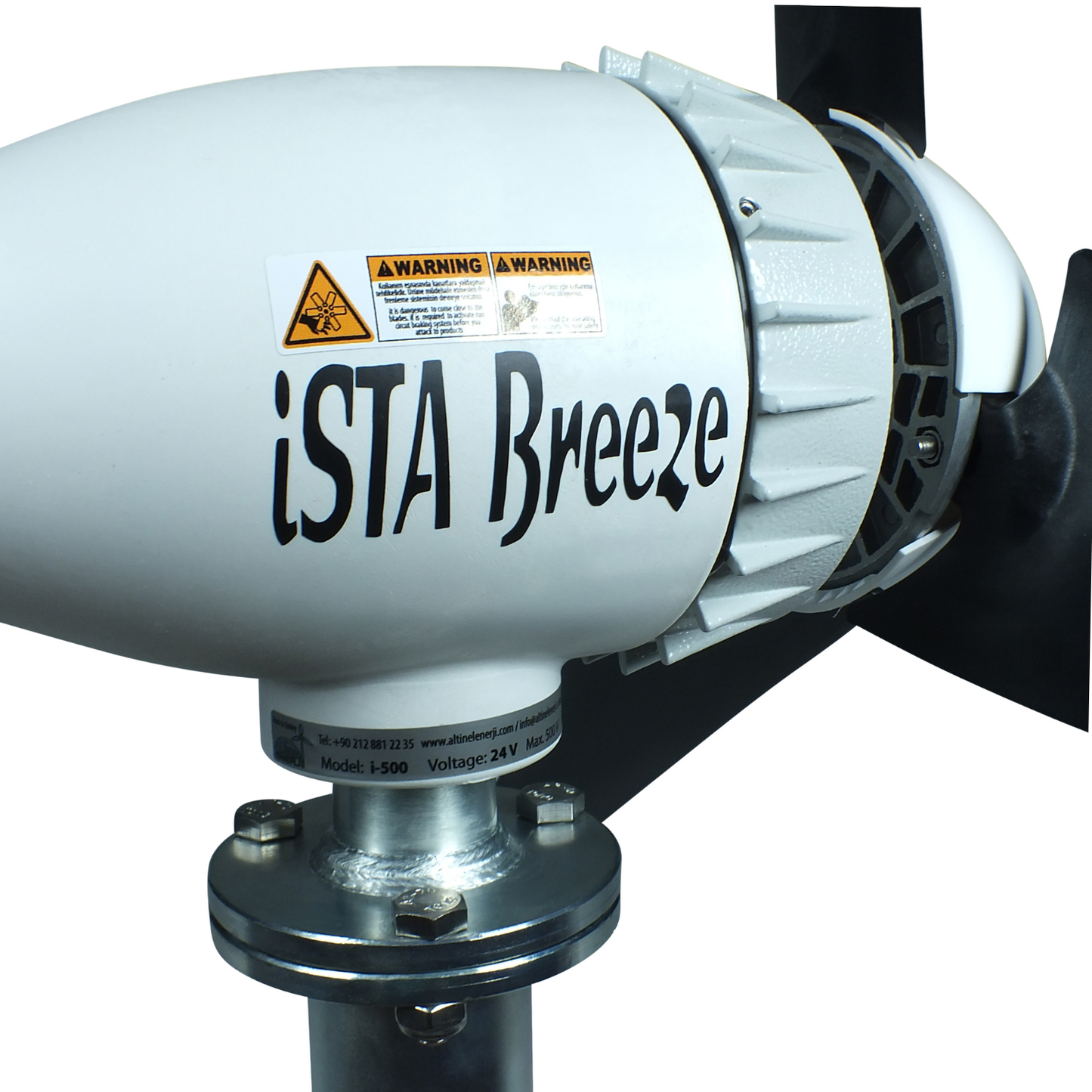

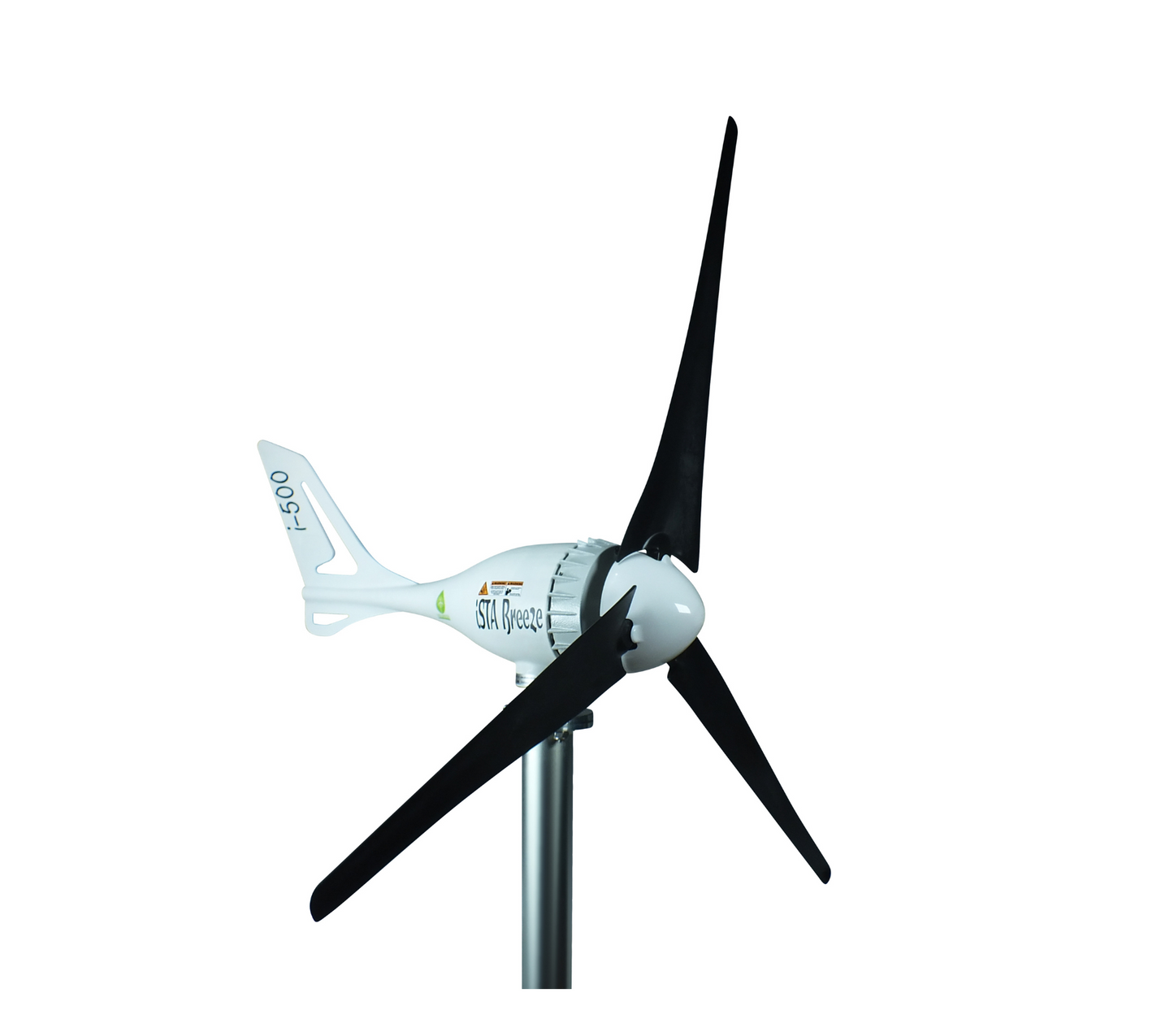

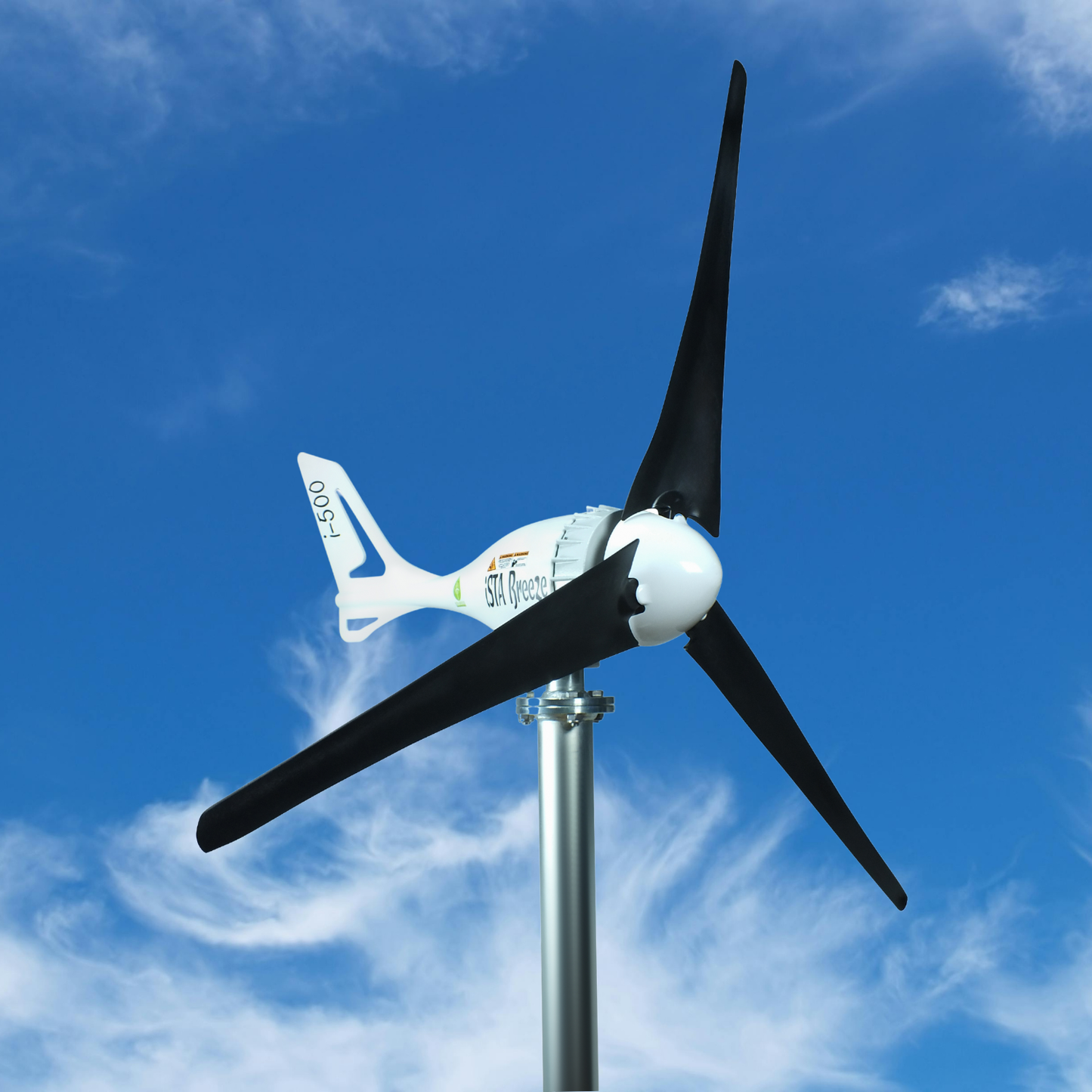

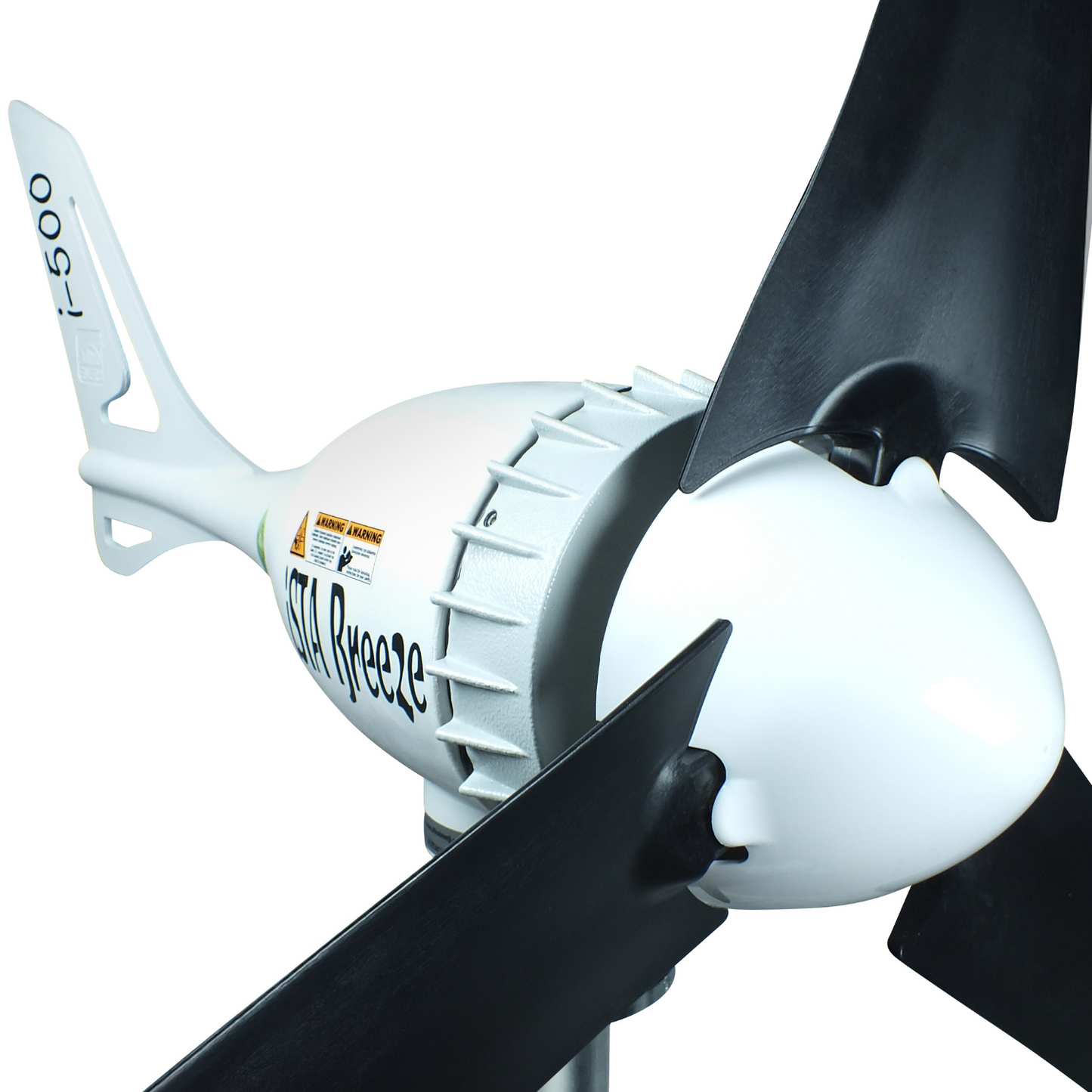

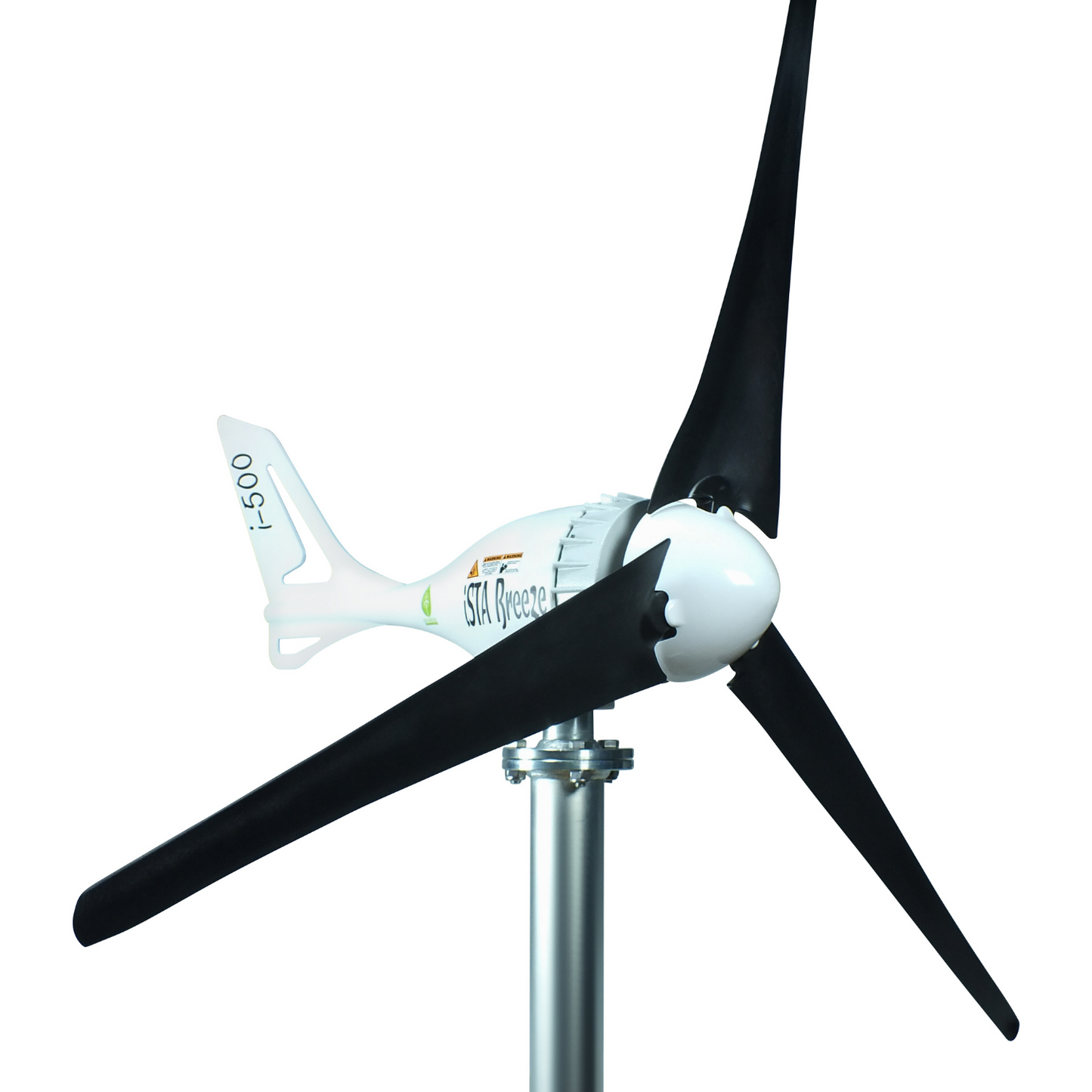

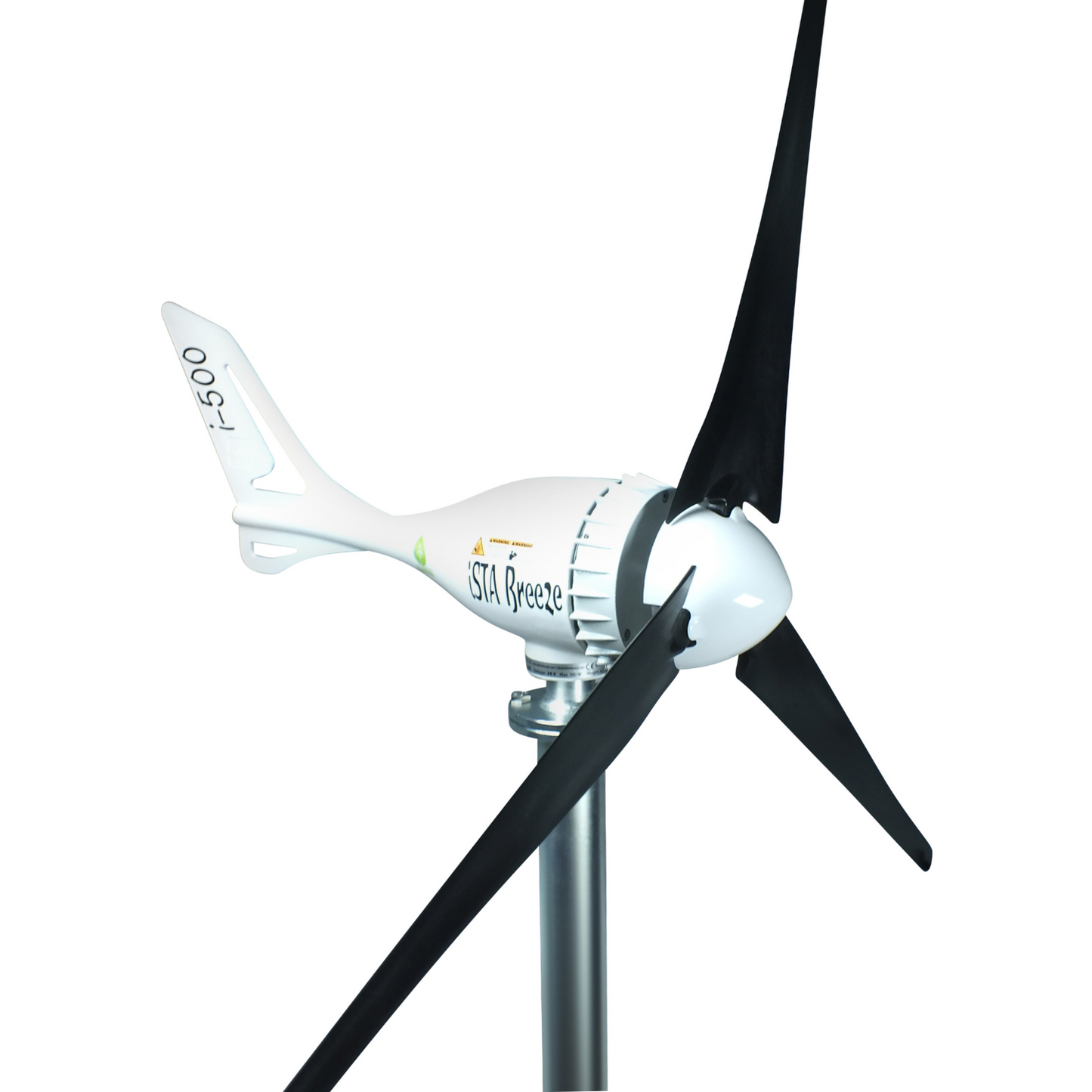

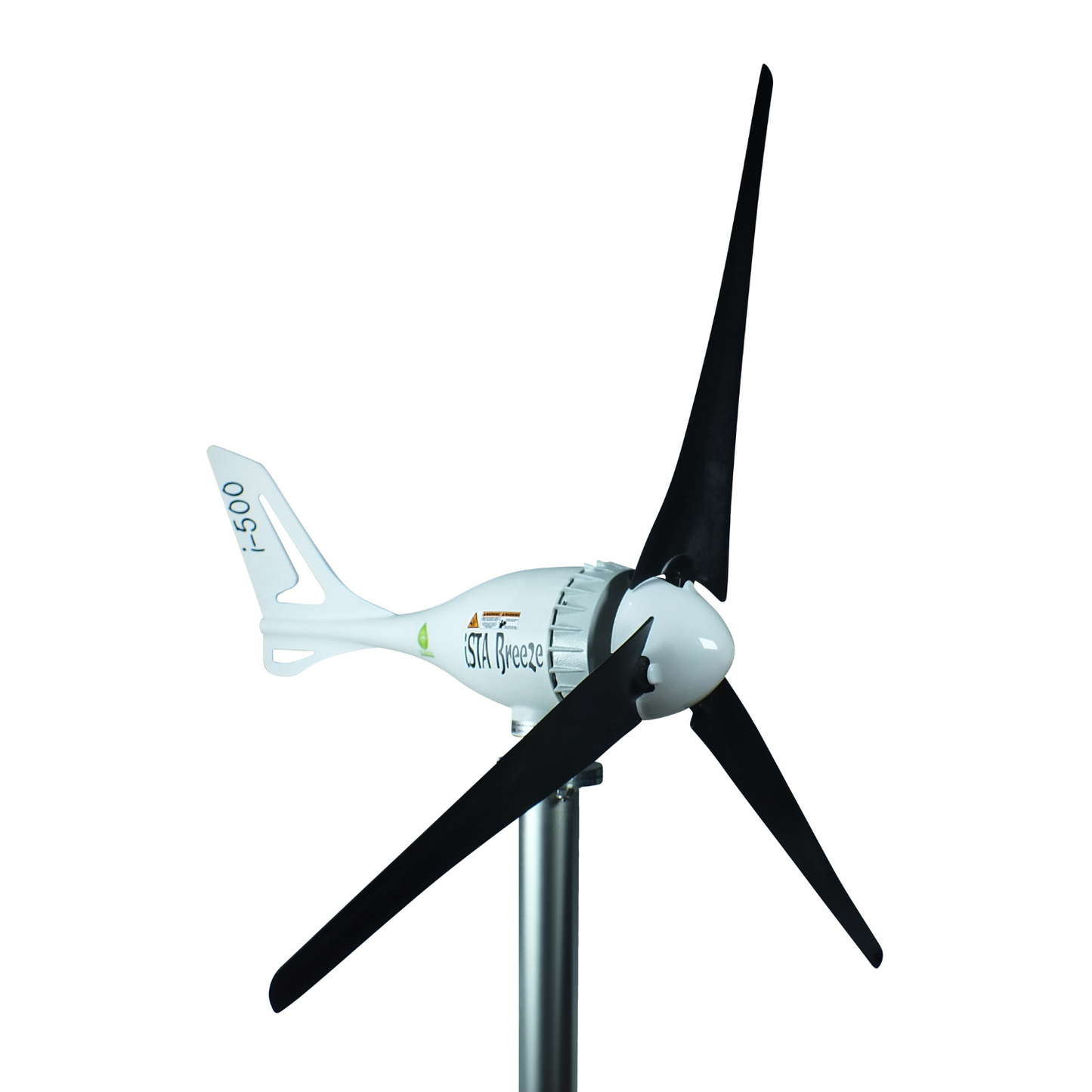

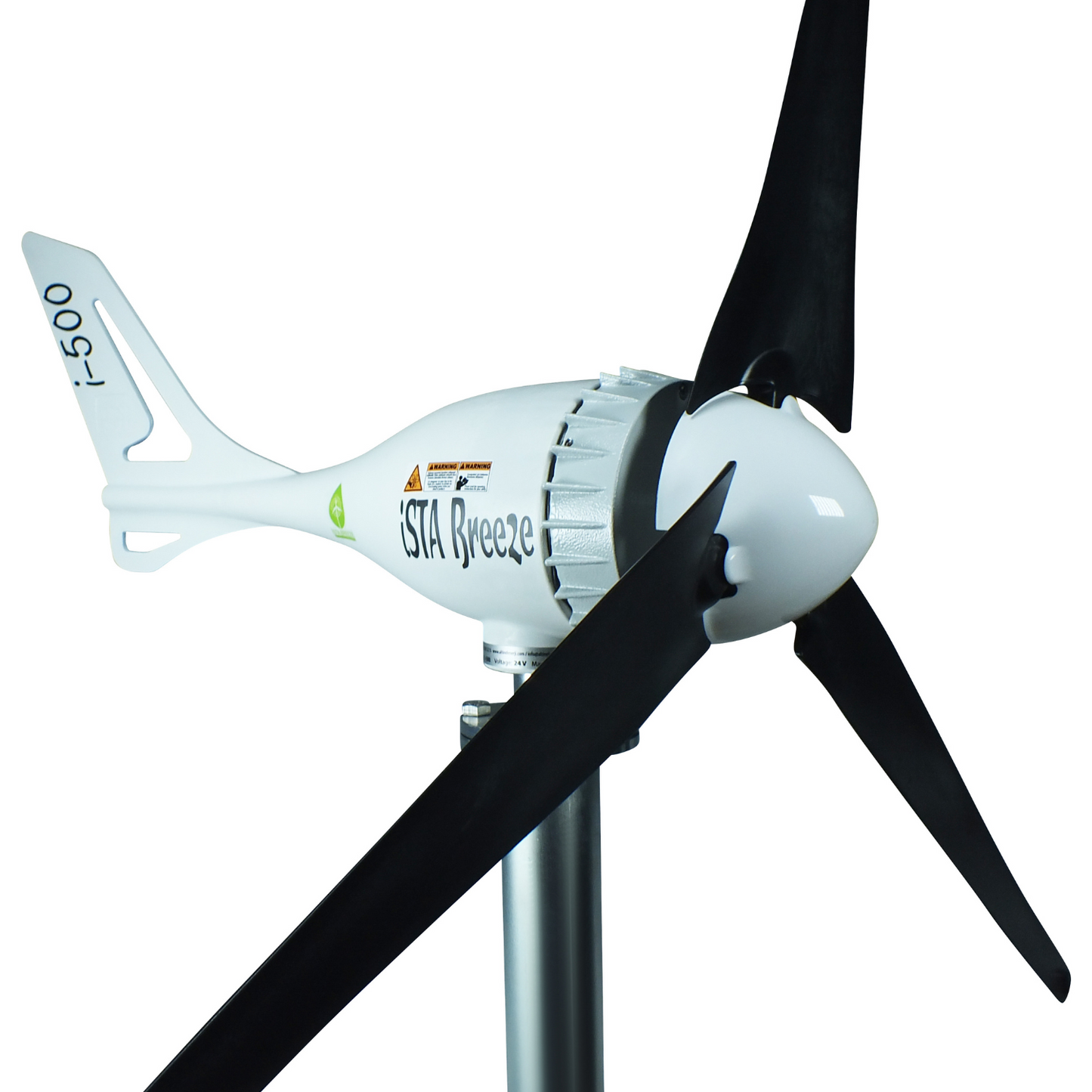

i-500W 12V/24V Wind Turbine Wind Generator



Our world leading range of iSTA-BREEZE® Ideal for marine, camping, garden and home use.



• Universal application for low, middle and high wind

• 3-phase permanent magnets (High efficiency due to strong permanent magnets (NdFeB magnets, 150 ° temperature resistant)

• Aerodynamic design

• Powder coated aluminum alternator

• Low noise

• UV-resistant Plastic + 30% glass fibers blades, successfully tested

• Power transmission through slip ring, thereby no twisting of the cable possible

• Durable and low maintenance



PRODUCT FEATURES - WIND TURBINE:



• Current : 40A (12V) - 20A (24V)

• Generator Body: Aluminium

• Body Matarial: Composite

• Maximum Power: 500 W

• Rated Power: 420 W

• Voltage: 12V-AC / 24V-AC

• Package Dimensions: 70 x 30 x 20 cm (6Kg)



 WIND SPEED:

• Initial Wind Speed: 3 m/s

• Maximum Wind Speed: 15-16 m/s



BLADE SPECIFICATIONS:



• Weight: 190 Gr

• Width: 12,5 cm

• Noise : 40 dB

• Blade Material:Composite or Carbon

• Blade Length:50 cm

• Rotor Diameter:103 cm



NECESSARY EQUIPMENTS:



• Battery: Suitable battery group: Min 1800W - Max 2400W

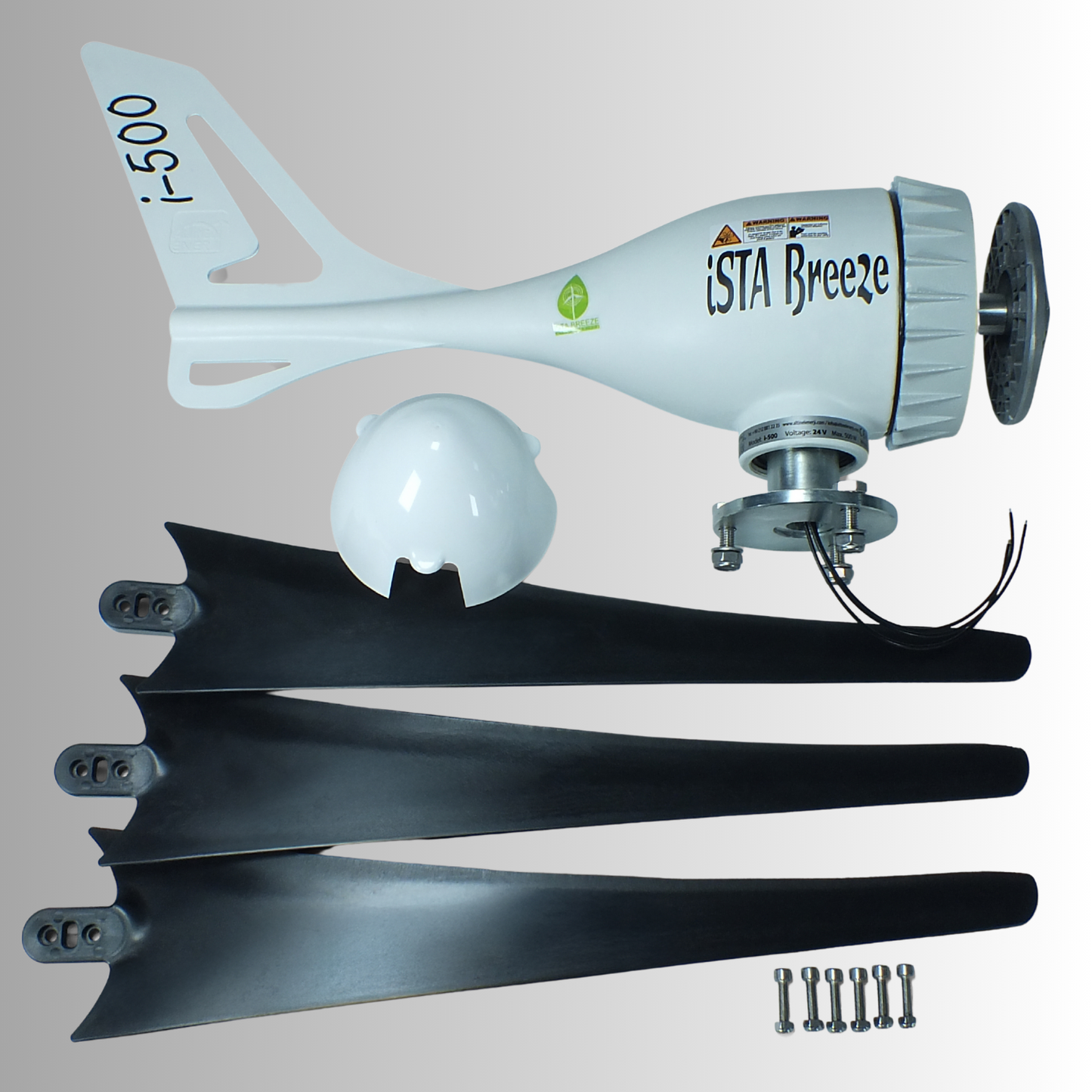

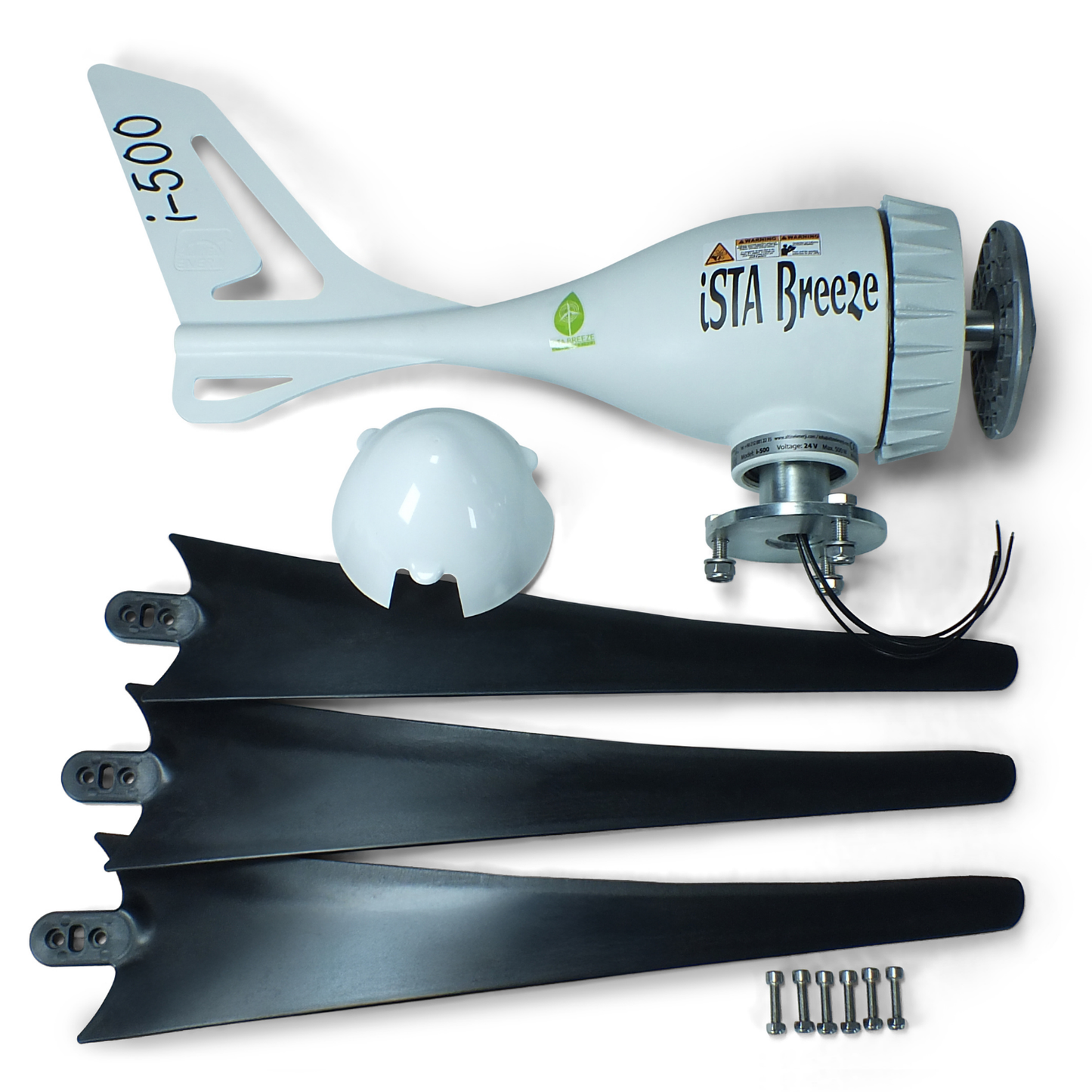

PACKAGE CONTENT:



• Connection Screws: 1 Set

• Nose: 1 Pcs

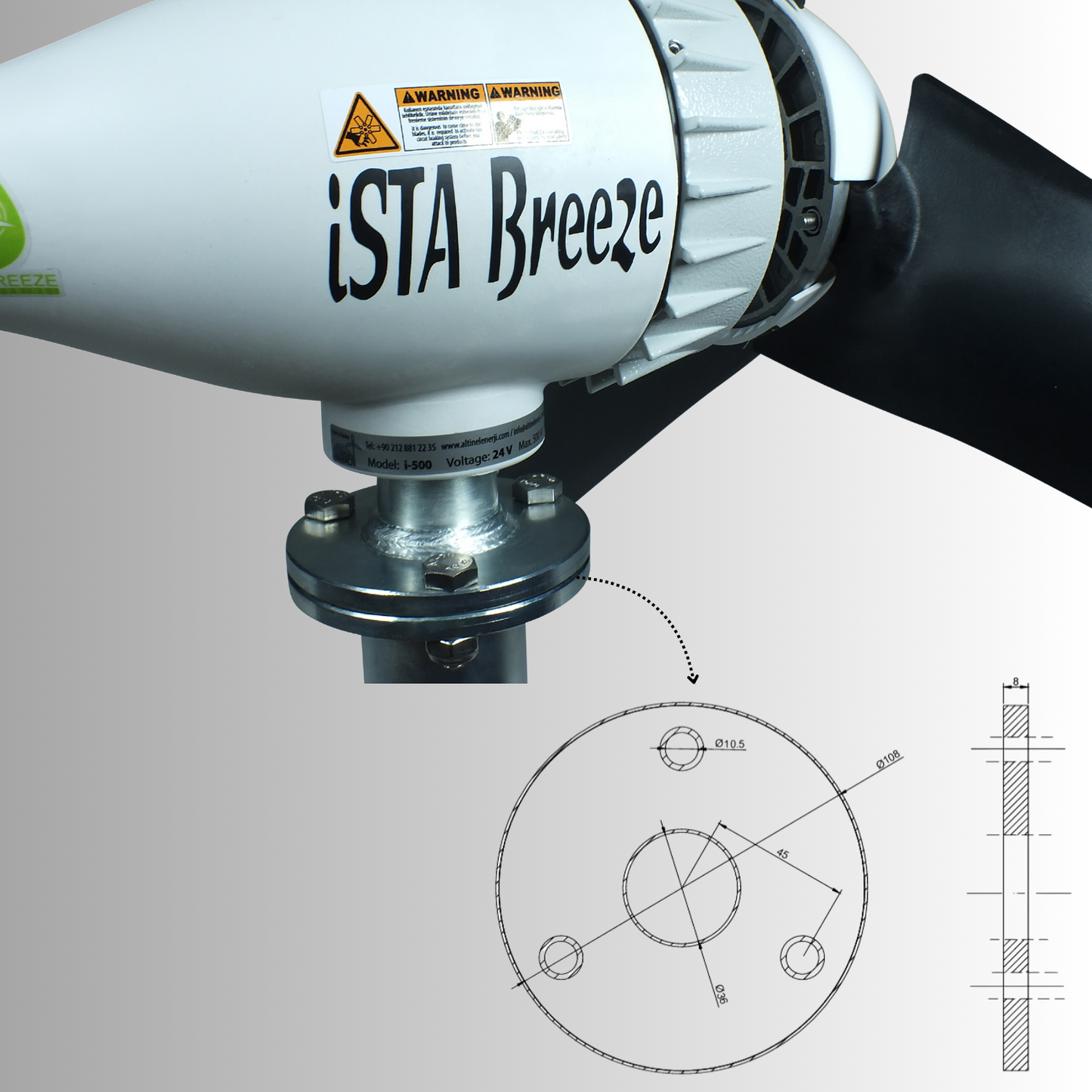

• Flange: 1 Pcs

• Body: 1 Pcs

• Blades: 3 Pcs

• Manual Book: 1 Pcs
