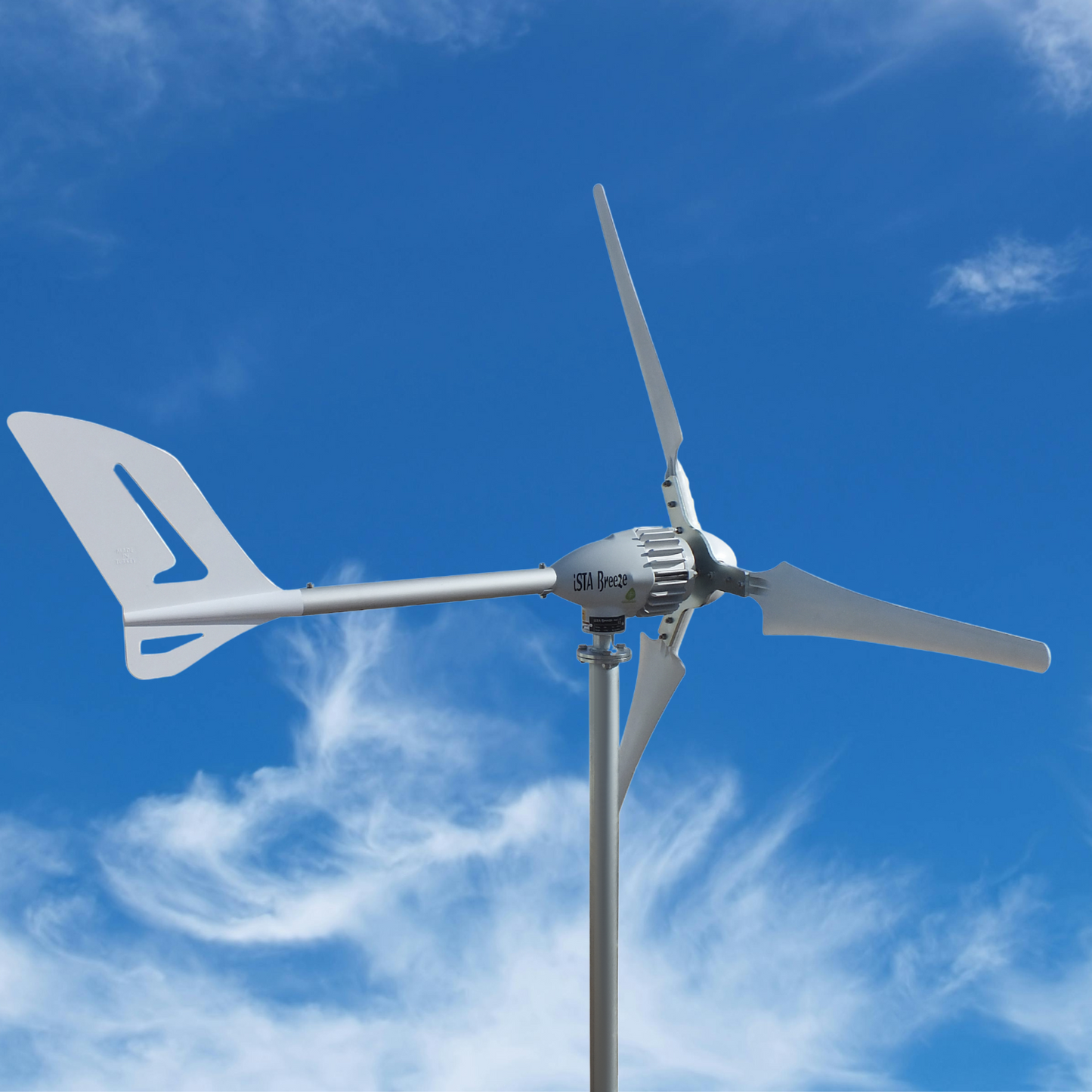

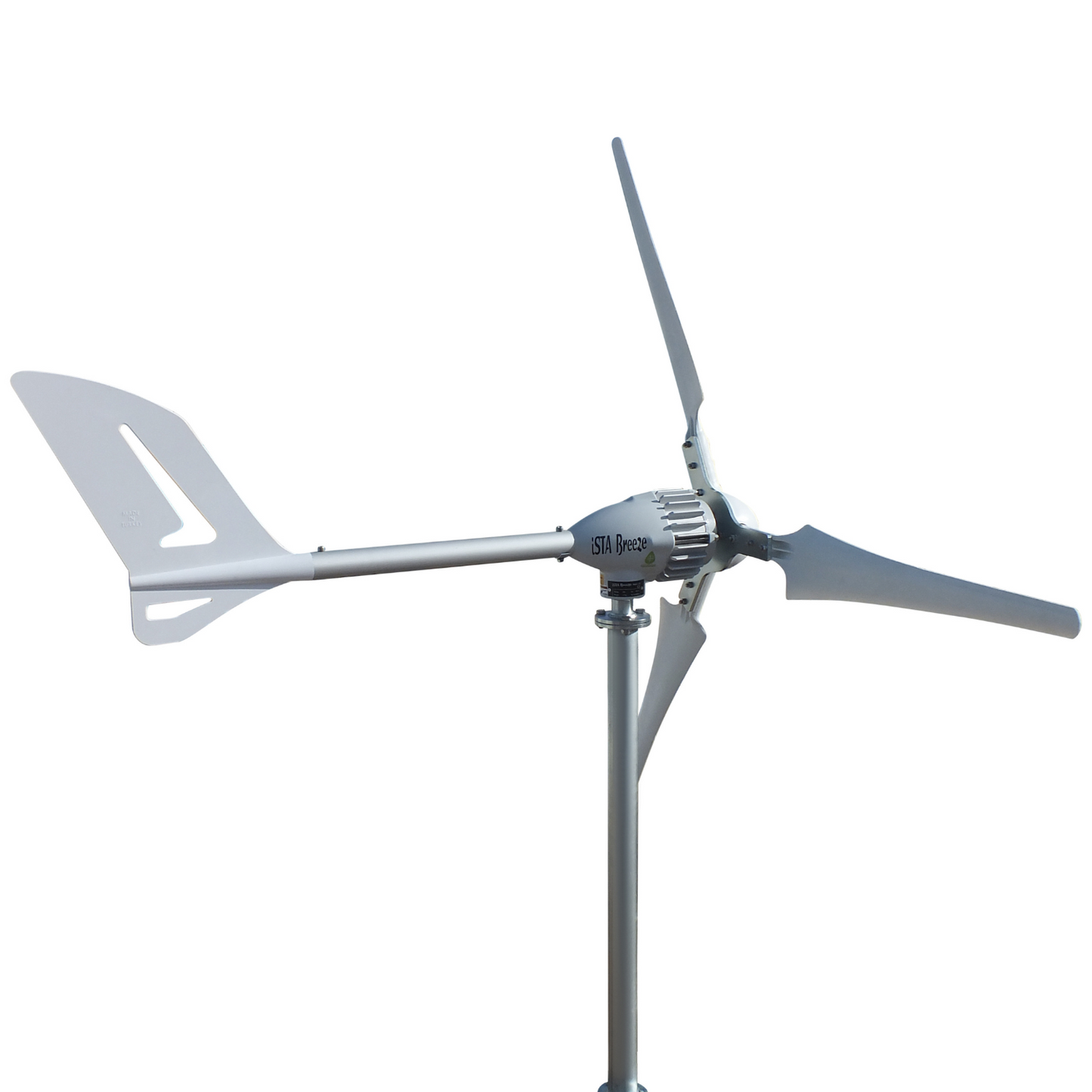

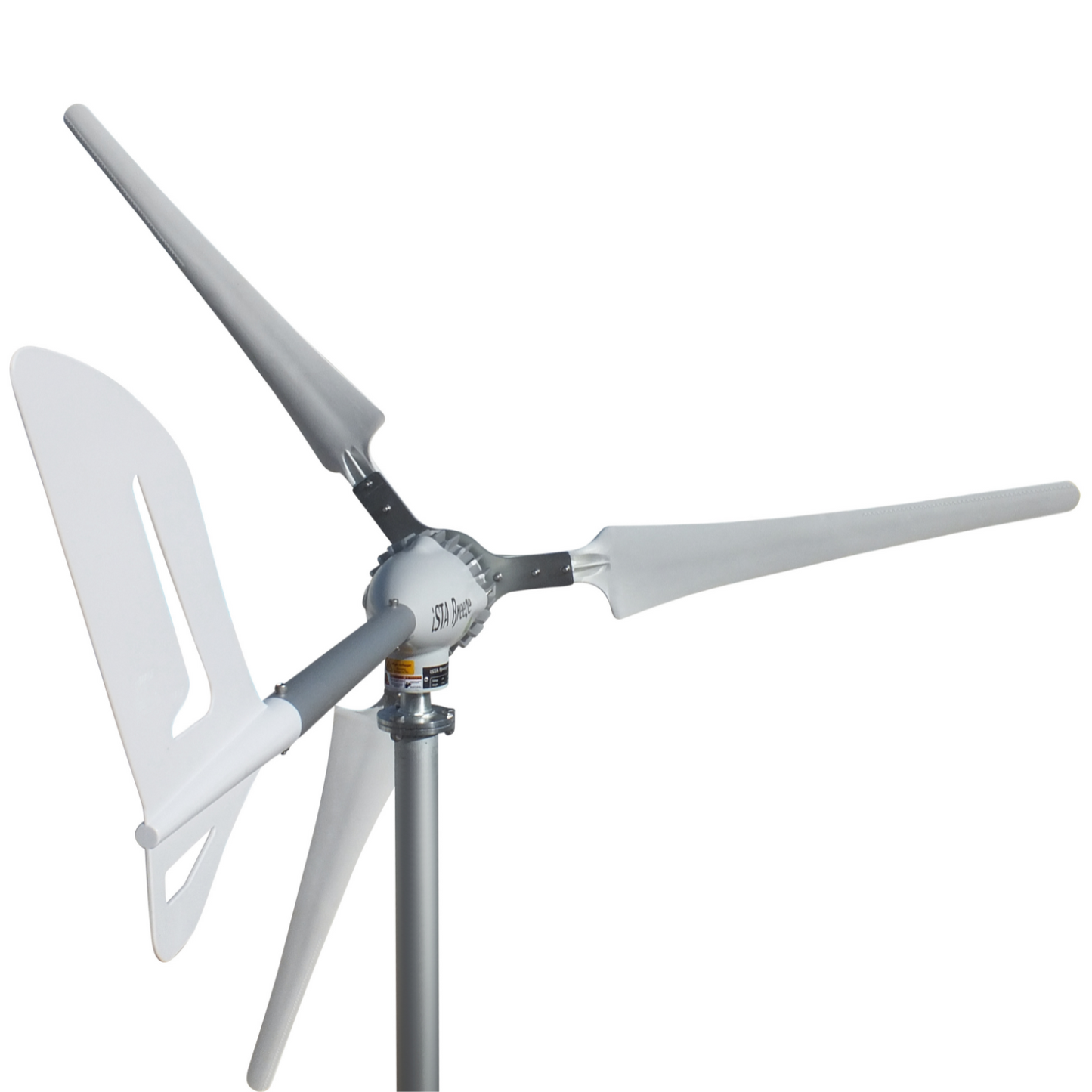

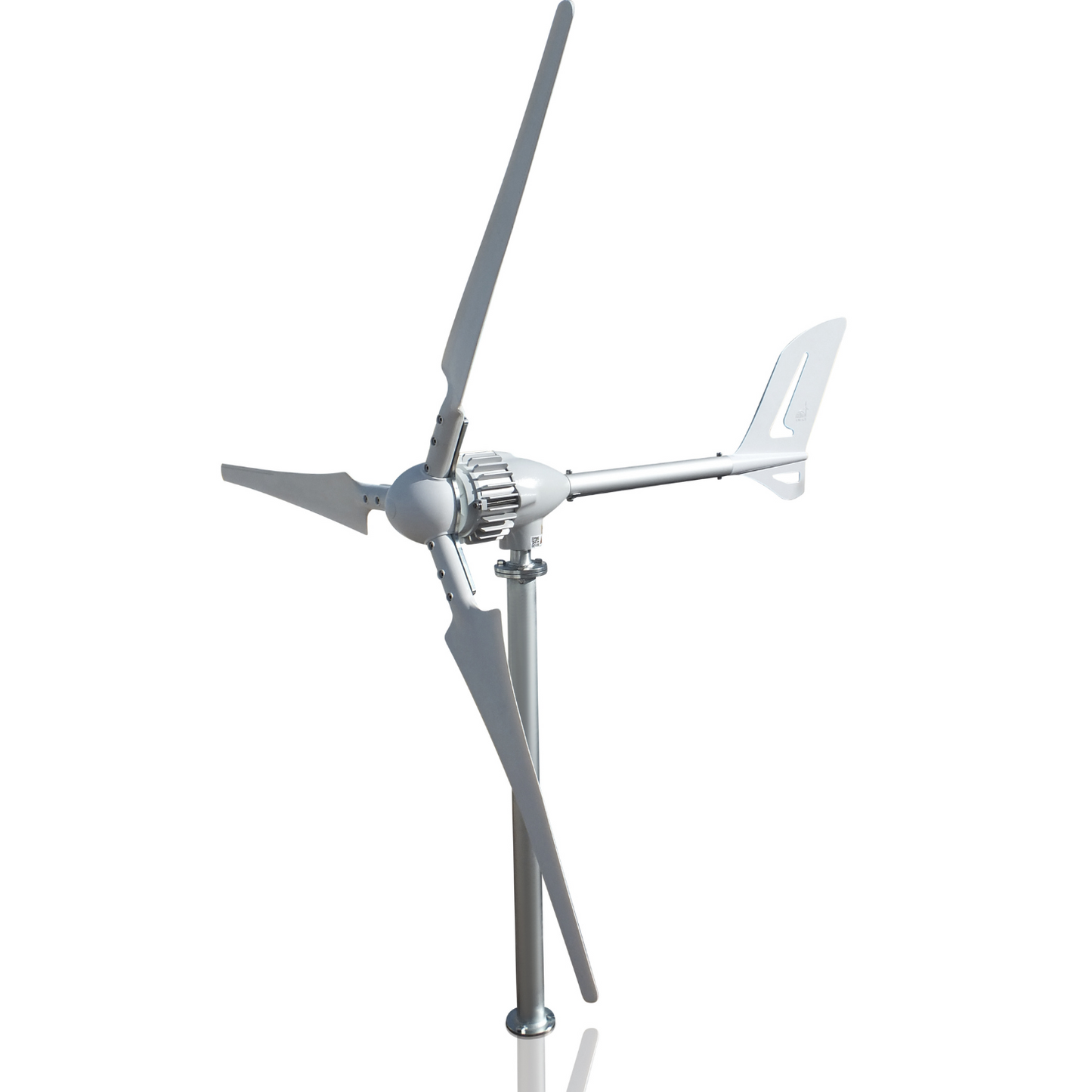

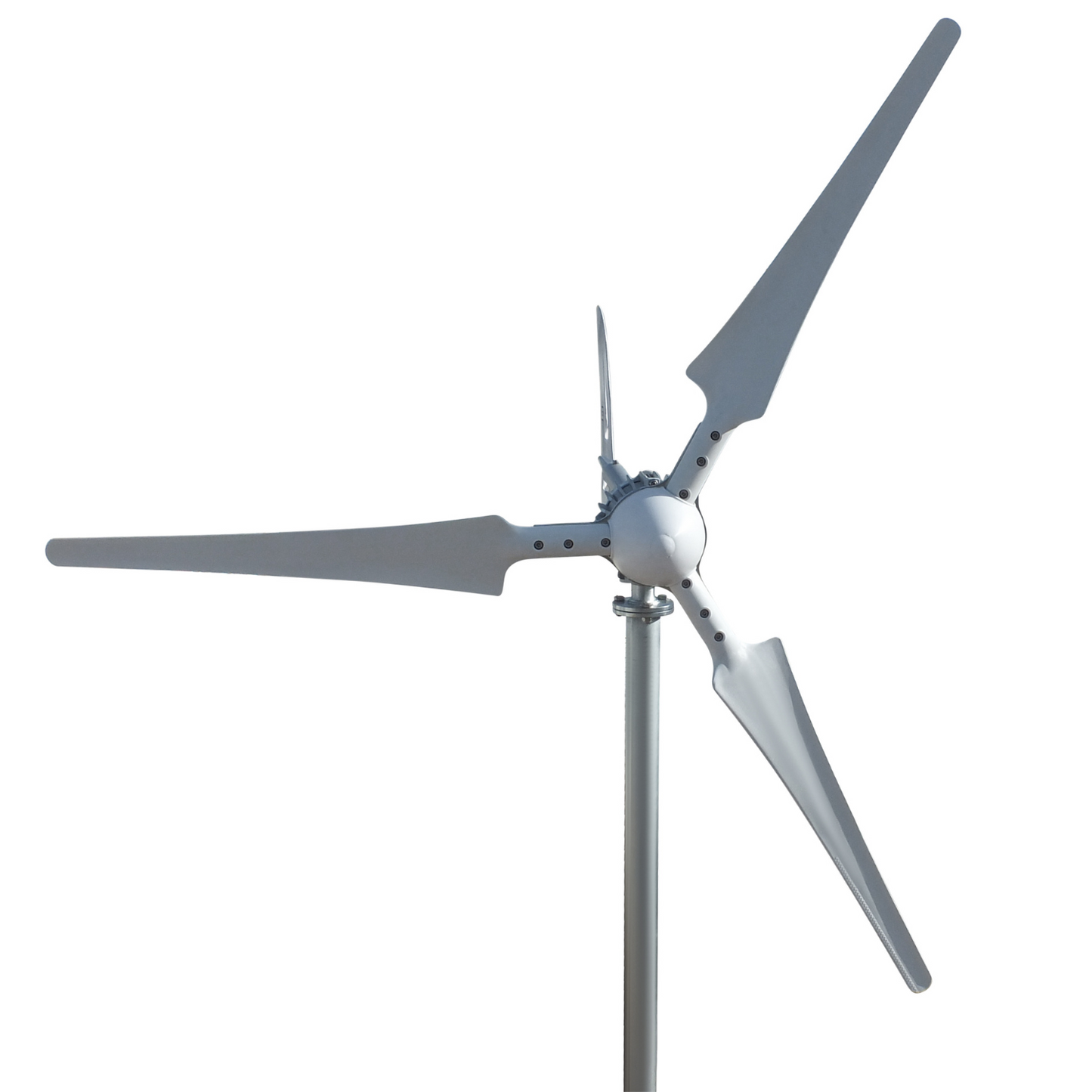

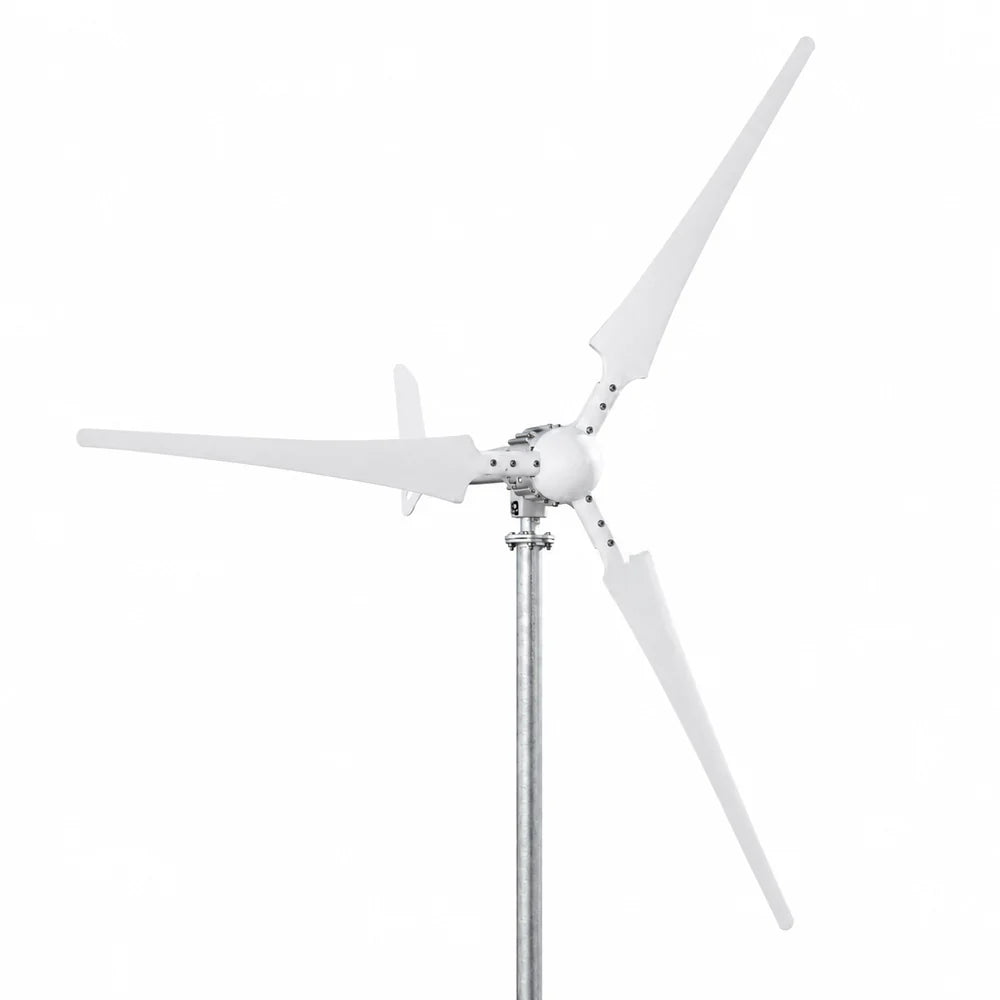

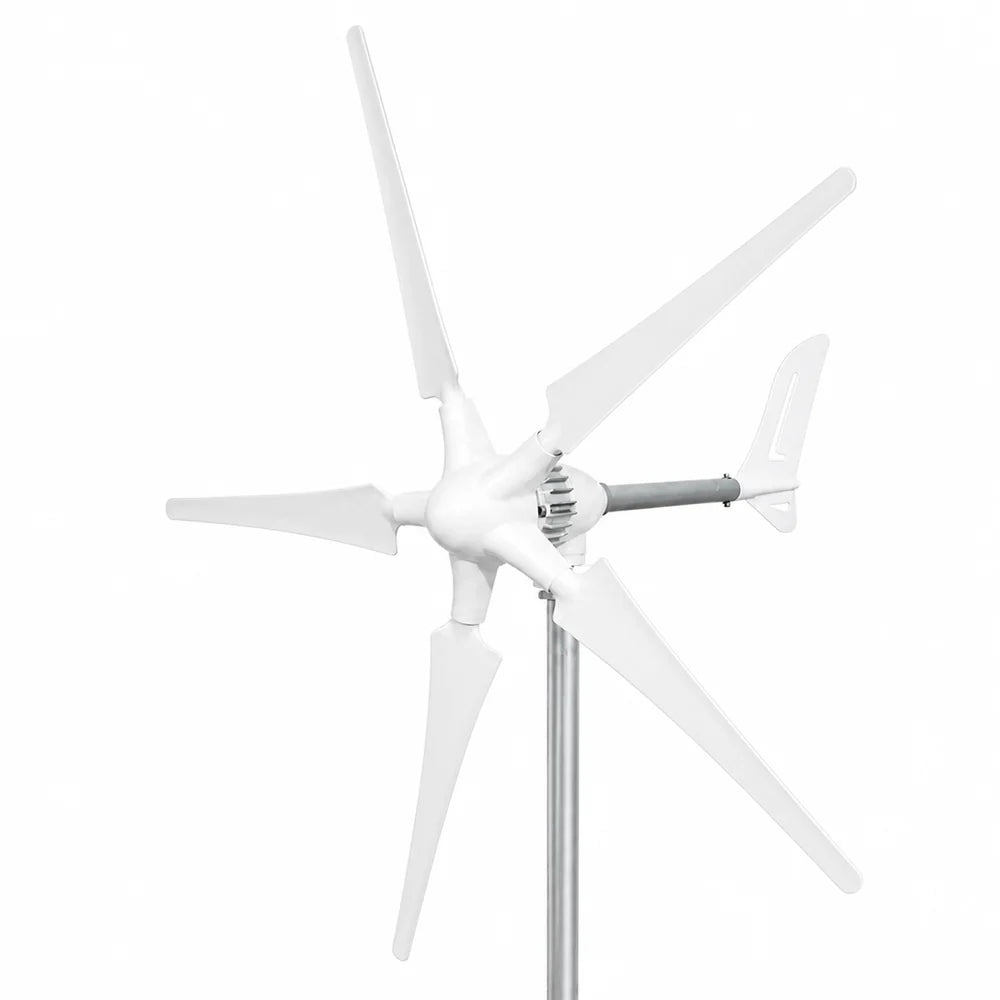

i-700W 12V/24V/48V Wind Turbine Wind Generator



Our world leading range of iSTA-BREEZE® Ideal for camping, garden and home use.



• Universal application for low, middle and high wind

• 3-phase permanent magnets (High efficiency due to strong permanent magnets (NdFeB magnets, 150 ° temperature resistant)

• Aerodynamic design

• Powder coated aluminum alternator

• Low noise

• UV-resistant Plastic + 30% glass fibers blades, successfully tested

• Power transmission through slip ring, thereby no twisting of the cable possible Durable and low maintenance



PRODUCT FEATURES - WIND TURBINE:



• Current : 60A (12V) - 30A (24V) - 15A (48V)

• Rated Power: 700W

• Body Matarial: Aluminium- Casting

• Alternator Body: Aluminium

• Maximum Power: 800 W

• Voltage: 12V-AC / 24V-AC / 48V-AC

• Package Dimensions: for 3 Blade: 110 x 35 x 25 cm (18 kg)  for 5 Blade: 60 x 40 x 40 cm (15kg) 110 x 19 x 12 cm (4,5 kg)




WIND SPEED:

• Initial Wind Speed: 3 m/s

• Maximum Wind Speed: 14-15 m/s



BLADE SPECIFICATIONS:



• Weight: 620 Gr

• Width: 14.3 cm

• Noise : 40 dB

• Blade Material: Composite

• Blade Length:90 cm

• Rotor Diameter:186 cm



NECESSARY EQUIPMENTS:



• Battery: Suitable battery group: Min 2400W - Max 4800W



PACKAGE CONTENT:



• Connection Screws: 1 Set

• Nose: 1 Pcs

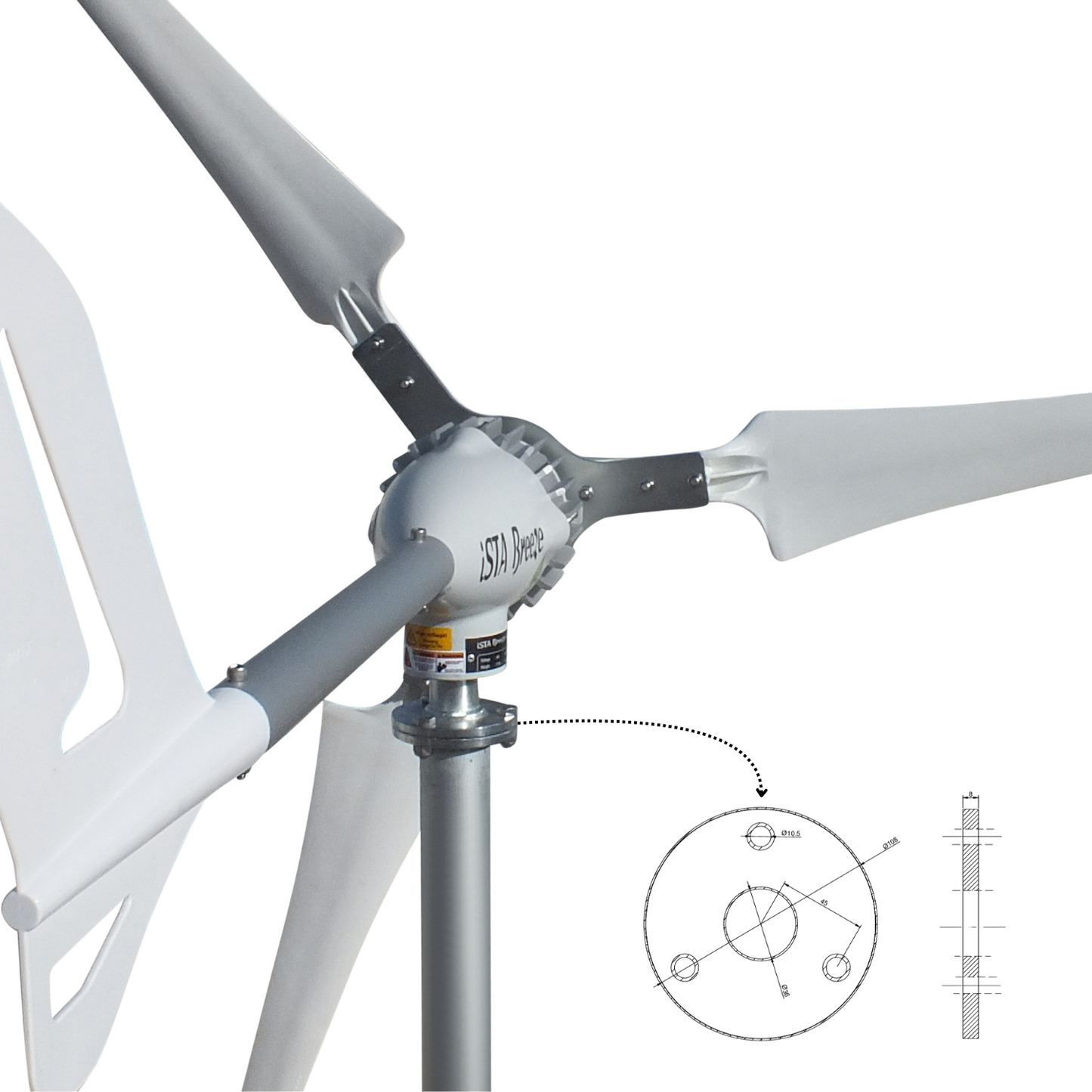

• Flange: 1 Pcs

• Generator: 1 Pcs

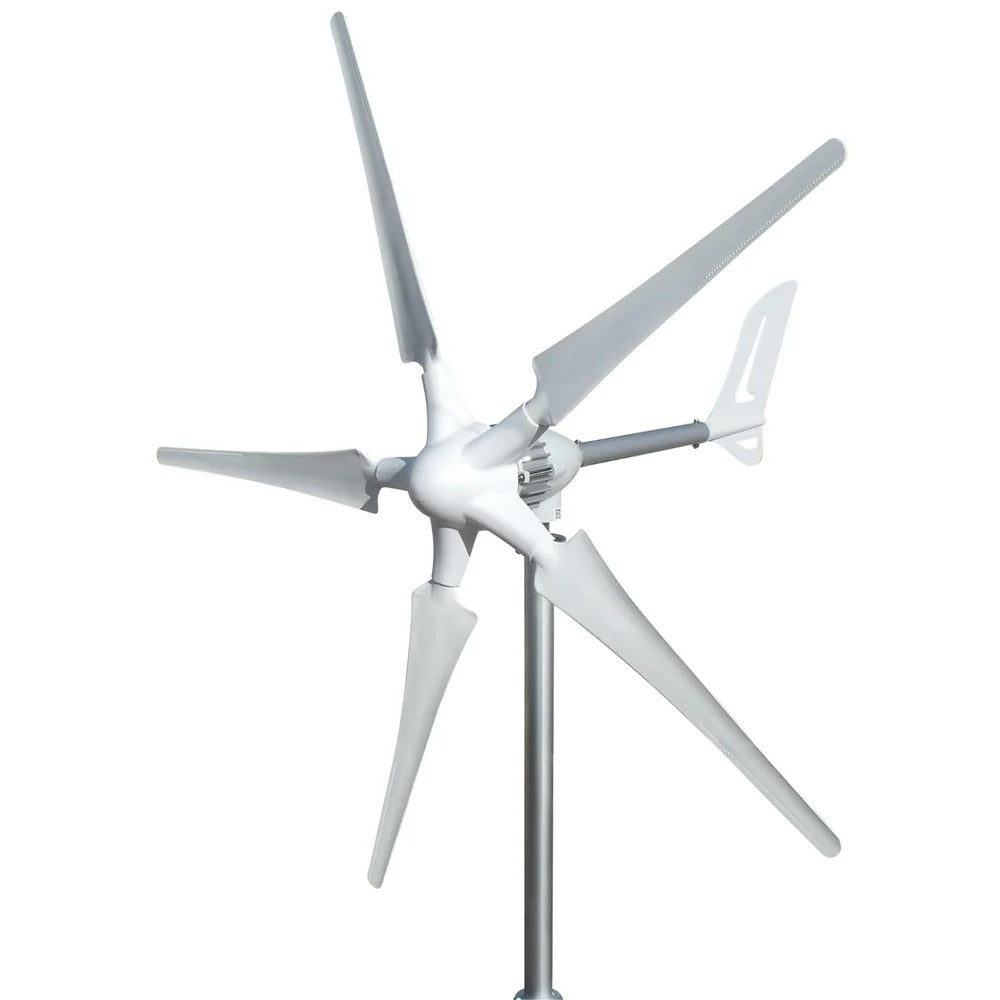

• Blades: 3 Pcs / 5 Pcs

• Manual Book: 1 Pcs

• Tail - Tail Pipe: 1 Pcs
