ISTABREEZE® WIND TURBINE

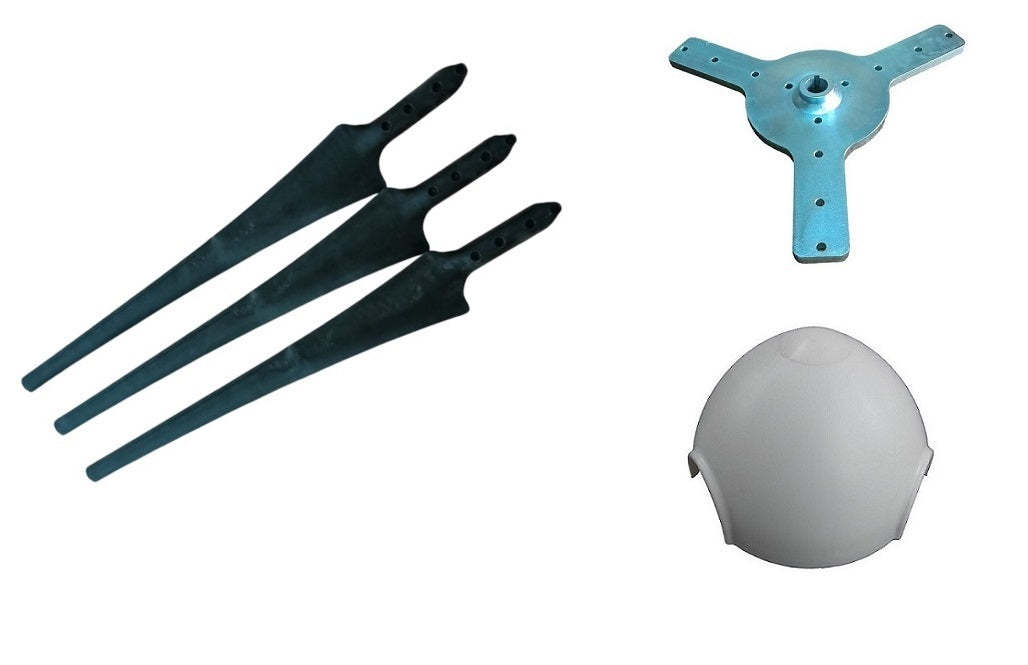

Kit 107 cm Wind Blade & Nose & Flange
Kit 107 cm Wind Blade & Nose & Flange
Regular price
$250.00
Regular price
Sale price
$250.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
You can see technical drawing of blade here -->
You can see technical drawing of flange here -->
Extremely quiet, sturdy standard replacement repeller blades for the small wind turbine wind turbines. Made of fiberglass, the rotor blades are very durable and stable, yet at the same time unusually light for low starting torque.
- Length : 107 cm (Per Blade)
- Material: Composite or Carbon
- Weight: Composite (650gr) Per Blade // Carbon: (770gr) Per Blade
- Diameter: 220 cm
You can easily use the Flange for 3 blade with our models between 700w and 2000w. It is 100% compatible with our 90 cm and 107 cm blades and generators.
- Diameter: 390 mm
- Wing mounting M8
- Hole drilling (shank) With Conic: 22mm
- Steel, 5mm thickness
- Weight: 2.7 Kg
- Material: Galvanized Metal
Nose for 3 Blade Models Between 700w and 2000w
- Weight: 100 Gr
- Diameter: 160 mm
- Material: Composite
- Height: 93 mm
