ISTABREEZE® WIND TURBINE

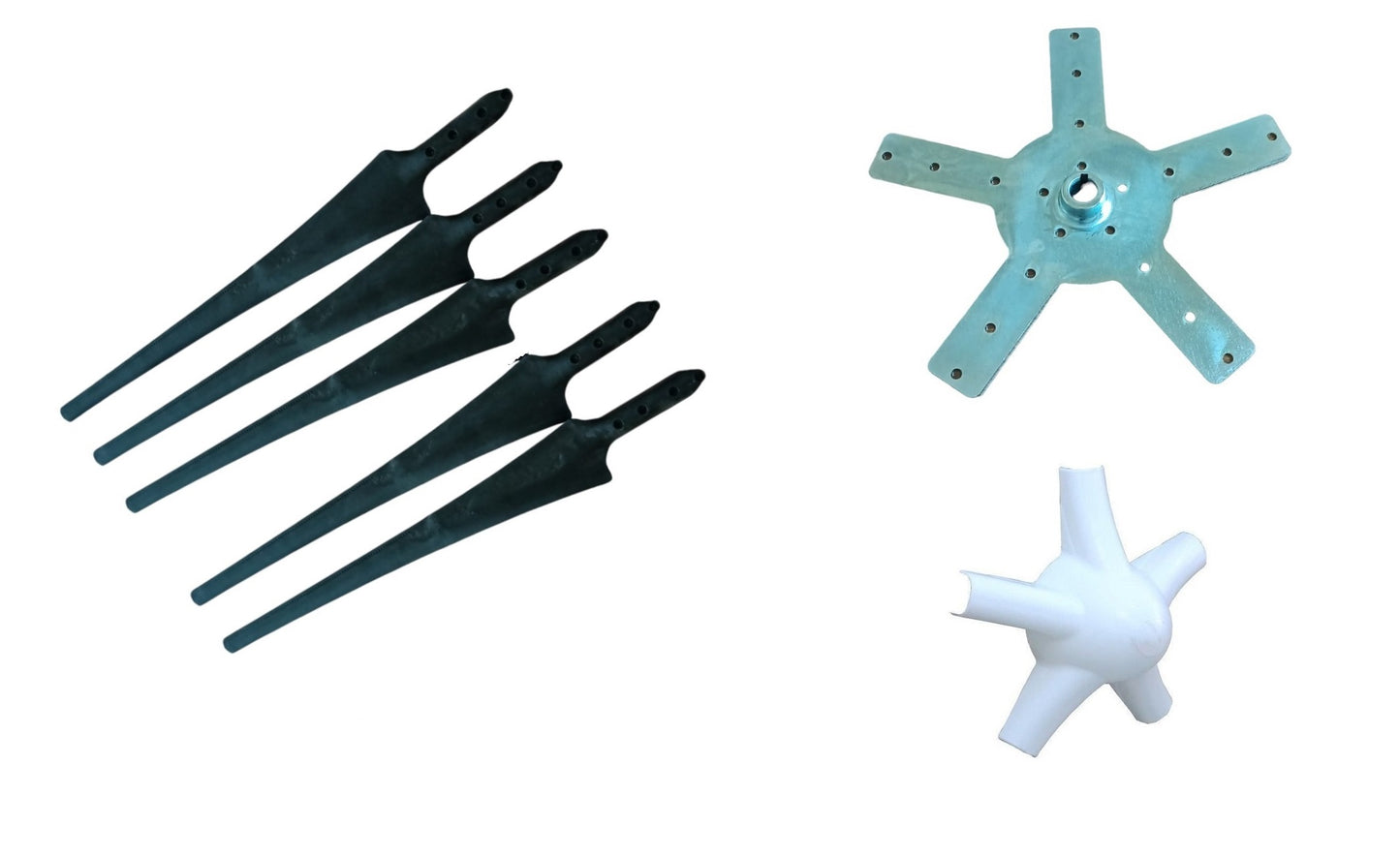

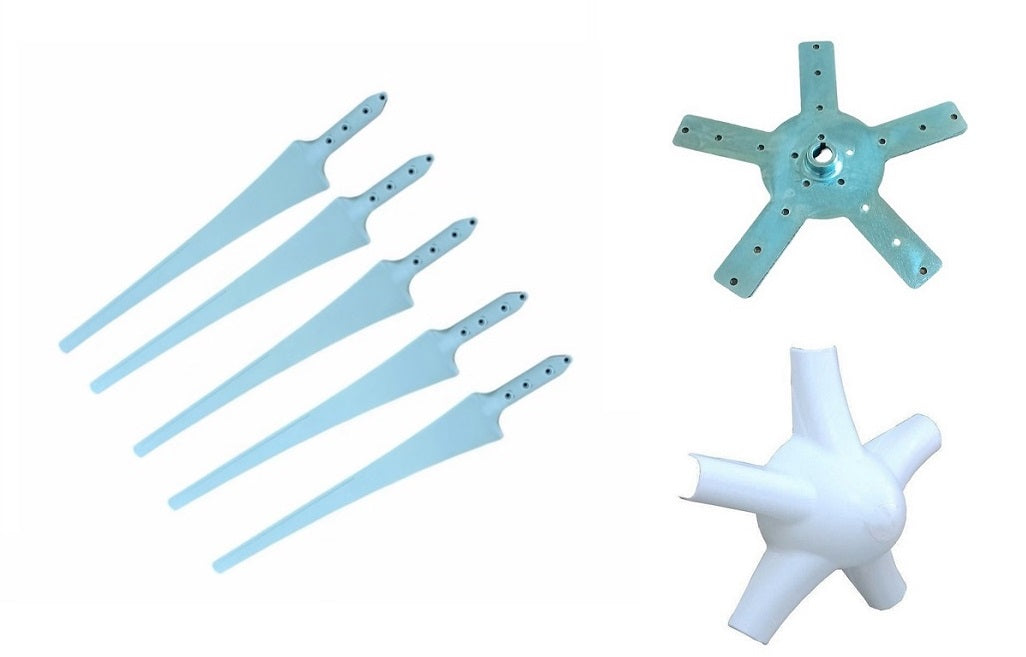

Kit 107 cm Wind Blade & Nose & Flange for 5 Blade version
Kit 107 cm Wind Blade & Nose & Flange for 5 Blade version
Regular price
$405.00
Regular price
Sale price
$405.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
You can see technical drawing of blade here -->
You can see technical drawing of flange here -->
Extremely quiet, sturdy standard replacement repeller blades for the small wind turbine wind turbines. Made of fiberglass, the rotor blades are very durable and stable, yet at the same time unusually light for low starting torque.
- Length : 107 cm (Per Blade)
- Material: Composite or Carbon
- Weight: Composite (650gr) Per Blade // Carbon: (770gr) Per Blade
- Diameter: 220 cm
You can easily use the Flange for 5 Blade with our models between 1000w and 2000w. It is 100% compatible with our 107 cm blades and generators.
- Steel, 5mm thickness.
- Diameter:390 mm
- Wing mounting:M8
- Hole drilling (shank) (With Conic): 22mm
- Weight: 2 Kg
- Material: Galvanized Metal
Nose for 5 Blade models between 1Kw and 2Kw
- Diameter:400 mm
- Height:155 mm
- Material:Composite
- Weight: 530 gr
