ISTABREEZE® WIND TURBINE

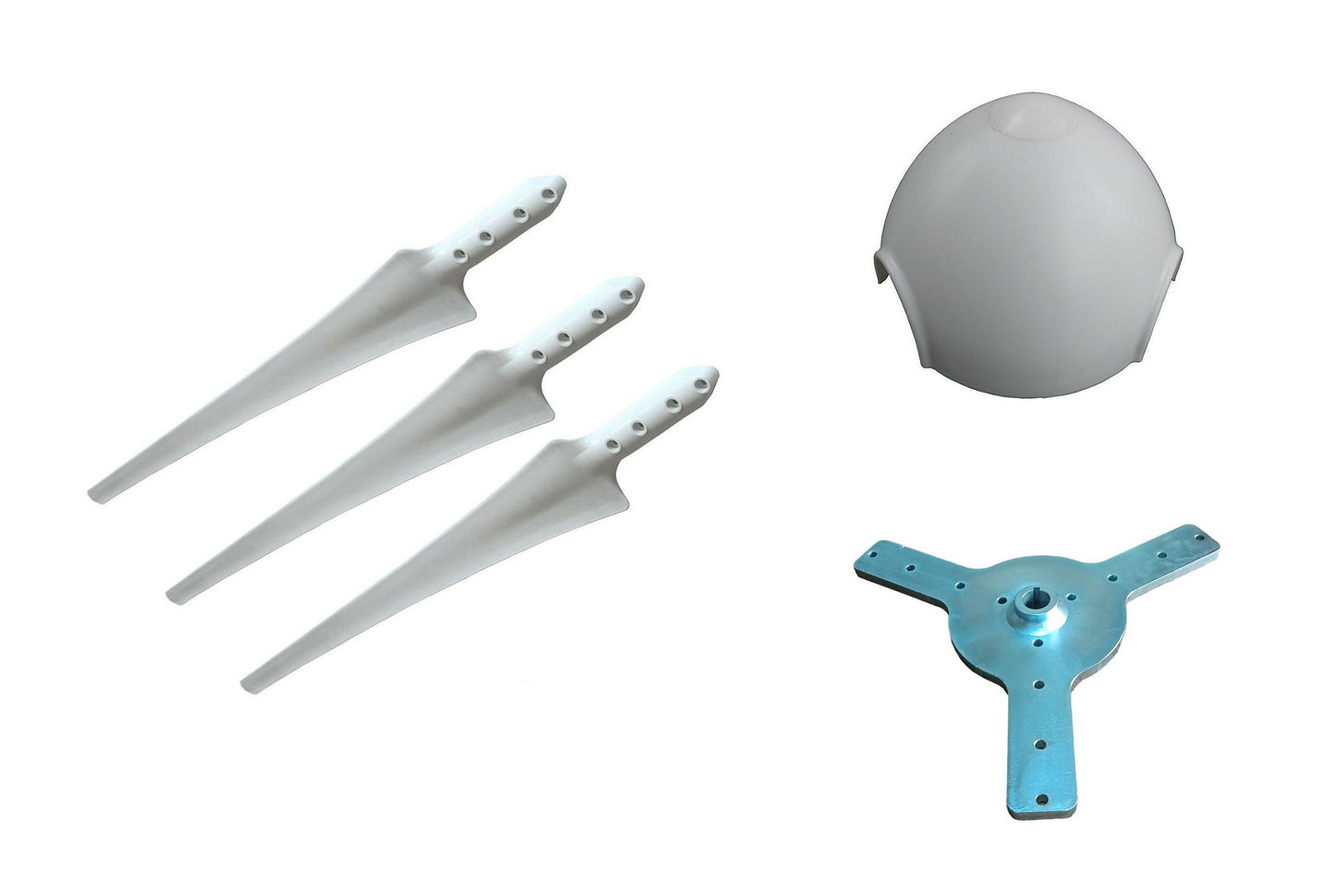

Kit 90 cm Wind Blade & Nose & Flange
Kit 90 cm Wind Blade & Nose & Flange
Regular price
$240.00
Regular price
Sale price
$240.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
You can see technical drawing of blade here -->
You can see technical drawing of flange here -->
Original IstaBreeze® Pinwheel Repeller
Robust and high quality replacement repeller blades for the small wind power wind generators. Due to the production of plastic and fiberglass mixture, the repeller are very durable and stable, but also unusually light for low starting torque.
- Length : 90 cm (Per Blade)
- Weight :620 Gr (Per Blade)
- Material: Composite
- Diameter: 186 cm
You can easily use the Flange for 3 blade with our models between 700w and 2000w. It is 100% compatible with our 90 cm and 107 cm blades and generators.
- Diameter: 390 mm
- Wing mounting M8
- Hole drilling (shank) With Conic: 22mm
- Steel, 5mm thickness
- Weight: 2.7 Kg
- Material: Galvanized Metal
Nose for 3 Blade Models Between 700w and 2000w
- Weight: 100 Gr
- Diameter: 160 mm
- Material: Composite
- Height: 93 mm
