ISTABREEZE® WIND TURBINE

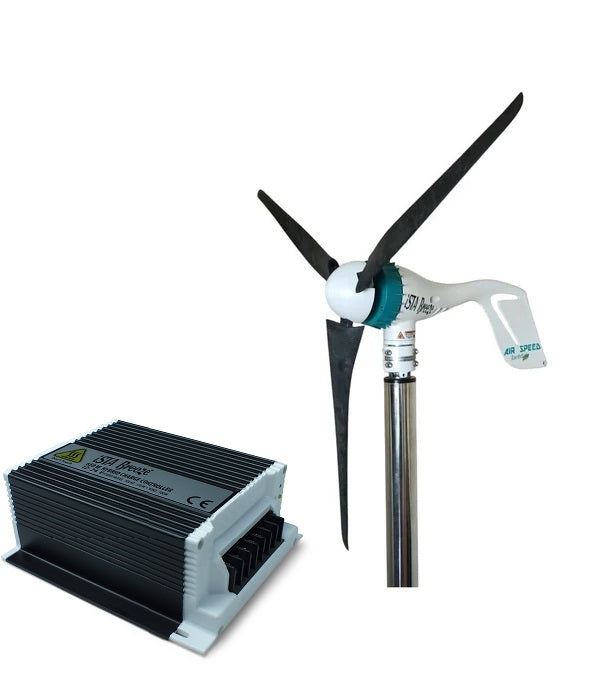

Kit Air Speed 500W 12V/24V Wind Turbine Wind Generator & Hybrid Charge Controller & Tower
Kit Air Speed 500W 12V/24V Wind Turbine Wind Generator & Hybrid Charge Controller & Tower
Couldn't load pickup availability

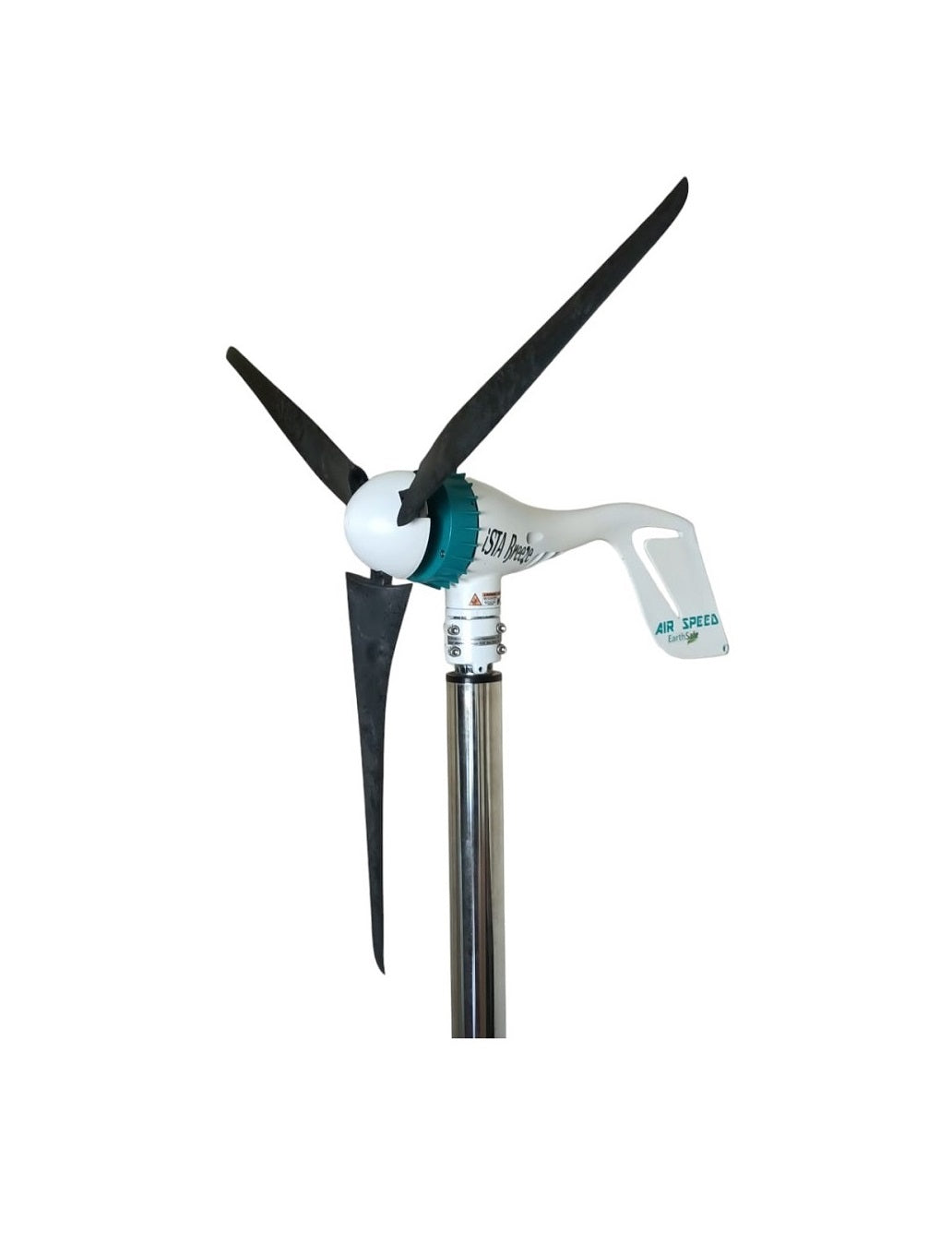

We are pleased to present you our new wind generator IstaBreeze® AIR Speed, universally applicable for light, medium and strong wind
The newly developed IstaBreeze® AIR Speed is a wind generator for long-term professional use, which delivers reliable energy even under extreme conditions automatically and unattended with our intelligent hybrid charge controller.
The generous dimensioning of the generator components and the heat dissipation via the newly developed aluminum housing and aluminum body ensure a low thermal load, which ensures a long service life even at high ambient temperatures.
The generator shaft runs in two encapsulated and permanently lubricated deep groove ball bearings made of stainless steel. At the front bearing, a special friction-free sealing disc prevents the ingress of moisture and dust.
The threading of the copper winding of the generator is done exclusively by hand.

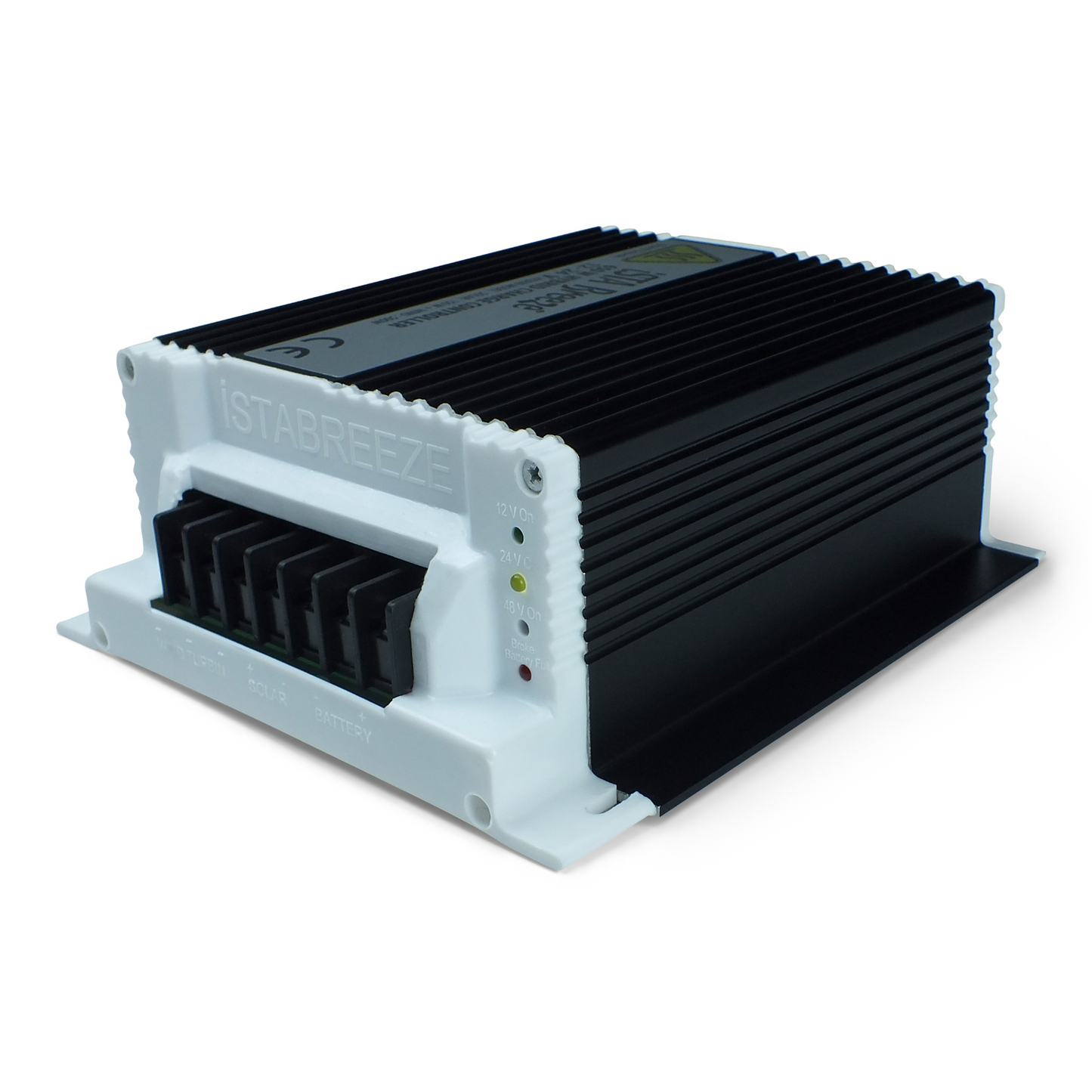

The supplied i / HCC 650 wind / solar hybrid controller from IstaBreeze® is also suitable for parallel use
from 2-phase photovoltaic modules (DC) to max. 150 watts suitable.
· Microchip controlled
· Aluminum casing
· LEDs for display: charging / battery connected / battery full
· Control the charging process to protect the battery from overcharging

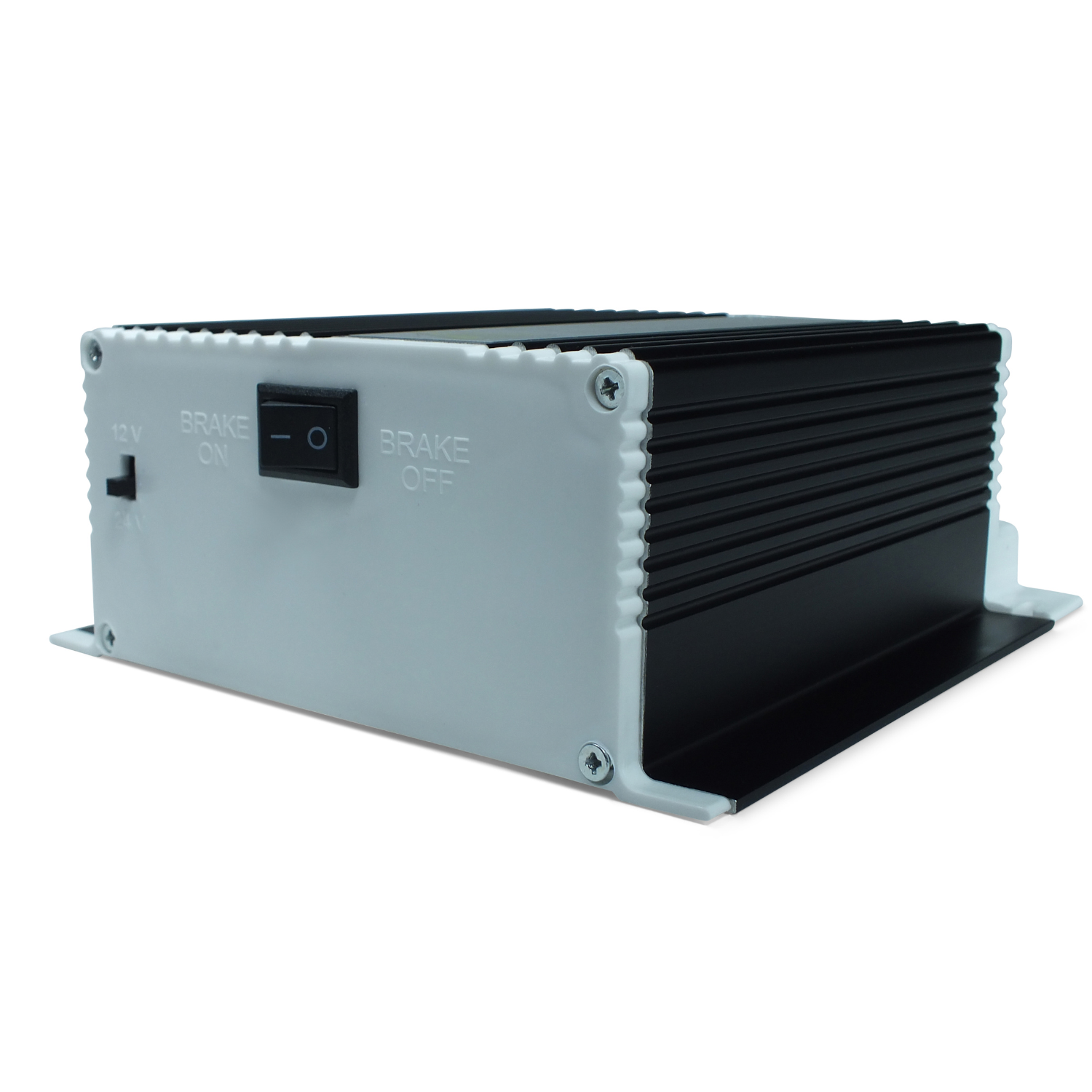

· Braking the wind generator at too high wind speeds
This makes it possible to use wind generator power and solar module power for charging batteries.
Blade Specifications
- Length of per blade: 55 cm
- Weight of per blade: 180 g
- Noise: 40 dB
- Rotor Diameter: 115 cm
- Blade Type: Carbon
Generator Type:Permanent Magnet
Rated Capacity:420W
Alternator Housing:Aluminium - Die Cast
Body:Aluminium - Die Cast
Current:Max 40A (12V) / Max 20A (24V)
Nominal Voltage:12V / 24V
Nominal Battery Voltage:12V / 24V
Charging Current Amperes Max. Wind:40A (12V) / 20A (24V)
Min Battery Voltage:9V (12V) / 18V (24V)
Brake Function (mechanical short circuit, wind turbine is short-circuited by relays until the complete style level is reached):From 14.9V (12V) / 29,6V (24V)
Min Recommended Battery:Gel
You can see manual book here: https://altinelenerji.net/english-manual-book/650W-850W-Hybrid-Charge-Controller-Manual-Book.pdf

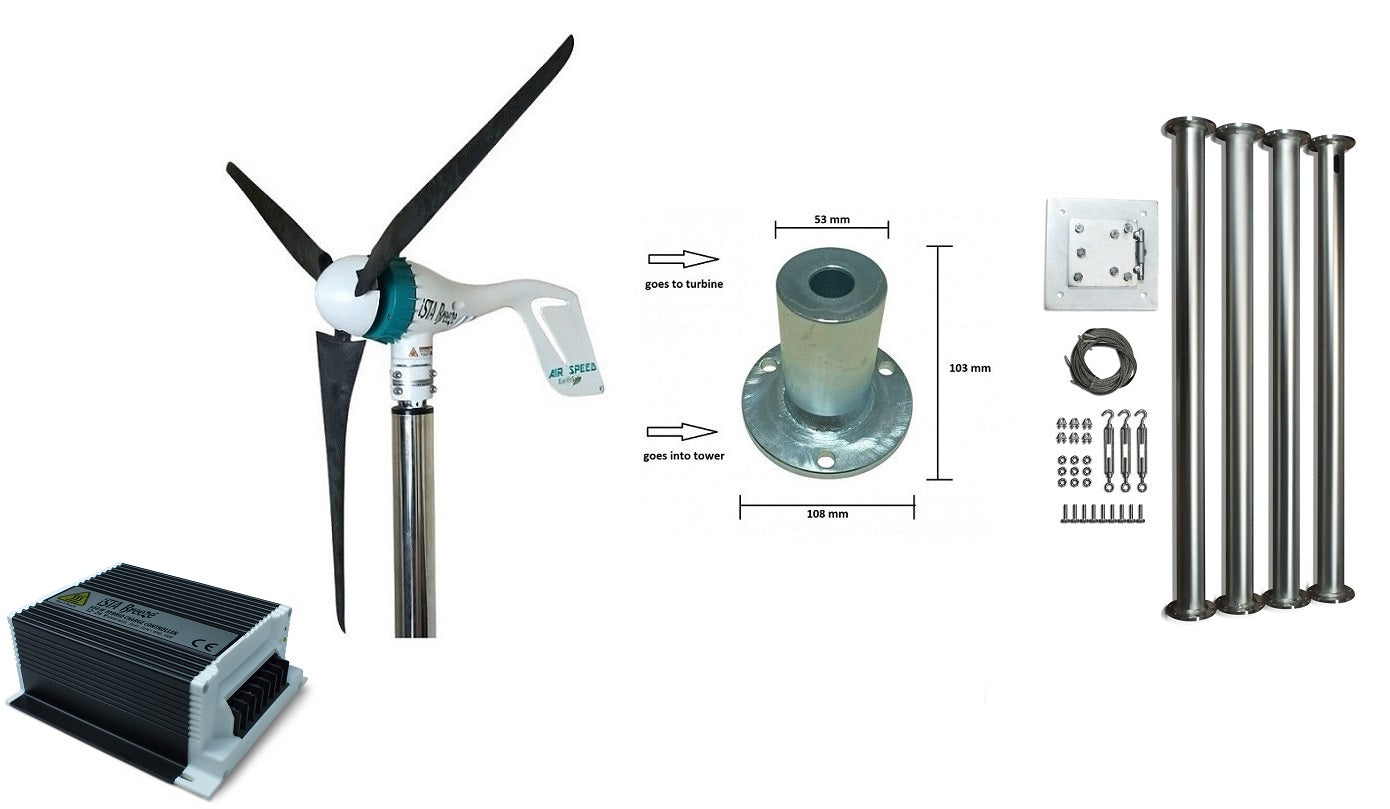

FEATURES OF MAST SET:
Material: Galvanized Steel Pipe
Diameter of the mast is 42 mm, The mast can be extended by a maximum of 2 meters!
Inner hole, connector wind generator is 37 mm 4 meters IstaBreeze TOWER for wind generator i 500, L-500, i-300, IstaBreeze or wind generators up to 15 KG It has never been so easy to install a wind generator.
With the IstaBreeze Tower it is possible to build a wind generator in a few minutes.
The folding system simplifies the whole process. During maintenance, only a few screws are released and the tower can be folded for maintenance.
Dowels and screws for the floor (concrete floor) is still needed !!
Optional The vibration damper for the wind generators i-500- L-500 and i-700 to i-2000, reduces the transmission of structure-borne noise from the wind generator into the mast and thus possibly into the house.
The retrofit is very simple, since the body silencer has the same dimensions as the wind generator, it must only be inserted between them and screwed with matching screws on the mast and the wind generator.
4 meters IstaBreeze TOWER for wind generator i 500, L-500, i-300, IstaBreeze or wind generators up to 15 KG It has never been so easy to install a wind generator. With the IstaBreeze Tower it is possible to build a wind generator in a few minutes. The folding system simplifies the whole process. During maintenance, only a few screws are released and the tower can be folded for maintenance. Dowels and screws for the floor (concrete floor) is still needed !! Optional The vibration damper for the wind generators i-500- L-500 and i-700 to i-2000, reduces the transmission of structure-borne noise from the wind generator into the mast and thus possibly into the house. The retrofit is very simple, since the body silencer has the same dimensions as the wind generator, it must only be inserted between them and screwed with matching screws on the mast and the wind generator. Features of Vibration Damper: Generator mount / inner dimension: 37mm Pole mount / external dimension: 37mm Screws: stored in rubber (stainless steel V2A)
YOU CAN SEE PERFORMANCE CHART -->
YOU CAN SEE CONNECTION SCHEMA -->
