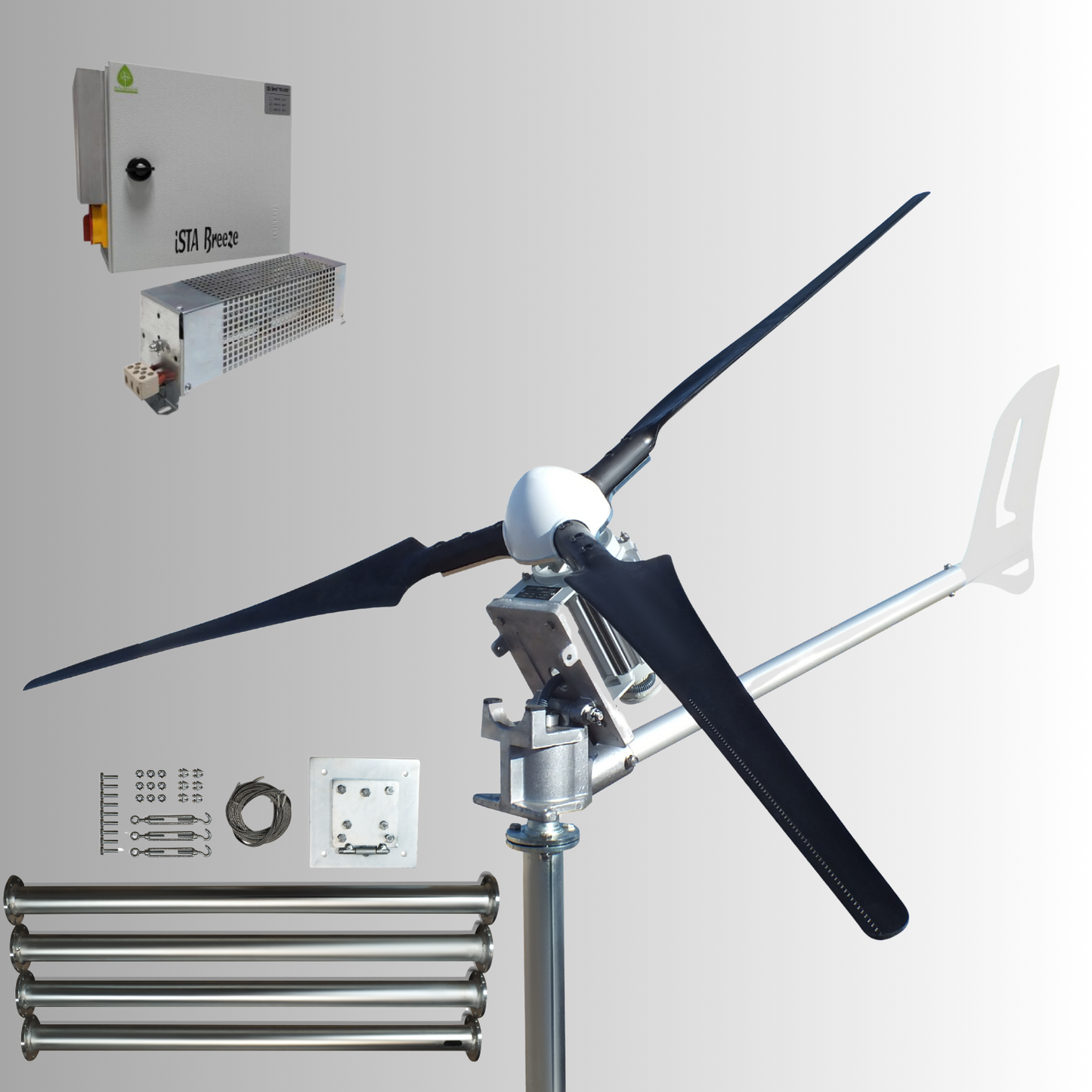

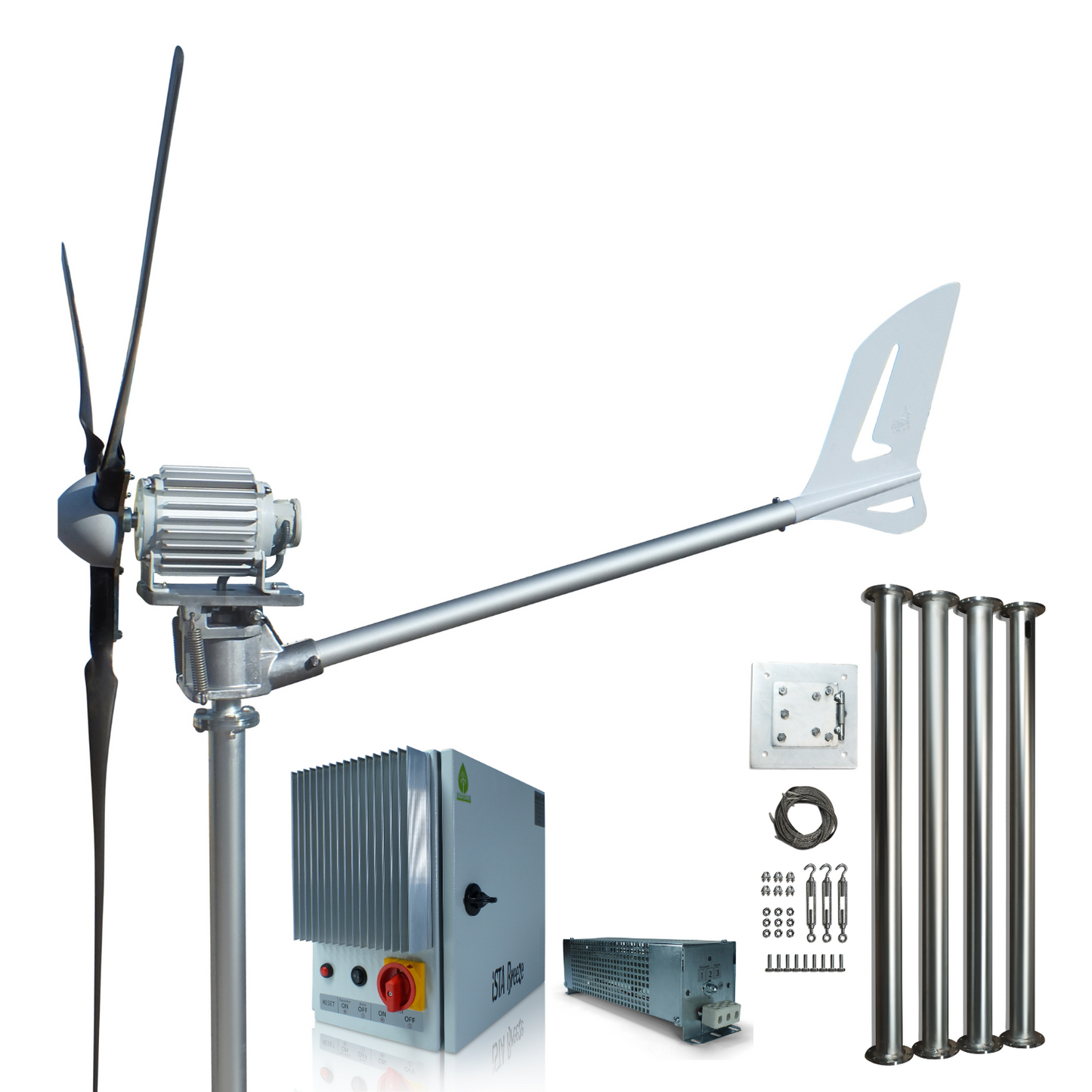

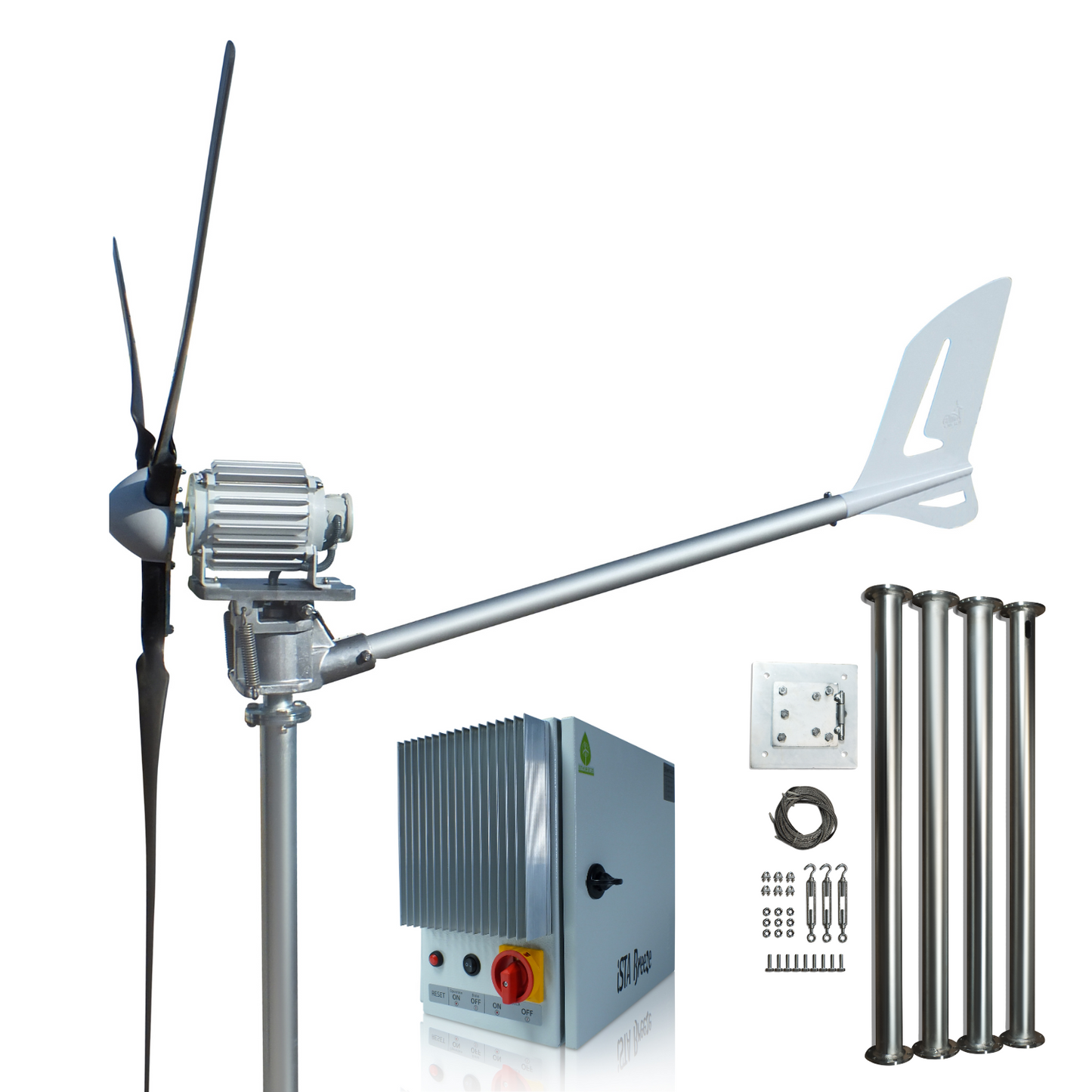

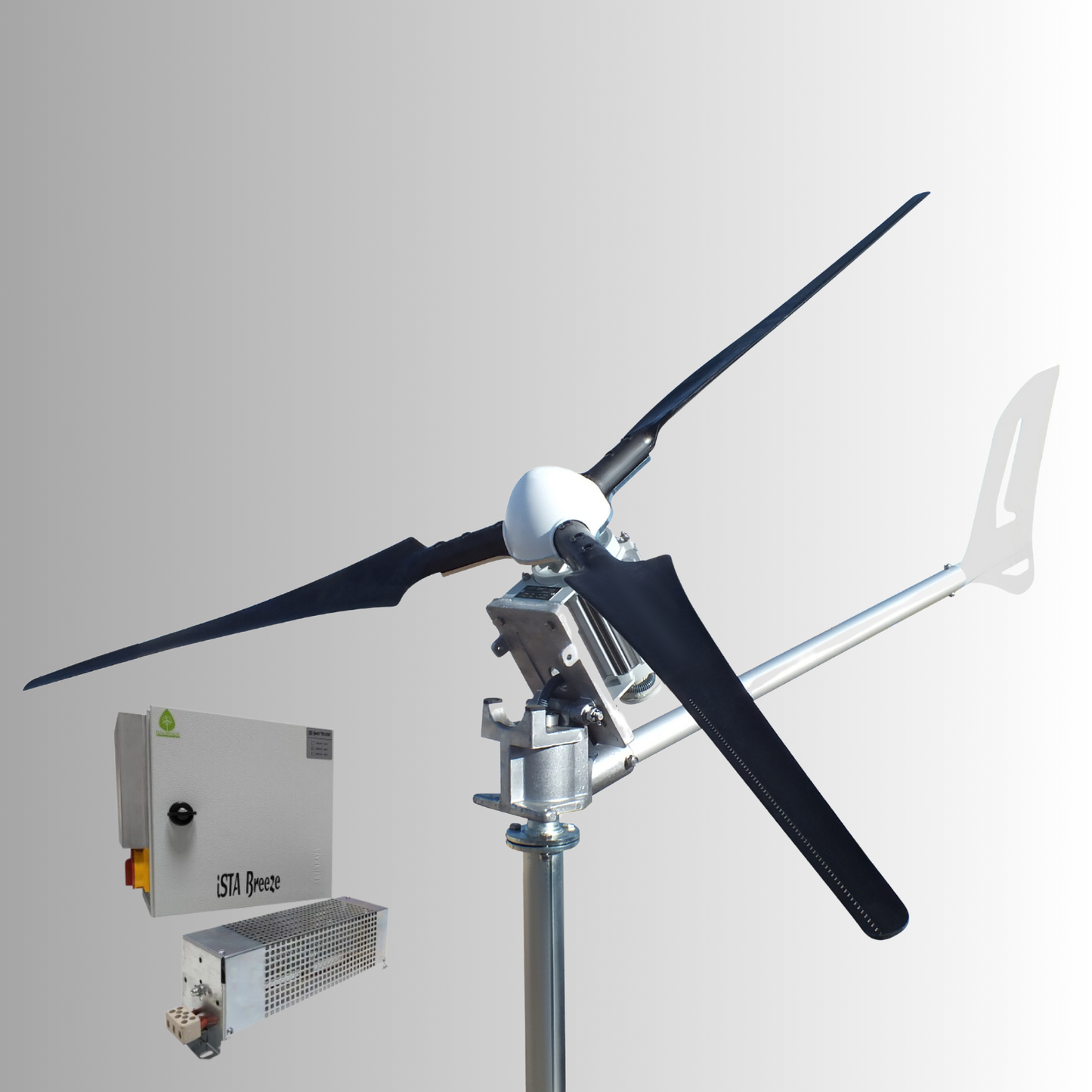

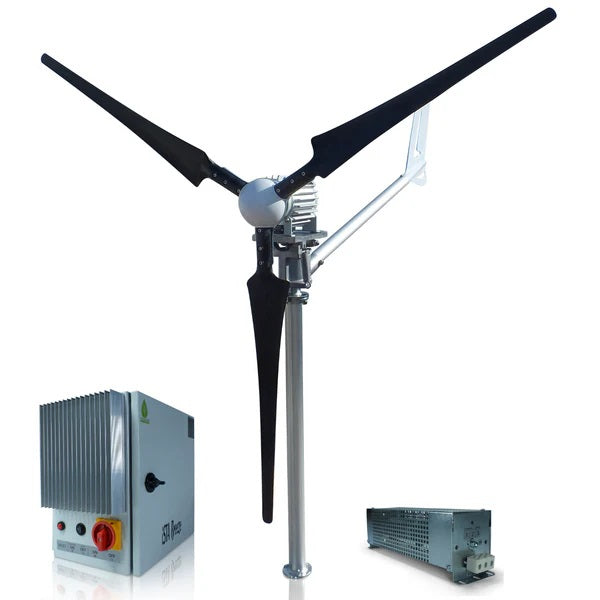

Kit i-1500W 24V Windsafe Wind Turbine Wind Generator & Charge Controller (for Acid & Gel Battery) & Tower

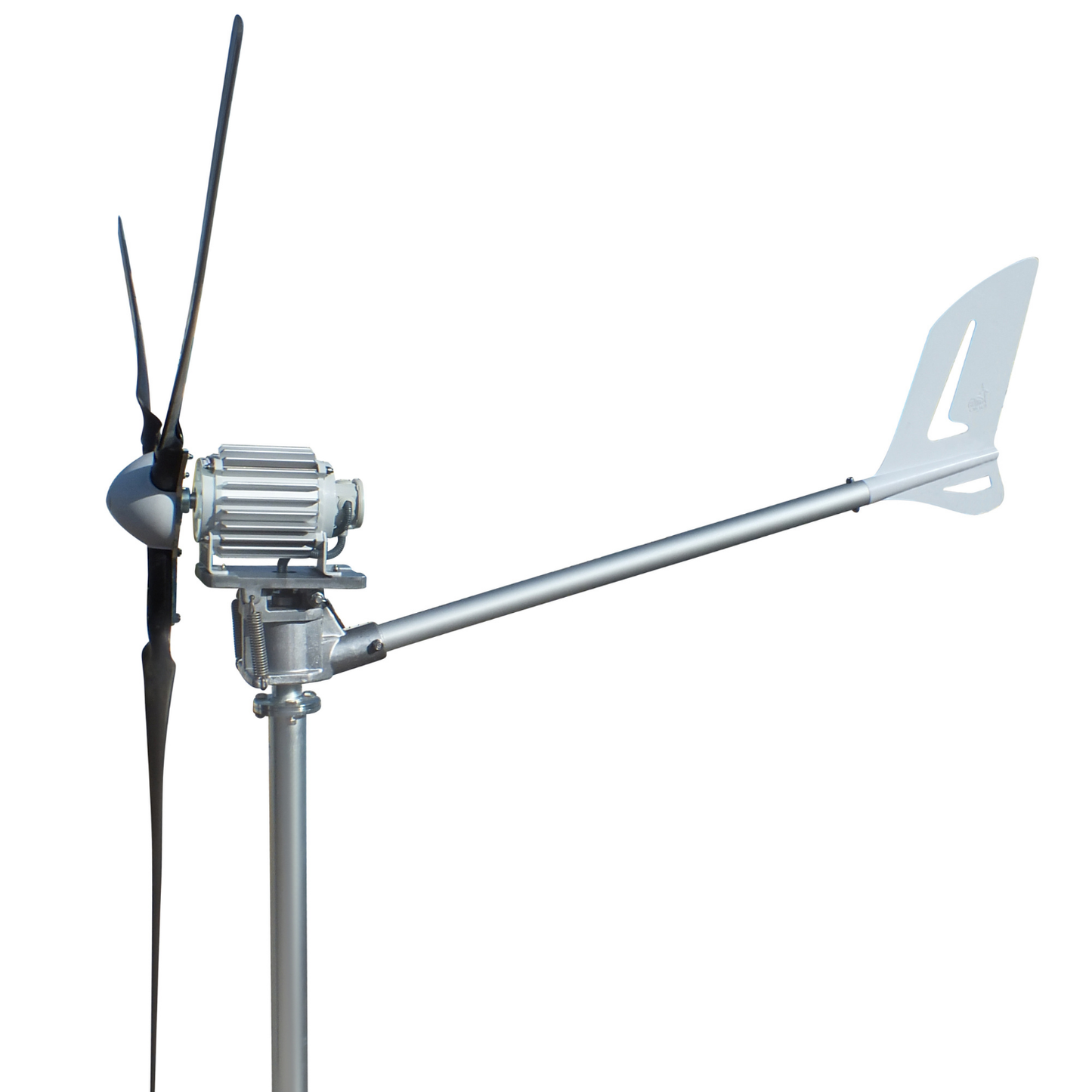

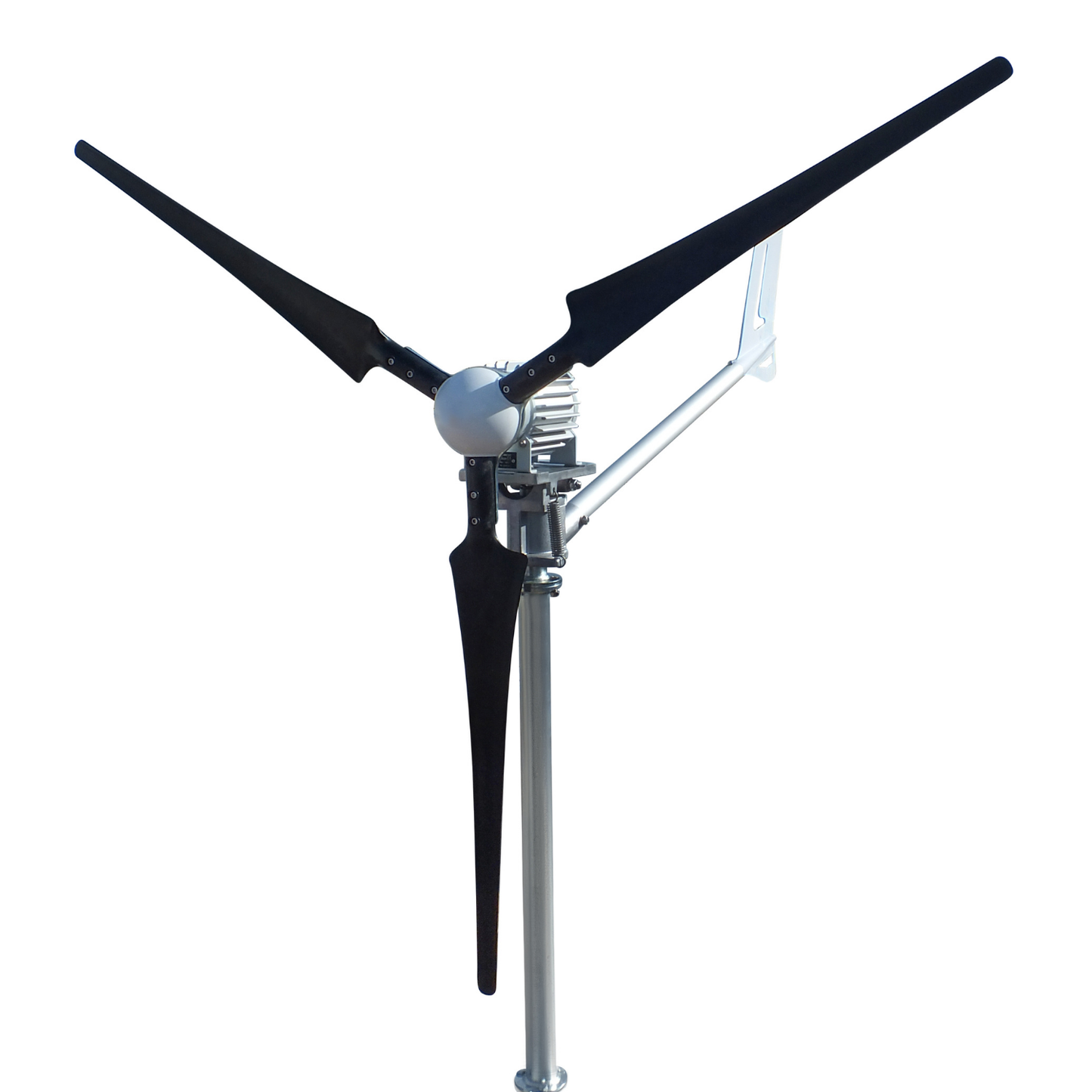

Original wind generator iSTA Breeze i-1500 Windsafe

5 BLADE VERSION IS RECOMMEND ONLY FOR LOW WIND AREAS

We are pleased to introduce our new wind generator IstaBreeze® WindSafe.

The newly developed IstaBreeze® WindSafe is a wind generator for long-term professional use, which delivers energy automatically and unattended reliably even under extreme conditions.

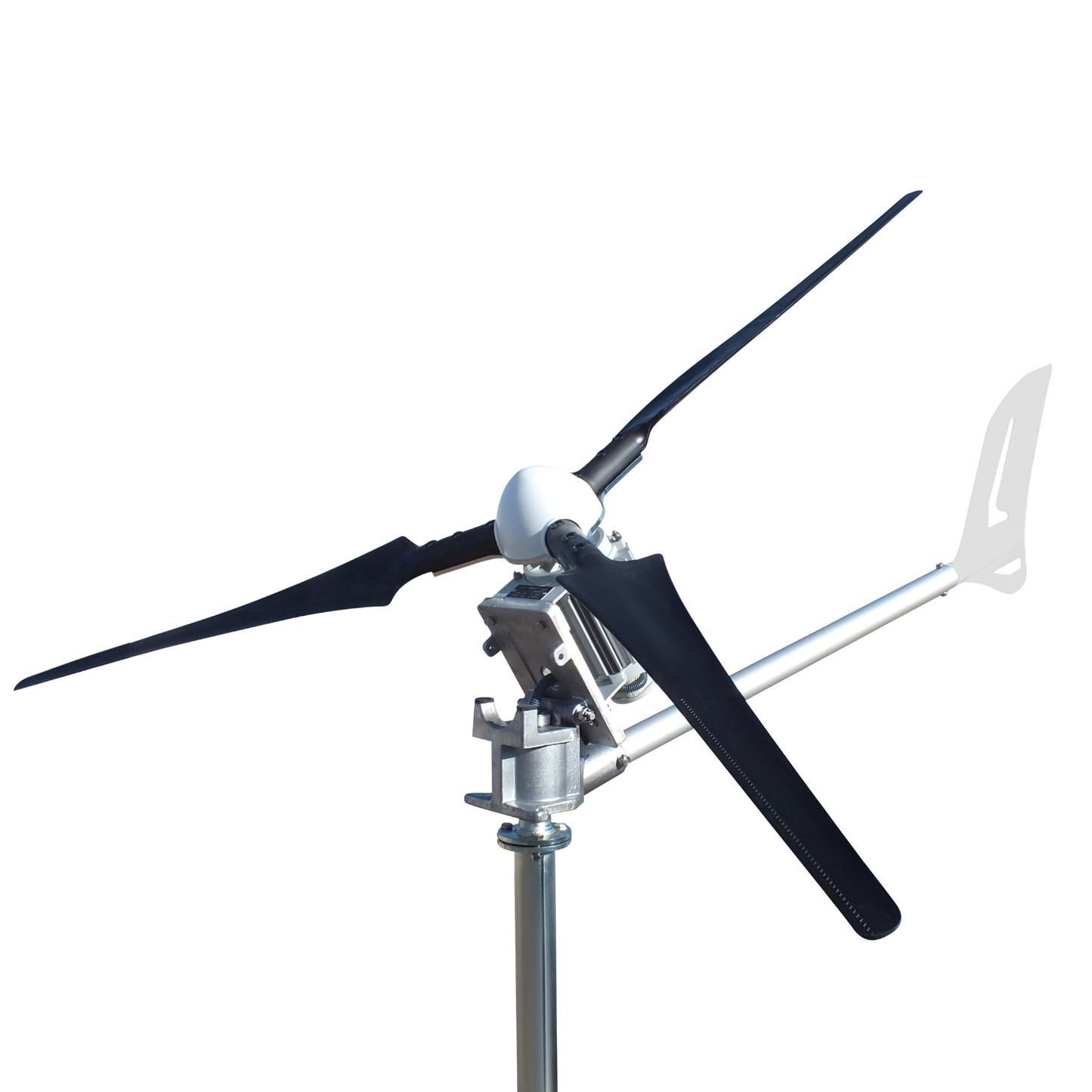

Our WindSafe IstaBreeze® wind turbine model has a revolutionary turbine protection system, the rotor is supported on a movable platform that raises the entire structure by 90 degrees in windstorm or strong wind, modifying the repeller relative to the wind, reducing frontal attack and rotation is reduced. This protects the turbine from strong winds. This robust construction ensures a long service life of our turbines and becomes a unique system in the category of mini wind generators.

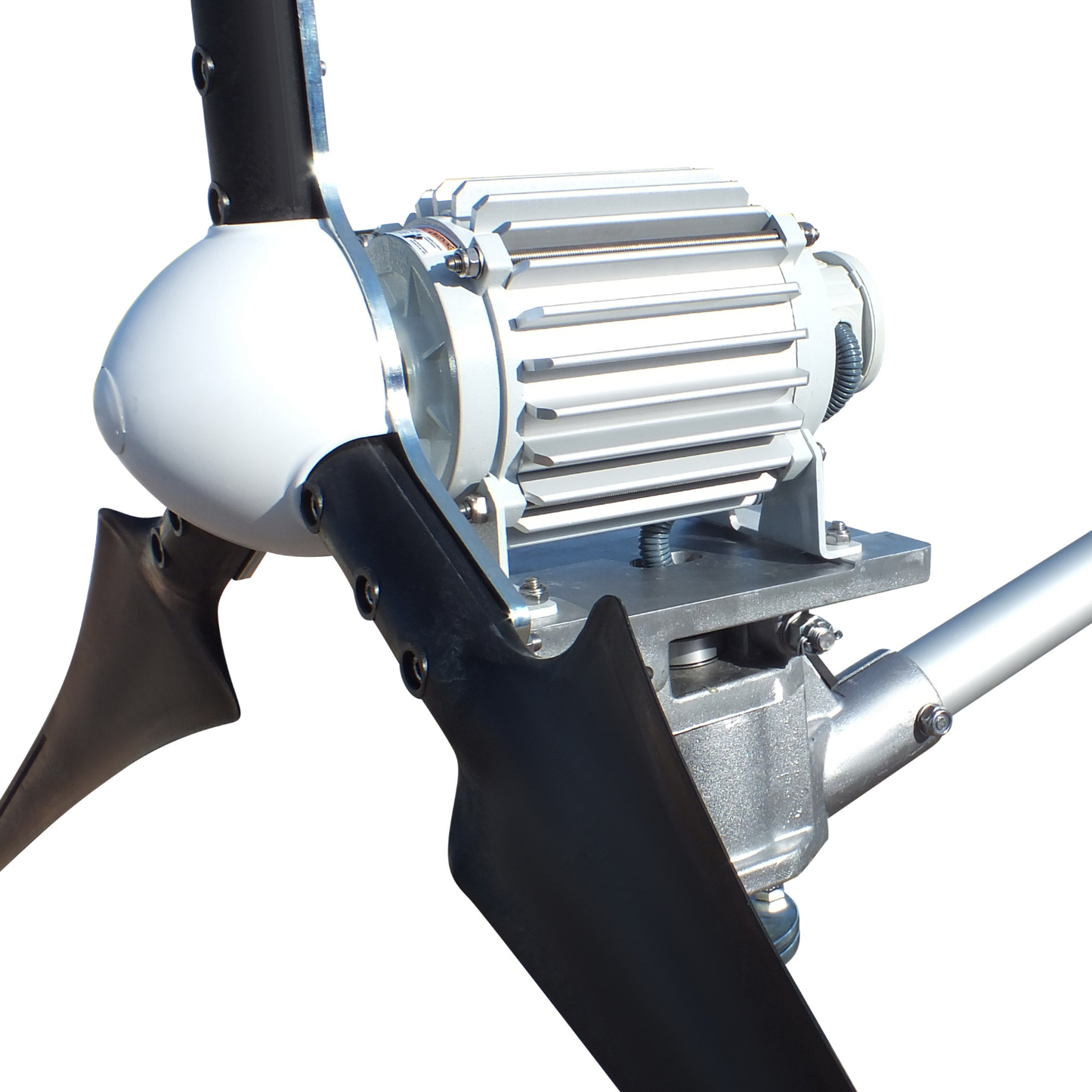

The generous dimensioning of the generator components and the heat dissipation through the grooves in the aluminum housing of the generator ensure a low thermal load, which ensures a long service life even at high ambient temperatures.

Blade Specification

• Diamater: 220 cm
• Material: Carbon
• Lenght of per blade: 107 cm
• Noise: 40 dB
• Weight of per blade: 650 gr

Alternator Housing:Aluminium

Direction Flag:Plastic + 30% glass fiber

Generator:3-phase permanent magnet (High efficiency due to strong permanent magnets (NdFeBo magnets, 150 ° temperature resistant) (The threading of our copper winding is done exclusively by hand.)

Rated Capacity:1500W

System Voltage:24V

Power Transmission:Slip ring, thus no twisting of the cable possible. (pre-assembled in the supporting element)

YOU CAN SEE PERFORMANCE CHART -->

YOU CAN SEE MANUAL BOOK OF CHARGE CONTROLLER-->

MAST SET:

Material: Galvanized Steel Pipe

Diameter of the mast is 60 mm, The mast can be extended by a maximum of 2 meters!

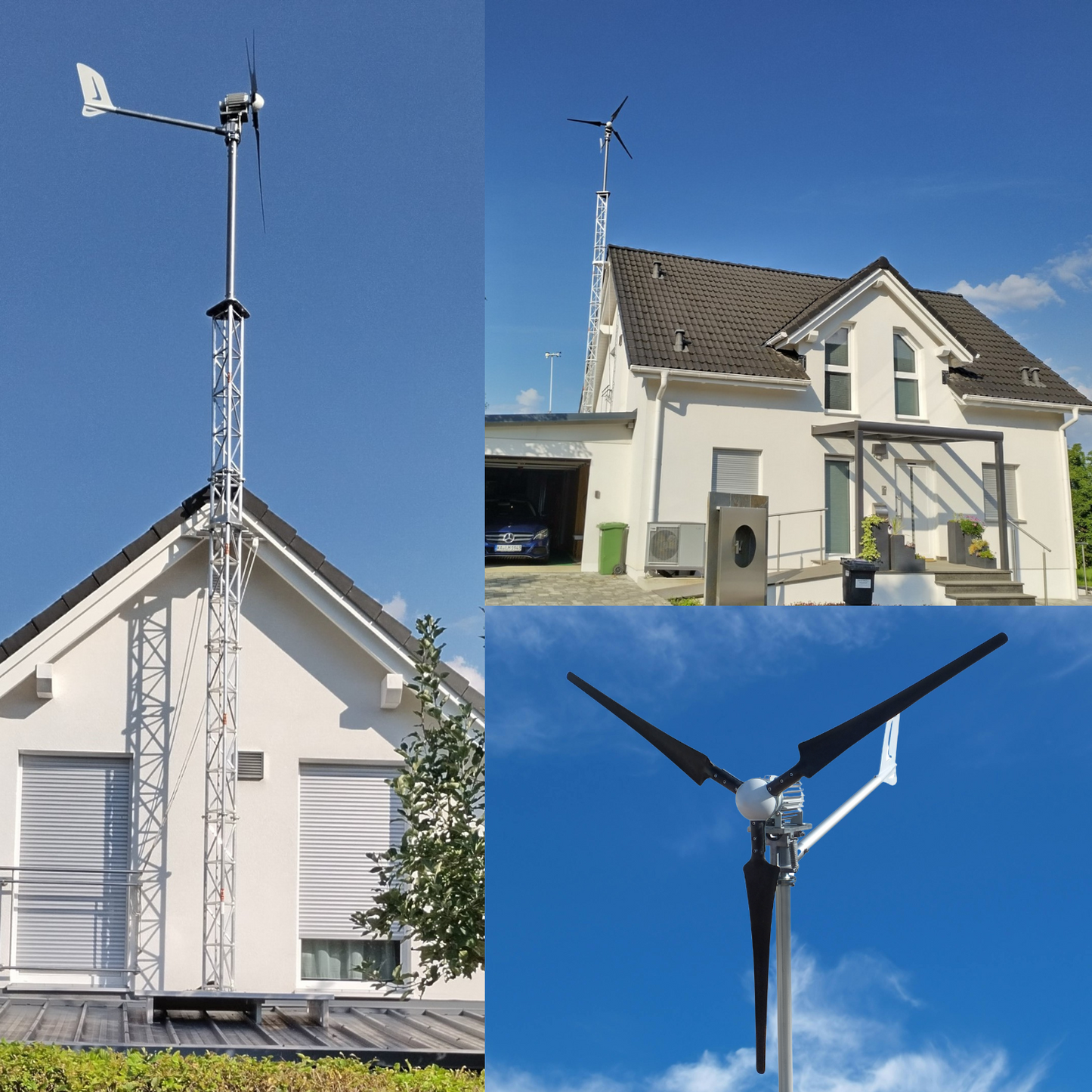

Inner hole, connector wind generator is 37 mm 4 meters IstaBreeze TOWER for wind generator i700 to i2000, IstaBreeze It has never been so easy to install a wind generator.

With the IstaBreeze Tower it is possible to build a wind generator in a few minutes.

The folding system simplifies the whole process. During maintenance, only a few screws are released and the tower can be folded for maintenance.

Dowels and screws for the floor (concrete floor) is still needed !! Optional The vibration damper for the wind generators i-500- L-500 and i-700 to i-2000, reduces the transmission of structure-borne noise from the wind generator into the mast and thus possibly into the house.

The retrofit is very simple, since the body silencer has the same dimensions as the wind generator, it must only be inserted between them and screwed with matching screws on the mast and the wind generator.

4 meters IstaBreeze TOWER for wind generator i700 to i2000, IstaBreeze It has never been so easy to install a wind generator. With the IstaBreeze Tower it is possible to build a wind generator in a few minutes. The folding system simplifies the whole process. During maintenance, only a few screws are released and the tower can be folded for maintenance. Dowels and screws for the floor (concrete floor) is still needed !! Optional The vibration damper for the wind generators i-500- L-500 and i-700 to i-2000, but not for windsafe models. reduces the transmission of structure-borne noise from the wind generator into the mast and thus possibly into the house. The retrofit is very simple, since the body silencer has the same dimensions as the wind generator, it must only be inserted between them and screwed with matching screws on the mast and the wind generator. Features of Vibration Damper: Generator mount / inner dimension: 37mm Pole mount / external dimension: 37mm Screws: stored in rubber (stainless steel V2A)

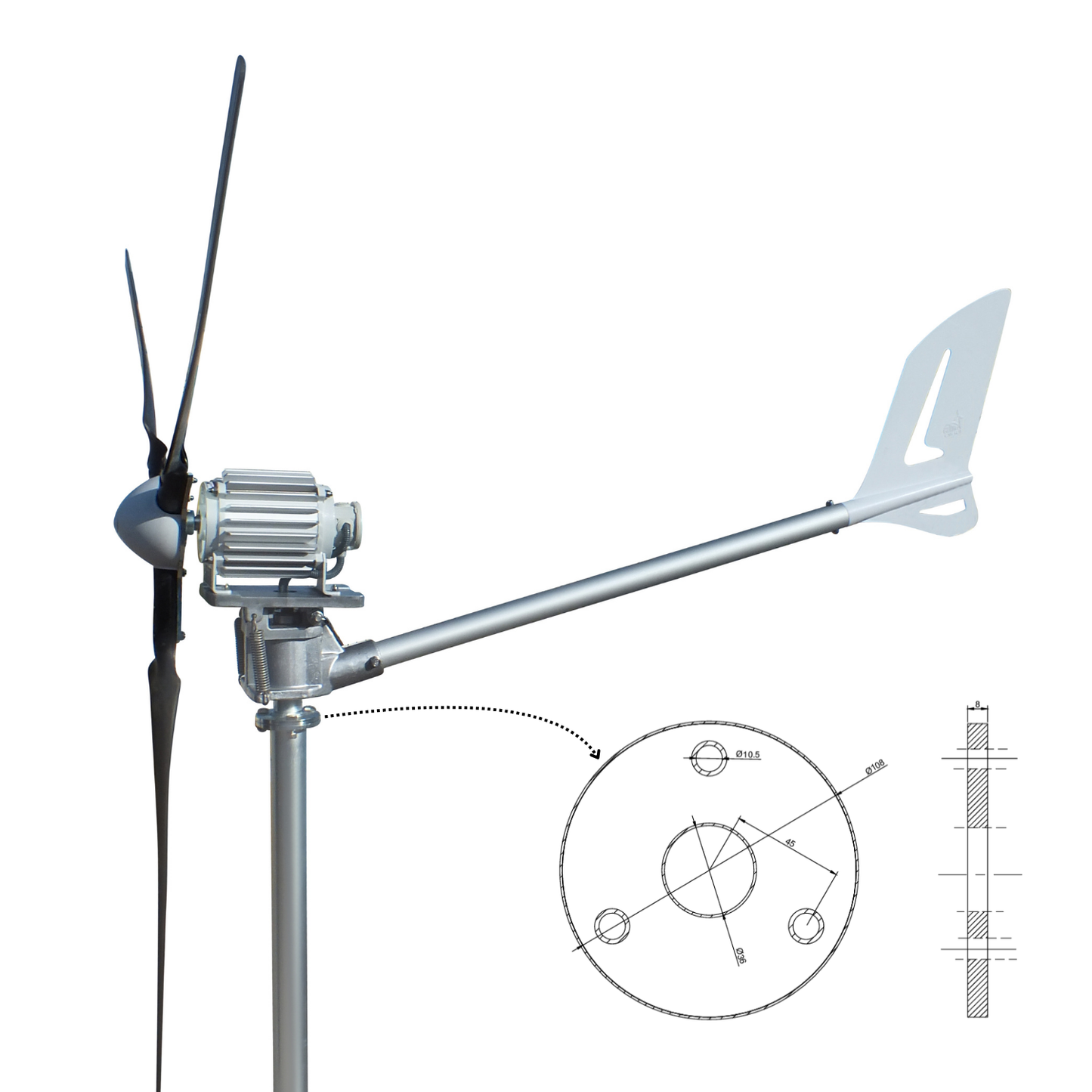

For technical Drawing

This controller settings can not change by user. It has factory settings.

PREPARING TIME CAN BE EXTRA ABOUT 1 WEEK
