ISTABREEZE® WIND TURBINE

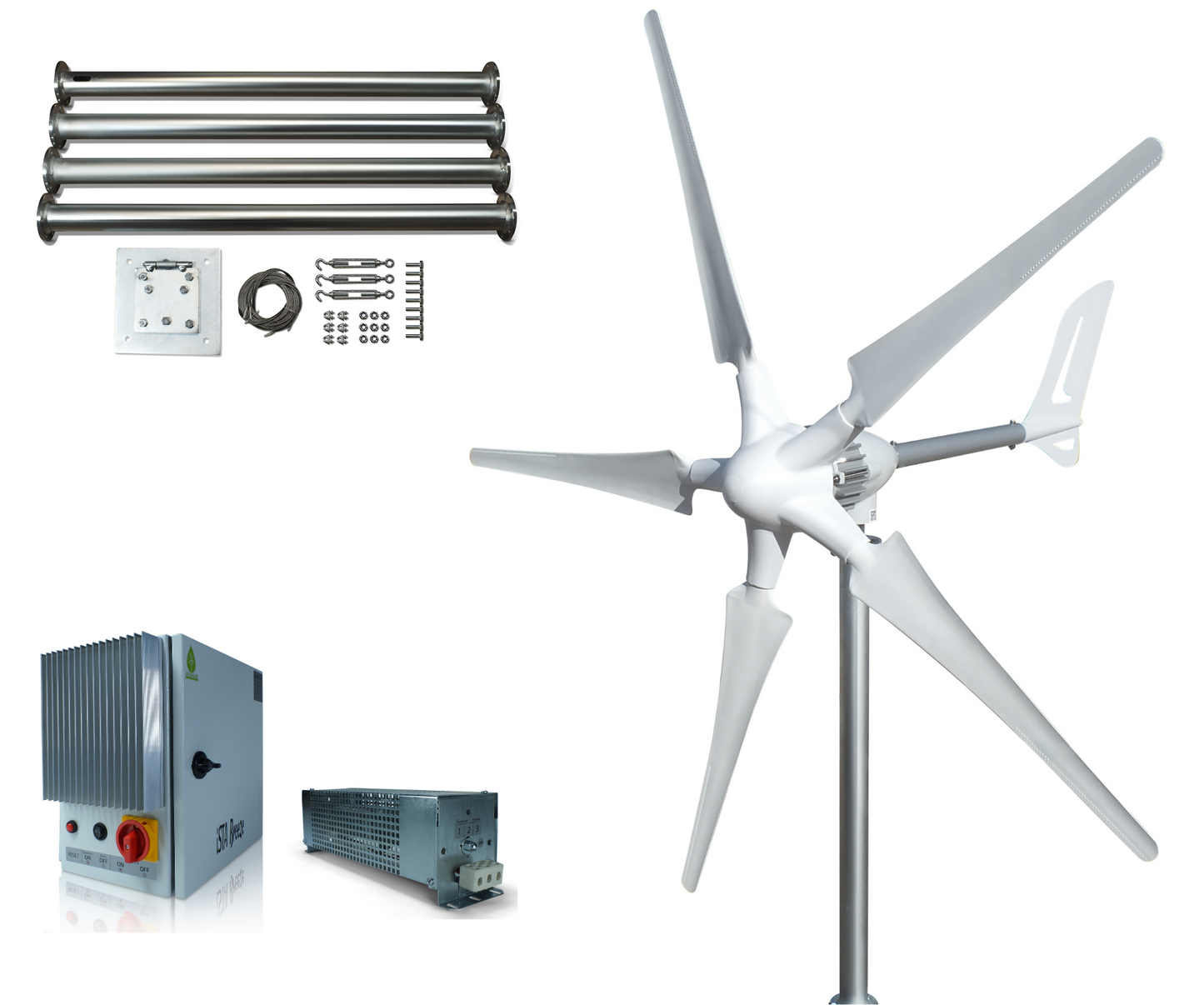

Kit i-2000W 48V Wind Turbine Wind Generator & Charge Controller (for Acid & Gel Battery) & Tower

Kit i-2000W 48V Wind Turbine Wind Generator & Charge Controller (for Acid & Gel Battery) & Tower

$1,905.00
$1,905.00
Sale Sold out
Shipping calculated at checkout.
Blade Type/Color (Optional Tower Set)
You can see performance chart of wind turbine here -->

You can see mast shaft connecting flange technical drawing here -->

You can see manual book of wind turbine here -->

You can see manual book of charge controller here -->

You can see technical drawing of Mast Set here -->

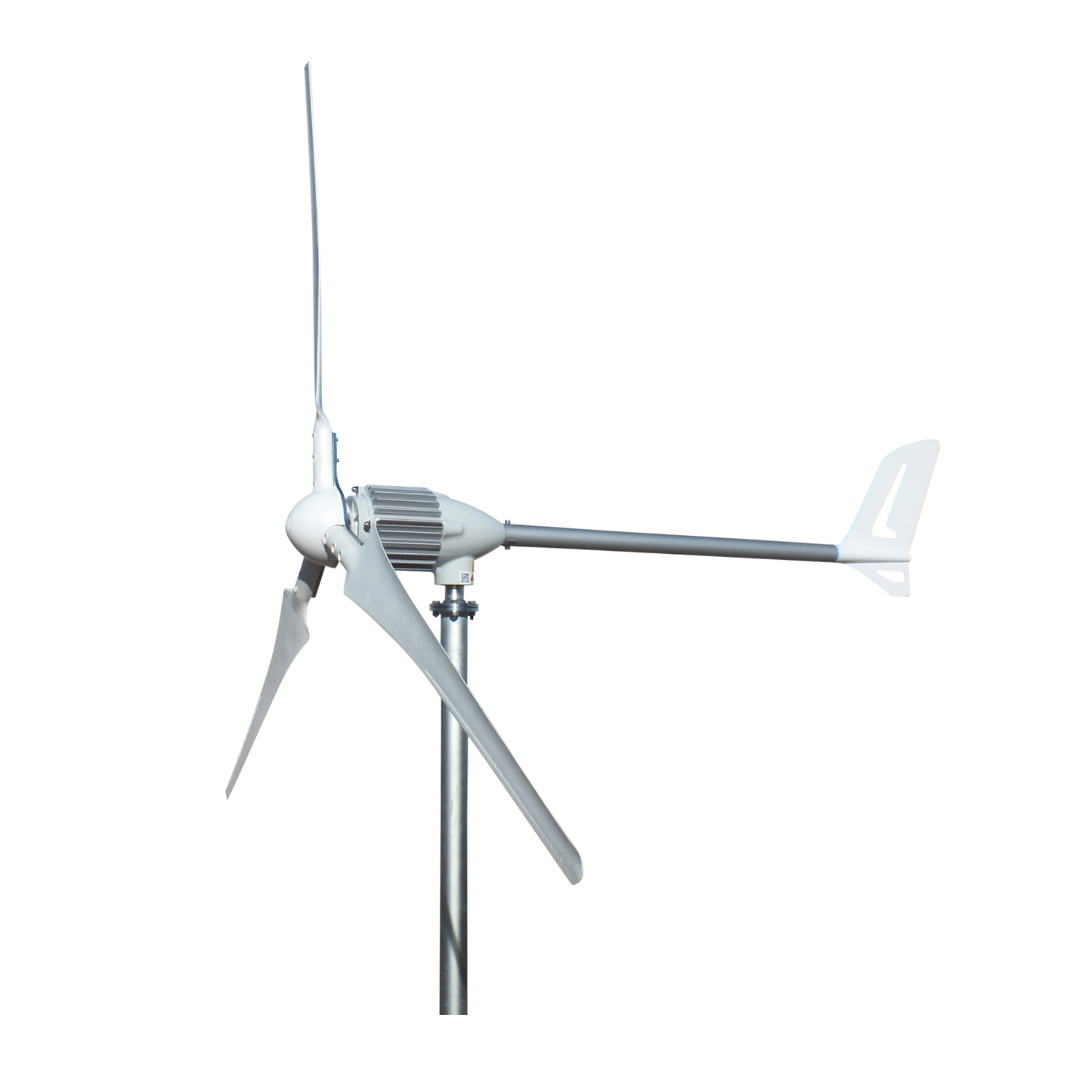

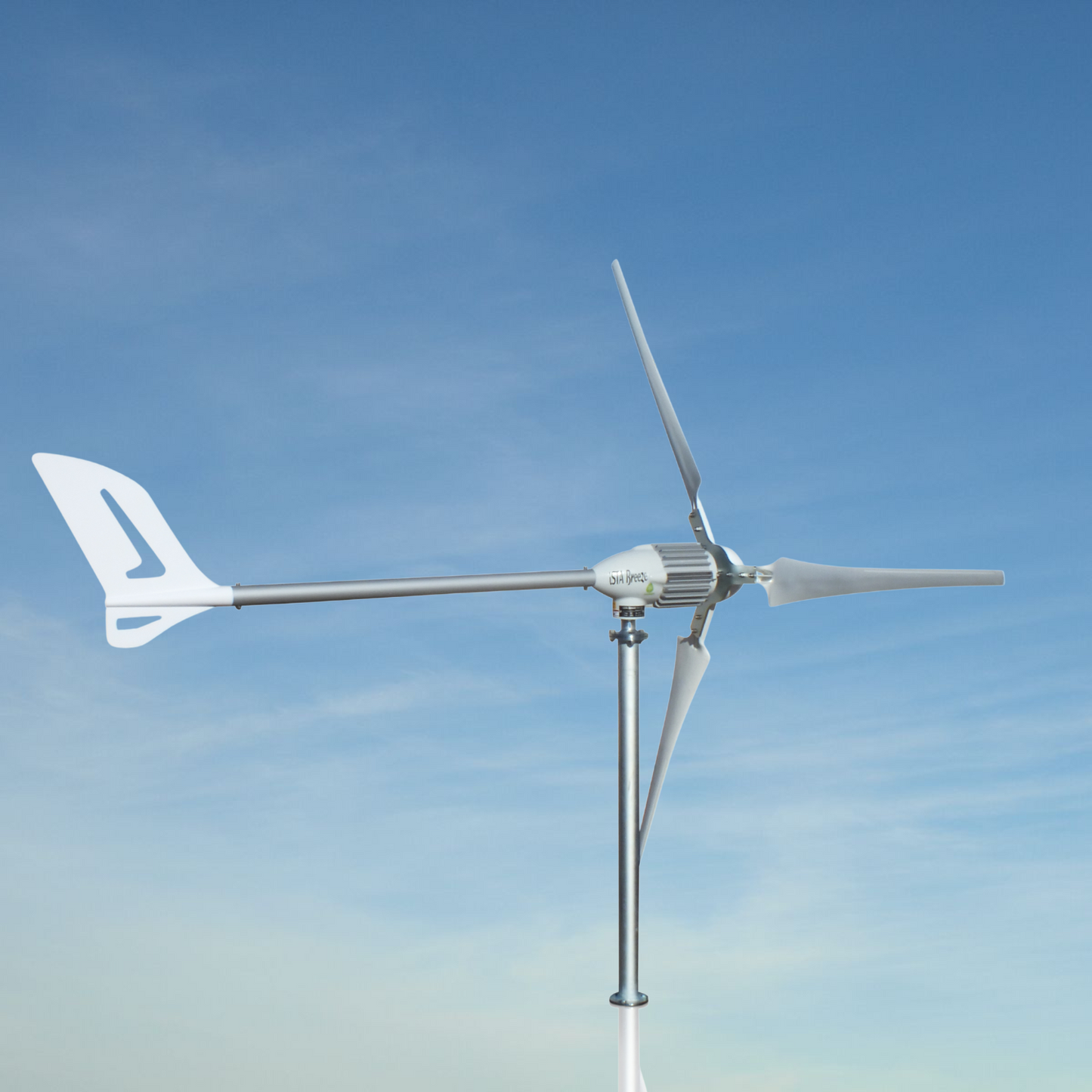

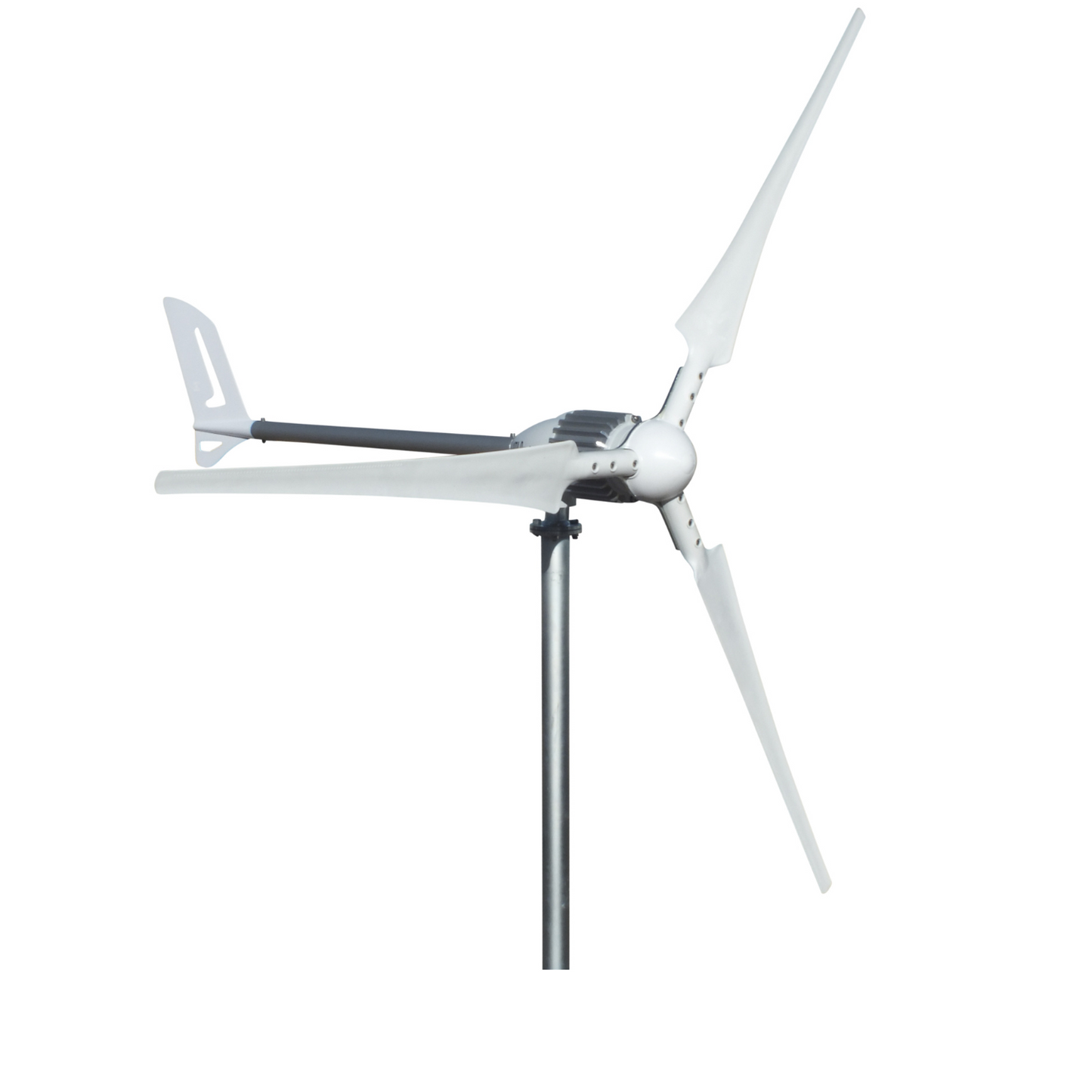

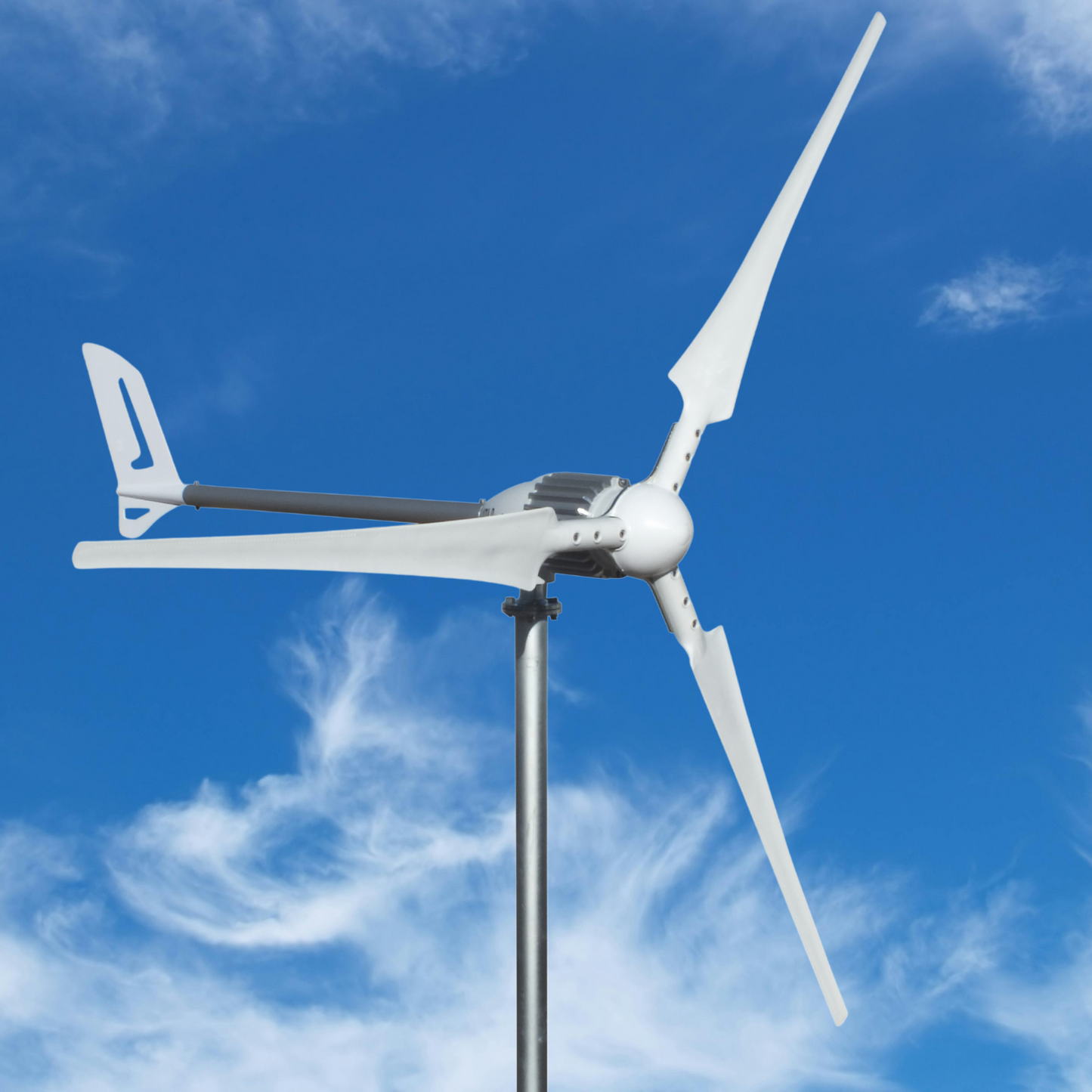

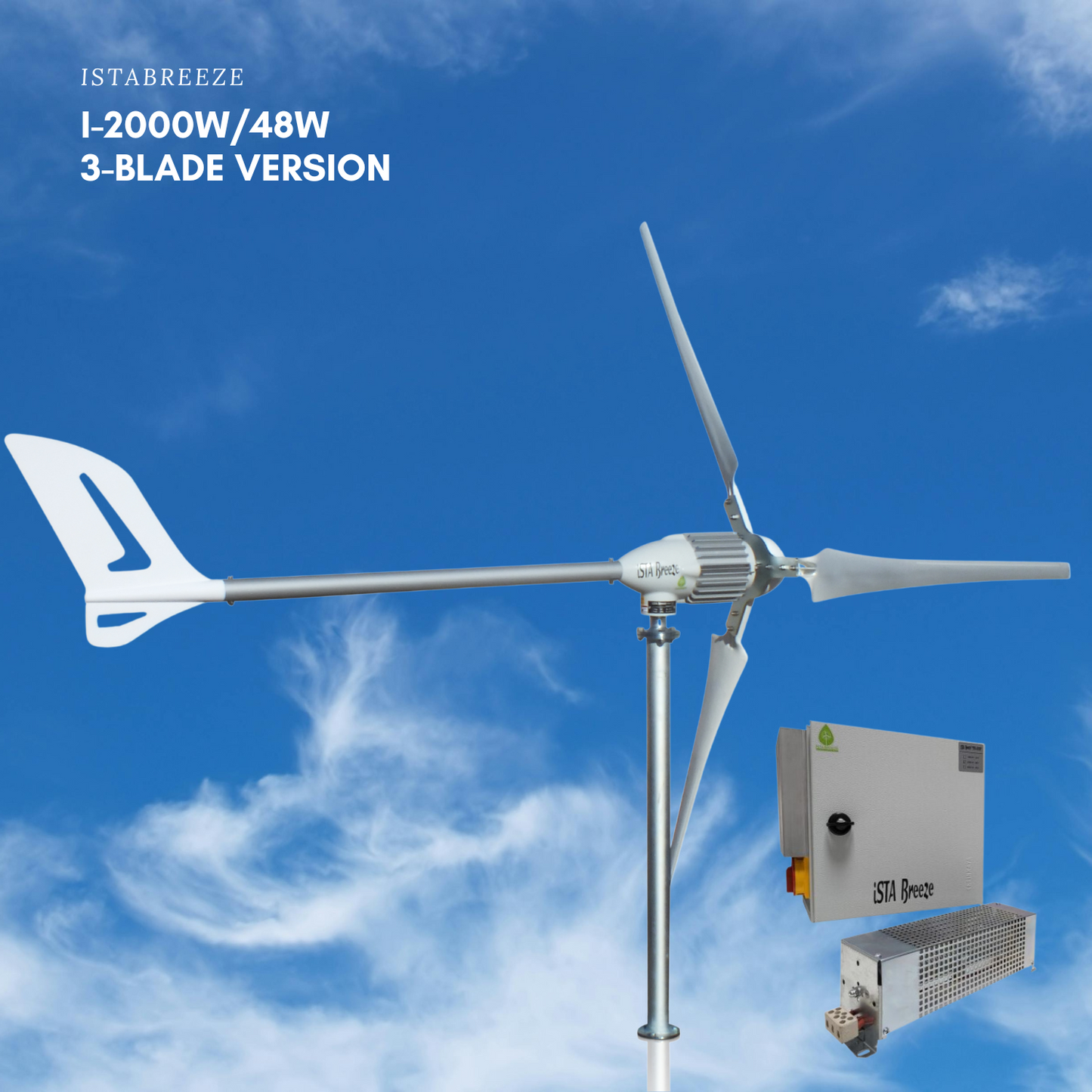

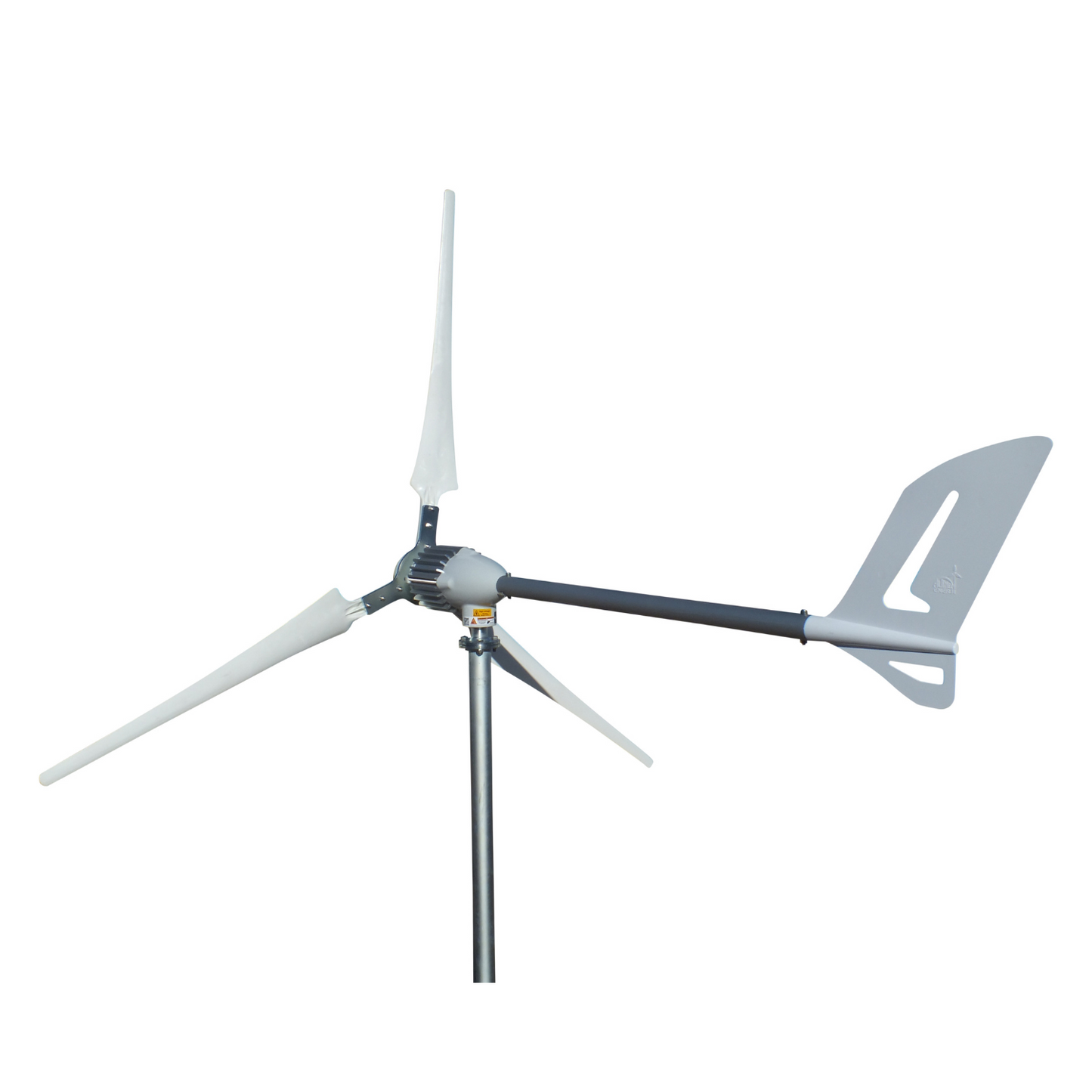

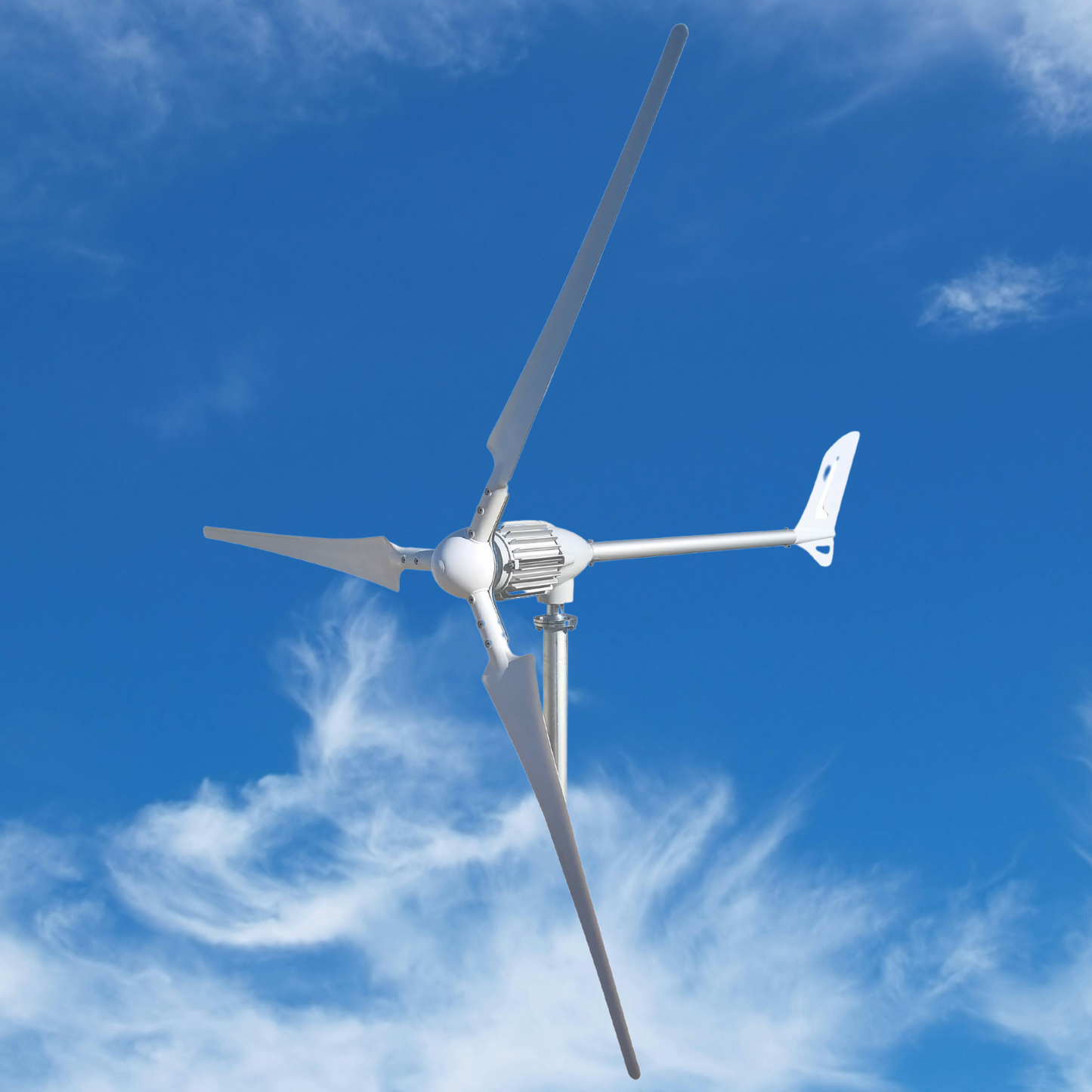

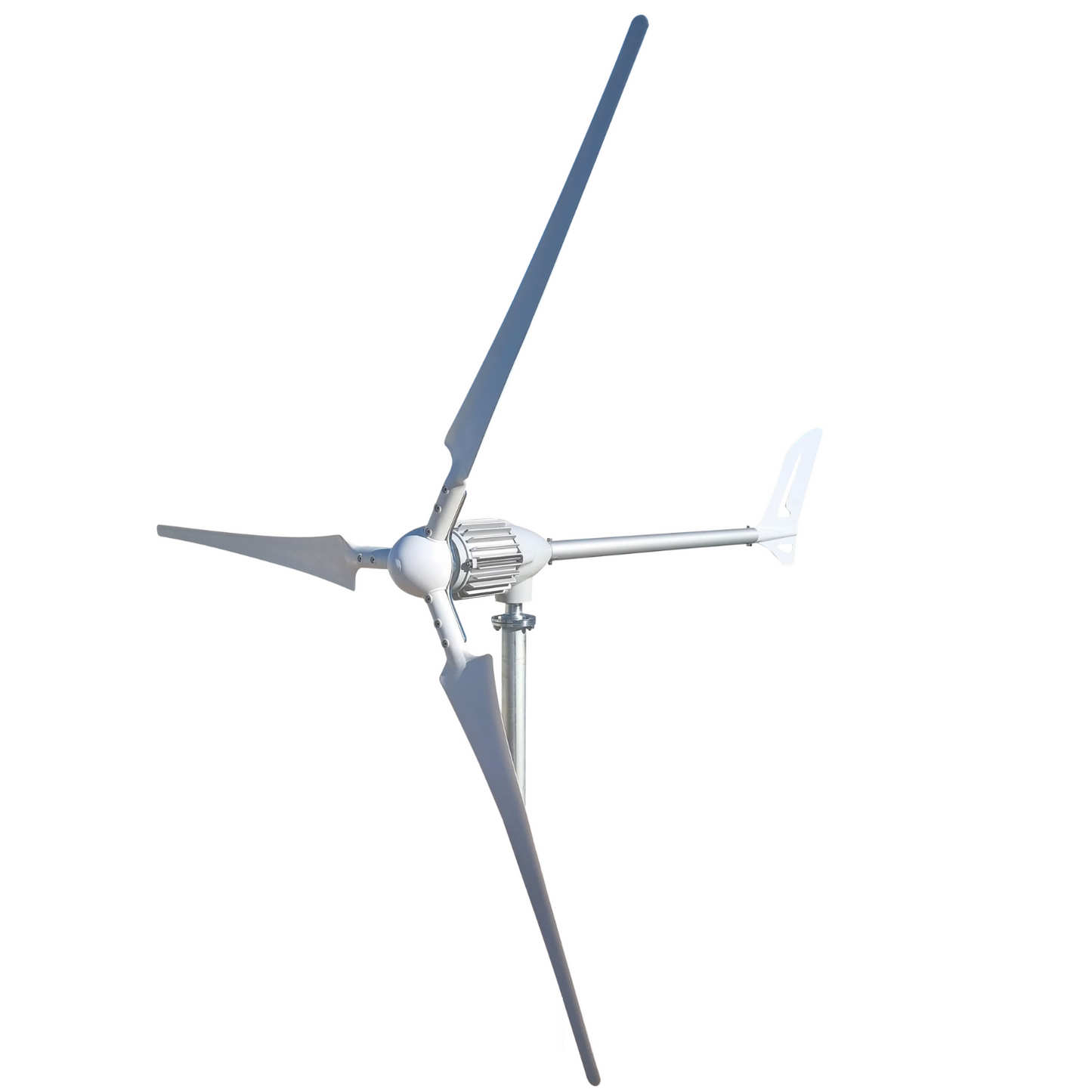

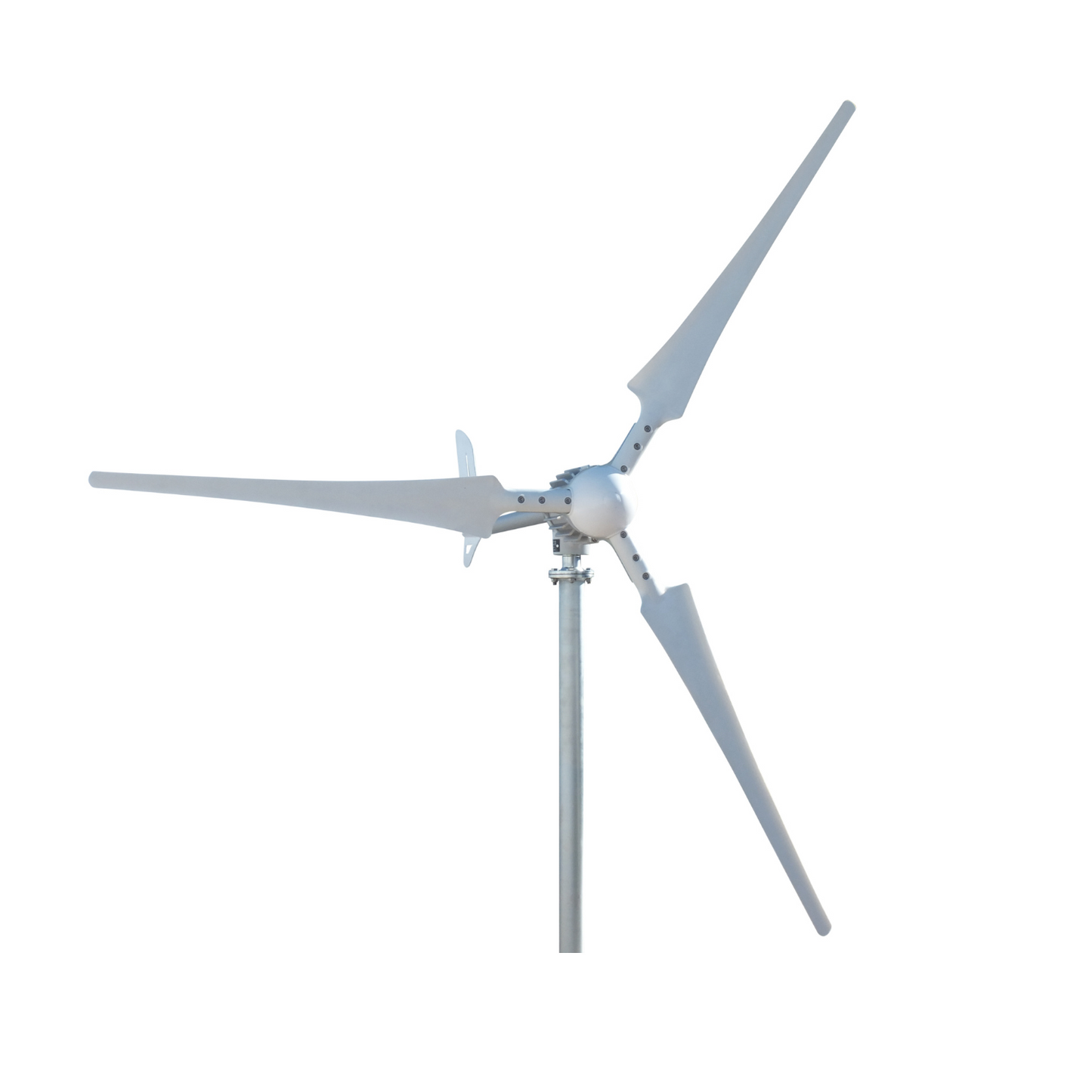

ROBUST WIND TURBINE ORIGINAL ISTA-BREEZE i-2000

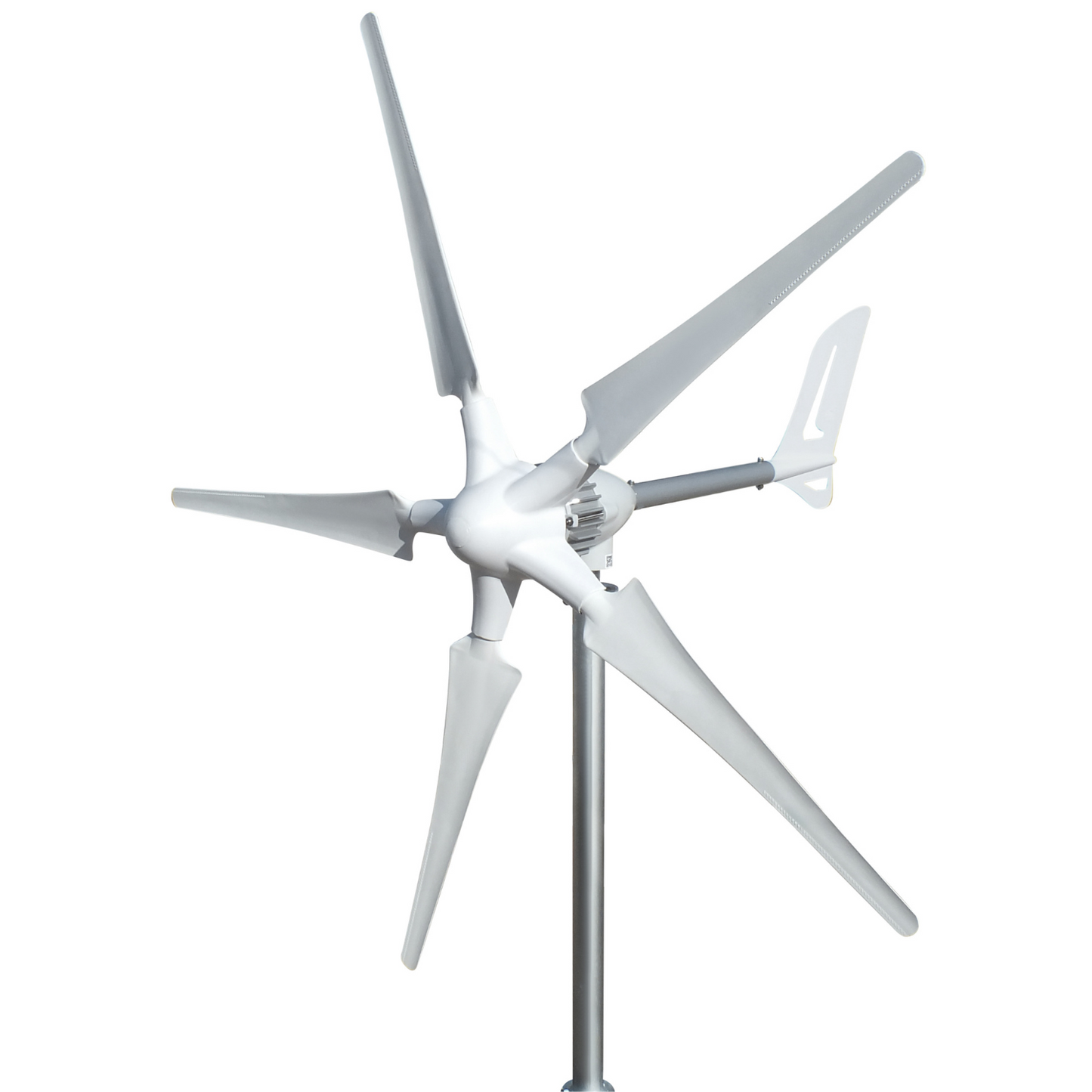

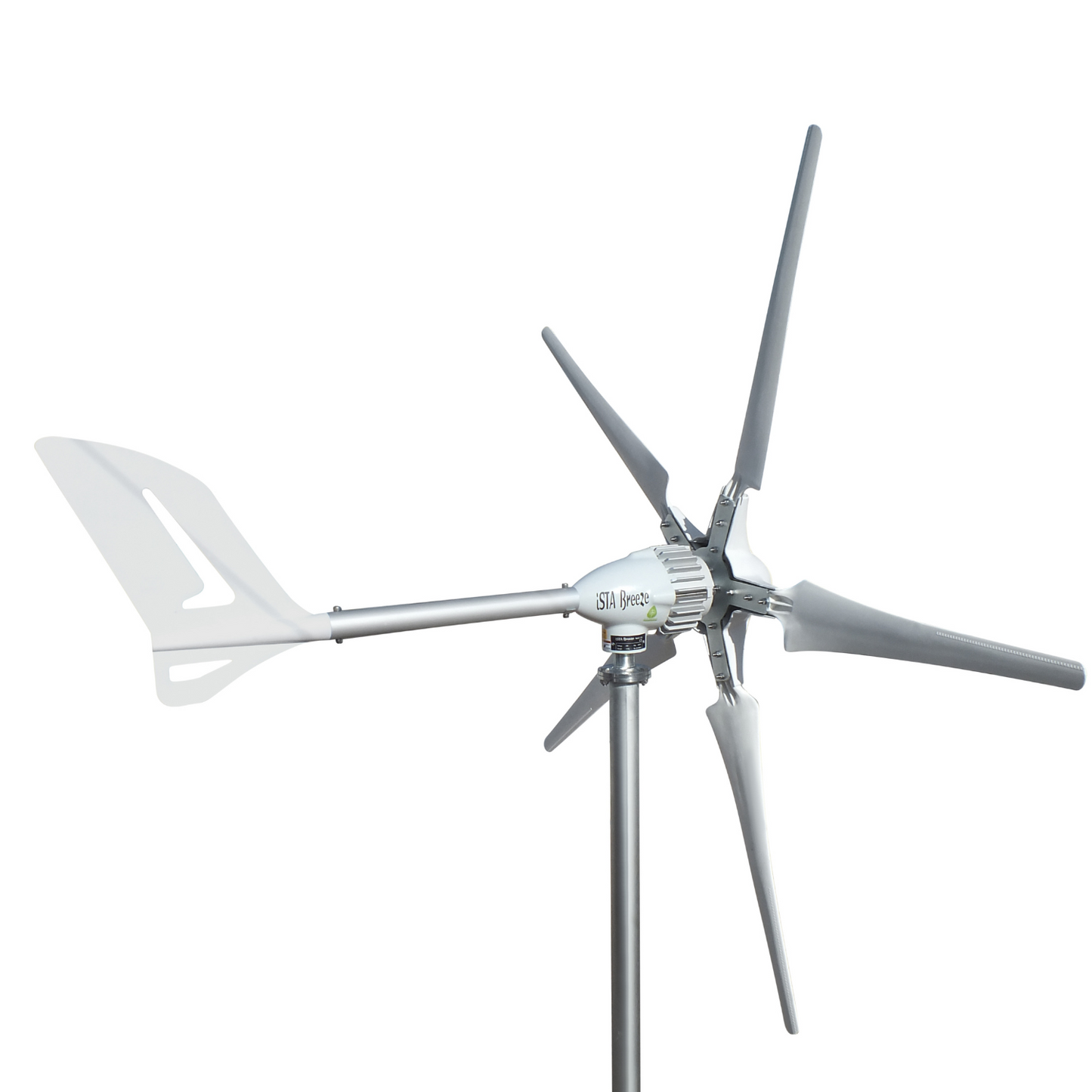

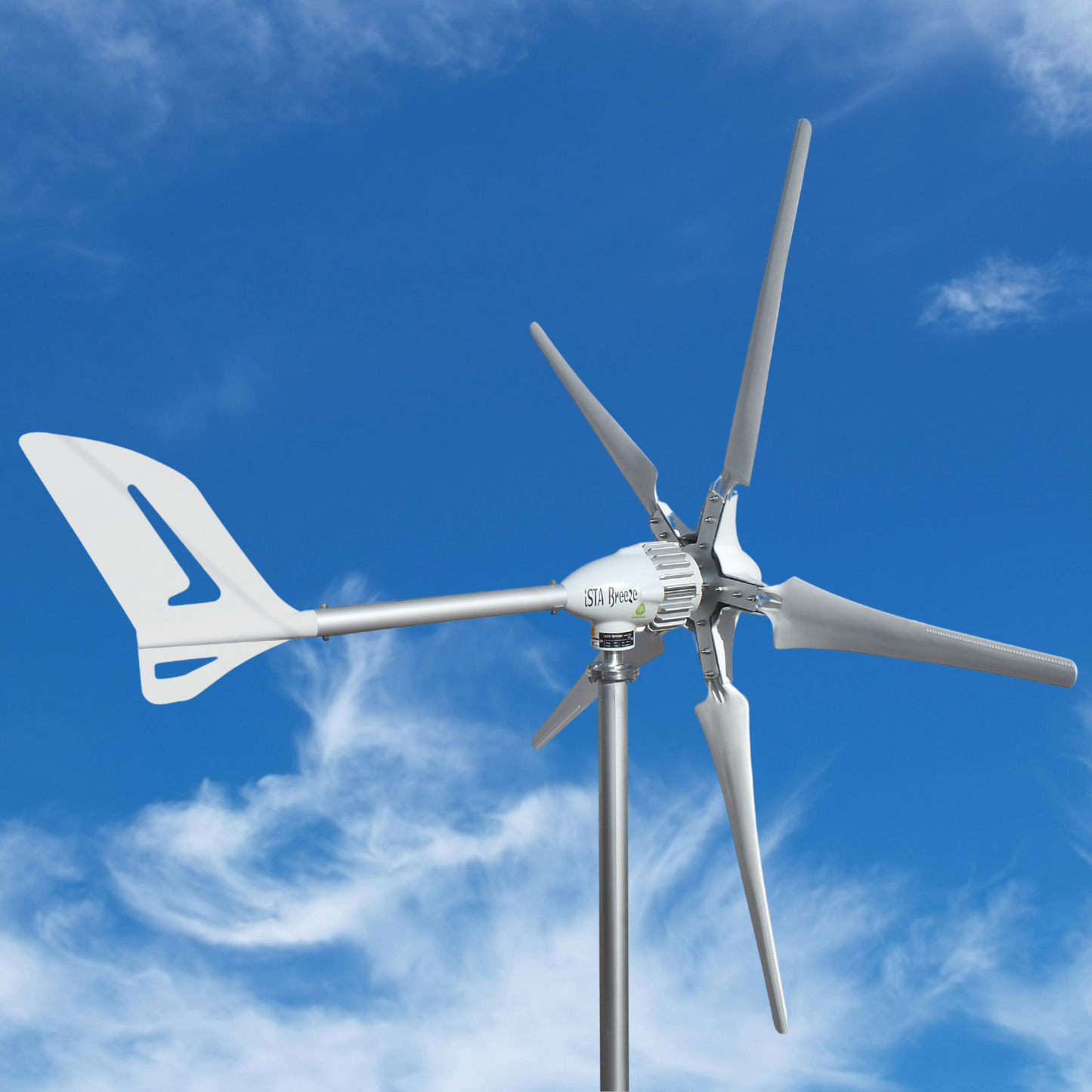

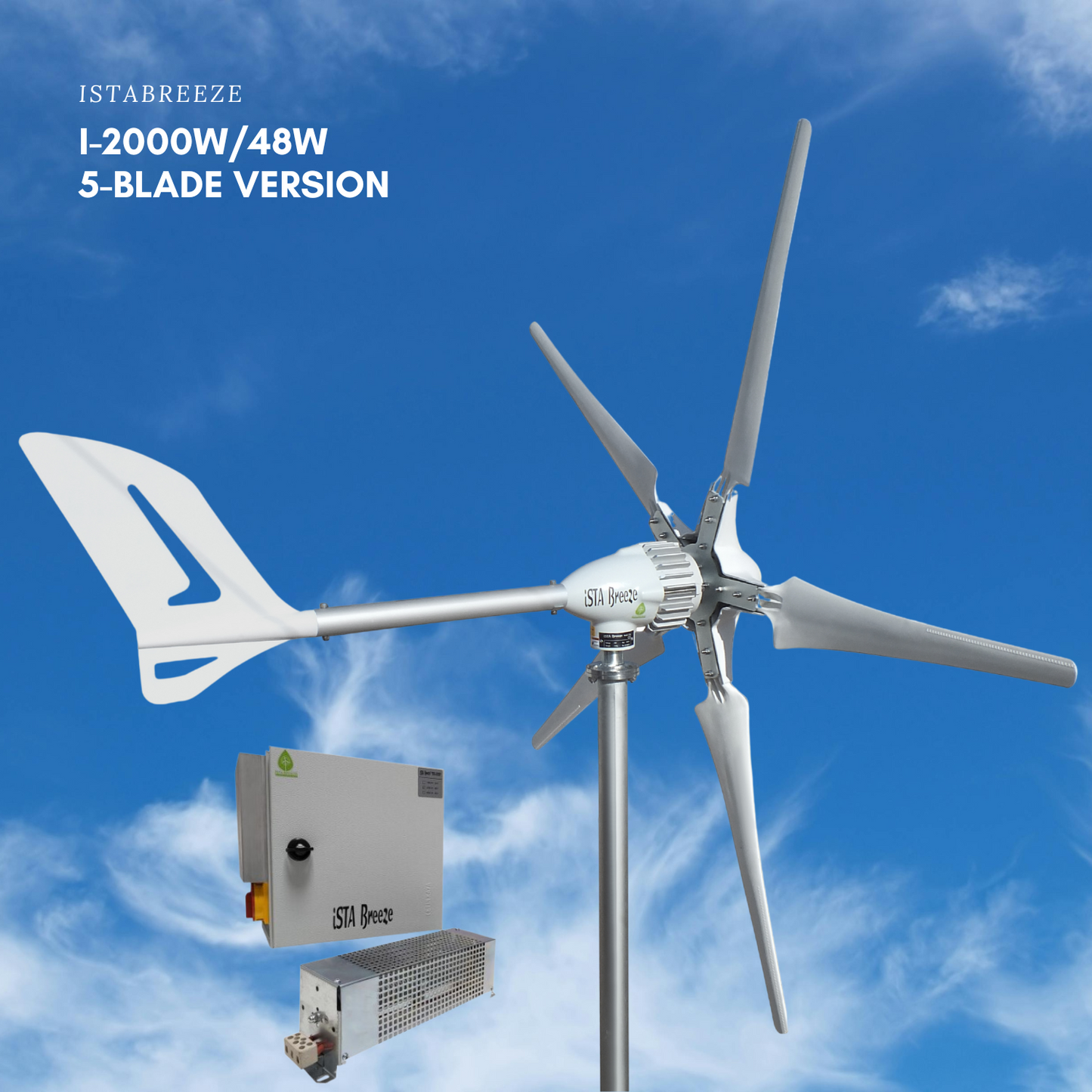

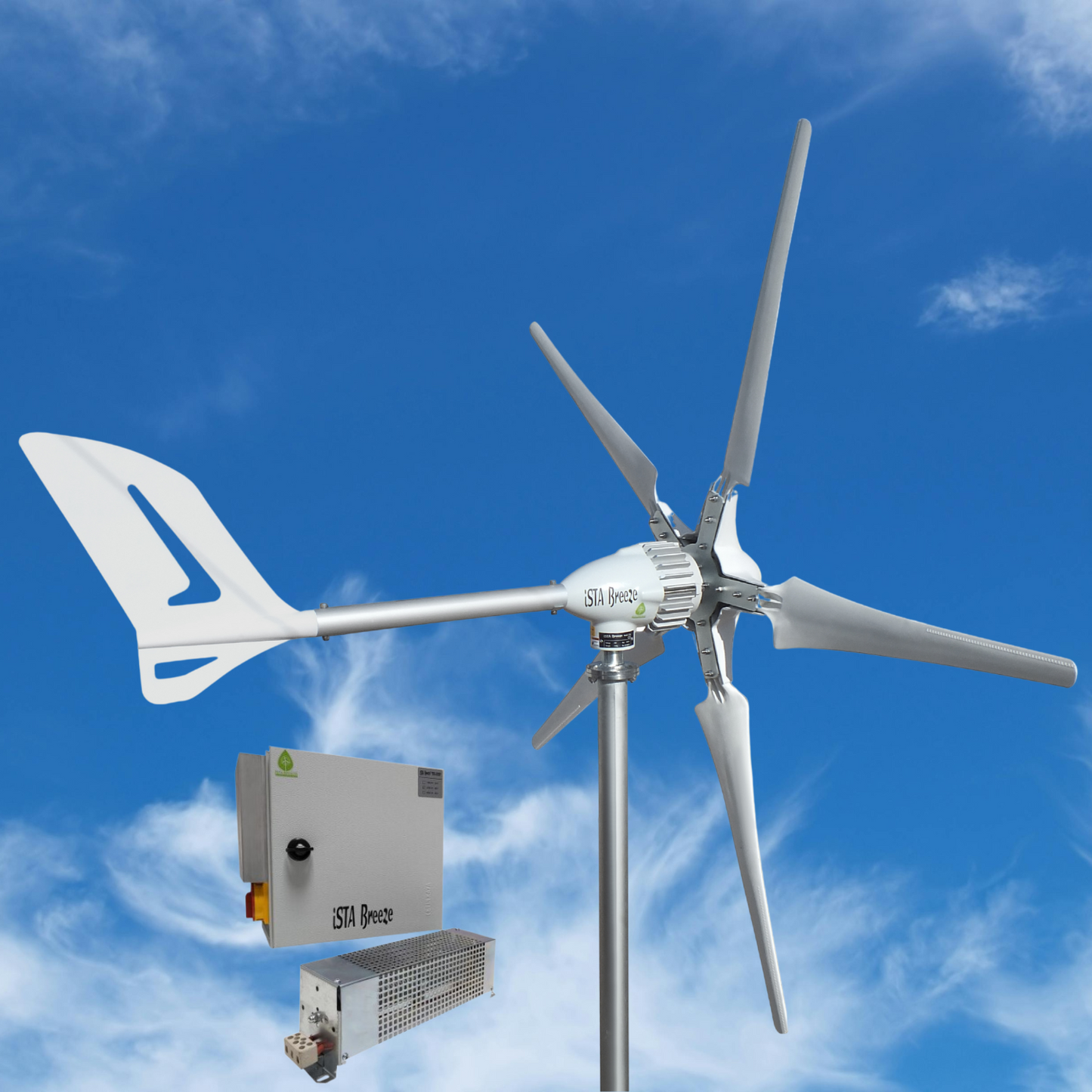

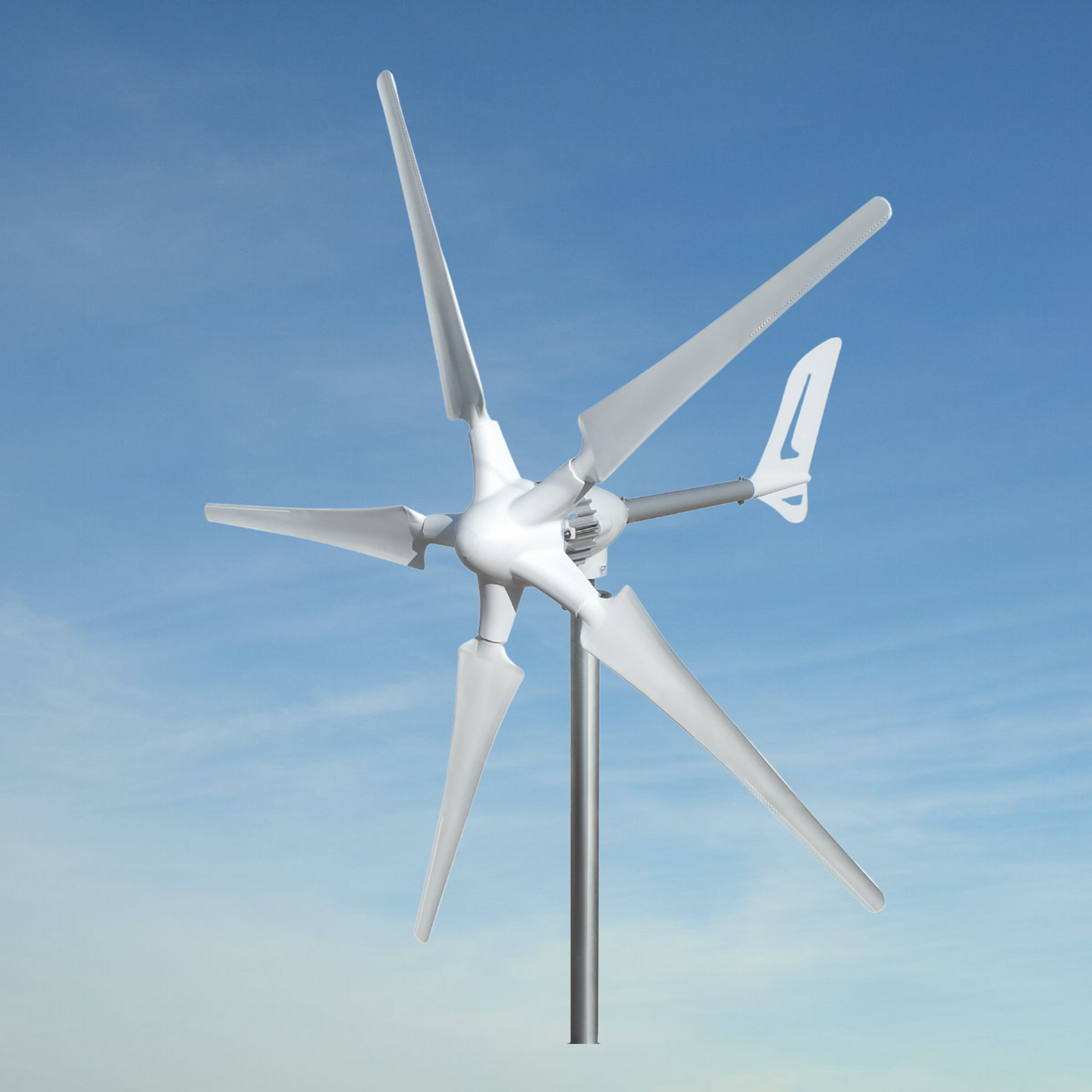

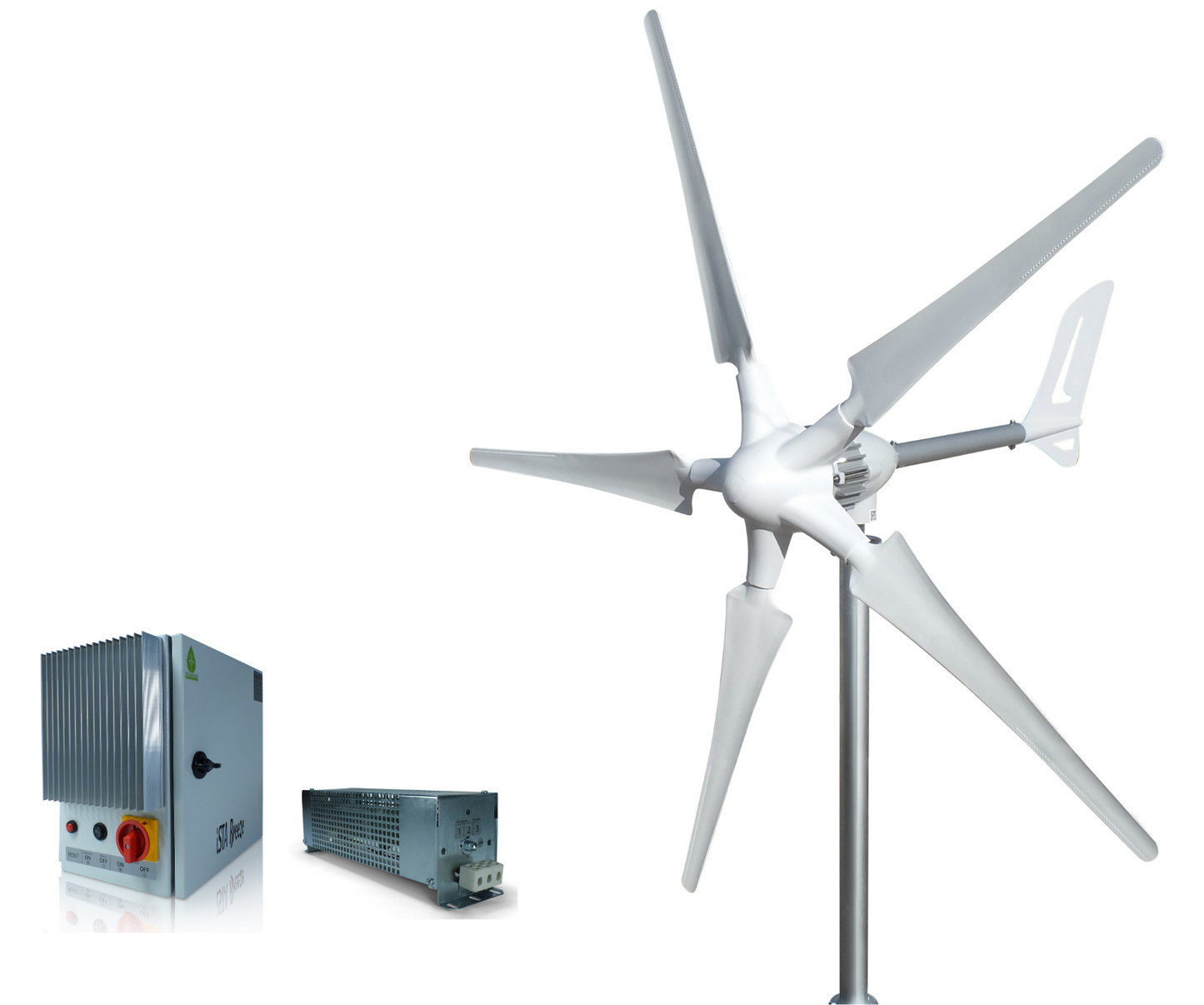

5 BLADE VERSION IS RECOMMEND ONLY FOR LOW WIND AREAS



Due to the production of glass fiber reinforced plastic, the rotor blades are very durable and stable, at the same time unusually light.

The housing is equipped with cooling fins and is made of high-strength aluminum.

The maintenance-free, sliding contact (without coal) guarantees a good flow of current and thus no twisting of the cable in the mast.

Installation in mast tube by plug connection. Required mast tube inner diameter: 37 mm nominal size!

Further technical data further down in the description.

This product is used successfully 1000 times worldwide! 2 years manufacturer's warranty!

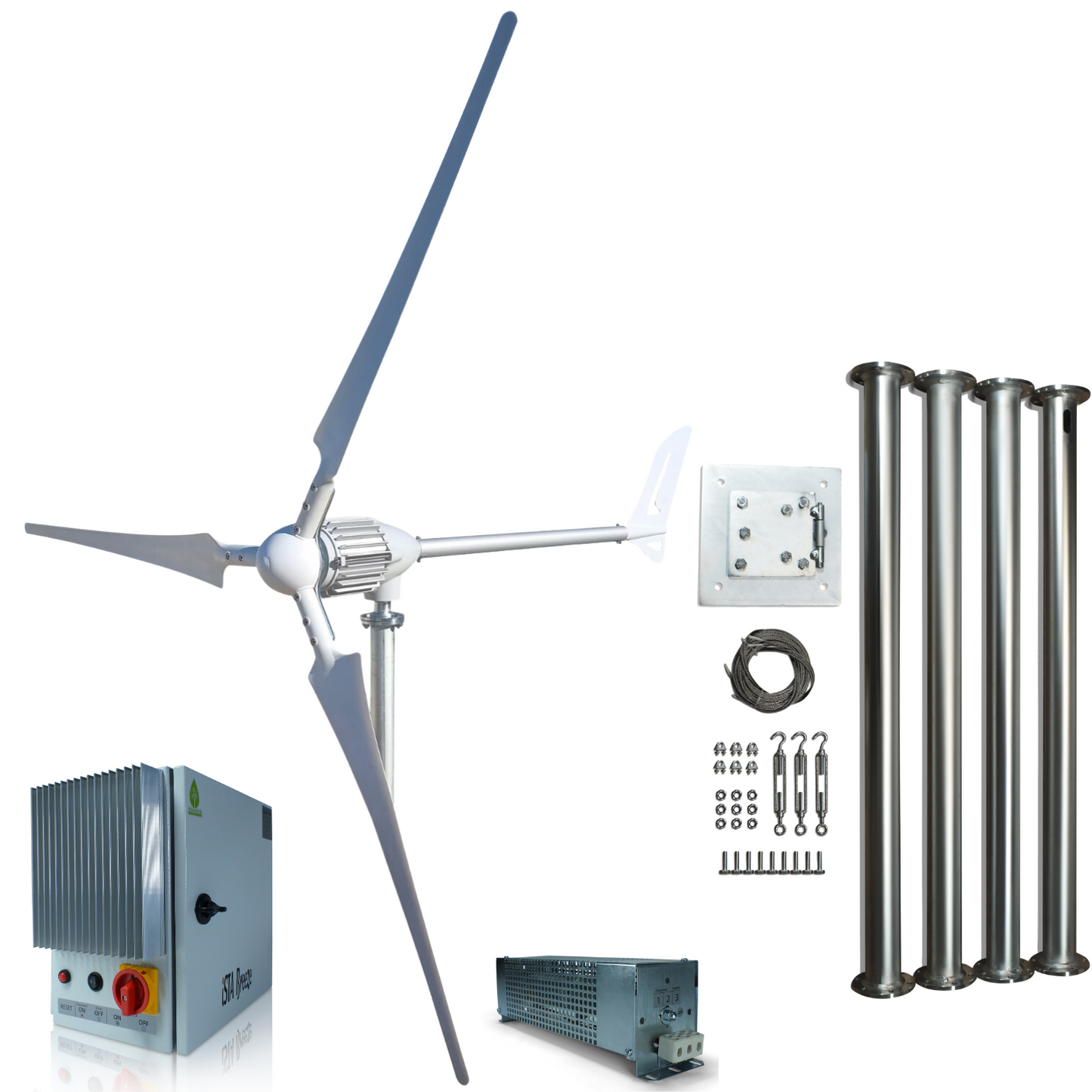

MAST SET:

4 meters IstaBreeze TOWER for wind generator i700 - i2000 (Windsafe Models need adapter for it), IstaBreeze or wind generators up to 15 KG It has never been so easy to install a wind generator.

With the IstaBreeze Tower it is possible to build a wind generator in a few minutes.

The folding system simplifies the whole process. During maintenance, only a few screws are released and the tower can be folded for maintenance. Dowels and screws for the floor (concrete floor) is still needed !!


Thanks to the specially designed galvanized stainless steel tensioned pole, the installation of wind turbines is now very easy. Thanks to its hinged system, one person can easily install it and easily remove the turbine whenever they want.

The pole set consists of four one-meter pipes, a hinged lower phalanx, three steel ropes and nine tensioning devices.

It can also be extended up to a maximum of 10 meters by adding one-meter additional pipes upon request.



    PRODUCT FEATURES - WIND TURBINE:



    • Current : 40A
    • Rated Power: 2000W
    • Body Matarial: Aluminium- Casting
    • Alternator Body: Aluminium
    • Maximum Power: 2200 W
    • Voltage: 48V-AC
    • Package Dimensions: 1.Package: 60 x 40 x 30 cm (20,5 kg) 2.Package: 110 x 19 x 12 cm (3,5 kg) Totaly: 24 kg



     WIND SPEED:

    • Initial Wind Speed: 3 m/s
    • Maximum Wind Speed: 14-15 m/s



    BLADE SPECIFICATIONS:



    • Weight: 650 Gr (Composite) 770 Gr (Carbon)
    • Width: 14.3 cm
    • Noise : 40 dB (Carbon), 50 dB (Composite)
    • Blade Material: Composite or Carbon
    • Blade Length:107 cm
    • Rotor Diameter:220 cm



    MAST SET:



    • Fasteners : 3 Rope Tensioner and Bolt Set
    • Steel Rope: 3 X 5m
    • Mast: 4 Galvanized Poles
    • Outer Diameter: 60 mm
    • Inner Diameter: 37 mm
    • Plate: 1 piece Galvanized hinged plate
    • Length: 4 m
    • Mast Wall Thickness: 3 mm



    NECESSARY EQUIPMENTS:



    • Battery: Suitable battery group: Min 7200W - Max 14400W



    PACKAGE CONTENT:



    • Connection Screws: 1 Set
    • Nose: 1 Pcs
    • Flange: 1 Pcs
    • Generator: 1 Pcs
    • Blades: 3 Pcs or 5 Pcs
    • Manual Book: 1 Pcs
    • Tail - Tail Pipe: 1 Pcs

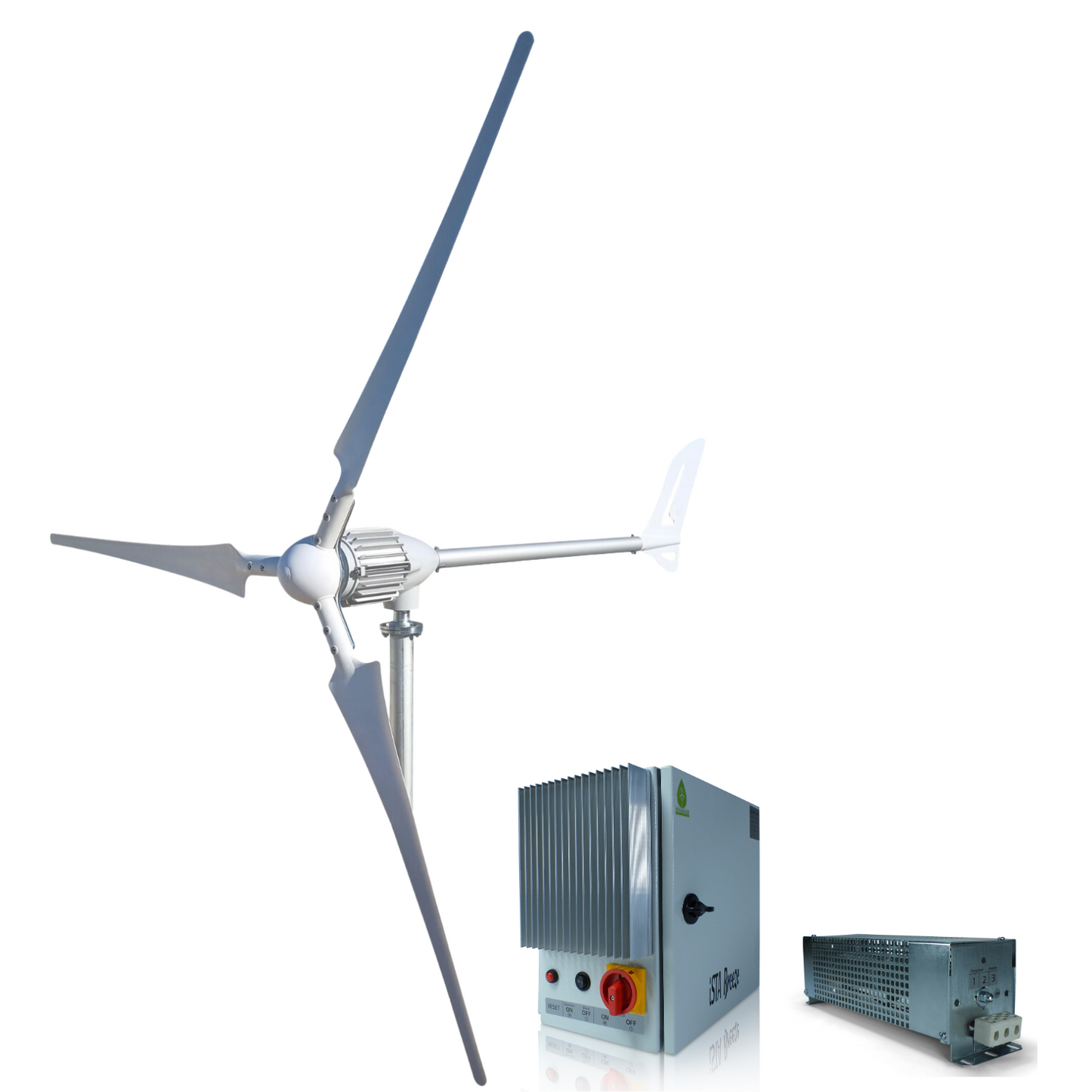

    • Charge Controller: 1 Pcs
    • Tower: Optionally





    This controller settings can not change by user. It has factory settings.

    PREPARING TIME CAN BE EXTRA ABOUT 1 WEEK

    MANUAL BOOK IS FOR STANDART ACID GEL BATTERIES.!!!

    VALUE OF CONTROLLLER FOR LITHIUM BATTERIES ARE CHANGEABLE FOR CUSTOMERS LITHIUM BATTERIES
