ISTABREEZE® WIND TURBINE

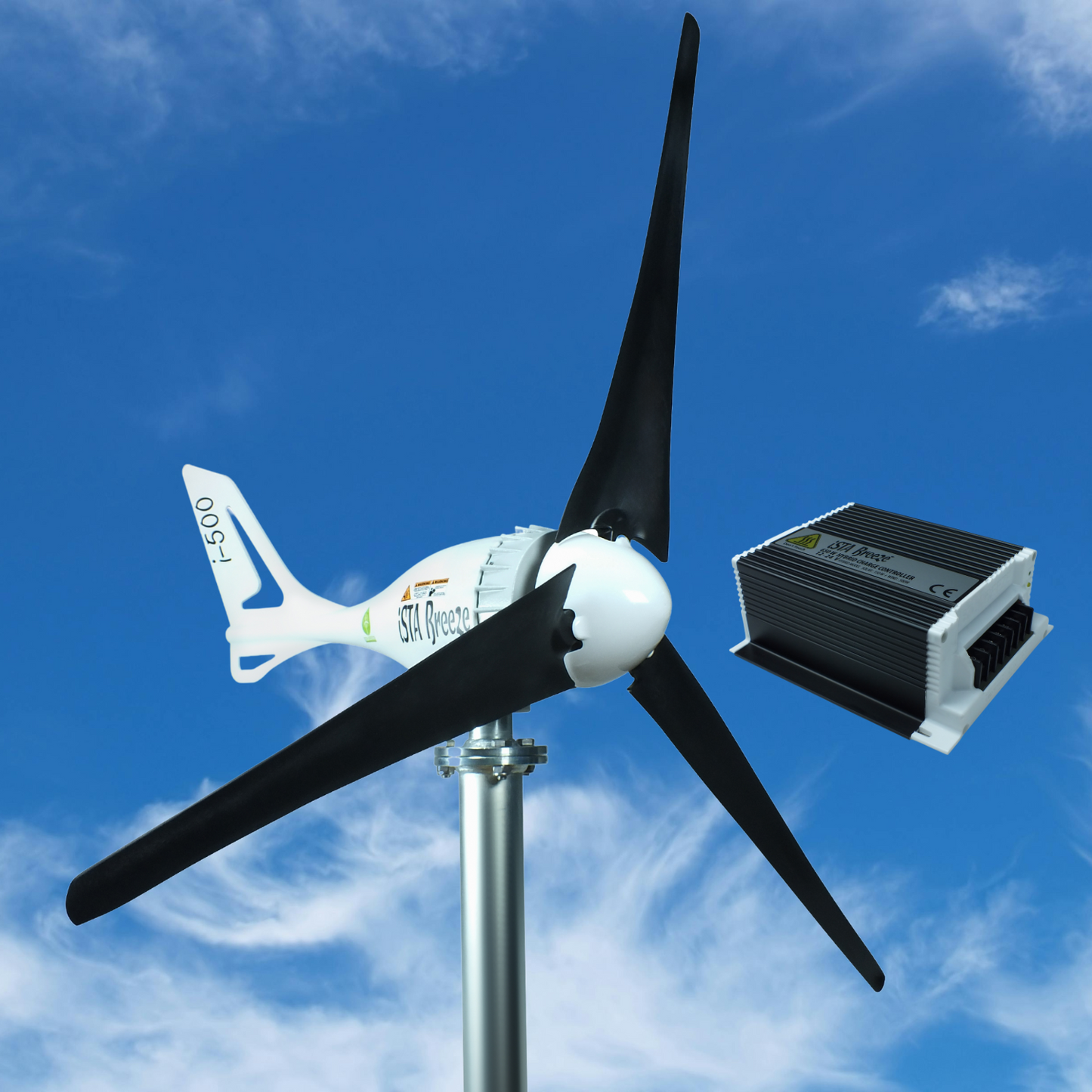

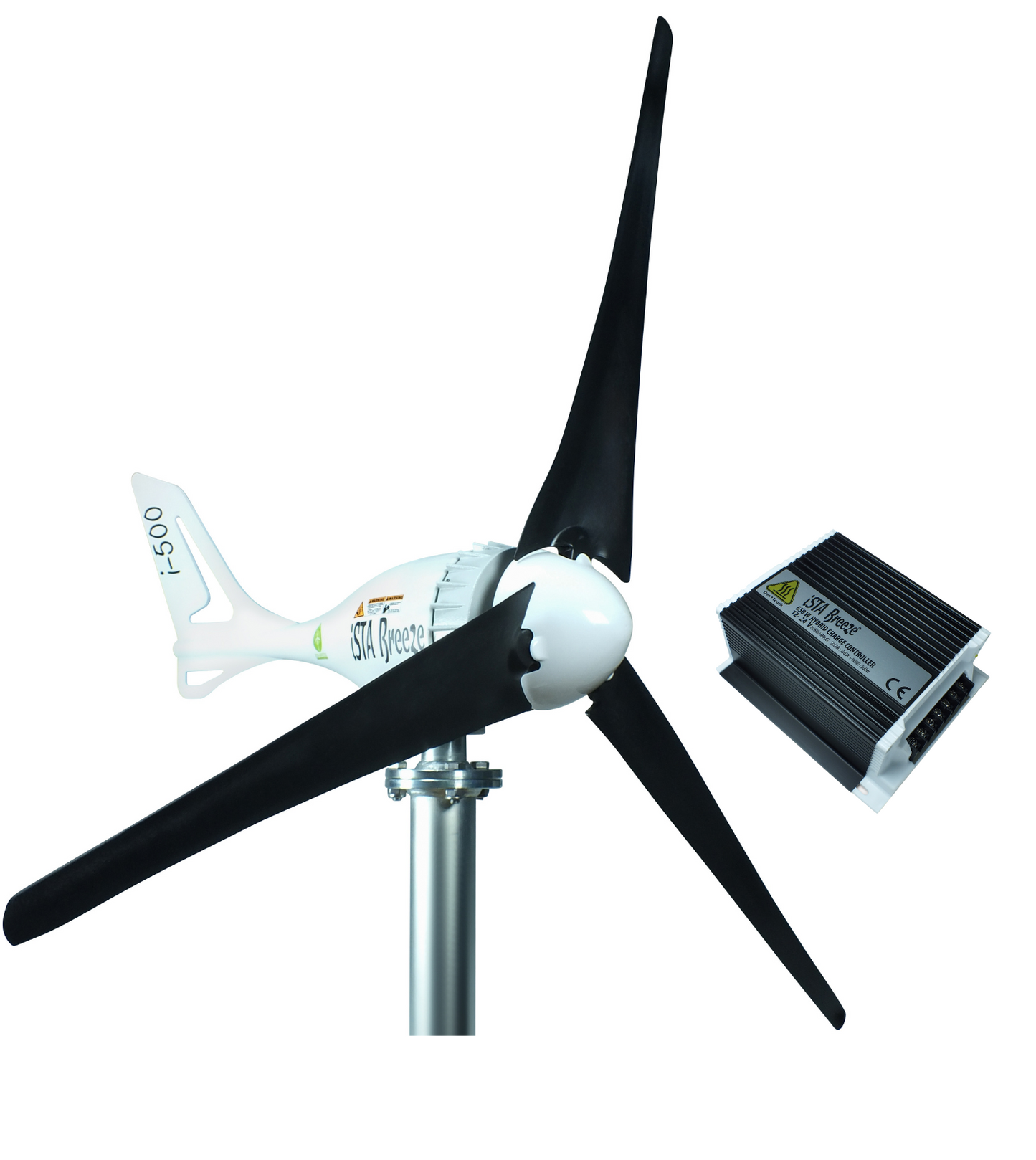

Kit i-500W 12V/24V Wind Turbine Wind Generator & Hybrid Charge Controller & Tower

Kit i-500W 12V/24V Wind Turbine Wind Generator & Hybrid Charge Controller & Tower

$600.00
$600.00
Sale Sold out
Shipping calculated at checkout.
Blade Color and Voltage (Optionally Tower Set)
You can see performance chart of wind turbine here -->

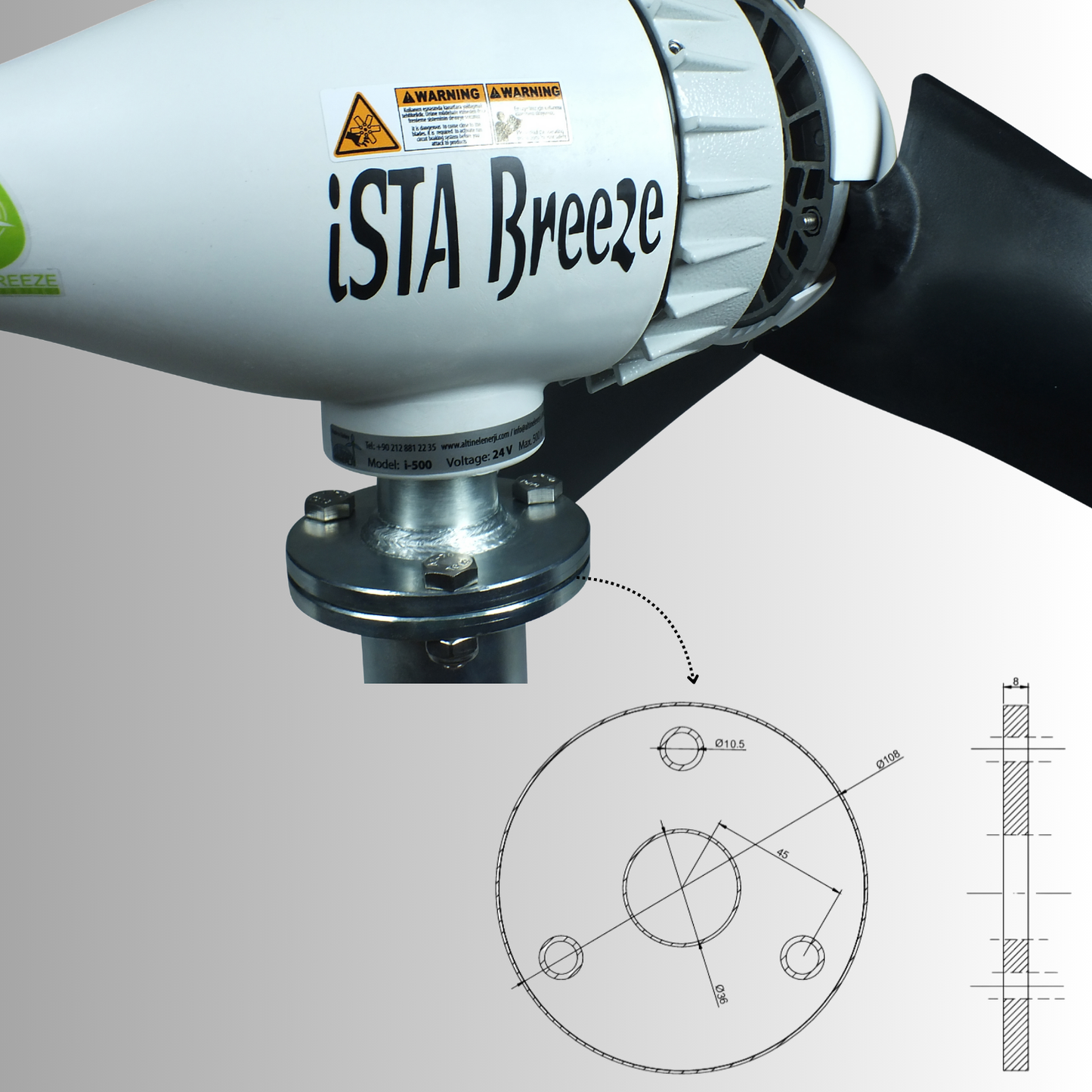

You can see mast shaft connecting flange technical drawing here -->

You can see manual book of wind turbine here -->

You can see manual book of charge controller here -->

You can see technical drawing of Mast Set here -->

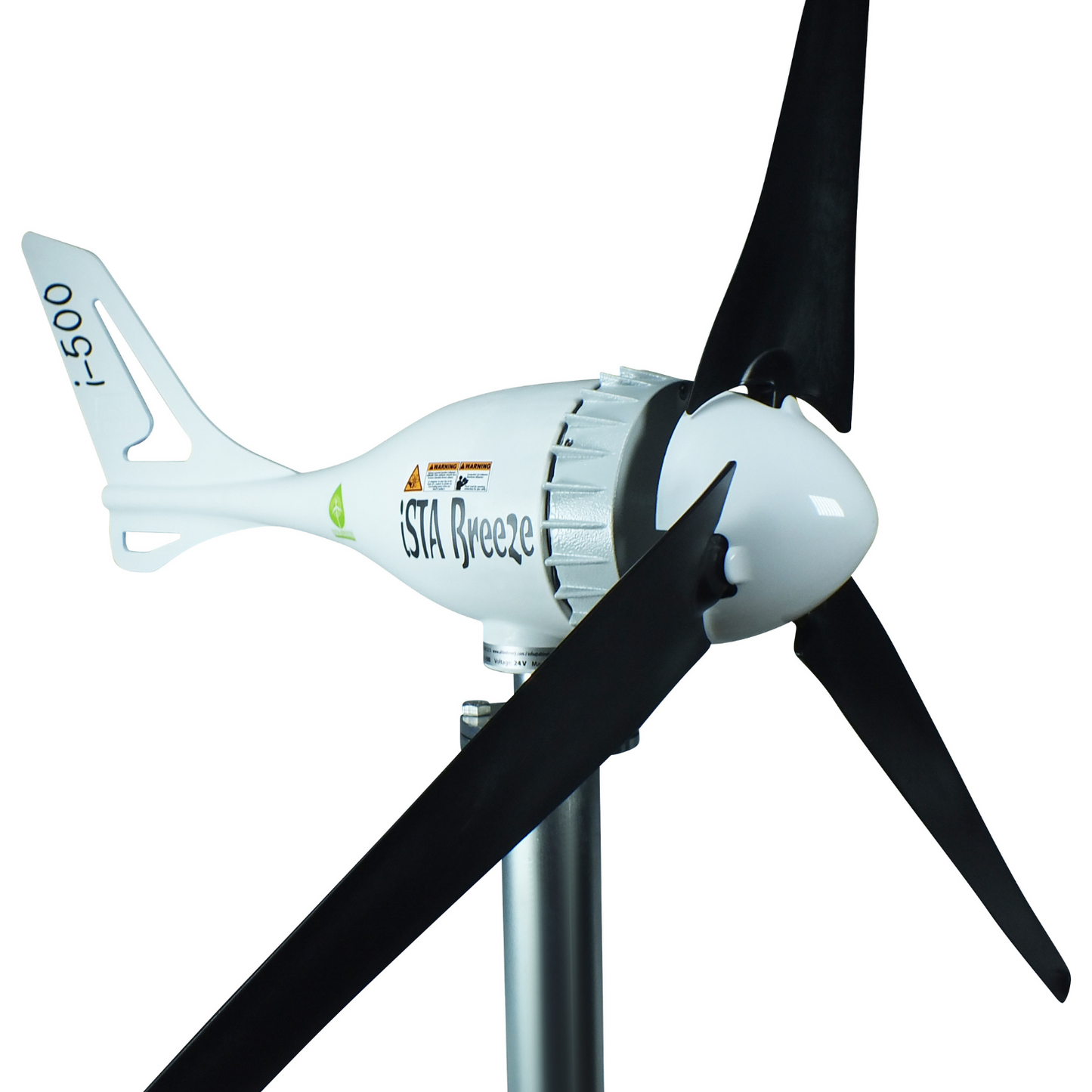

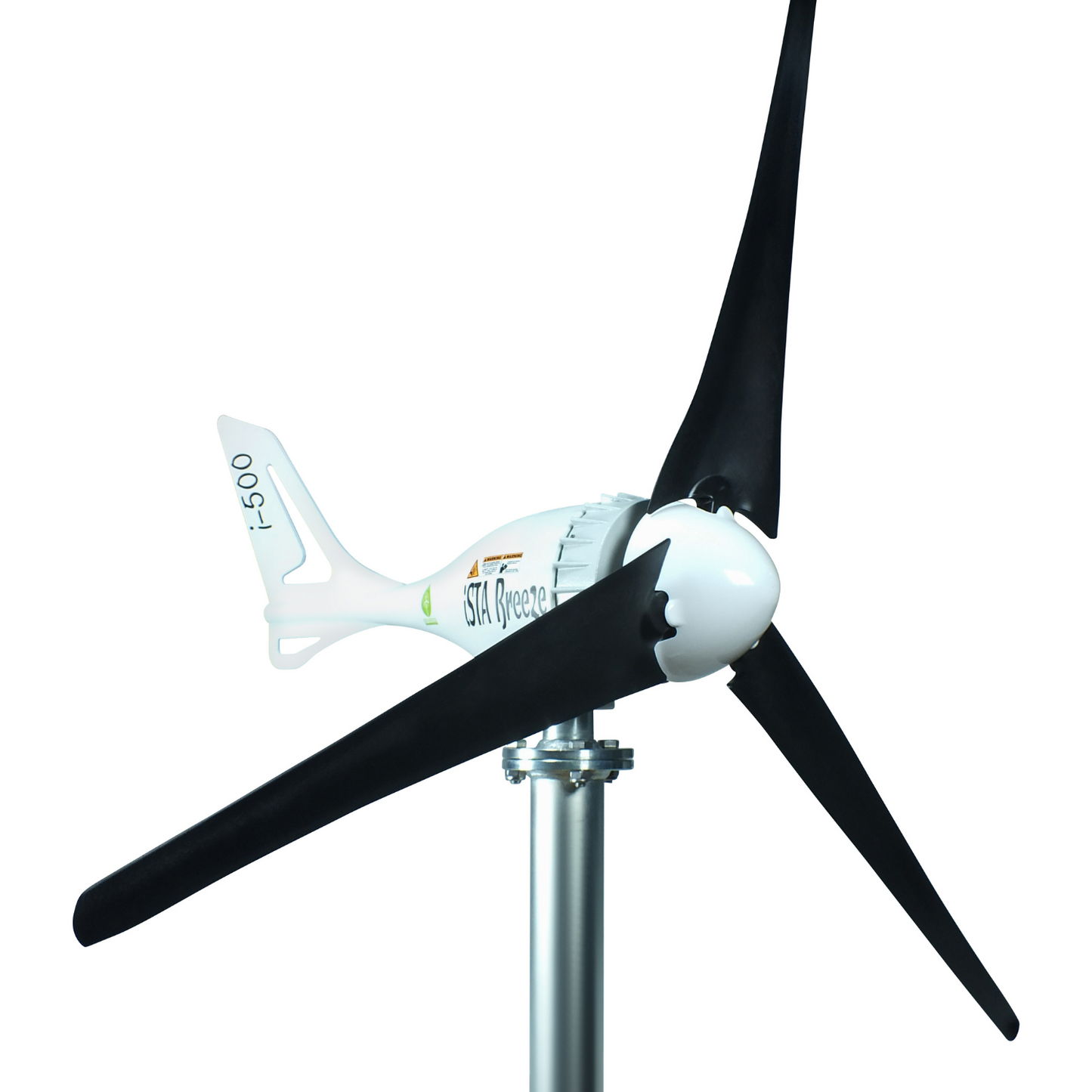

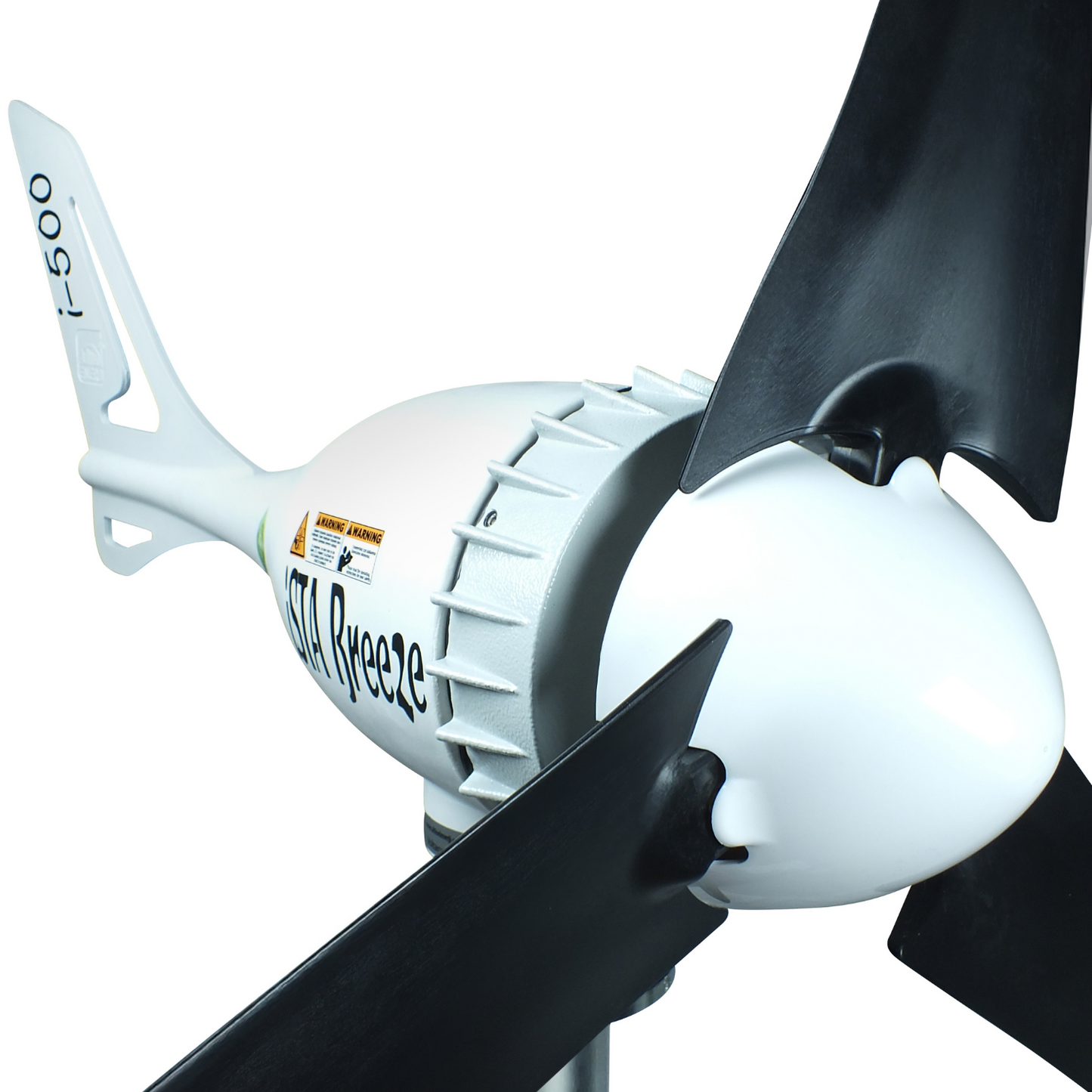

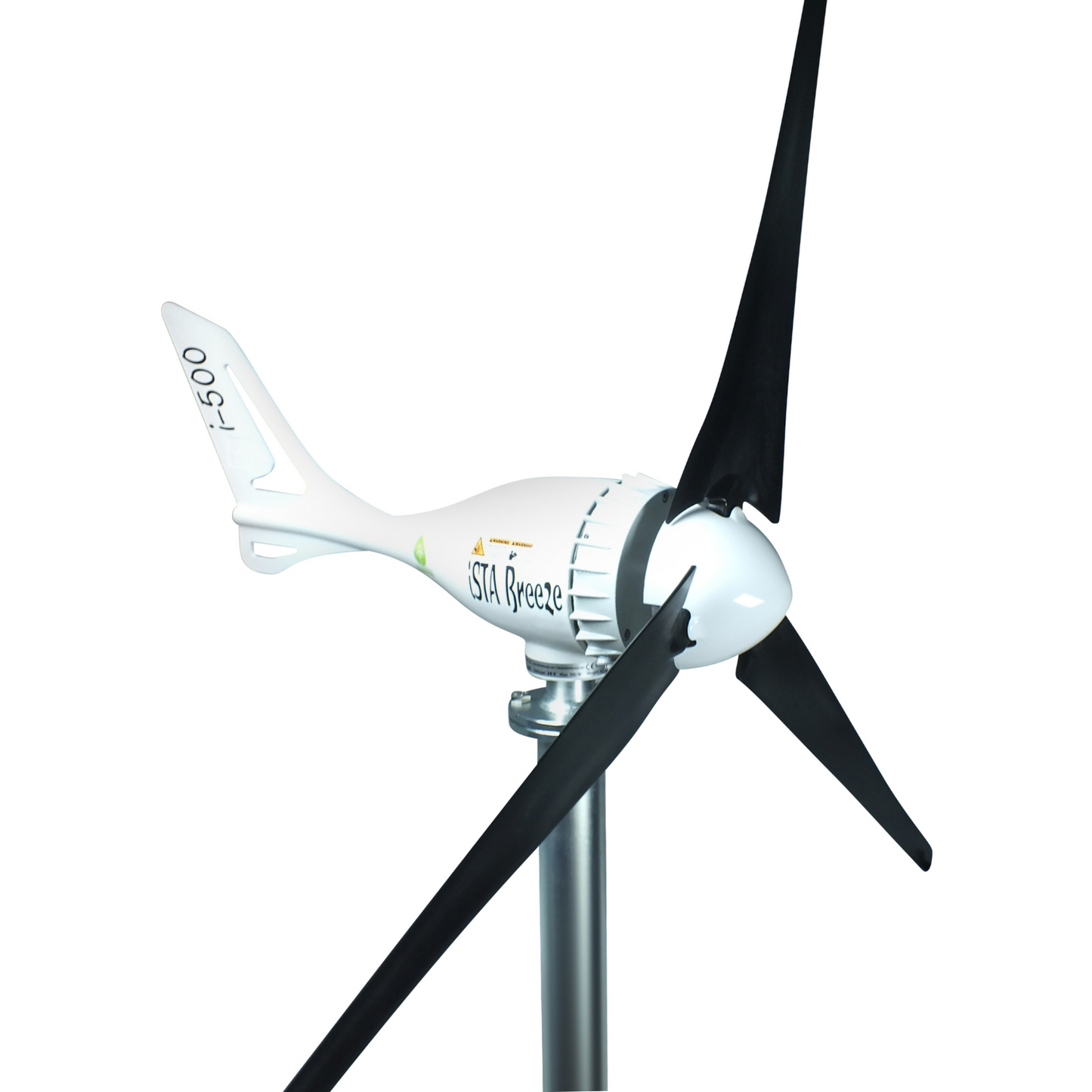

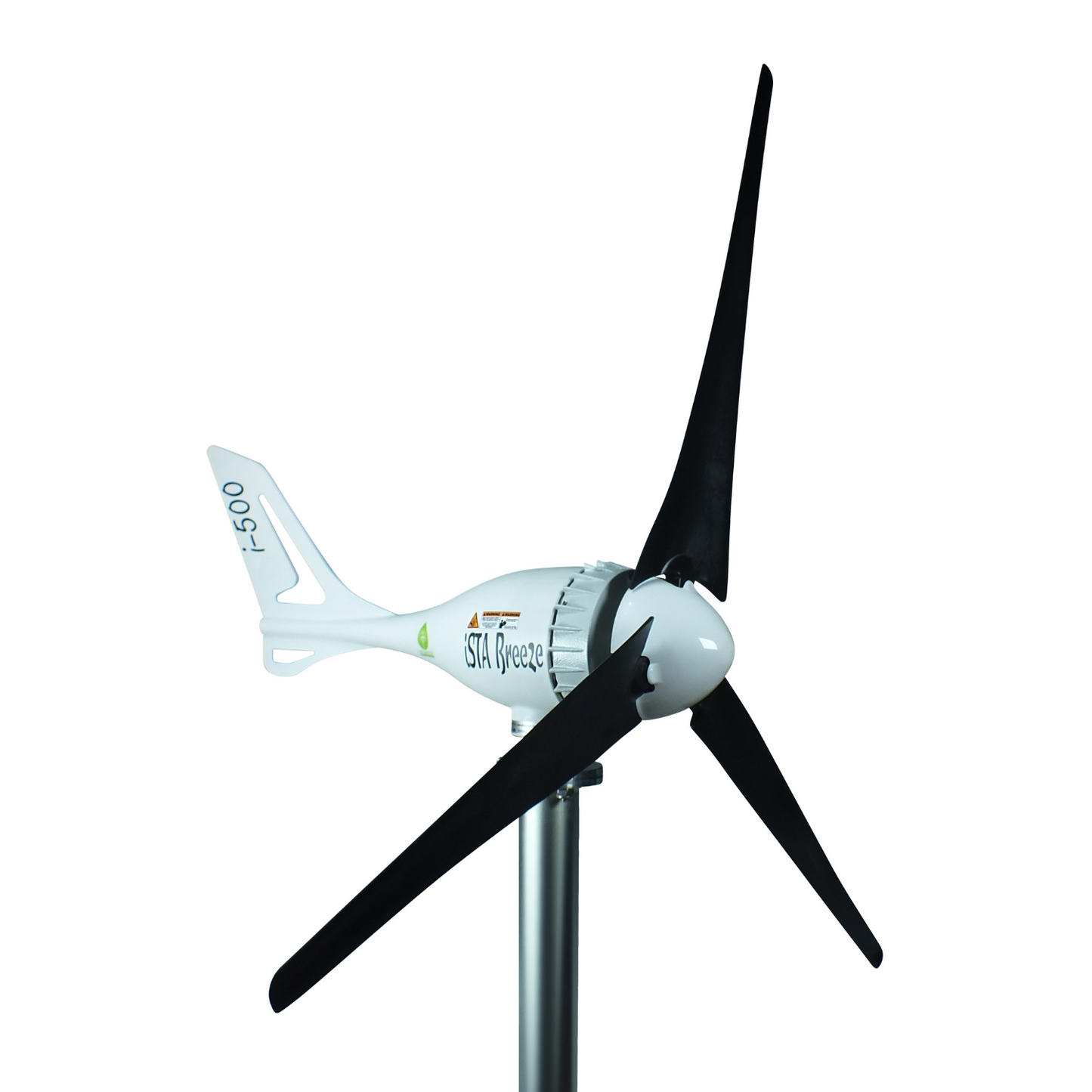

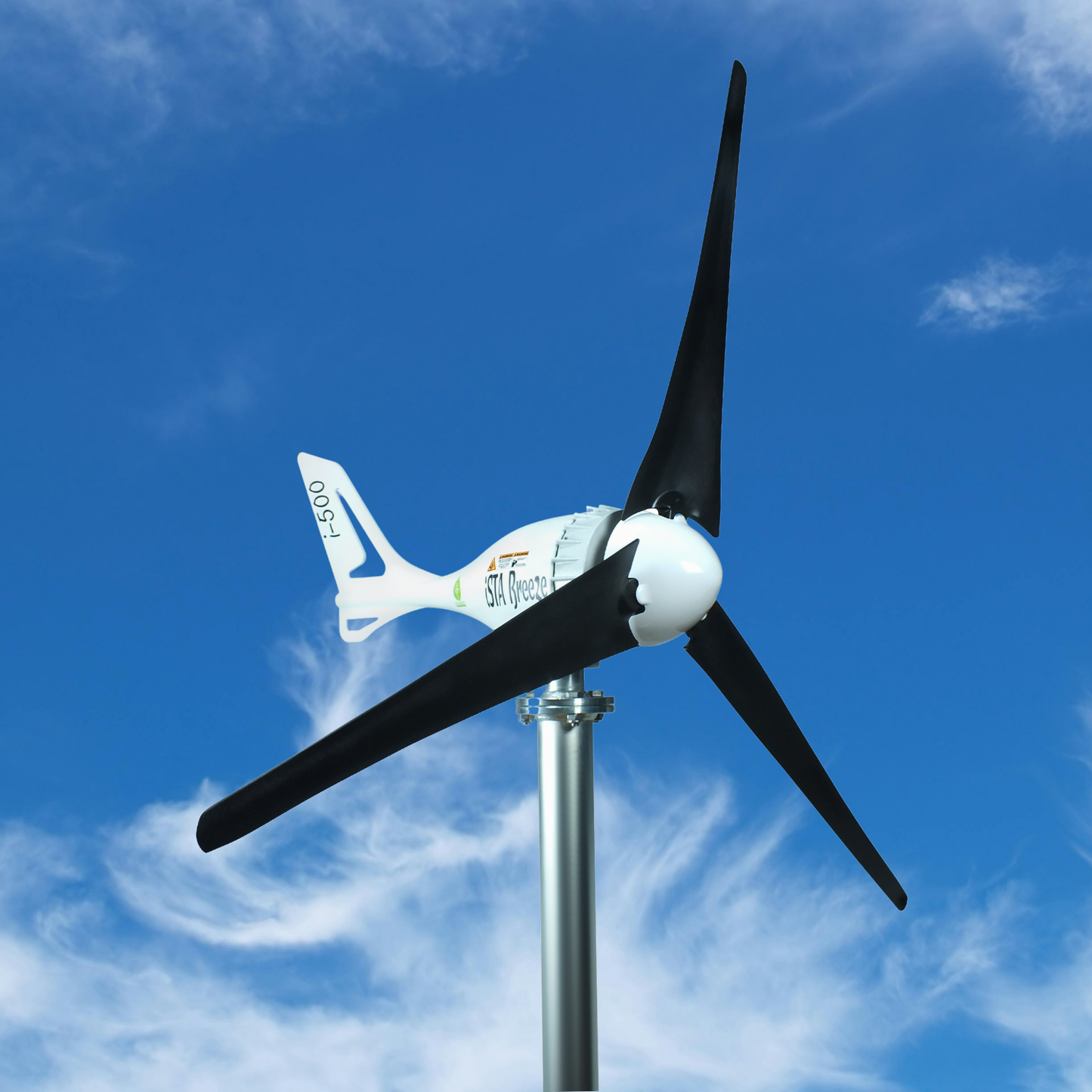

Wind Turbine i-500 Model

As a result of our ongoing improvement process, we are pleased to present our new wind generator i-500.

The newly developed IstaBreeze® i-500 is a wind generator for professional use.

The generous dimensioning of the generator components and the heat dissipation via the newly developed aluminum housing ensure a low thermal load which ensures a long service life even at high ambient temperatures.

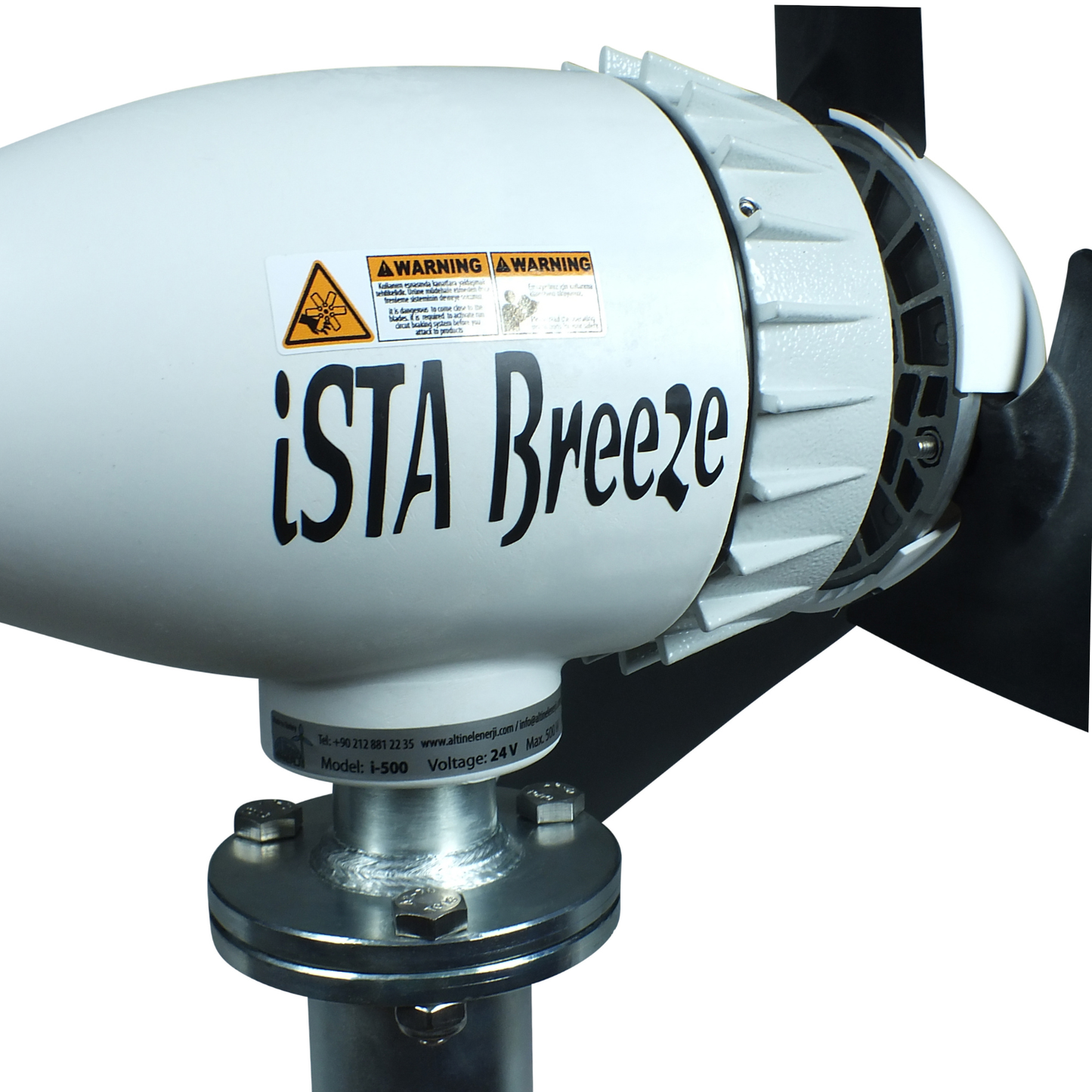

The generator shaft runs in two encapsulated and permanent lubricated ball bearing bearings made of stainless steel. At the front bearing, a special friction-free sealing disc prevents the penetration of moisture and dust.

Installation in mast tube by plug connection. Required mast tube diameter: 37 mm Required dimension!



Hybrid Charge Controller 650W

This wind / solar hybrid charger 650 from IstaBreeze® is designed for parallel use
from 3-phase generators (AC) to max. 500 watts
and 2-phase photovoltaic modules (DC) up to max. 150 watts suitable.



Available in two versions: 12 Volt or 24 Volt

· Microchip controlled

· Aluminum casing

· LEDs for display: charging / battery connected / battery full

· Control the charging process to protect the battery from overcharging

· Braking the wind generator at too high wind speeds

 This makes it possible to use wind generator power and solar module power for charging batteries.



This wind / solar hybrid charger 650 from IstaBreeze® is designed for parallel use

from 3-phase generators (AC) to max. 500 watts
and 2-phase photovoltaic modules (DC) up to max. 150 watts suitable.

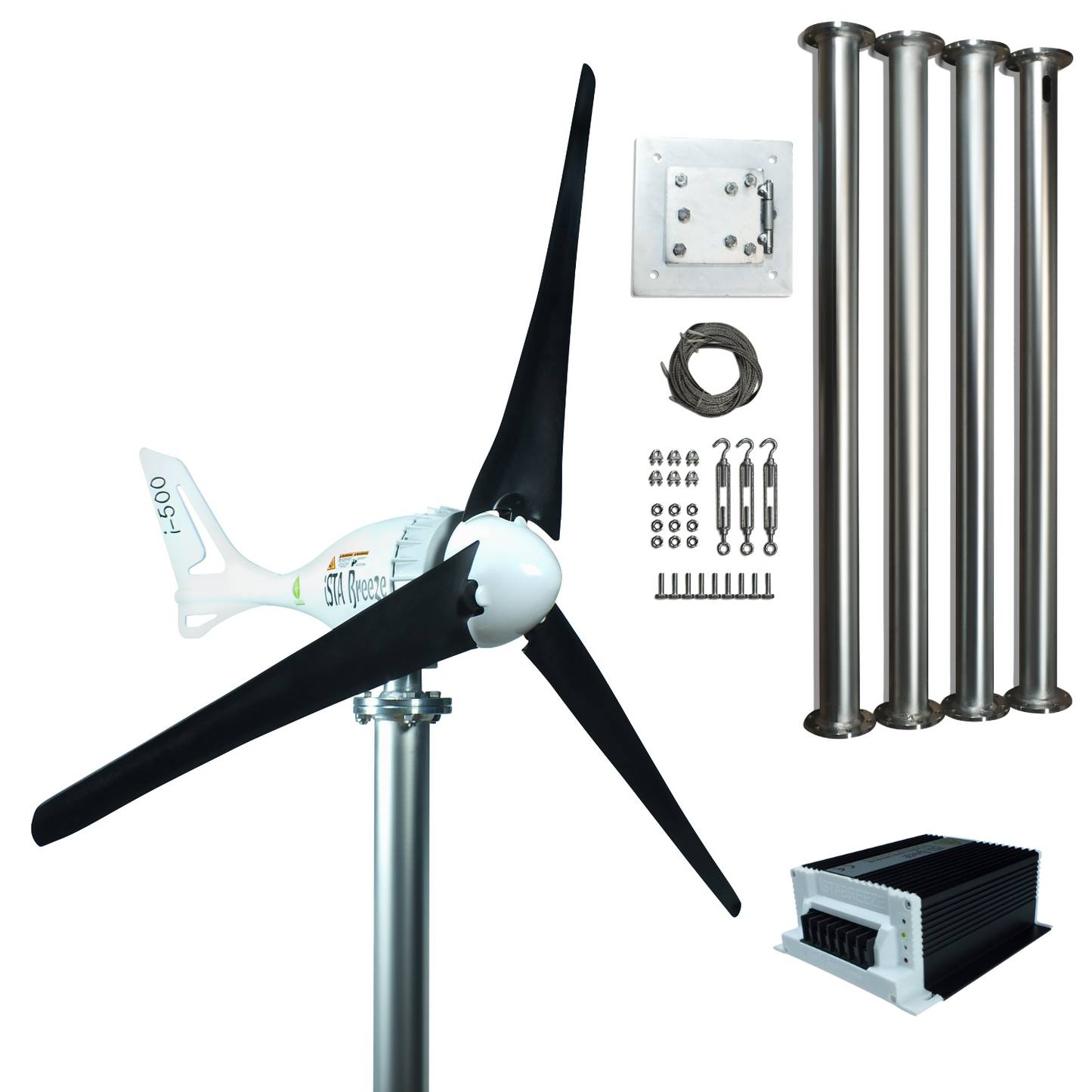

Tower Specifications:

4 meters IstaBreeze TOWER for wind generator i 500, L-500, IstaBreeze or wind generators up to 15 KG It has never been so easy to install a wind generator.

With the IstaBreeze Tower it is possible to build a wind generator in a few minutes.

The folding system simplifies the whole process. During maintenance, only a few screws are released and the tower can be folded for maintenance. Dowels and screws for the floor (concrete floor) is still needed !!


Thanks to the specially designed galvanized stainless steel tensioned pole, the installation of wind turbines is now very easy. Thanks to its hinged system, one person can easily install it and easily remove the turbine whenever they want.

The pole set consists of four one-meter pipes, a hinged lower phalanx, three steel ropes and nine tensioning devices.

It can also be extended up to a maximum of 10 meters by adding one-meter additional pipes upon request.



PRODUCT FEATURES - WIND TURBINE:



  • Current : 40A (12V) - 20A (24V)
  • Generator Body: Aluminium
  • Body Matarial: Composite
  • Maximum Power: 500 W
  • Rated Power: 420 W
  • Voltage: 12V-AC / 24V-AC
  • Package Dimensions: 70 x 30 x 20 cm (6Kg)



 WIND SPEED:

  • Initial Wind Speed: 3 m/s
  • Maximum Wind Speed: 15-16 m/s





BLADE SPECIFICATIONS:



  • Weight: 190 Gr
  • Width: 12,5 cm
  • Noise : 40 dB
  • Blade Material:Composite or Carbon
  • Blade Length:50 cm
  • Rotor Diameter:103 cm



CHARGE CONTROLLER MODEL 650 HYBRID: 12V



  • Nominal output power: 650W
  • Input voltage range: 12 ~ 16V
  • Battery: 12V
  • Max. Input wind power: 500W
  • Max. Input solar PV: 150W
  • Overcharge protection: 14,9V ± 0.5V AH
  • Recommended battery: Min. 1800W - Max. 2400W
  • Wind turbine Max. Input current: 40 A
  • Protection function: When the battery is sufficiently charged, automatic braking is activated. However, manual braking is required in stormy weather.
  • Weight: 0,6 kg



CHARGE CONTROLLER MODEL 650 HYBRID: 24V



  • Nominal output power: 650W
  • Input voltage range: 24 ~ 28V
  • Battery: 24v
  • Max. Input wind power: 500W
  • Max. Input solar PV: 150W
  • Overcharge protection: 29V ± 0.5V AH
  • Recommended battery: Min. 1800W - Max. 2400W
  • Wind turbine Max. Input current: 20 A
  • Protection function: When the battery is sufficiently charged, automatic braking is activated. However, manual braking is required in stormy weather.
  • Size: 140 x 120 x60 mm
  • Weight: 0,6 kg

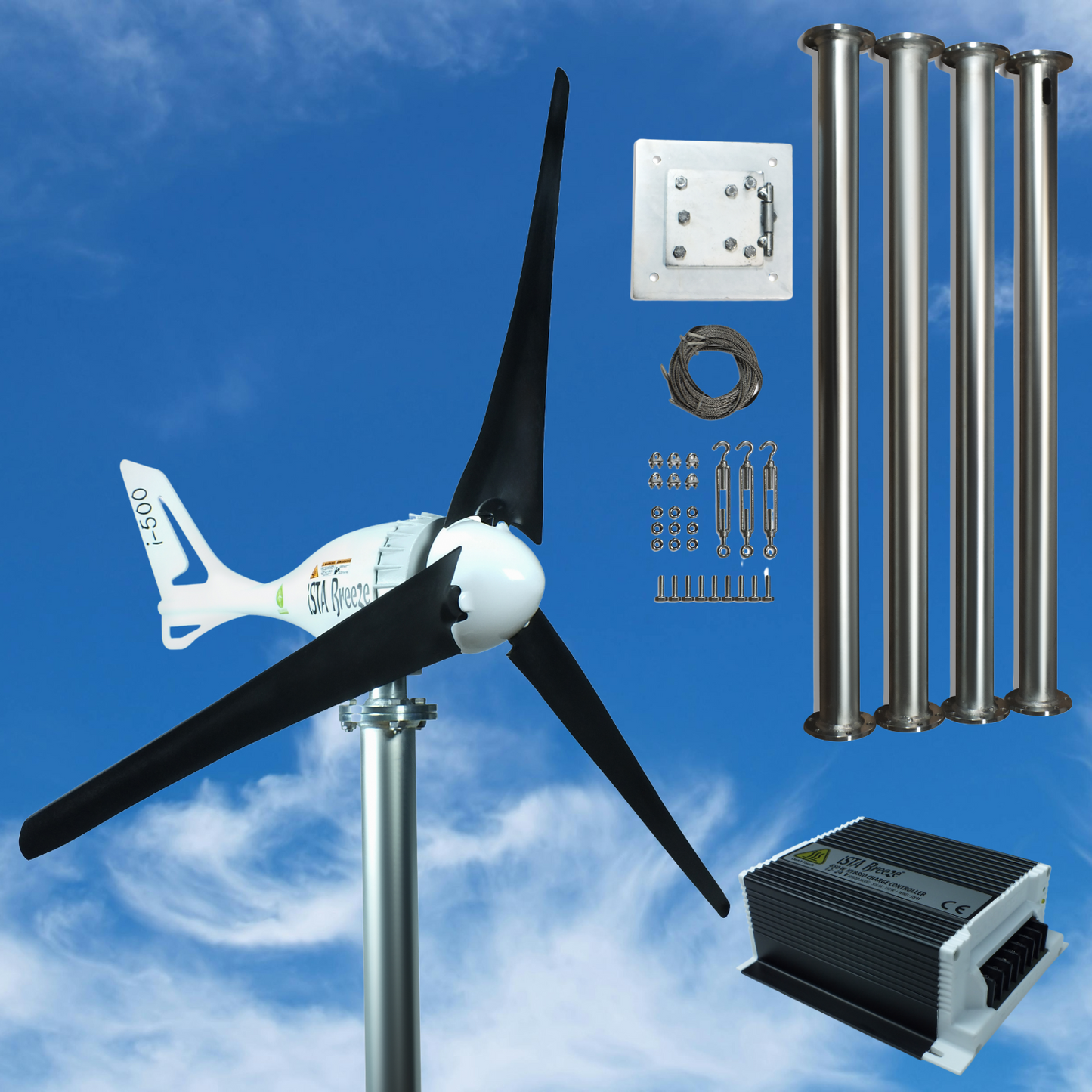

TOWER SET:



  • Fasteners : 3 Rope Tensioner and Bolt Set
  • Steel Rope: 3 X 5m
  • Mast: 4 Galvanized Poles
  • Outer Diameter:42 mm
  • Inner Diameter: 37 mm
  • Plate: 1 piece Galvanized hinged plate
  • Length: 4 m
  • Mast Wall Thickness: 3 mm



NECESSARY EQUIPMENTS:



  • Battery: Suitable battery group: Min 1800W - Max 2400W

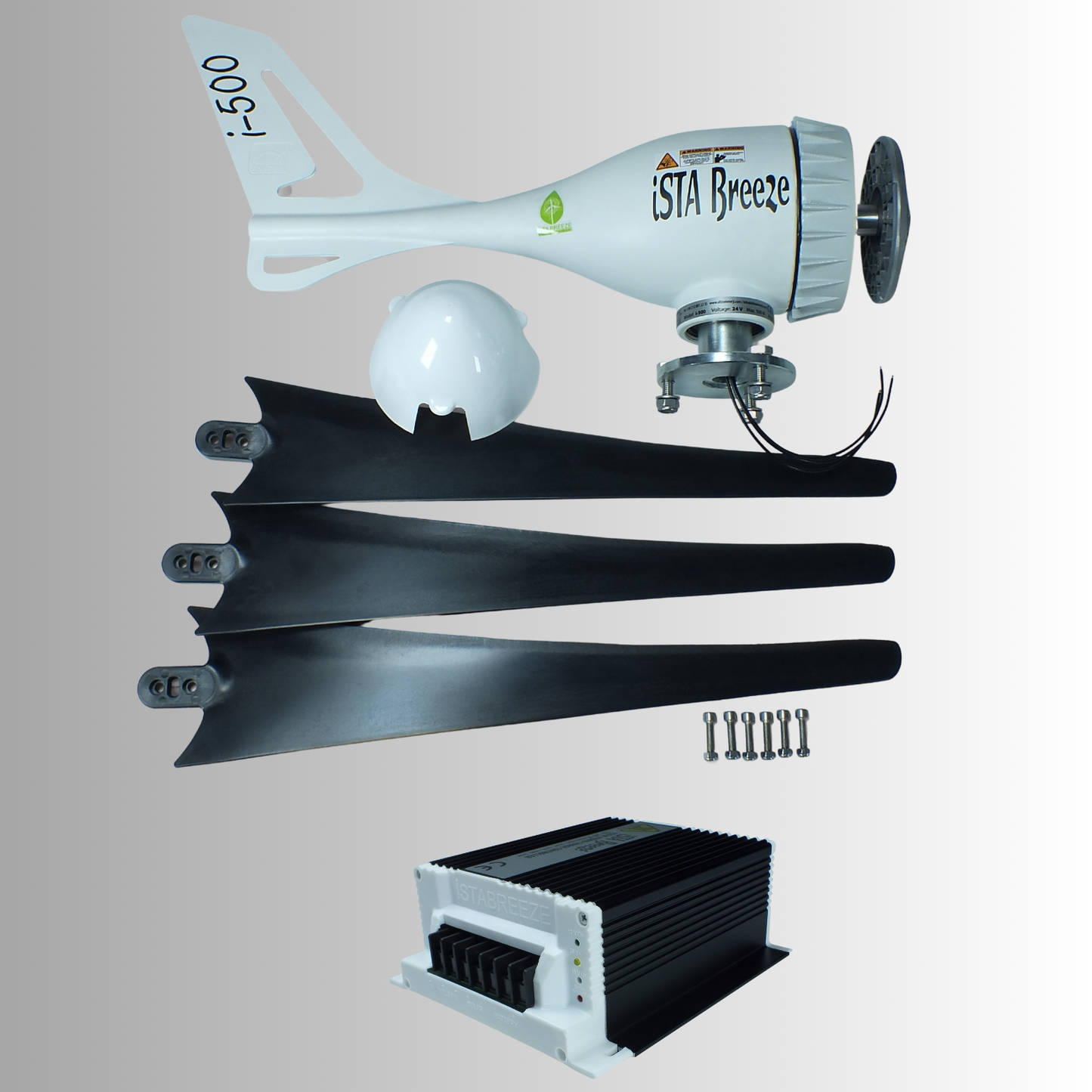

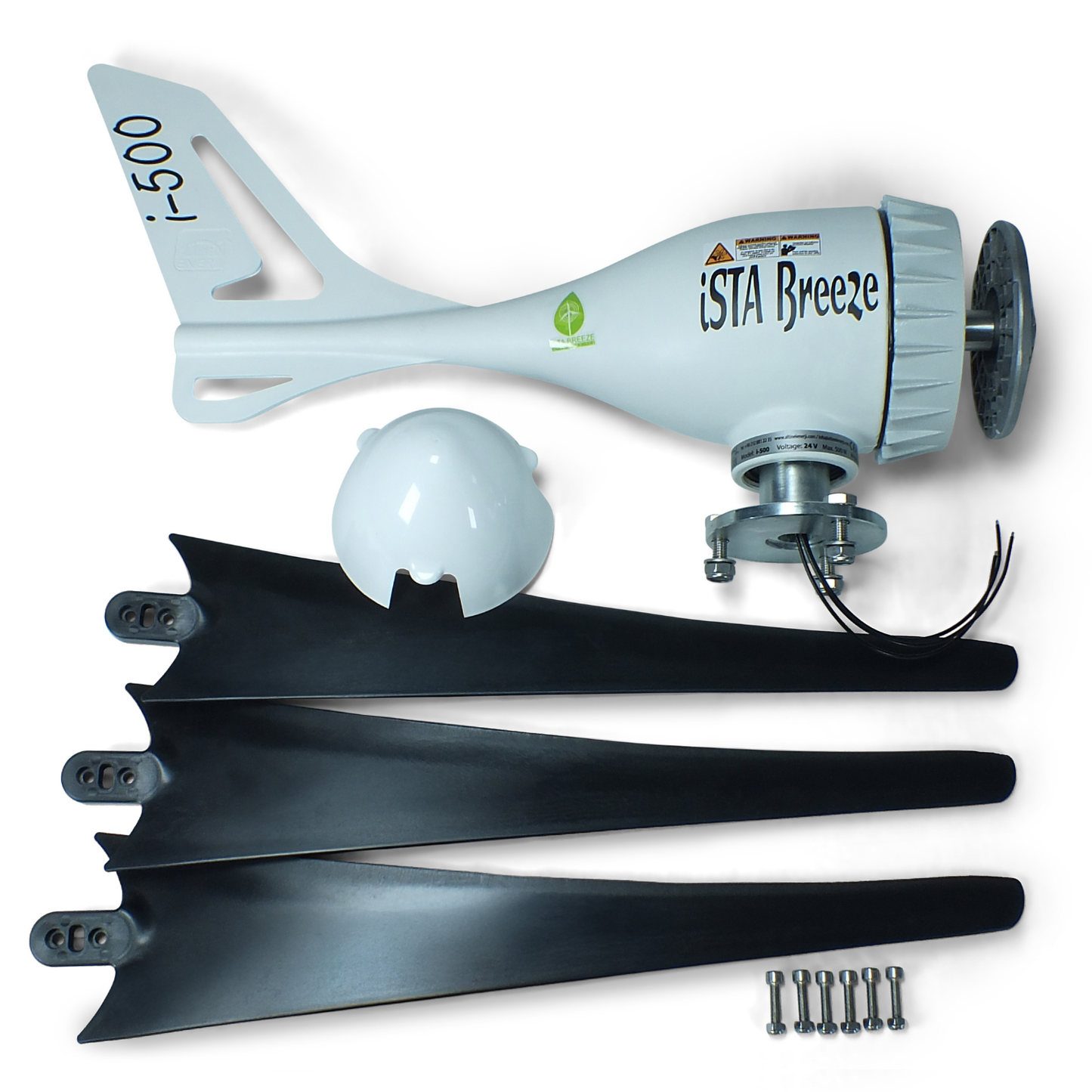

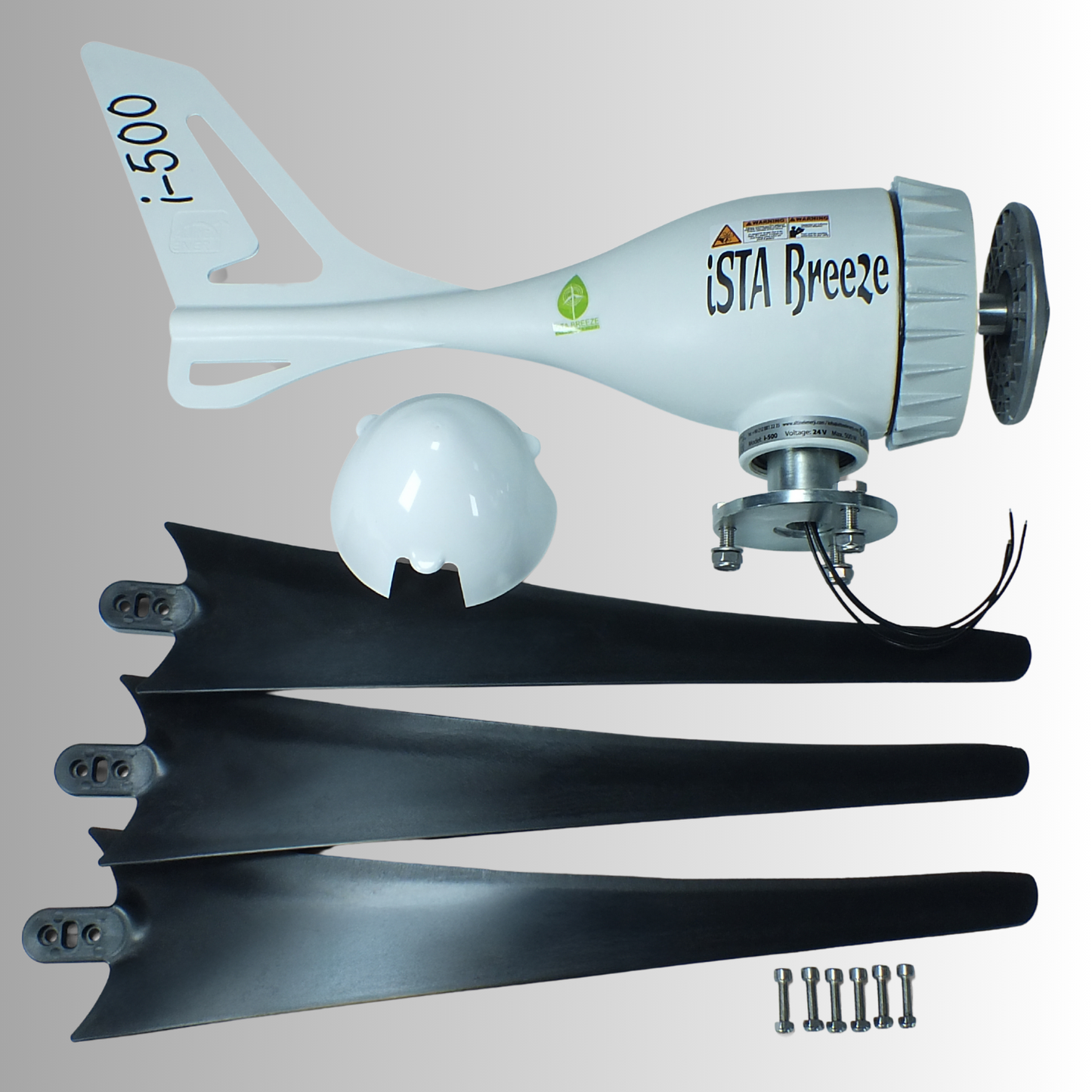

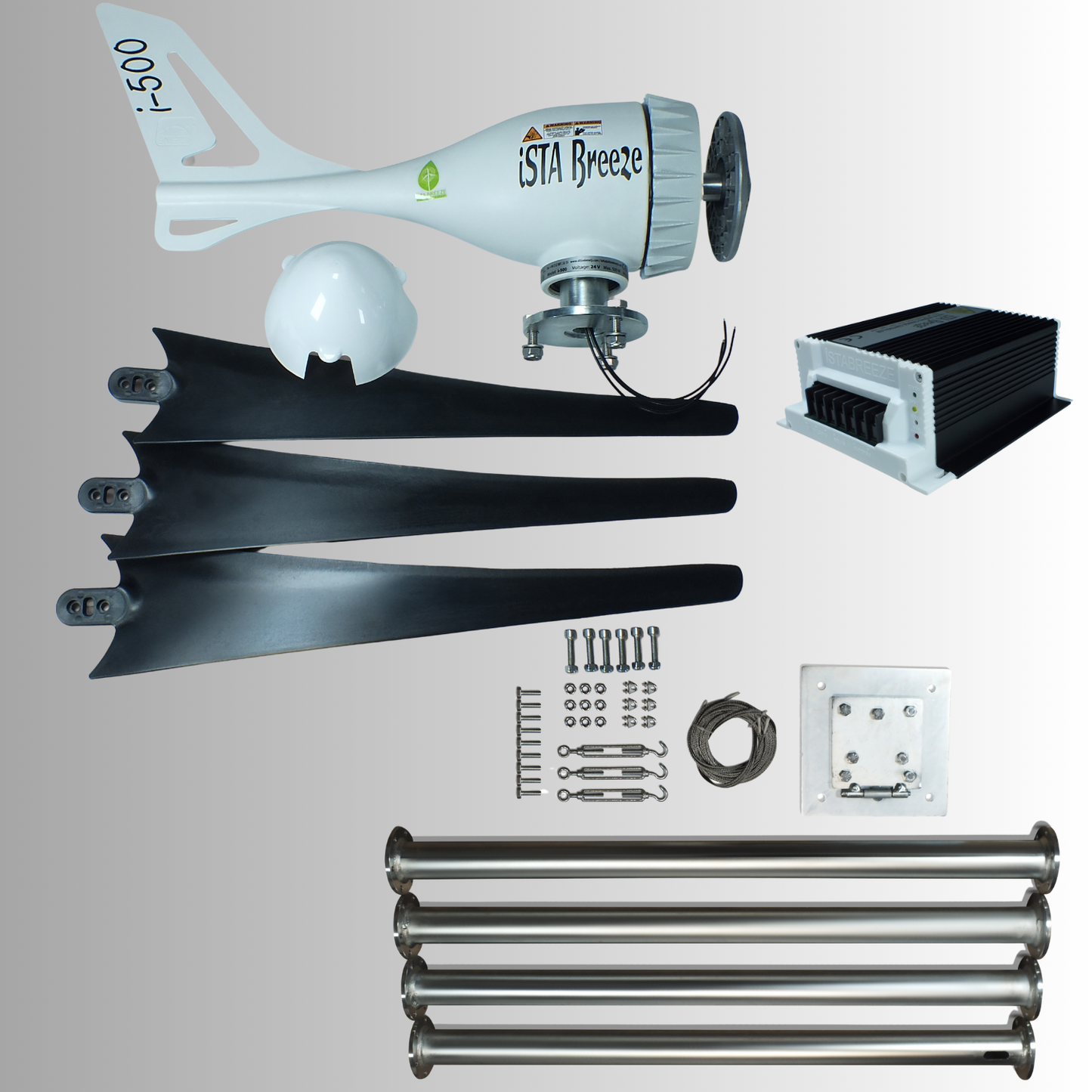

PACKAGE CONTENT:



  • Connection Screws: 1 Set
  • Nose: 1 Pcs
  • Flange: 1 Pcs
  • Body: 1 Pcs
  • Blades: 3 Pcs
  • Manual Book: 1 Pcs
  • Charge Controller: 1 Pcs
  • Tower: Optionally
