Vibration Damper

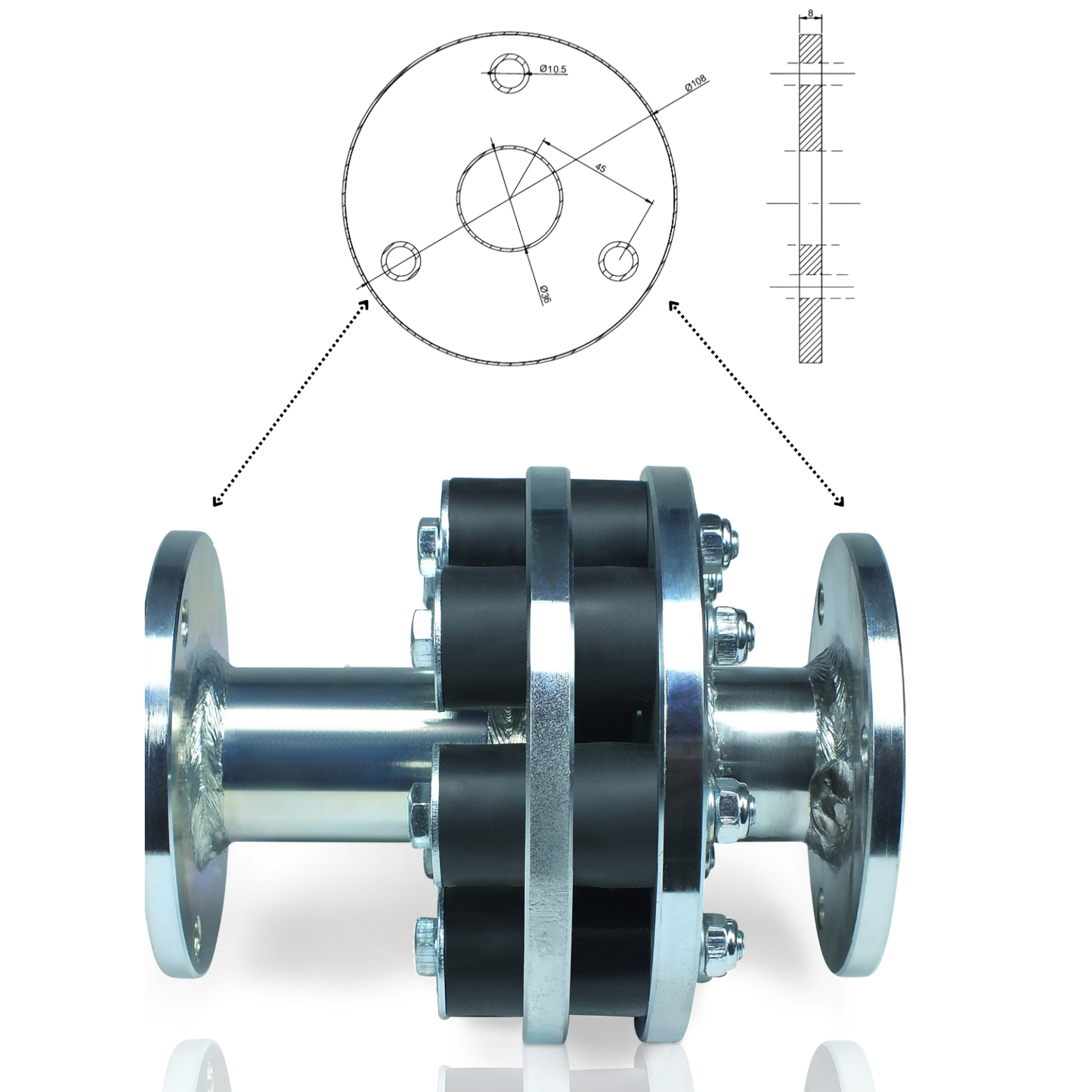

You can see technical drawing of vibration damper here -->

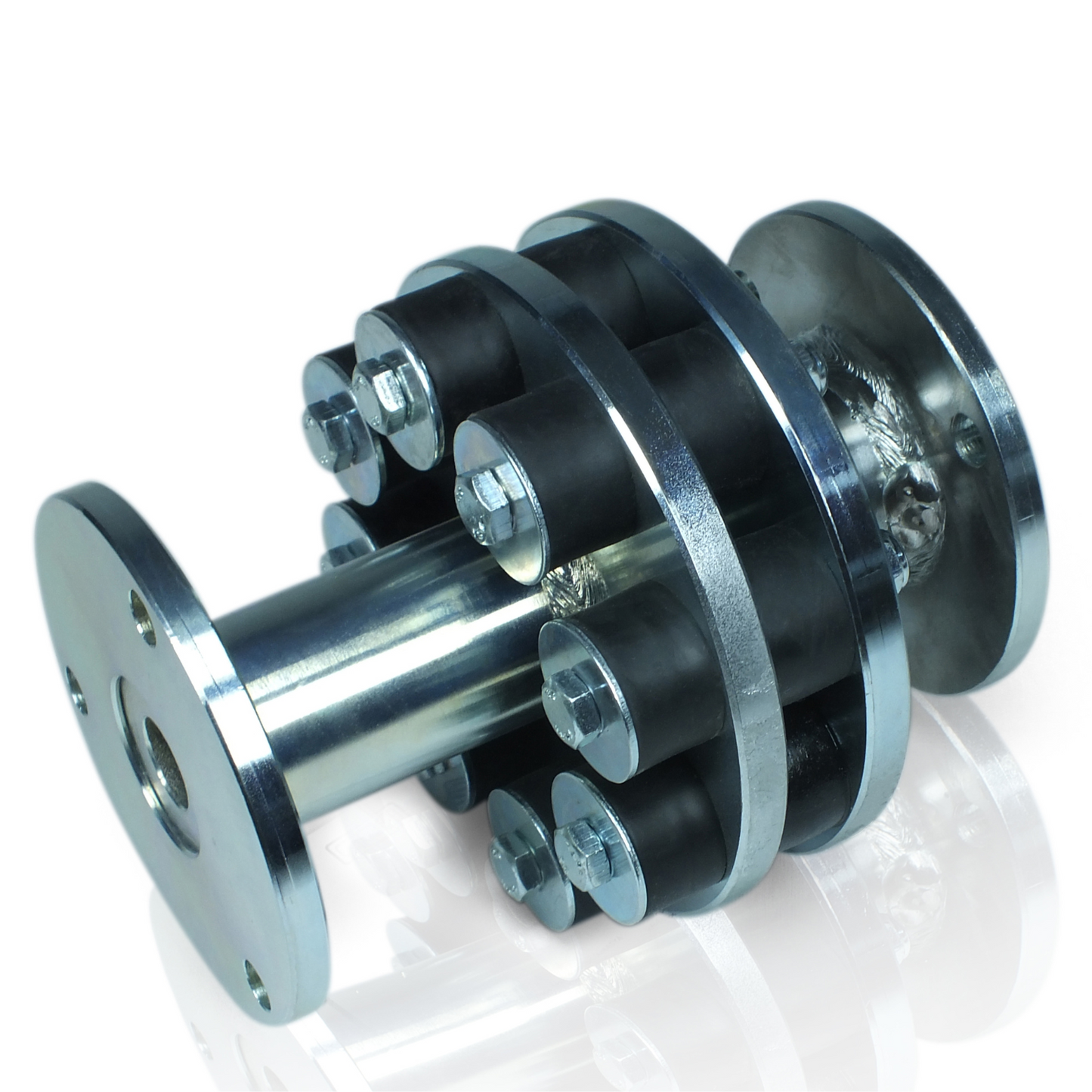

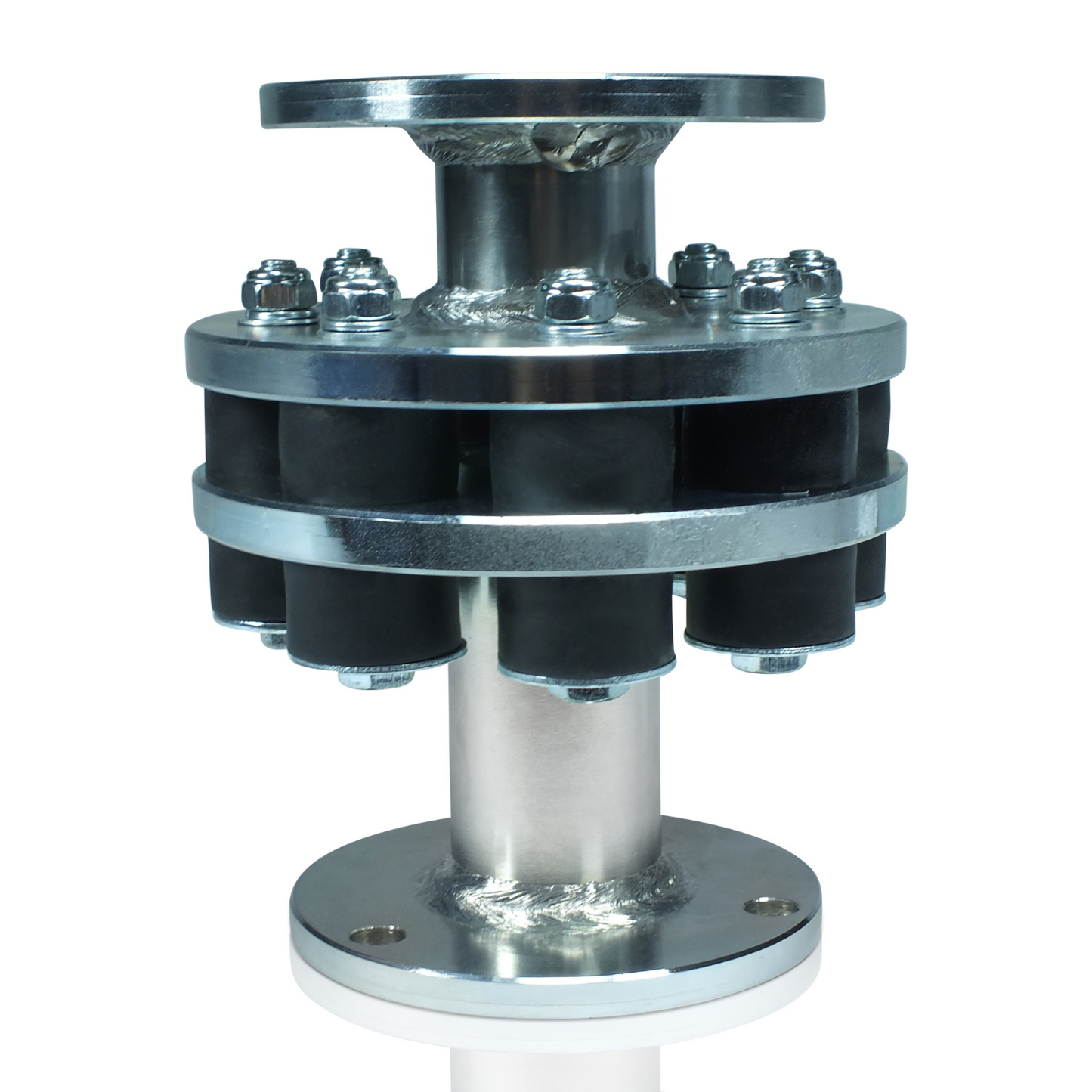

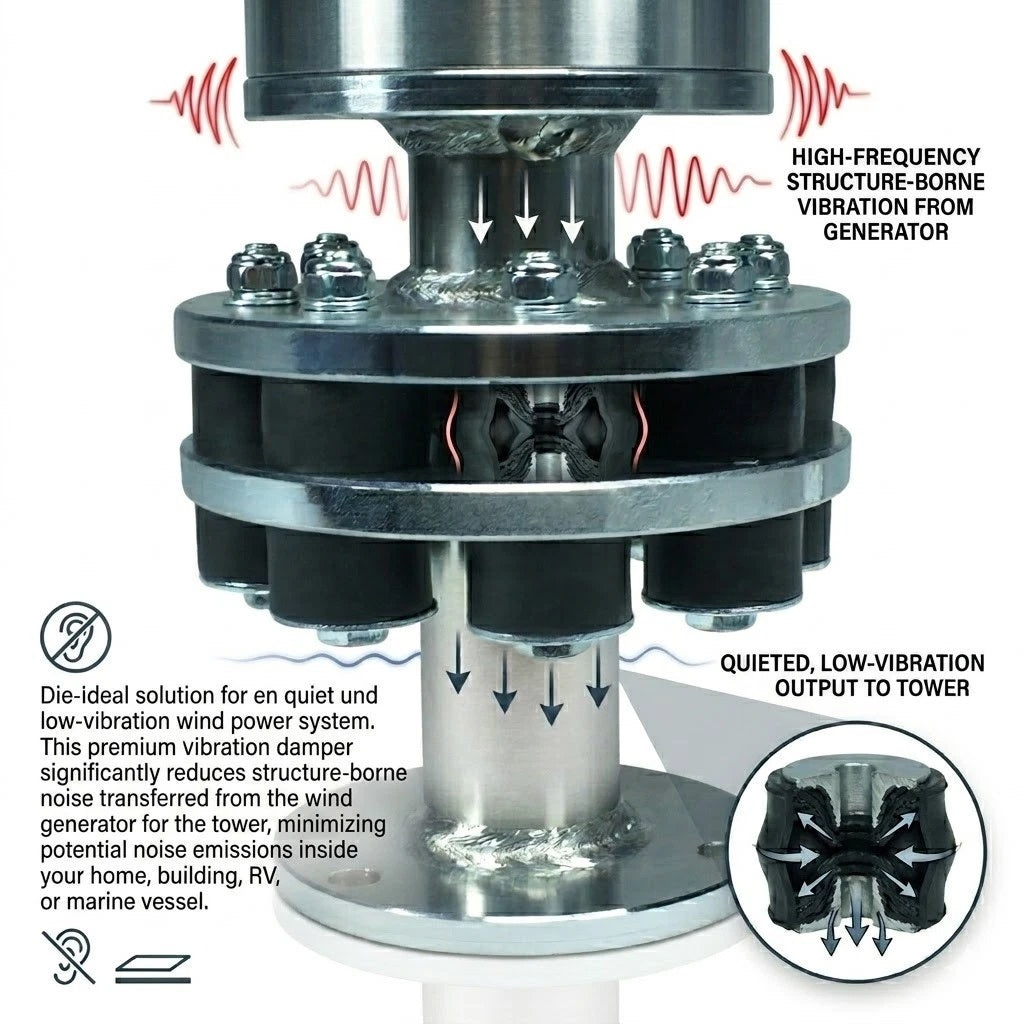

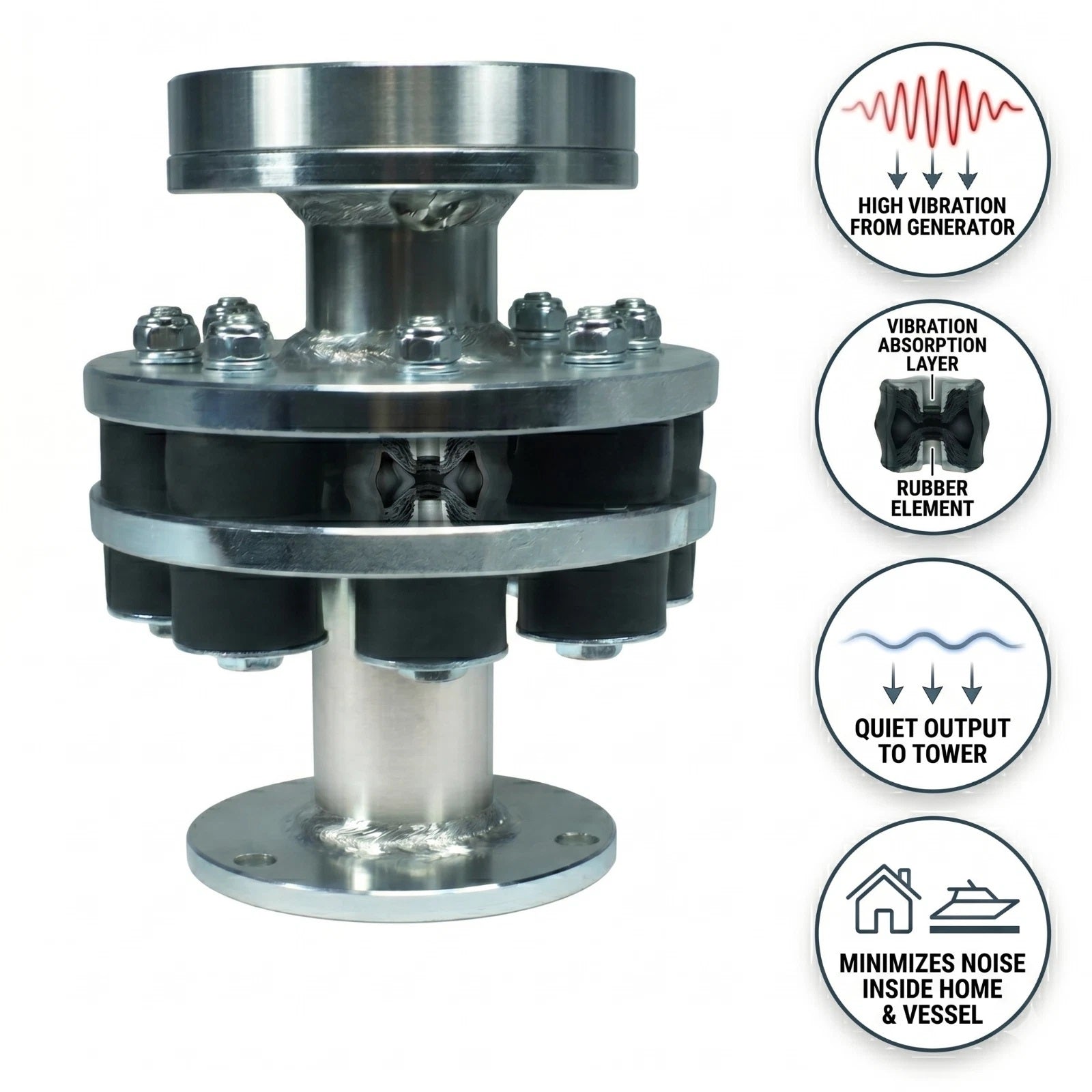

The vibration damper for the wind generators i-500- L-500 and i-700 to i-2000 reduces the transmission of structure-borne vibration from the wind generator into the mast and thus into the house. Retrofitting is very easy, since the structure-borne vibration absorber has the same dimensions as the wind generator, it only has to be inserted in between and screwed to the mast and the wind generator with suitable screws.

The vibration damper is compatible with our original IstaBreeze® masts 15kg and 40kg.

• Total height: 200mm

• Outer Diameter :50 mm

• Inner Diameter :37 mm

• Pole Holder / External Dimension :37 mm

• Connection Equipment :Stored in rubber (stainless steel V2A)

• Weight: 3,7 Kg
